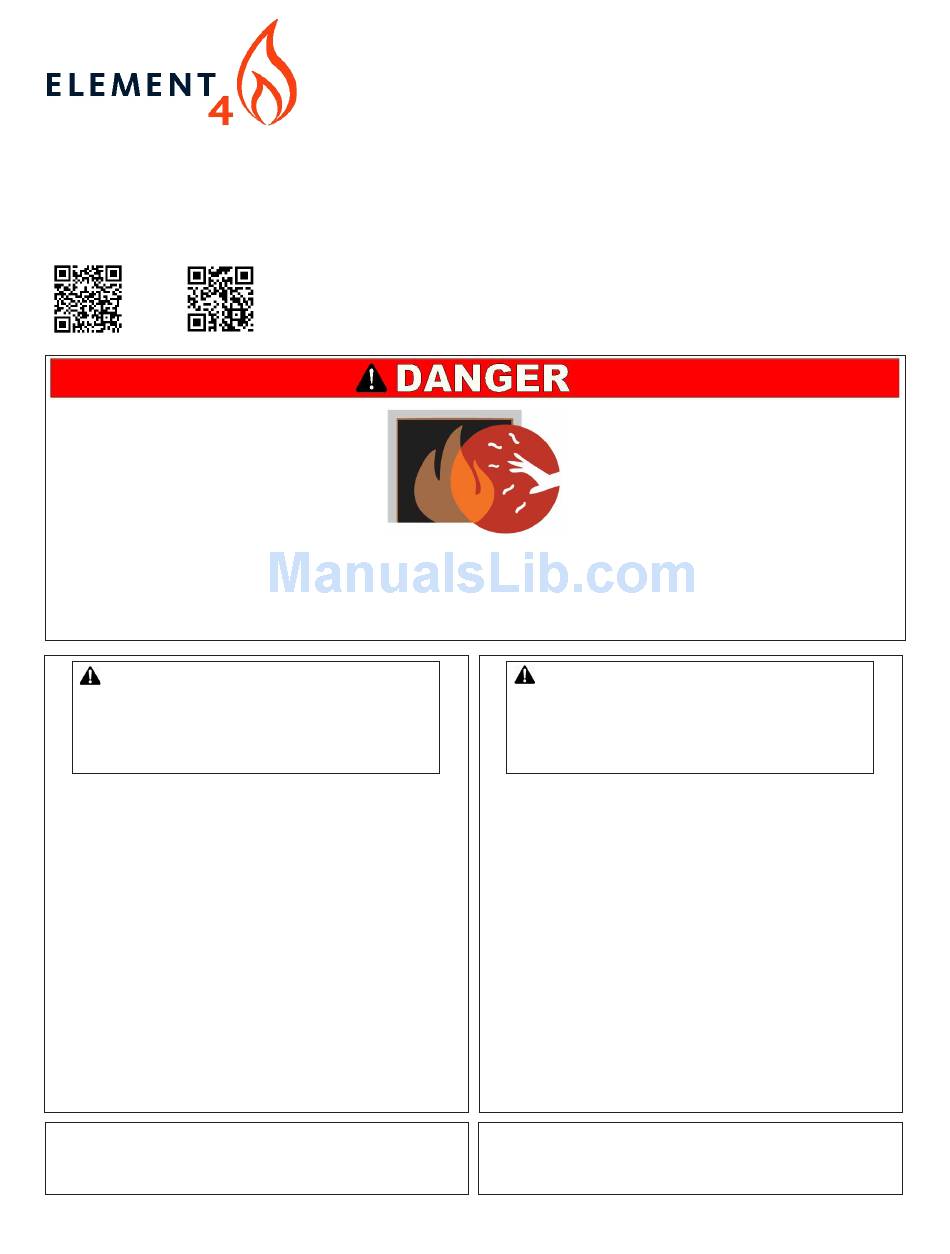

HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Element4 Gas Fireplaces
Installation Manual
Lucius 140 Room Divider
Lucius 140 Tunnel
Lucius 140 1/3
Lucius 140 2/3

Direct Vent

Gas Fireplaces
Une surface vitrée chaude
peut causer des brûlures.
Laisser refroidir la surface
vitrée avant d'y toucher.
Ne permettez jamais á un enfant
de toucher la surface vitrée.
AVERTISSEMENT:
INCENDIE OU D'EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
- Ne pas entreposer ni utilizer d'essence ni d'autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d'allumer d'appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l'entretien doivent être effectués par un
installateur qualifié, une agence de service ou le fournisseur
de gaz.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
1
October 2, 2015
EuropeanHome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lucius 140 Room Divider and is the answer not in the manual?

Questions and answers

Summary of Contents for Element4 Lucius 140 Room Divider

  • Page 1: Direct Vent

    Installation Manual Lucius 140 Room Divider Lucius 140 Tunnel Lucius 140 1/3 Lucius 140 2/3 Product Lucius 140 Information Promotional Video Direct Vent Gas Fireplaces HOT GLASS WILL Une surface vitrée chaude CAUSE BURNS. peut causer des brûlures. DO NOT TOUCH GLASS Laisser refroidir la surface UNTIL COOLED.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information User Information Specifications and Dimensions Lucius 140 Room Divider Lucius 140 Tunnel Lucius 140 1/3 Lucius 140 2/3 Parts of the Fireplace Clearances Gas and Electric Venting Horizontal Vertical Restrictors Enclosing the Fireplace Non- combustible Materials List...
  • Page 3: Important Safety Information

    36” of the fireplace glass. SAVE THESE INSTRUCTIONS Make yourself fully aware of all the following instructions and the many features of the Element4 direct vent gas fireplace appliance. INSTALLER: Leave this manual with the appliance. OWNER: Keep this manual for future reference.
  • Page 4 Canada, consult with the local authority having jurisdiction for gas product installations to determine their The glass must only be removed by a qualified person. specific requirements for high altitude installations. Gloves should be worn when removing the glass. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 5 For convenience, the inches are rounded to the nearest 1/16” when converted. If greater accuracy is DO NOT USE abrasive cleaners on the panels. DO NOT required, use the metric dimensions. ATTEMPT to clean the glass panels when they are hot. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 6: User Information

    The Element4 fireplaces are direct vent fireplaces and, as such, the intake and exhaust are both handled through the vent pipe. The fireplace also provides convection air to your room. Figure 1 (Lucius 140 Room Divider shown) shows one of the unique features of the Element4 fireplaces - its use of warm, convection air flow.
  • Page 7: Specifications And Dimensions

    SPECIFICATIONS and DIMENSIONS APPLIANCE RATINGS Lucius 140 Room Divider Lucius 140 Tunnel Model Lucius 140 1/3 Lucius 140 2/3 Natural Propane Input Maximum Btu/hr 38,200 34,100 Input Minimum Btu/hr 13,650 11,950 in. w.c. Maximum Supply Pressure 1.74 2.74 in. w.c.
  • Page 8 Mantel / Linteau : 2” (5cm) Figure 3 Typical Rating Label A typical rating label is shown in Figure 3. It is attached to every Element4 fireplace and contains important certification information. It must not be removed from the fireplace.
  • Page 9 LUCIUS 140 SPECIFICATIONS and DIMENSIONS ROOM DIVIDER Letter Inches Millimeters 77/8 143/8 3213/16 5411/16 1389 607/16 1534 5515/16 1420 5711/16 1464 147/16 213/16 165/8 2411/16 277/16 71/16 LUCIUS 140 ROOM DIVIDER Element4 Gas Fireplaces EuropeanHome.com...
  • Page 10 SPECIFICATIONS and DIMENSIONS LUCIUS 140 TUNNEL Letter Inches Millimeters 77/8 143/8 143/8 597/16 1509 551/2 1409 597/16 1509 551/2 1409 213/16 3213/16 5315/16 1370 613/16 1554 371/2 165/8 2411/16 277/16 71/8 LUCIUS 140 TUNNEL Element4 Gas Fireplaces EuropeanHome.com...
  • Page 11: Lucius 140 1/3

    SPECIFICATIONS and DIMENSIONS LUCIUS 140 1/3 Letter Inches Millimeters 77/8 143/8 143/8 221/2 201/2 577/8 1470 5515/16 1420 213/16 3213/16 5411/16 1389 607/16 1534 371/2 165/8 2411/16 277/16 71/8 LUCIUS 140 C 1/3 (LEFT CORNER SHOWN) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 12: Lucius 140 2/3

    SPECIFICATIONS and DIMENSIONS LUCIUS 140 2/3 Letter Inches Millimeters 77/8 143/8 143/8 393/8 1000 377/16 577/8 1470 5515/16 1420 213/16 3213/16 5411/16 1389 607/16 1534 371/2 165/8 2411/16 277/16 71/8 LUCIUS 140 C 2/3 (LEFT CORNER SHOWN) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 13: Parts Of The Fireplace

    SPECIFICATIONS and DIMENSIONS PARTS OF THE FIREPLACE The various parts of the Lucius 140 fireplace are shown in Figures 4, 5 and 6. These parts are typical of any Element4 fireplace. Figure 4 Figure 5 Figure 5 shows two Glass Clamps,...
  • Page 14 Relief Door - part of the safety system. Do NOT block the operation. Pilot Assembly Upright Trim - (4 ea. - L140 T, 2 ea. - L140 RD, 1/3, 2/3 hides the vertical Glass Clamps) No material zone Top of fireplace Table 1 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 15: Clearances

    Do not place anything between the bottom of the firebox and the bottom of the feet. Ensure that the lineset (which includes the gas valve, electrical wiring, and gas lines) does not impede the full operation of the relief doors. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 16 660 mm 26” 660 mm 11” 11” 11” 11” 280 mm 280 mm 280 mm 280 mm Figure 8 Front Elevation View - Lucius 140 Room Divider Figure 9 Side Elevation View - Lucius 140 Room Divider Element4 Gas Fireplaces EuropeanHome.com...
  • Page 17 26” 660 mm 26” 660 mm 11” 11” 11” 11” 280 mm 280 mm 280 mm 280 mm Figure 11 Front Elevation View - Lucius 140 Tunnel Figure 12 Side Elevation View - Lucius 140 Tunnel Element4 Gas Fireplaces EuropeanHome.com...
  • Page 18 26” 660 mm 26” 660 mm 11” 11” 11” 11” 280 mm 280 mm 280 mm 280 mm Figure 14 Front Elevation View - Lucius 140 1/3 Figure 15 Side Elevation View - Lucius 140 1/3 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 19 26” 660 mm 26” 660 mm 11” 11” 11” 280 mm 11” 280 mm 280 mm 280 mm Figure 17 Front Elevation View - Lucius 140 2/3 Figure 18 Side Elevation View - Lucius 140 2/3 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 20 12”/300 mm MATERIAL CONSTRUCTION BEAMS NON- COMBUSTIBLE (TYPICAL) DETAIL C ETAIL C (1) 25 1”/25 mm GLASS ALE 1 : 10 TOP OF TOP OF FIREPLACE FIREPLACE OPENING OPENING GLASS CONVECTION GAP Figure 19 Figure 20 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 21 Square Model Square Centimeters Room ceiling to 72” Inches appliance bottom 1830 Lucius 140 Room Divider Room ceiling to top of 1” Lucius 140 Tunnel Convection Air Outlet Lucius 140 1/3, Lucius 140 2/3 Table 2 Table 3 Element4 Gas Fireplaces...
  • Page 22: Gas And Electric

    Table 4 ELECTRICAL REQUIREMENTS The Element4 fireplaces use a receiver and remote control for their burner operation. The remote control comes with (3) AAA batteries and the receiver is powered by a 120V AC adapter, included. The installer must provide an approved 120V AC wall receptacle to be placed within the six foot cord limit of the AC adapter.
  • Page 23: Venting

    A power vent system is available and must be used for any venting configuration which is outside of the vent graphs. For the M&G venting installation guide or power venting installation manuals please visit the link below. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 24 VENTING rise Figure 22 APPROVED MANUFACTURERS and COMPONENTS Manufacturer Components only DirectVent Pro® M&G DuraVent, Inc.* 5” x 8” venting components Table 5 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 25: Horizontal

    Dimension “V”. (See Graph 1) Dimension “V” (rise) can vary between 19”/500 minimum to 11’5”/3.5 m maximum depending on Dimension “H”. (See Graph 1) Note: Configurations with horizontal terminations may need a restrictor. See the INSTALLING A RESTRICTOR section. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 26 90° elbow, a total run of 13’2”/4.0 is allowed. Example B: If the rise is 8’2”/2.5 then the run can be no longer than 14’10”/4.5 Example C: If the run is 16’5”/5.0 then the rise must be at least 9’10”/3.0 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 27 VENTING HORIZONTAL HORIZONTAL VENT TERMINATION CLEARANCES AND REQUIREMENTS Element4 Gas Fireplaces EuropeanHome.com...
  • Page 28: Vertical

    Power vent systems are available for configurations beyond these limits. Distance "V" 1m - 11m (min - max) Note: Configurations with vertical terminations may need a restrictor. See the INSTALLING A RESTRICTOR section. Figure 24 Vertical Terminations with NO elbows Element4 Gas Fireplaces EuropeanHome.com...
  • Page 29 Power vent systems are available for configurations beyond these limits. Distance "V" =2x "H" (min) Note: Configurations with vertical terminations may need a restrictor. See the INSTALLING A RESTRICTOR section. Figure 25 Vertical Terminations with 90° elbows Element4 Gas Fireplaces EuropeanHome.com...
  • Page 30 Power vent systems are available for configurations beyond these limits. Distance "V" =2x "H" (min) Note: Configurations with vertical terminations may need a restrictor. See the INSTALLING A RESTRICTOR section. Figure 26 Vertical Terminations with 45° elbows Element4 Gas Fireplaces EuropeanHome.com...
  • Page 31 National Fuel Gas Code (ANSI Z223.1 in the USA) or the current standard of CAN/CSA-B149.1 in Canada. Chart 1 Termination Heights A second termination may be no closer than 12”/305 . (See Figure 27) Figure 27 Multiple Termination Clearance Element4 Gas Fireplaces EuropeanHome.com...
  • Page 32: Restrictors

    When vertical section is up to 391/2”/1 no restrictor required When vertical section is 391/2”/1 to 9’10”/3 restrictor -------------------------------------------------------------------------------------------------------------------------------------- When Using a Vertical (Roof) Termination When rise is up to 6’6”/2 When rise is above 6’6”/2 Figure 28 Figure 29 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 33: Enclosing The Fireplace

    ENCLOSING the FIREPLACE When enclosing your Element4 fireplace the use of non-combustible building materials is REQUIRED. Please read and understand the following. COMBUSTIBLE MATERIALS Materials that can catch fire and burn are considered combustible. Any material that is made of, or faced with, wood, wood pulp, paper, plastic or any other material that can catch fire and burn is considered combustible.
  • Page 34: Convection Air Opening

    1. Most important, these fireplaces are NOT zero-clearance fireplaces. Unlike zero-clearance fireplaces, there is not a metal box around the Element4 fireplaces. With no metal box there are no louvers to distract your view of the fire. However, we want the cooling advantage of a metal box so your site-built, non-combustible enclosure will substitute.
  • Page 35 ENCLOSING the FIREPLACE Lucius with Open Top Baffle Lucius with Endwall Outlets Element4 Gas Fireplaces EuropeanHome.com...
  • Page 36 Any support framing must be at least 2”/50 (NON-combustible framing ONLY) above and beside the fireplace. The entire weight of the non-combustible walls must be borne by a structure other than the fireplace. Dimension B Dimension A Figure 30 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 37: Rough Opening Dimensions

    ENCLOSING the FIREPLACE 2”/50 2”/50 2”/50 Rough Opening Dimensions for NON-COMBUSTIBLE Framing Model Figure Lucius 140 R 185/16”/464 621/4”/1582 391/2”/1002 Table 6 Figure 31 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 38 Lucius 140 T 65”/1652 143/8”/364 391/2”/1002 Table 7 Figure 32 Figure 33 Rough Opening Dimensions for NON-COMBUSTIBLE Framing Model Figure Lucius 140 1/3 621/4”/1582 201/2”/519 185/16”/464 391/2”/1002 Lucius 140 2/3 621/4”/1582 371/2”/949 185/16”/464 391/2”/1002 Table 8 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 39 LOCATING THE CONTROLS The control system for the Element4 fireplaces consist of three major components: the receiver, the transmitter and the gas valve. The transmitter is the remote control by which you operate the fireplace. The receiver and the gas valve are at one end of a line set which is approximately 50”/1270...
  • Page 40 One of the tie wraps which secure the line set. Figure 35 Wall Access Door Frame Figure 34 Tighten bolt through mounting bosses (at arrows) Fit tab into bracket on Access Door Figure 36 Figure 37 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 41 ENCLOSING the FIREPLACE Figure 38 Receiver in Wall Access Door Figure 39 Access Door Installed Element4 Gas Fireplaces EuropeanHome.com...
  • Page 42: Operating The Fireplace

    6. Place the three AAA batteries into the remote control and confirm that it will communicate with the receiver by pressing the ON/OFF. (See Figure 41) If necessary pair the remote and receiver. 7. Follow USING THE REMOTE CONTROL ELECTRONIC IGNITION SEQUENCE to setup and use remote. THIS PART WAS INTENTIONALLY LEFT BLANK Element4 Gas Fireplaces EuropeanHome.com...
  • Page 43 Temp - Daytime Temperature mode. The appliance must be in standby mode, pilot ignited. The room temperature is measured and compared to the set temperature. The flame height is then automatically adjusted to reach the daytime set temperature. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 44 2. The system shuts off the fire completely if there is no change in flame height for 5 days. 3. The system shuts off the fire if the main burner does not completely ignite approximately 20 seconds after ignition or after pushing the Ç button. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 45 Since it is a metal fireplace, the heat-up and cool-down cycles may produce some noises caused by the expansion and contraction of these metals. The premium materials and build quality of your fireplace will keep these sounds to a minimum. Figure 43 To see an Element4 fireplace starting and running normally please visit the link below. WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/ Element4 Gas Fireplaces EuropeanHome.com...
  • Page 46: Installing The Fire Media

    The use of this ash is optional. To use: -Sprinkle the ash onto the logs as desired. -Make sure that the ash DOES NOT get inside of the burner ports. If so, clogging may occur. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 47 2nd Thermocouple B shows the pilot area (arrow) clear of media. C shows the 2 thermocouple area (arrow) clear of media. To see how to arrange media in an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/ Element4 Gas Fireplaces...
  • Page 48: Screen Installation

    LUCIUS 140 T LUCIUS 140 1/3 LUCIUS 140 2/3 Tabs Tabs Tabs Tabs Magnets Magnets Magnets Magnets Long Screen Long Screen Long Screen Long Screen Short Screen Short Screen Short Screen Short Screen (Long Screen) (Short Screen) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 49 Once installed on the top left viewable corner, the tab installed should look like the photo above. One magnet will be holding the tab in place (not visible) and the other magnet will hold the screen to the front of the unit. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 50 Once the (2) top tabs are installed correctly, place the long screen’s (2) bottom tabs in the gap between the bottom trim and the flange. They should fall into place without any effort or resistance. Tilt the screen towards the top (2) tabs as shown below, magnets will catch the screen and hold it into place. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 51 SCREEN INSTALLATION Here is another view of the (2) top tabs in place before the screen is tilted into position. This is the final view of the front long screen installed correctly. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 52 (1) tab to be installed on the top, with a magnet holding the tab to the unit and the other magnet visible as shown below. The tab should look like the photo on the left once installed correctly. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 53 Once installed properly the screen should look like the photo to the left. If needed, slide the screen gently left or right until the edges of the screen touch. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 54 SCREEN INSTALLATION This is the final look of a screen installed correctly. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 55: Maintenance

    Figure 45 Remove all of the retaining bolts and clamps holding in the first piece of glass. To see how to remove the glass from an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/ Element4 Gas Fireplaces...
  • Page 56 While ensuring that the glass panels are tight and square to each another, tighten the retaining bolt(s) on each clamp NO MORE THAN 1/2 TURN. PROPERLY PLACE, CLAMP AND SEAL THE GLASS PANEL(S) BEFORE LIGHTING THE FIRE! Element4 Gas Fireplaces EuropeanHome.com...
  • Page 57: Burner

    Any alteration to the product that causes soot or carbon to form and results in damage is not the responsibility of the manufacturer. Inspect the external vent cap on a regular basis to make sure that no debris, plants, trees, or shrubs are interfering with the air flow. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 58: Thermocouple

    MAINTENANCE THERMOCOUPLE MAINTENANCE The Element4 fireplaces have two thermocouples; one next to the pilot and one opposite the pilot side of the main burner. The completeness and operation of both must be checked. A qualified installer must confirm that both thermocouples are in place and not damaged.
  • Page 59: Warranty

    WARRANTY European Home Warranty Element4 Gas Fireplace European Home warrants these gas fireplaces against defects in materials and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Glass is expressly NOT covered by this warranty.
  • Page 60: Massachusetts Certification

    Gas Fitters has issued approval number G1-0515-495 for this appliance. The following must be observed when installing the Element4 fireplaces within the Commonwealth of Massachusetts: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole...
  • Page 61 No reaction to transmitter Do not coil the ignition cable. command. Shorten the ignition cable, if possible. Ignition sequence stops, no pilot flame. Replace receiver batteries. Quality 1.5V AA Transmitter command is possible. alkaline recommended. (continued) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 62 Check 2 thermocouple wiring. Replace transmitter batteries. Quality 1.5V Receiver batteries low. AA alkaline recommended. Magnet unit drops while motor turns. 3 beeps. Ground Bolt NORMAL OPERATION Figure 3.1 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 63 Step 5: Carefully lift the burner off the gasket and, taking care to not damage the lineset, lay the burner securely, upside Step 7: Using a 15mm wrench, remove the main burner orifice down, in front of the fireplace. from the main burner. See Figure 6. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 64 Step 21: Replace the hearth panel, the burner media and the proper orientation. See Figure 9. glass panel. Check for proper fireplace operation. To see how to convert the gas on an Element4 fireplace, Step 13: Connect the pilot burner inlet tube and tighten the please visit the link below.
  • Page 65 Increase the flame height: Press and hold the UP button. • Decrease the flame height: Press and hold the DOWN button. • For fine adjustment tap the UP or DOWN button as necessary. Figure 5.2 • Turn fireplace OFF: Press the ON/OFF button. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 66 FIRST FIRE 45 estrictors WARRANTY 59 Lp 63 onverting to nstaLLing the ressures LISTING LABEL 8 LP (P ROPANE ONvERSION MAINTENANCE urner iLot herMocoupLes MANTELS 20 NON-COMBUSTIBLE MATERIALS pproveD anufacturers anD roDucts iniMuM Learances Element4 Gas Fireplaces EuropeanHome.com...
  • Page 67 NOTES Element4 Gas Fireplaces EuropeanHome.com...
  • Page 68 Imported and distributed in North America by: EUROPEAN HOME a division of Europa Ja, Inc. 376 Washington Street Suite 203 Malden, MA 02148 www.europeanhome.com IGE411-151002 Element4 Gas Fireplaces EuropeanHome.com...
