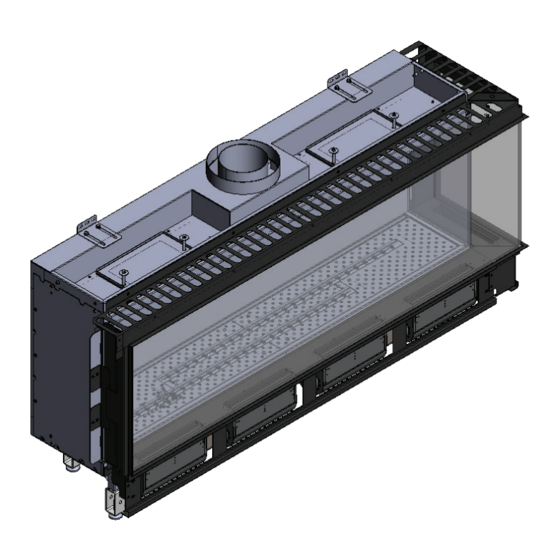

Element4 Modore 140 MKII GSB Installation, Operation And Owner's Manual

Element4 Modore 140 MKII GSB Installation, Operation And Owner's Manual

Direct vent gas fireplaces

Advertisement

Quick Links

HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
Une barrière conçu pour réduire le risque de brûlure par le verre de visualisation chaude est fournie avec cet appareil et doit
être installé pour la protection des enfants et autres personnes à risque.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Element4 Gas Fireplaces
Installation, Operation and Owner's Manual
Bidore 140 MKII
Modore 140 MKII
Trisore 140 MKII
Direct Vent Gas Fireplaces
AVERTISSEMENT:
INCENDIE OU D'EXPLOSION
Le non-respect des avertissements de sécurité à la
lettre pourrait entraîner de graves blessures , la mort
ou des dommages matériels.
- Ne pas entreposer ni utilizer d'essence ni d'autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ
• Ne pas tenter d'allumer d'appareil.
• Ne touchez á aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bátiment ou vous trouvez.
• Quitter immédiatement le bâtiment.
• Appelez immédiatment votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz
appelez le service des incindies.
- Installation et l'entretien doivent être effectués par un
installateur qualifié, une agence de service ou le fournisseur
de gaz.
INSTALLATEUR: Laissez cette notice avec l'appareil.
CONSOMMATEUR: Conservez cette notice pour
consultation ultérieure.
1
4006611
GSB
GSB
GSB
Une surface vitrée chaude
peut causer des brûlures.
Laisser refroidir la surface
vitrée avant d'y toucher.
Ne permettez jamais á un enfant
de toucher la surface vitrée.
January 2018
EuropeanHome.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Modore 140 MKII GSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Element4 Modore 140 MKII GSB

  • Page 1 INSTALLER: Leave this manual with the appliance. INSTALLATEUR: Laissez cette notice avec l’appareil. CONSUMER: Retain this manual for future reference. CONSOMMATEUR: Conservez cette notice pour consultation ultérieure. January 2018 Element4 Gas Fireplaces EuropeanHome.com 4006611...
  • Page 2: Table Of Contents

    Important Safety Information ..................... 3 Key Installation Points ......................6 User Information ........................7 Specifications & Dimensions ....................8 Bidore 140 MKII GSB Modore 140 MKII GSB Trisore 140 MKII GSB Parts of the Fireplace Clearances ..........................12 Locating the Fireplace...
  • Page 3: Important Safety Information

    Do not place furniture or other objects within 36” of the fireplace glass. SAVE THESE INSTRUCTIONS Make yourself fully aware of all the following instructions and the many features of the Element4 direct vent gas fireplace appliance. INSTALLER: Leave this manual with the appliance.
  • Page 4 WARNING : Glass Handling jurisdiction for gas product installations to determine their specific requirements for high altitude installations. The glass must only be removed by a qualified person. Gloves should be worn when removing the glass. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 5 For convenience, the inches are rounded to the nearest 1/16” when converted. If greater accuracy is DO NOT USE abrasive cleaners on the panels. DO NOT required, use the metric dimensions. ATTEMPT to clean the glass panels when they are hot. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 6: Key Installation Points

    F Gas pressures MUST be read with a manometer and confirmed with what is required in the installation manual. FINISHING F A 1/8”/3 mm gap between the flange and the enclosing wallboard MUST be maintained to prevent cracking from heat expansion and contraction. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 7: User Information

    WARMTH AND BEAUTY - HOW IT WORKS This Element4 fireplace is a direct vent fireplace and, as such, the intake and exhaust air moves through the vent pipe. To lower the temperature of the glass panel(s), the fireplace has a Glass Safety Barrier between the room and the inner panels(s). This Glass Safety Barrier includes fans to move room air between the two layers of viewing glass thus providing warm air to the room.
  • Page 8: Specifications & Dimensions

    Efficiency 80.6% A typical listing label is shown above. It is attached to every Element4 fireplace and contains important certification information. It must not be removed from the fireplace. CAD FILES A DWG/DXF file is available for download at www.europeanhome.com for dimensions not shown.
  • Page 9 115/120 VAC 50/60 Hz Maximum Rating 10A @ 104°F Cord Length 6 Feet Agency Approvals Fan Set A Fan Set B Speed Control Snap Switch Fan Set C Fan Set D Fan Set E Fan Set Electrical Schematic Element4 Gas Fireplaces EuropeanHome.com...
  • Page 10 SPECIFICATIONS and DIMENSIONS BIDORE 140 LC MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 11 SPECIFICATIONS and DIMENSIONS BIDORE 140 RC MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 12: Modore 140 Mkii Gsb

    SPECIFICATIONS and DIMENSIONS MODORE 140 MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 13: Trisore 140 Mkii Gsb

    SPECIFICATIONS and DIMENSIONS TRISORE 140 MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 14: Parts Of The Fireplace

    Inner Glass Clamps - holds the Inner Glass Panels in place Vent Collar - accepts the 5” x 8” venting adapter (included) Relief Door - part of the safety system. Do NOT block the operation of the relief doors. Pilot Assembly Element4 Gas Fireplaces EuropeanHome.com...
  • Page 15: Clearances

    VALVE, ELECTRICAL WIRING, AND GAS LINES) DOES NOT IMPEDE THE FULL OPERATION OF THE RELIEF DOORS. IT IS YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF THESE CRITICAL COMPONENTS THROUGHOUT THE INSTALLATION PROCESS. REMOVE AND DISPOSE OF ALL WRAPS AND TIES. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 16: Clearances To Combustibles

    These clearances are the same for ALL Element 4 Fireplaces, regardless of model. We reccomend that the fireplace be set into its final location before building the enclosure. Please refer to the “Reduced Clearance to Existing Combustible Wall” section for use of combustibles inside of the above clearances. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 17 OF GLASS CONSTRUCTION BEAMS COMBUSTIBLE INCHES (TYPICAL) Mantel Depth NON COMBUSTIBLE 12”/300 mm MATERIAL CONSTRUCTION BEAMS NON- COMBUSTIBLE (TYPICAL) DETAIL C ETAIL C 1”/25 mm ALE 1 : 10 TOP OF FIREPLACE OPENING GLASS CONVECTION GAP Element4 Gas Fireplaces EuropeanHome.com...
  • Page 18 Warm Air Outlet 1830 appliance bottom Square Square Square Square Model Inches Centimeters Inches Centimeters 1” Chase ceiling to top of Warm Air Outlet Bidore 140 MKII GSB Modore 140 MKII GSB Trisore 140 MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 19: Gas And Electric

    The cooling fans are powered by 120V AC and connect to the dedicated duplex receptacle via the provided six foot long power cord. Electrical work must be performed by a qualified, licensed electrician. WARNING All wiring shall be in compliance with all local, city, and state codes. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 20: Venting

    EXCELDirect (ICC - Industrial Chimney Company) Pro-Form (BDM - Bernard Dalsin Manufacturing) Direct-Temp (Selkirk Corporation) AmeriVent Direct Vent North American Vent Adapter Ventis Direct Vent (Olympia Chimney Supply Inc.) Please visit www.europeanhome.com/technical-support/ for the power venting installation manuals Element4 Gas Fireplaces EuropeanHome.com...
  • Page 21 Calculate the Total Vertical Section by adding up all vertical upward sections in your specific vent design. CALCULATING THE TOTAL HORIZONTAL SECTION (THS) Calculate the Total Horizontal Section by adding up all horizontal sections in your specific vent design. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 22 Loosen the screws on either side and slide the restrictor as desired. Do not modify the restrictor. Please use the following graph to determine if you will need to use a restrictor. Loosen these two Phillips head screws to slide on/off the restrictor. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 23: Venting Charts

    5' (1.5 m) 3'4" (1 m) 1'8" (0.5 m) ft. in. (meters) 0 - 1'7" 1'8" (0.5 m) 3'4" (1 m) 5' (1.5 m) 6'7" (2 m) 8'3" (2.5 m) 9'10" (3 m) Total Horizontal Section Element4 Gas Fireplaces EuropeanHome.com...
  • Page 24: Termination Clearances

    VENTING CLEARANCES HORIZONTAL VENT TERMINATION CLEARANCES AND REQUIREMENTS Element4 Gas Fireplaces EuropeanHome.com...
  • Page 25 National Fuel Gas Code (ANSI Z223.1 in the USA) or the current standard of CAN/CSA-B149.1 in Canada. Termination Heights A second termination may be no closer than 12”/305 Multiple Termination Clearance Element4 Gas Fireplaces EuropeanHome.com...
  • Page 26: Enclosing The Fireplace

    James Hardie Building Products HardieBacker® 1/4” Cement Board 1/4”/6 * The listed brand names are trademarks of their respective companies Skamol Americas, Inc. (844) 475-2665 E-mail: skamotec225@skamol.com www.skamotec225.com Promat Inc. (865) 681-0155 E-mail: sales@promat.us www.promat.us/en James Hardie Building Products (888) 542-7343 www.jameshardie.com Element4 Gas Fireplaces EuropeanHome.com...
  • Page 27 1. Most important, these fireplaces are NOT zero-clearance fireplaces. Unlike zero-clearance fireplaces, there is not a metal box around the Element4 fireplaces. With no metal box there are no louvers to distract your view of the fire. However, we want the cooling advantage of a metal box so your site-built, non-combustible enclosure will substitute.
  • Page 28 Shield Over Finished Wall Combustible Wall Shield Over Finished Wall 2”/50 Minimum Air Gap MUST BE MAINTAINED 1”/25 Minimum Air Gap MUST BE MAINTAINED Combustible Wall Shield Over Finished Wall Shield Over Finished Wall Combustible Wall Element4 Gas Fireplaces EuropeanHome.com...
  • Page 29 Skamol Skamotec® 225 Fireplace Building Board 11/2”/38 Promat PROMAFOUR® System 1/2”/12 5/8”/15 3/4”/18 James Hardie Building Products HardieBacker® 500 1/2” Cement Board 1/2”/12 James Hardie Building Products HardieBacker® 1/4” Cement Board 1/4”/6 Minimum Wall Thickness = 1/2”/12 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 30 MATERIAL. The inside of the enclosing walls (including any necessary framing) may be no less than the distances shown above. Your installation will use more than this minimum cabinet space in order to accommodate controls, venting, air openings, etc. We recommend that the fireplace be set into its final location before building the enclosure. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 31 MUST BE MAINTAINED to allow free flow of air Minimum Required Air Opening Sizes Room Air Inlet Warm Air Outlet Square Square Square Square Model Inches Centimeters Inches Centimeters Bidore 140 MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 32 There is a minimum clear area which must be maintained when enclosing the Modore 140 MKII GSB fireplace. Nothing except the Modore 140 MKII GSB cabinet may be within this area. Inside this space, the Modore 140 MKII GSB must be centered, left to right, and the face of the stand-off frame must be 171/8”/435 mm from the rear wall.
  • Page 33 ENCLOSING the FIREPLACE Modore 140 MKII GSB with Wall Outlets Modore 140 MKII GSB with Reveal Outlets 7”/175 mm minimum distance between viewable fireplace opening and top of air inlets MUST BE MAINTAINED to allow free flow of air Minimum Required Air Opening Sizes...
  • Page 34 MATERIAL. The inside of the enclosing walls (including any necessary framing) may be no less than the distances shown above. Your installation will use more than this minimum cabinet space in order to accommodate controls, venting, air openings, etc. We recommend that the fireplace be set into its final location before building the enclosure. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 35 MUST BE MAINTAINED to allow free flow of air Minimum Required Air Opening Sizes Room Air Inlet Warm Air Outlet Square Square Square Square Model Inches Centimeters Inches Centimeters Trisore 140 MKII GSB Element4 Gas Fireplaces EuropeanHome.com...
  • Page 36 Trisore 140 MKII GSB shown. The Bidore and Modore models have the same requirement. Use the adjustable feet to ensure that the fireplace is level prior to enclosing it. Lift the fireplace from the bottom of the cabinet and lift with your legs, not your back. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 37: Cold Climate Installation

    The door should be mounted with the hinge on the left side or with the hinge side down. ENSURE THAT ALL WIRING AND CABLES ARE CLEAR OF ALL OF THE FANS! Wall Access Door Dimensions Outer Frame Rough Opening 111/4”/286 x 87/16”/214 913/16”/250 x 615/16”/175 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 38 Replace the white door/frame cover onto the radius of less than 2”/50 frame and secure it with the four bolts. Tighten the bolt through the mounting Fit the gas control tab into the bracket on bosses. the Access Door frame. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 39 Note: The cooling fans will turn on as soon as the Fan Snap Switch reaches its set point. Ensure that the fans are free to spin and can properly move air through the system. The fans will turn off when the Shutoff Snap Switch reaches its set point and subsequent start attempts are not possible until the 2 thermocouple cools down. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 40: Installing The Fire Media

    -one small bag of ash (use is optional) -two pine cones -nine logs -bags of black & grey chips With the chips scattered across the burner and hearth panel, lay the logs in the following sequence... Element4 Gas Fireplaces EuropeanHome.com...
  • Page 41 B shows the pilot area (below) clear of media (above). C shows the 2 thermocouple area (below) clear of media (above). 2nd Thermocouple Pilot Assembly To see how to arrange media in an Element4 fireplace please visit the link below. WWW.EUROPEANHOME.COM/RESOURCES/VIDEOS/ Element4 Gas Fireplaces EuropeanHome.com...
  • Page 42: Operating The Fireplace

    OFF when the fireplace is turned off and to ON when the fireplace is turned on. Note! For normal operation the MANUAL knob on the gas valve cannot be in the MAN position; it must be fully in the ON position. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 43 WARNING 5. Press buttons simultaneously. Min- When pilot ignition is confirmed, motor turns automatically to maximum utes flash. flame height. 6. To select minutes press button. 7. To confirm press buttons simulta- neously or wait. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 44 NOTE: At end of countdown time period, the fire turns off. The Countdown Timer only works in Manual, Thermostatic, and Eco Modes. Maxi- mum countdown time is 9 hours and 50 minutes. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 45 , , , , , , , . temperature flashes. 6. To confirm press button. 2. To adjust set temperature press but- ton. 3. To confirm press button or wait. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 46 • Daily Timer: Unique on and off times may be set for a single day of the week, for multiple days of the week, or for every day of the week. • Wait to finish setting. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 47: Operating Instructions

    • CHILD PROOF (To activate press buttons simultaneously. displayed and the handset is rendered inoperable (except for off functi- on). • PROGRAM MODE • THERMOSTATIC MODE (also deactivates Program Mode) • ECO MODE • MULTI-BURNER FEATURE • COUNTDOWN TIMER Element4 Gas Fireplaces EuropeanHome.com...
  • Page 48 Since it is a metal fireplace, the heat-up and cool-down cycles may produce some noises caused by the expansion and contraction of these metals. The premium materials and build quality of your fireplace will keep these sounds to a minimum. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 49: Maintenance

    Gasketed clamps hold the edges of the Inner Glass Panels in place. Unscrew the retaining bolt(s) holding the glass clamp and then remove the clamp. Remove all of the retaining bolts and clamps holding Inner Glass Panels. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 50 Gently push the rope gasket into the outer channel ensuring that the gasket is pushed into the channel until it is flush with the edge of the channel. PROPERLY PLACE, CLAMP AND SEAL THE GLASS PANEL(S) BEFORE LIGHTING THE FIRE! Element4 Gas Fireplaces EuropeanHome.com...
  • Page 51: Burner

    The pilot has two distinct flames, one engulfing the thermocouple on its left, the other reaching across to the main burner. The area around the pilot should be inspected for cleanliness. Lint or foreign material must be removed with a brush or vacuum. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 52: Thermocouple

    MAINTENANCE THERMOCOUPLE MAINTENANCE The Element4 fireplaces have two thermocouples; one next to the pilot and one opposite the pilot side of the main burner. The completeness and operation of both must be checked. A qualified installer must confirm that both thermocouples are in place and not damaged.
  • Page 53: Warranty

    WARRANTY European Home Warranty Element4 Gas Fireplace European Home warrants these gas fireplaces against defects in materials and workmanship for a period of TWO (2) YEARS from the date of original retail purchase. Glass is expressly NOT covered by this warranty.
  • Page 54: Massachusetts Certification

    Gas Fitters has issued approval number G3-0116-219 for this appliance. The following must be observed when installing the Element4 fireplaces within the Commonwealth of Massachusetts: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole...
  • Page 55: Troubleshooting Flowchart

    Micro switch not Replace gas valve. operating properly. ON/OFF switch is in If equipped, set switch to ON ( | ) position. the OFF (O) position. 2nd thermocouple Confirm integrity of 2nd thermocouple and not connected connection. (continued) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 56 Check that ceramic seen) shield or ignition wire is not defective. Short between interrupter block and TC- Check connection to interrupter block. cable. Sparking stops after pilot is lit. Electronic measuring amplifier defective. Replace the receiver. (continued) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 57 Turn the control knob to “ON” position, a Manual knob is in the “MAN” position. positive latch is required. Main burner is lit. Confirm correct gas pressure. Increase pilot Pilot flame is too low. flame if necessary. (continued) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 58 The valve will turn to pilot flame if the set temperature and the ambient temperature remain the same over a 6 hour period. (continued) Element4 Gas Fireplaces EuropeanHome.com...
  • Page 59 Check venting for complete integrity. Reduce the primary air opening until flames have blue Too much primary air. base and yellow upper two-thirds. Flames are stable but too small and blue. NORMAL OPERATION Element4 Gas Fireplaces EuropeanHome.com...
  • Page 60: Installing The Optional Wall Switch

    Increase the flame height: Press and hold the UP button. • Decrease the flame height: Press and hold the DOWN button. • For fine adjustment tap the UP or DOWN button as necessary. • Turn fireplace OFF: Press the ON/OFF button. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 61: Connecting To A Smart Home System

    Frequent ON and OFF cycles will limit life expectancy of the valve and will increase battery consumption. The fireplace should be powered by the AC adapter for improved reliability and customer satisfaction. Element4 Gas Fireplaces EuropeanHome.com...
  • Page 62: Index

    Learances KEY INSTALLATION POINTS 6 WALL ACCESS DOOR 37 WALL SWITCH Appendix Three LISTING LABEL 8 WARRANTY 53 LP (P ROPANE ONvERSION MAINTENANCE urner Lass iLot herMocoupLes enting MANTELS 17 Element4 Gas Fireplaces EuropeanHome.com...
  • Page 63 NOTES Element4 Gas Fireplaces EuropeanHome.com...
  • Page 64 Imported and distributed in North America by: EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGE410IIG-180124 Element4 Gas Fireplaces EuropeanHome.com...
