Dump mode
The printer will enter dump mode after printing the printer configuration. In the
dump mode, all characters will be printed in 2 columns as following. The left side
characters are received from your system and right side data are the
corresponding hexadecimal value of the characters. It allows users or engineers to
verify and debug the program.
ASCII Data
Note:
Turn the printer power OFF and back ON to resume normal printing.
Document #120522 Rev-A

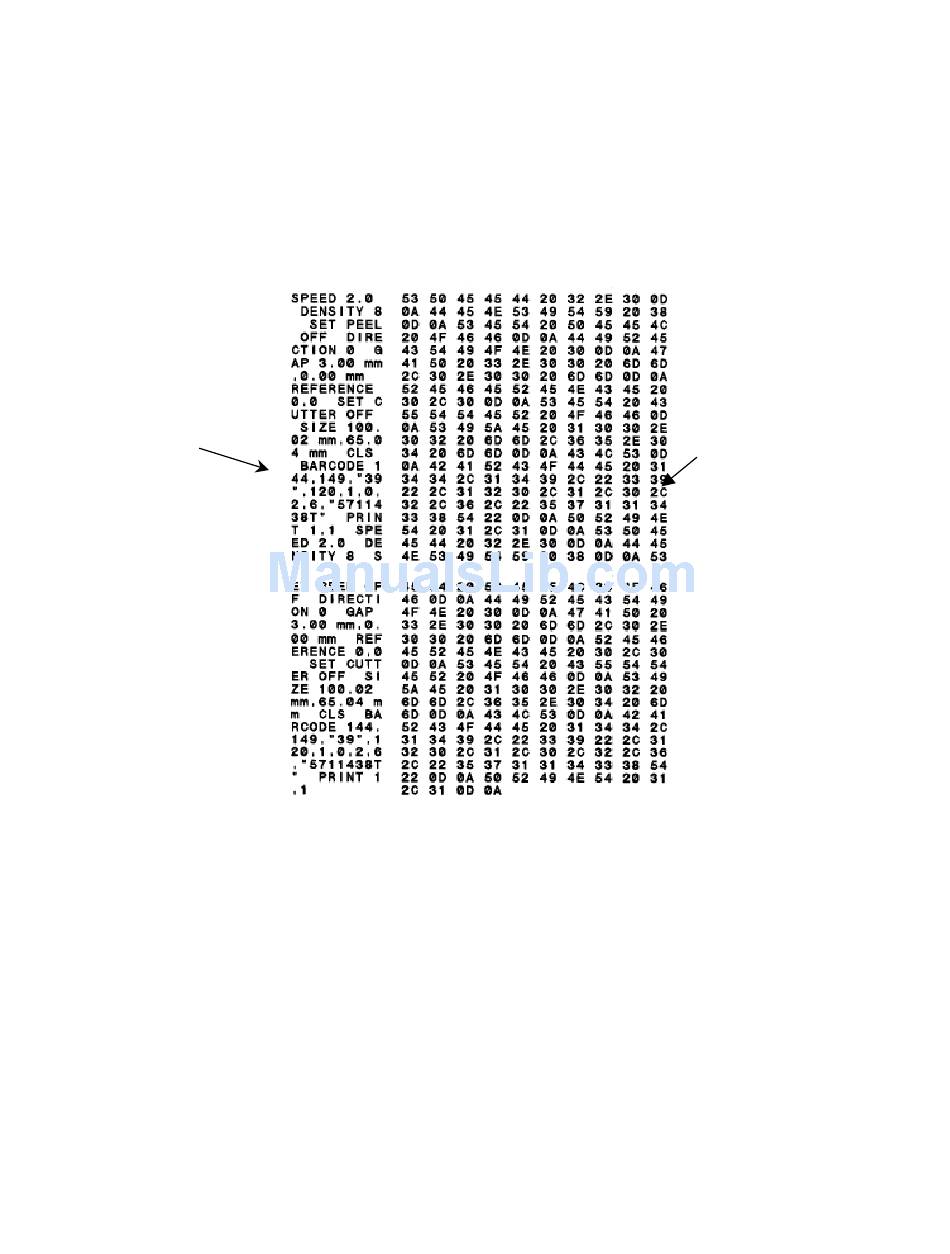

Fig. 30 Dump mode printout
27
Hex decimal data
related to left
column of ASCII
data
