2. Open the printer's top cover by releasing the green levers located on each side
of the printer and lifting the top cover. A top cover support at the rear of the
printer will hold the cover open.
3. Place a roll of media onto the internal Media Spindle.
4. Feed the media (printing side face up) under the Teflon bar and through the
support guides. The media should come to rest outside the printer. Refer to
Fig #8.
5. Adjust the green center-biased media guides to slightly touch the edges of the
media/backing.
6. To close the printer top cover, lift the cover to the maximum open angle then
use both hands to close the cover gently.
make sure the cover latches securely.
Note:
1. Make sure your hands or fingers are not placed between printer top
and lower cover when closing.
2. Do not free fall the top cover.
Failure to securely close and lock the cover will result in poor print
3.
quality.
Document #120522 Rev-A
Lower Cover

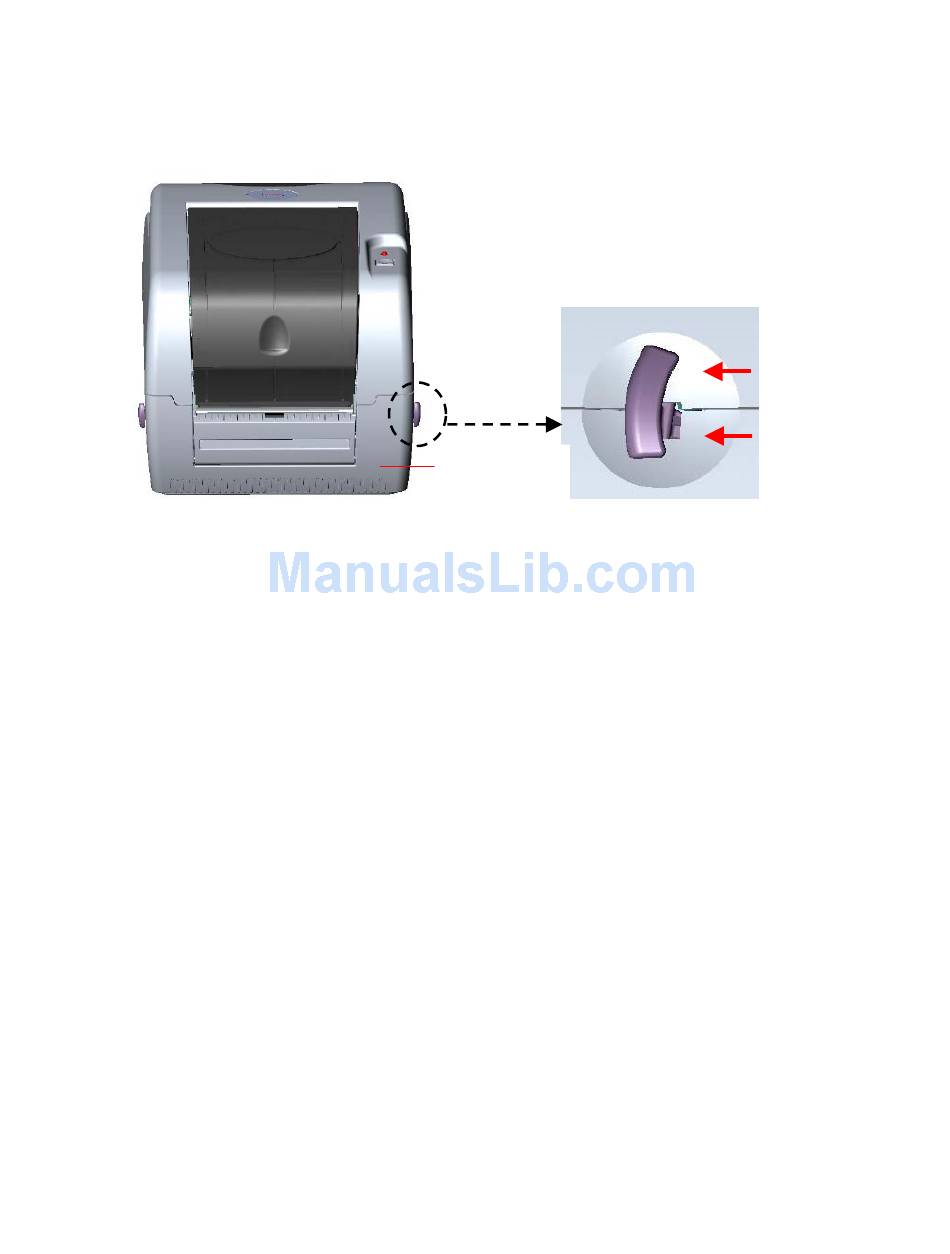

Fig. 7 Pull the lever to open the cover
9
Close the printer top cover slowly and
