7. Insert the peel-off assembly tabs into the lower inner cover hinge holes until
they snap into place.
Lower Inner Cover
Roller
Lower Cover
Inner Hinge Holes
Peel Off Assembly Tab

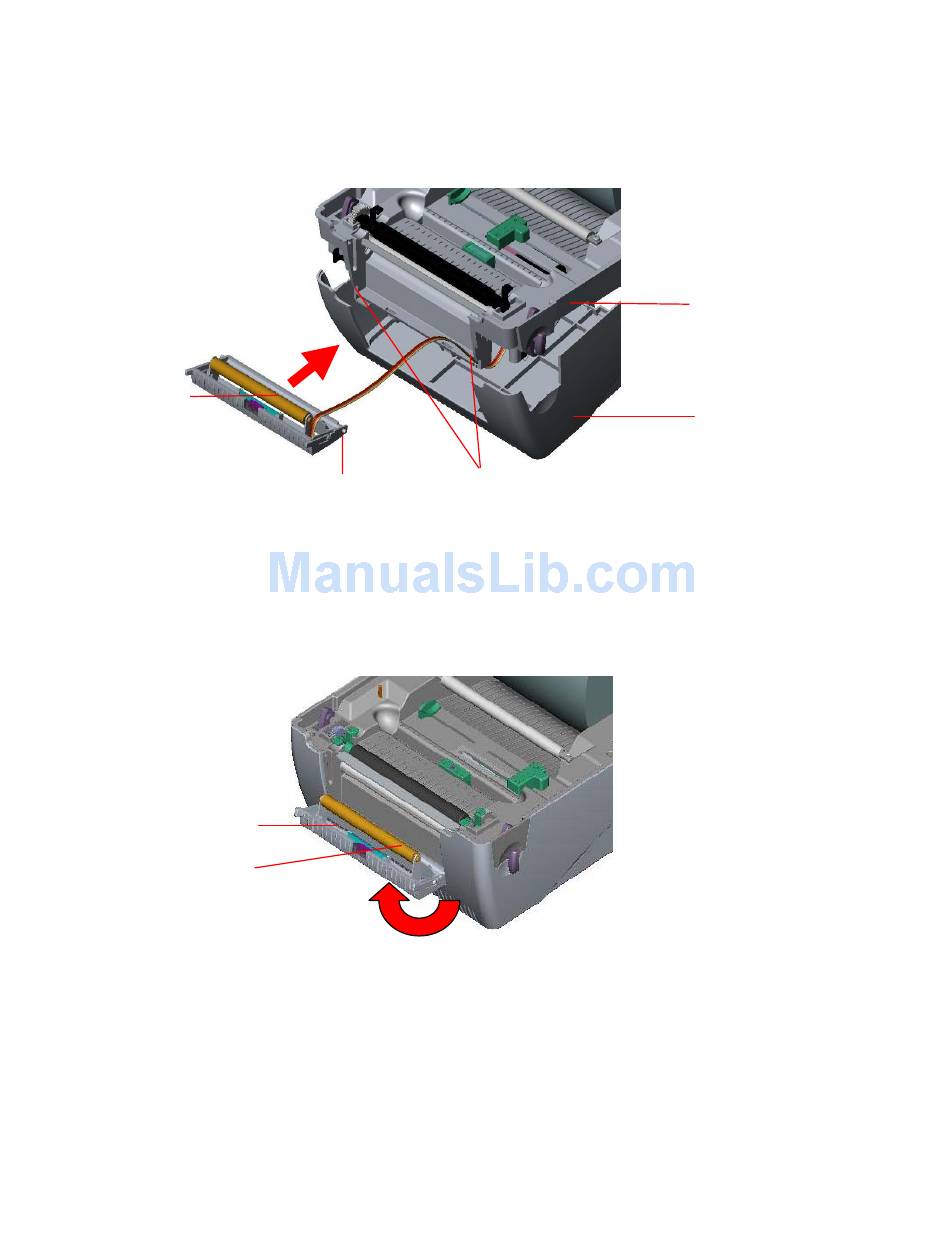

Fig. 16 Peel-off panel installation (I)
8. Reassemble parts in reverse procedures after installing the module.
Peel-off panel
Roller
Fig. 17 Peel-off panel installation (II)
9. Lift up the peel-off panel and snap into place to close.
10. Use a screwdriver to secure enclosure cover screws (9-places).
11. Close the top cover by placing the support arm back into the flute and then
push down the top cover gently.
