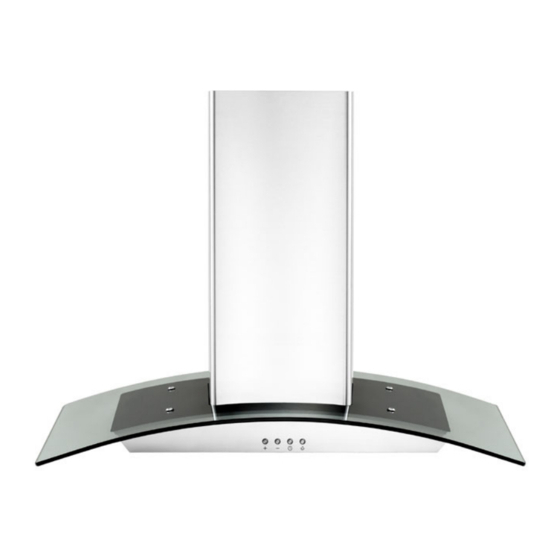

- Page 1 Installation Guide and Users Manual SPAGNA VETRO SV400 SERIES IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood www.KitchenHoods.ca...
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 4: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........23 Parts supplied...........4 Use and care information.......24 Venting requirements........5 Specifications..........24 Mount heights & clearance......5-6 MAINTENANCE Calculating vent system length.......6 Cleaning..........25 Venting methods & ductless conversion..7 Replacing filter & light bulb....25-26 WARRANTY Charcoal filters &... -
Page 5: Parts Supplied
Parts supplied: Range Hood (vary with model) Flappers Aluminum Filter(s) Mounting Brackets Lower standard chimney Upper standard chimney Charcoal Filter Air diverter Flexible Duct Tube (Optional) (Optional re-circulating kit) (Optional re-circulating kit) Description Quantity Toggle Bolts 2 Pcs Duct Set 1 Set Body Hook (vary with model) 2 Pcs... -
Page 6: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Mounting (roof or side wall). Maximum* ceiling clearance Bracket • DO NOT terminate the vent system in an at- 110” at 31” hood mounting Standard tic or other enclosed area. height above countertop/stove Upper •... -
Page 7: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 8: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa- tions, see Recirculating (Non-Vented) Kit on Page 11. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: •... -
Page 9: Level
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. 1. Remove aluminum filters on hood. 2. Remove the safety filter under the aluminum filter by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 10: Preparation
WARNING Preparation Excessive Weight Require three or more person to move and install this range hood. Spinal or other bodily injuries could occur if it is not followed. Advanced Preparations: 1. Read the entire installation guide and users manual thoroughly, understand instructions and warnings. 2. -
Page 11: Installation
Installation This range hood come with mounting brackets, one main and one or two additional for the chimney cover. The range hoods shall be placed at a distance of 24-30” from the cooking surface for best performance. See Page 5. b) Drill three Ø8 mm holes in a horizontal line at the appropriate height for installation of the mounting bracket. - Page 12 For technical or ecological reasons a range hood with an external extraction isn’t always possible. In this case a Spagna Vetro hood with recirculation is the best solution If you do not have acces to outside, you will need to make the hood re-circulated (see picture).
- Page 13 SpagnaVetro SV400D-30”, 36” Spagna Vetro SV400Z-30”...
- Page 14 SpagnaVetro SV400B2-30” SpagnaVetro SV400V-30 ”, 36”...
-
Page 15: Range Hood Operations
Range Hood Operations & Wiring Diagram SV400 Series Standard Class (3 Speed Mechanical Control) Low Speed High Speed Medium Speed Power Switch Light Switch Turn On: • Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the desired level of power. -
Page 16: Range Hood Operations
Range Hood Operations ( Electronic control ) Range Hood Operations- Electronic switch: Turning Fan ON: Always turn fans ON before cooking to establish air flow and allow fans to run for a few minutes after cooking for cleaner air in the kitchen. The Power Control (+) button must be touched before a Speed Control button be activated. -
Page 17: Troubleshooting
Troubleshooting 1. If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 18: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 19 Maintenance WARNING SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! Hazard of Burns! For optimal operation, clean range hood & all filter/oil container regu- Light bulb become extremely hot when turned on. larly.
- Page 20 Maintenance (Continued) Replacing J4 Type Halogen Light Bulb: • This range hood uses halogen light bulb: 20W 12V (Product ID: SV-ACS-HAL20W-B). • Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch. •...
- Page 21 Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects.
- Page 22 Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately.
- Page 23 Spagna Vetro Appliances Inc. 7272 Buller Ave Burnaby, BC, Canada www.KitchenHoods.ca...
