Figure 10-7 Cutter Or Tear Assembly Mounting Screw; Figure 10-8 Removing The Platen - Microcom 428TM Operator's Manual

Printer Maintenance
2. Unscrew the Cutter or Tear Assembly using the mounting screw that is located in the
bottom center on the front of the Print Mechanism.

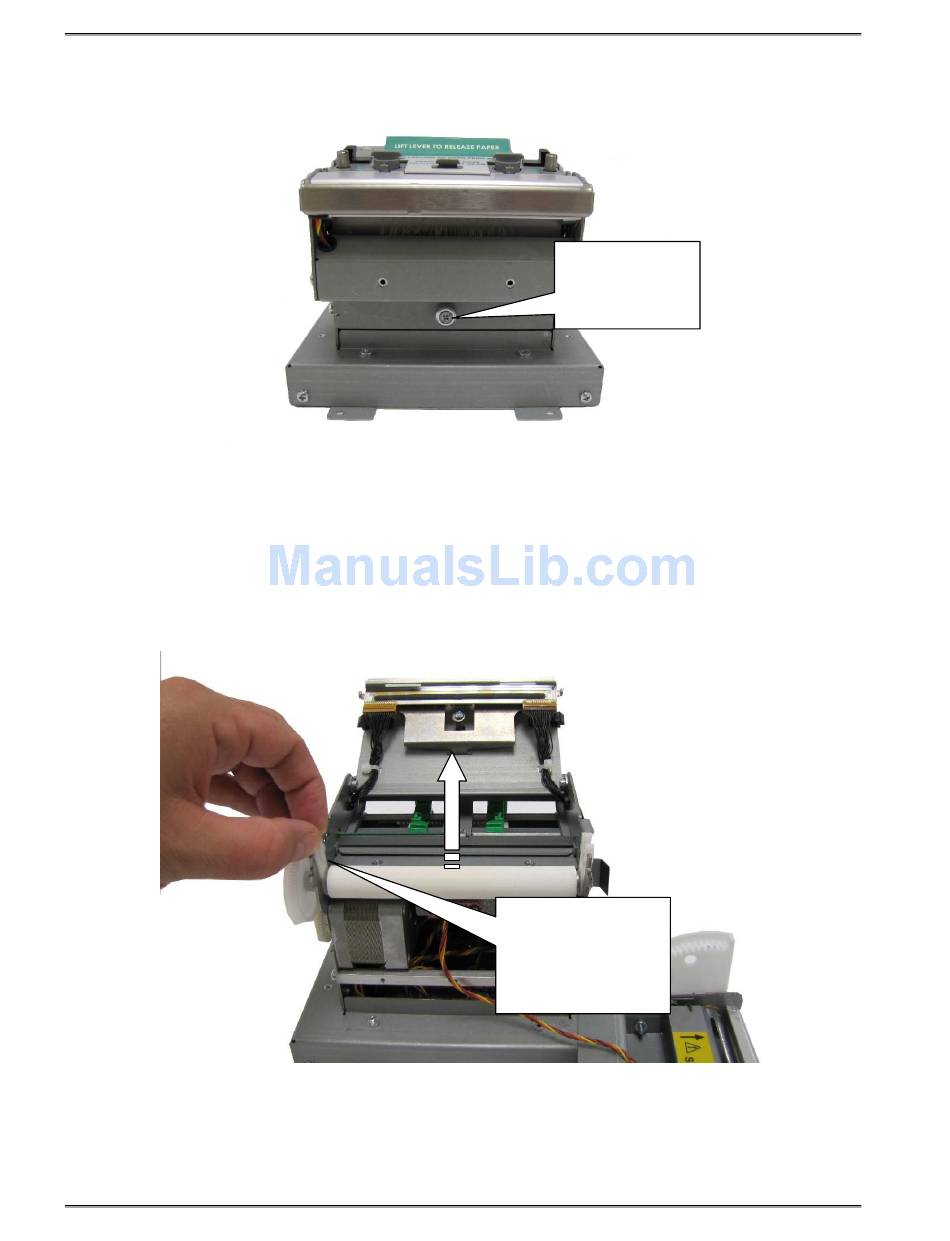

Figure 10-7 Cutter or Tear Assembly Mounting Screw

3. Squeeze the white plastic bushing together on both sides of the platen to release
from the sheet metal and lift the platen assembly up and out of the printer.
4. Replace the assembly with a new platen assembly making sure that the bushings
snap into the sheet metal.
10-6

Figure 10-8 Removing the Platen

Cutter or Tear
Assembly
Mounting Screw
Squeeze the tabs
together on both
sides and lift the
roller out of the
printer.
428TM Operator's Manual- 880042-0141
Chapter 10
