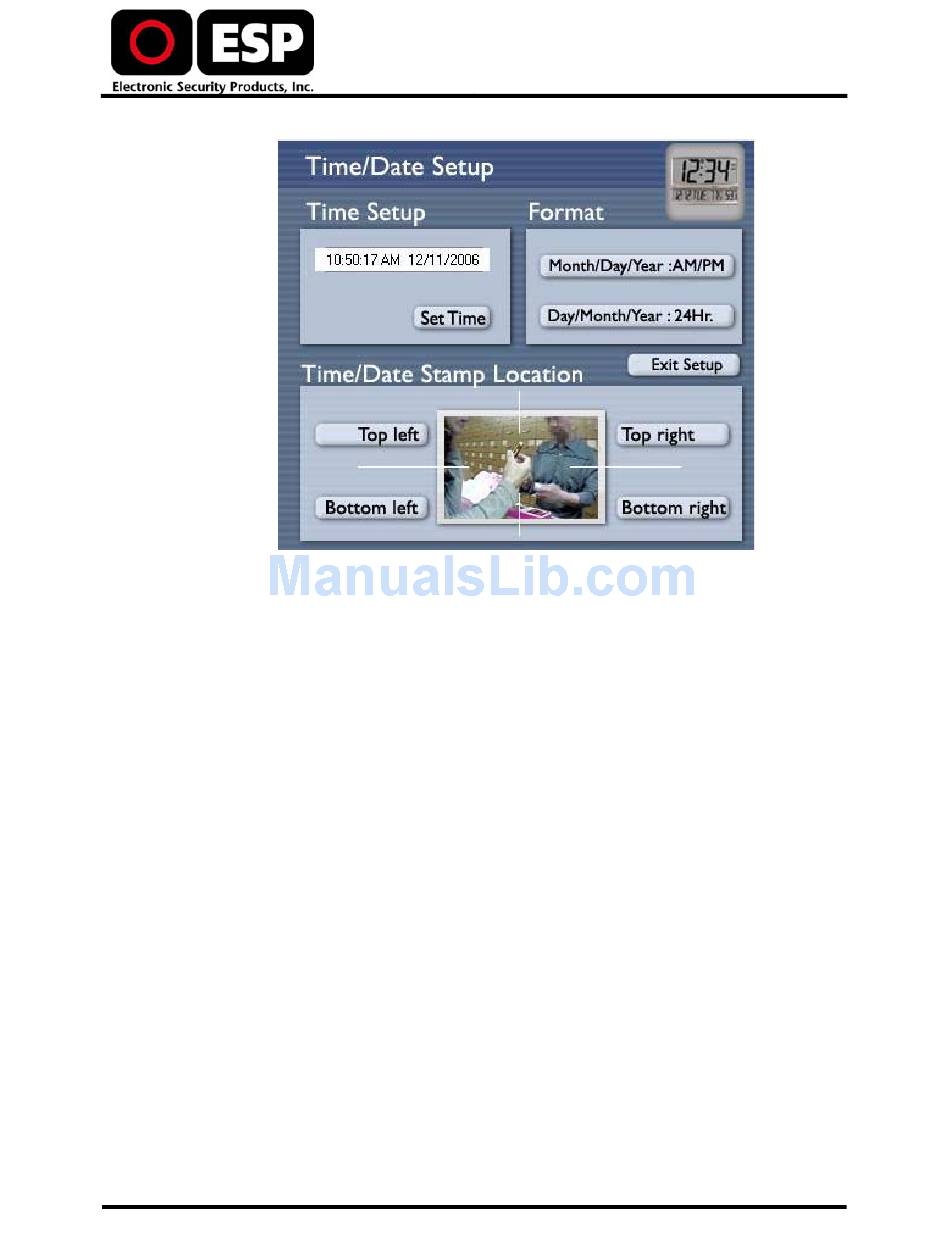

ESP STING Mini User Manual page 7

8. Click Format to toggle between date and time formats.
9. To set the location of the time/date stamp for the recording sessions,
select from one of the following options:
•
•
•
•
10. Click Set Time to set the current time on the STING Mini device.
11. Click Exit Setup to return to the main menu.
12. Restart the STING Mini.
Connecting Camera / Microphone
You can connect any video camera to the STING Mini. If the camera
operates on 5VDC, it can draw its power from the Camera Power Out socket
(see page 3, left-side view), as long as the current consumption does not
exceed 200mA. If the camera does not comply with these requirements, it
should be powered by its own battery. Alternatively, you can connect an
amplified microphone, or any other device that sends out a line-level
signal. An amplified button microphone is sold separately.
To connect a camera or microphone:
1. Plug the camera or microphone into the A/V in slot while the STING
Mini is turned off.
2. If your camera operates on 5V, and its power consumption does not
exceed 200mA, plug its power cable into the Camera Power Out socket
(see page 3).
3. Power on the STING Mini.
Mini-STING User Guide
Top left
Top right
Bottom left
Bottom right
Getting Started
6
