Summary of Contents for ESP FHDV16R

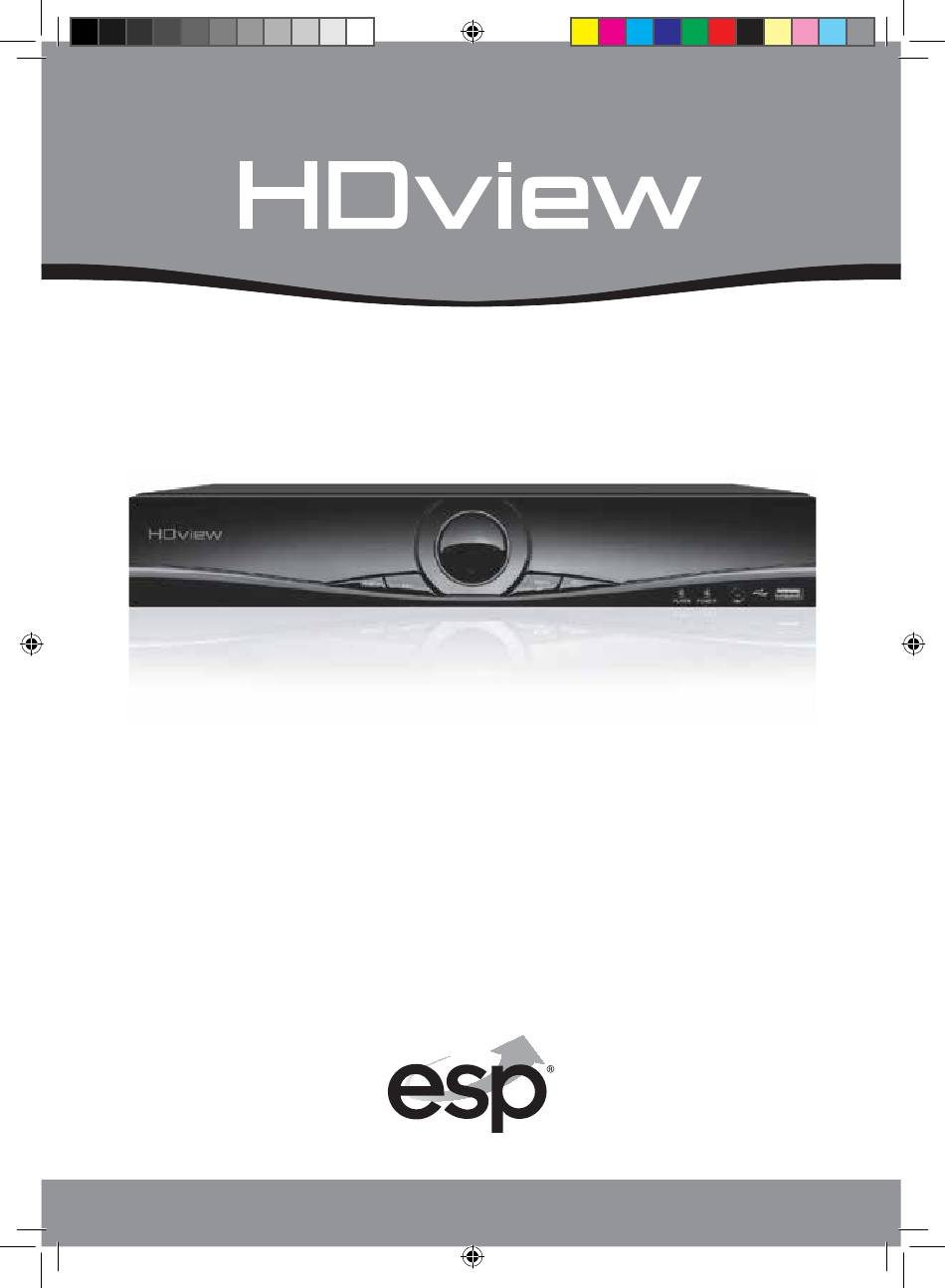

- Page 1 1 6 C H A N N E L H D D I G I T A L V I D E O R E C O R D E R FHDV16R U S E R M A N U A L ww w. e spu k .c o m FHDV16R.indd 1 28/03/2017 16:10:14...
-
Page 2: Table Of Contents
• Ensure air ventilation around the unit and do not cover or block the vent hole • Do not place the unit in direct sunlight or near a heat source FHDV16R.indd 2 28/03/2017 16:10:14... -
Page 3: Dvr Description
DVR DESCRIPTION FRONT PANEL FHDV16R.indd 3 28/03/2017 16:10:15... -
Page 4: System Connection Diagram
Video / Power Cable Camera BNC Video (female) / Power Jack (female) Notes on Camera Connection: The DVR is specifically designed for High Definition cameras using AHD technology. The DVR can also support standard definition cameras. FHDV16R.indd 4 28/03/2017 16:10:16... -
Page 5: Basic Operations
N.B Auto resume after power failure. If the DVR is shut down abnormally, the DVR will automatically backup video and resume previous working status after the power is restored. MOUSE CONTROLLER CONNECTION In order to prevent un-authorised tampering majority of DVR functions of are controlled via the mouse controller. FHDV16R.indd 5 28/03/2017 16:10:16... - Page 6 The Set-up Wizard takes the user through basic system settings. More advance options and settings are found in the Main Menu. INTRODUCTION LOG-IN An opportunity to change the password is provided within the settings menu. The default settings are: User Name: admin Password: ‘leave blank’ FHDV16R.indd 6 28/03/2017 16:10:16...
- Page 7 GENERAL Set time and date: CLOUD If status is ‘Connected’ use the QR codes to download the required APP and serial number. FHDV16R.indd 7 28/03/2017 16:10:16...
- Page 8 Colour Setting Edit colour settings per channel Output Adjust Adjust display output settings of DVR Logout Logout, Shutdown or Reboot system View 1 1 Channel view View 4 4 Channel view View 8/16 8/16 Channel view FHDV16R.indd 8 28/03/2017 16:10:16...
- Page 9 Selecting Main Menu option will automatically display the following screen; FORMATTING THE HDD (IMPORTANT) Before first use, please ensure that the HDD is formatted. Enter the Main Menu; • Select Maintain option Select HDD Manage • • Select the HDD Select Format • FHDV16R.indd 9 28/03/2017 16:10:16...
-
Page 10: Record Setup
Each day can be segmented into 6 specific recording periods throughout the day NB. When entering the ‘Record > Control’ menu the default screen will always start with a display for Channel 1 and the current day’s schedule. FHDV16R.indd 10 28/03/2017 16:10:16... - Page 11 Double click on the event list to start playback NB. Practice playing back footage to familiarize with the process before an incident occurs. NB. For best performance it is recommended that only one channel at a time is selected for playback FHDV16R.indd 11 28/03/2017 16:10:16...
- Page 12 Select AVI and Select Start • • Notification will be received once complete NB. Practice backing-up footage to familiarize yourself with the process before an incident occurs. NB. The AVI file will enable playback via a PC using AVI players FHDV16R.indd 12 28/03/2017 16:10:17...
-
Page 13: Main Menu Layout
Version Manufacturer Information Configuration Import Configuration / default system settings HDD Manage HDD Information and options Maintain Online Users Displays current remote connections Data consumption rate by channel View system Log Shut Down Shut down options FHDV16R.indd 13 28/03/2017 16:10:17... -
Page 14: Remote Viewing
PC/Laptop Software: HDview CMS supplied on the included CD (Windows compatible) NB. ESP are unable to guarantee that every device will be compatible with the DVR and software supplied. Specific models of phone, tablet or other device, the hardware it contains,... -
Page 15: Help Guide
• An incorrect HDD has been installed Network connection to DVR is not stable • Network is not stable • DVR is not networked correctly • Incorrect network details have been entered in the remote viewing platform FHDV16R.indd 15 28/03/2017 16:10:17... - Page 16 Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 Lakeside, Redditch B98 8YN email: info@espuk.com E&OE - Errors and omissions excepted. I16 w ww . es pu k . co m FHDV16R.indd 16 28/03/2017 16:10:17...
