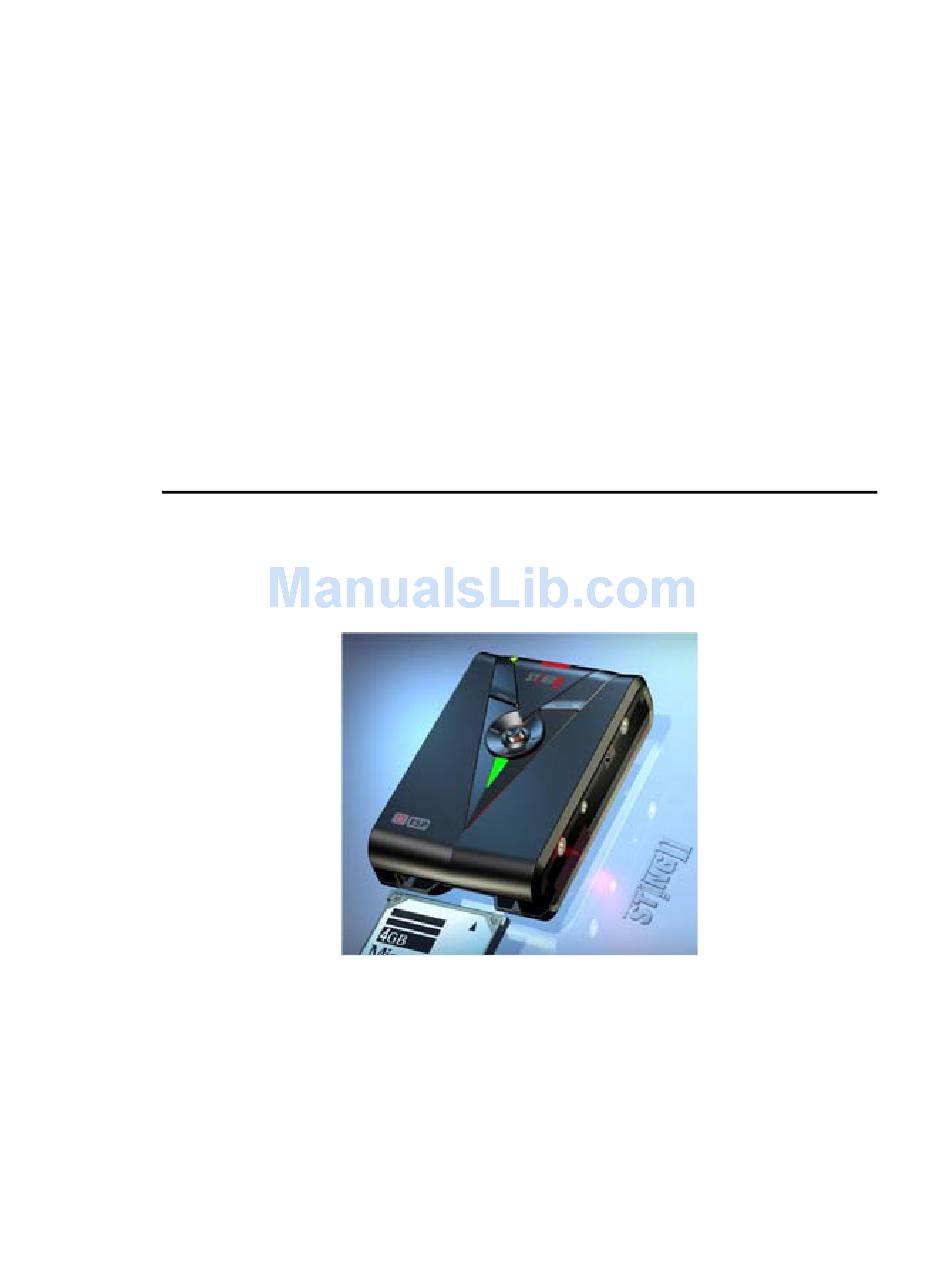

  • Page 1 STING II Digital Video Recorder/Player User’s Guide...

  • Page 2: Table Of Contents

    Connecting the A/V Cable ..............7 Getting Started ..................8 Charging the Battery................8 Connecting and Configuring the STING II ..........8 Connecting the STING II via USB ............9 Deleting One or More Files Via the Setup Menu ........9 Reformatting the Compact Flash or Microdrive ........

  • Page 3: Introduction

    In addition to the STING II unit, the STING II solution includes Setup software embedded in the device, a Media Center application enabling you to connect the STING II directly to your laptop or personal computer, and a remote web interface that lets you view and capture images and files remotely.

  • Page 4: Top View

    • The ability to start and stop recording (see Recording Methods page 12) • Several LEDs that indicate the STING II status (see STING II LED Indicators on page 5) Menu Control The Menu control joystick is used to access the Setup application.

  • Page 5: Left Side View

    Introduction Left Side View The left side of the STING II unit offers: • Wired Remote • USB 2.0 • Ethernet • DC In Right Side View The right side of the STING II unit offers: • AV/Out • Mic In •...

  • Page 6: Bottom View

    STING II LED Indicators The STING II LEDs indicate the status of the unit as it is powering up. Once the unit is operating fully, the LEDs indicate the recording status of the unit.

  • Page 7: Package Contents

    Mini USB to normal USB cable • Vibrating remote control cable • Infra red remote control • USB Cable • Universal Battery Charger • Sting Media Center Software (Including STING II User Guide on a • 4GB Microdrive Sting II User Guide...

  • Page 8: Connecting The A/V Cable

    To connect the A/V cable to the STING II: • Plug the 3.5mm plug into the Video In socket on the STING II. Make sure it is plugged all the way into the center hole. Connecting a Camera or Microphone You can connect any video camera to the STING.

  • Page 9: Getting Started

    Set the configuration options in the Media Center Charging the Battery Before using the STING II for the first time, it is highly recommended that you charge the battery over night. Once this initial charge has been accomplished, you will only need to charge STING II for 4 hours each time the battery gets low to ensure maximum battery power during operation.

  • Page 10: Connecting The Sting Ii Via Usb

    USB connection and you can access the files on the STING II. To disconnect the STING II, it is important to first turn the STING II Off, and then disconnect the USB cables from the computer and the STING II.
  • Page 11 LEDs will be solid green. Alternatively, you can use one of the following options to delete the files: • Connect the STING II via the USB cable to your computer and use Windows Explorer to delete all the files. •...

  • Page 12: Recording Sessions

    Recording Sessions Recording Sessions The STING II provides several ways to start and stop recording audio and video. To save power, the STING II is automatically configured to close the video output 300 seconds (5 minutes) after beginning to record. After that time, although the unit continues to record, it will not automatically display what it is recording, even if connected to a television or monitor.

  • Page 13: Recording Methods

    STING II is now recording. If you are viewing the STING II, you will also notice a blinking red light on the top of the device as a further indication that the device is recording.

  • Page 14: Alarm Indication

    REC button on the top right corner of the device. The red blinking light on the top of the STING II unit indicates that it is in record mode. Press the Stop button (square icon on lower left corner of black navigation panel) to stop the recording session via the remote control.

  • Page 15: Setup Software

    Accessing the Setup Software You can access the Setup software either by using the STING II’s joystick control buttons or by using the remote control. For information on how to connect the unit, see...

  • Page 16: Viewing Files

    Preview window. File names are automatically assigned to each file that is created by the STING II. Viewing Files When viewing a .jpg file, the image itself is displayed in the Preview window, rather than the first frame of a video clip.
  • Page 17 Press ENTER to open the Event Library. You will see a list of files on the left side of the window. You can use the UP and DOWN keys on the STING II remote control to navigate through the files on the displayed page. To move to another page, use the LEFT and RIGHT keys.

  • Page 18: Setup

    Setup The Setup menu enables you to define the recording configuration of the STING II during operation, set the time and date details (if needed), and much more. When you select the Setup option, the Setup software displays the following tabs: •...

  • Page 19: Record Tab

    Recording Mode The Recording Mode option enables you to set the STING II recording operations. Each time you activate the STING II, it will operate according to this setting until it is again modified in the Setup software. The default value is AUDIO/VIDEO.

  • Page 20: Recording Quality

    MP3 Audio: Select this mode to audio video only (no visual images are recorded). If you do not have a camera connected to the device and you do not select this option, the STING II will not record anything. •...

  • Page 21: Time Lapse Interval

    High Time Lapse Interval You can the Time Lapse option to set STING II to record a single image at preset intervals. The default value is 10 SEC. While you set the option to capture video in the Recording Mode, the interval itself is set in the Time Lapse Interval option.

  • Page 22: Time Date Stamp Position

    Press DOWN to highlight the Setup option and press ENTER to access the Setup window. Use the DOWN key again to navigate to the Time Stamp Position option and then press Enter. Select one of the following: • Top left • Top right Sting II User Guide...

  • Page 23: Time Date Stamp Colour

    Transparent Black Press ENTER to apply your selection. Motion Tab STING II can be activated automatically when motion is detected in the recording area. You can set the noise, size and speed sensitivity to filter out insignificant data. When enabled, the STING II will record for 30 seconds following any movement within the target area (according to the sensitivity settings specified in the configuration).

  • Page 24: Motion Detection

    30 seconds, the unit will stop recording until movement is again detected. By default, the STING II’s Motion Detection is set to off, meaning that the unit is not triggered to record based on motion. Sting II User Guide...

  • Page 25: Noise Sensitivity

    Using the Infrared Remote Control, press the MENU key once to access the Setup software. Press DOWN to highlight the Setup option and press ENTER to access the Setup window. Press RIGHT to navigate to the Motion tab. Sting II User Guide...
  • Page 26 Press DOWN to highlight the Setup option and press ENTER to access the Setup window. Press RIGHT to navigate to the Motion tab. Use the UP/DOWN keys to navigate to the Size option and select one of the options. Sting II User Guide...

  • Page 27: Speed Sensitivity

    Press DOWN to highlight the Setup option and press ENTER to access the Setup window. Press RIGHT to navigate to the Motion tab. Use the UP/DOWN keys to navigate to the Speed Sensitivity option and select one of the options. Sting II User Guide...

  • Page 28: Media Tab

    Format Primary Disk • Encrypted Files Set Primary Disk You can save files that are stored on the STING II to one of two primary disk options: Microdrive/Compact Flash plug-in cards or External USB hard drive. Sting II User Guide...

  • Page 29: Format Primary Disk

    If you choose USB and then connect a compact flash, STING II will record on the compact flash. Similarly, if you mistakenly select compact flash and then connect a USB device, the STING II will still record to the USB. To select the primary drive: Using the Remote Control, press the MENU key once to access the Setup software.

  • Page 30: System Tab

    Setup Software Encrypted Files STING II can encrypt all files so you can make sure no one but you or the person that has the password can view the recorded files. Encrypted files can only be decrypted with a password (set in the STING II Media Center) from within the STING II Media Center.

  • Page 31: Factory Defaults

    Select Factory Defaults to return the STING II configuration settings to the original factory-set options. You are prompted to confirm your selection. Click OK to reset the STING II configuration settings, or Cancel to close the message box without changing the current settings.

  • Page 32: Video Output Std

    Once the camera is in position and you change the setting, the STING II is programmed to automatically continue giving power to 5-volt connection while the camera is in record mode.

  • Page 33: System Info Tab

    The System Info menu is read-only. It is intended to offer you information on the following options: • Network • Disk • Virtual • Firmware Network The Network tab details the STING II’s: • MAC Address • IP Address • Gateway Address Sting II User Guide...
  • Page 34 Setup Software Disk The Disk tab details information about the current disk connected to the STING II, its total size and the amount of free space available. Sting II User Guide...
  • Page 35 If a virtual adaptor is connected, information about its current status will be detailed on the Virtual tab. Firmware The current software and hardware version of the STING II is detailed on the Firmware tab. For information on updating the Firmware, see Updating the STING...

  • Page 36: Default Settings

    Setup Software Default Settings The following values configured in the STING II when originally shipped, and are reassigned when you click Factory Defaults on the System tab. Setting Default Value Record Mode Audio/video Record Quality High (5Mbps) Time Lapse Interval...

  • Page 37: Updating The Sting Ii

    Insert the memory card into the STING II, while the STING II is turned Off. When you turn the STING II On, the red and green lights will flash, indicating that the unit is in the process of being updated. This process will take about three minutes and it is important not to interrupt the STING II while it is the process of upgrading.
  • Page 38 Setup Software Sting II User Guide...

  • Page 39: Using The Remote Control

    Navigation panel to move through the menu. Select Enter to confirm your selection. Image Capture button initiates the STING II to capture a single frame image and save it in jpg format when viewing a play back video. Sting II User Guide...

  • Page 40: Using The Sting Ii Media Center

    The STING II Media Center is a software program that communicates with your STING II, and enables you to preview, upload and delete recordings. It also enables you to decrypt files that were encrypted during a STING II recording session.

  • Page 41: Accessing The Sting Media Center

    Click the program’s desktop icon, or click the Start button and select Programs > STING > STING Media Center. If the STING II unit is already connected to the computer when you open the STING II Media Center, “Found Sting Media” will be displayed in the upper right corner of the window.

  • Page 42: Security Options In The Media Center

    When you decrypt a file, it is copied to another location and “unlocked.” This means that the original file is still encrypted and remains unedited. The decrypted file can then be viewed in the STING II Media Center or any other MP2-compatible viewer.

  • Page 43: Configuration Options In The Media Center

    Press ENTER to open the Event Library. You will see a list of files on the left side of the window. You can use the UP and DOWN keys on the STING II remote control to navigate through the files on the displayed page. To move to another page, use the LEFT and RIGHT keys.
  • Page 44 Record Settings In the Record Settings section, you can enable the Record Settings for the STING II. The STING II can be configured to encrypt all files created during a recording session (still images, video, or audio), by enabling the Encryption radio button.

  • Page 45: Firmware Version

    Using the STING II Media Center To set a password: The STING II needs to be connected via the USB in order to access the STING II Media Center to create or change the password. Enter the new password in the New Password field of the STING II Media Center.

  • Page 46: Remote Access

    Ethernet/RJ-45 connections. Determining the STING II’s IP Address The STING II is assigned an IP address when it is connected to the router and communication is established. This IP address is then used by the remote Web Interface to enable you to access and control the STING II remotely.

  • Page 47: Logging In

    By default, the STING II user name and password are both “admin.” These can and should be changed either in the STING II Media Center or via the Setup settings. Once you complete the login process, the STING II Web Interface window opens.

  • Page 48: File List

    System Status File List Click File List to display a list of all files currently stored on the STING II. The file name, date the file was created, and the file size are displayed. You can click on a file to download it to the local computer.

  • Page 49: Webcam (Full Resolution)

    Upgrade Firmware You can upgrade the firmware on the STING II either via a USB connection with the STING II directly, or via an Ethernet connection and the Internet. Connect to the STING II via the remote Web interface and click Upgrade Firmware to access and upload a new version.

  • Page 50: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Maintenance and Troubleshooting Caring for the STING II The STING II does not require special maintenance. Keep the unit away from moisture, dirt or excessive heat. Clean with a damp cloth and wipe dry. Do not use Acetone, Benzene or any other alcoholic agents when cleaning the unit.

  • Page 51: Technical Specifications

    5 Volts 200mA Audio/Video Video Format MPEG-2. Video Input PAL/NTSC standard composite video. Video Output Video/Audio Playback Any MPEG-2 compatible player. (e.g. Windows Media Player or Winamp) Miscellaneous PC Interfaces USB (1.1 or 2.0) or Ethernet Sting II User Guide...

  • Page 52: Contact Information

    Established in 1993 and headquartered in New York, ESP has been the choice manufacturer and supplier of high quality video surveillance products for over a decade. The company caters exclusively and directly to many Law Enforcement &...
  • Page 53 Logging In........... 46 Time Lapse Interval ......20 Media Center........39 Trigger..........23 Accessing ........40 Updating the Sting II......36 Installing ......... 39 Upgrade Firmware ......48 Media Tab ........... 27 USB disk presence ......48 Memory Card Status ......6 Version..........
  • Page 54 Technical Specifications Video Status ........48 WebCam (CIF resolution)....48 Viewing Files ........15 WebCam (Full resolution) ....48 Virtual ..........34 WiFi connection........5 Watermark........... 42 Sting II User Guide...
  • Page 55 ESP protected under international copyright law and shall be and remain solely with ESP. STING II ™ is a registered trademark of ESP. No right, license, or interest to such trademark is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark.
  • Page 56 The manner in which the equipment is employed and the use to which the data and test results may be put are completely in the hands of the Purchaser. ESP shall in no way be liable for damages consequential or incidental to defects in any of its products.
