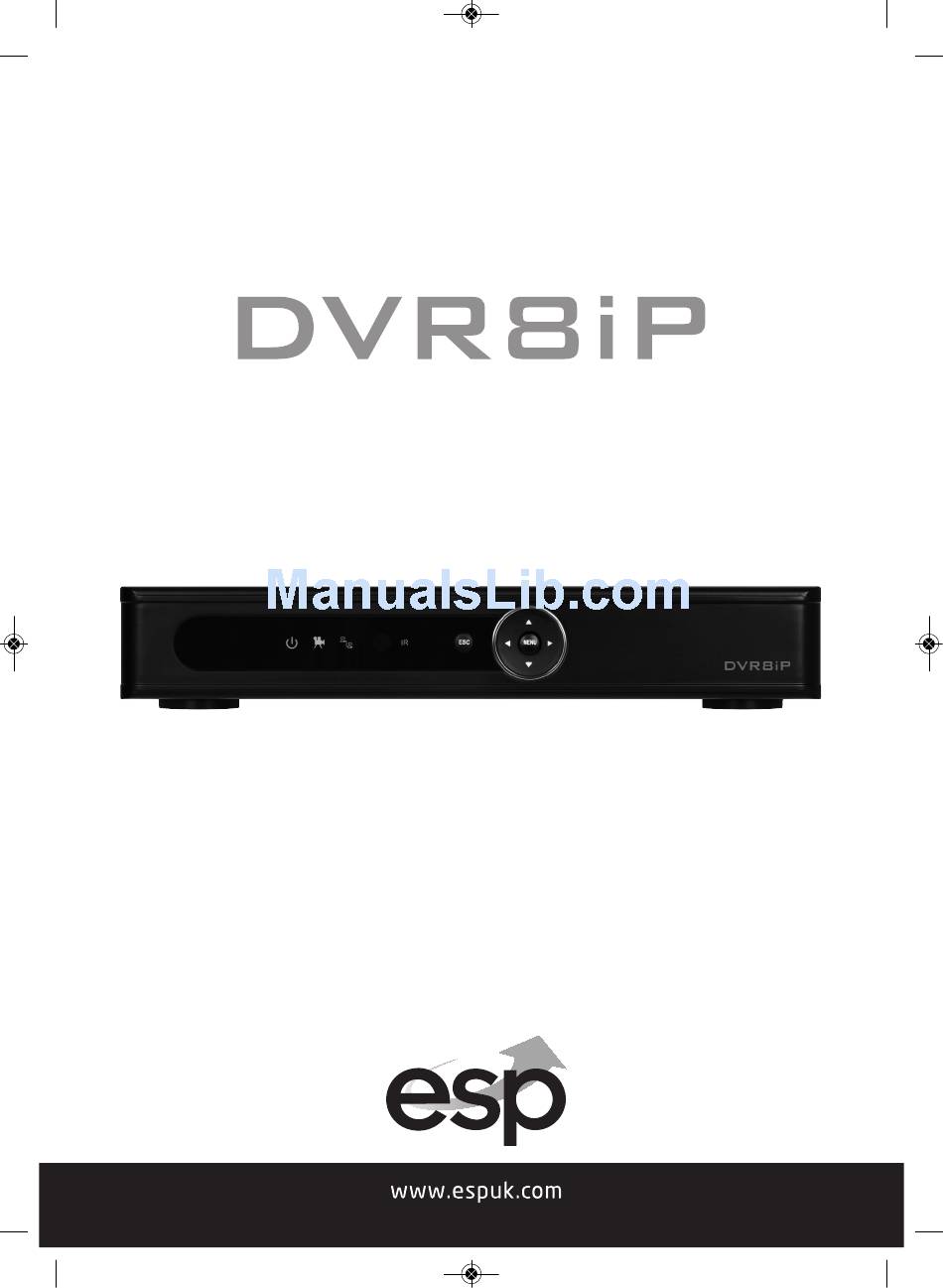

  • Page 1 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 1 8 C H A N N E L N E T W O R K A B L E C C T V S Y S T E M W I T H I N T E G R A L 1 T B H A R D D R I V E...

  • Page 2: Safety Notice

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 2 SAFETY NOTICE IMPORTANT PRECAUTIONS! HIGH VOLTAGE HAZARD! HIGH VOLTAGE INSIDE! • Please keep this manual for later use. • Please strictly comply with the warning indications on the machine and in this book.

  • Page 3: Table Of Contents

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 3 Contents Front panel layout ..........4 Rear panel layout .

  • Page 4: Front Panel Layout

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 4 Front Panel FUNCTION LED COLOUR Main power on Blue Recording status on Blue Network connection on Blue Remote control receiver Escape Navigation keys Control keys for main menu navigation...

  • Page 5: Rear Panel Layout

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 5 Rear Panel No. interface ID Description VIDEO IN Video input BNC connectors x 8 VIDEO OUT Video output BNC x 2 AUDIO-OUT Audio output AV AUDIO-IN Audio input AV NET/LAN Network Interface USB interface x 2...

  • Page 6: Basic Operations

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 6 Basic operations POWER ON Plug the red lead from the 5-way power supply marked DVR into the 12VDC power supply input of the DVR. Turn on the DVR at the mains power point. The Power supply indicator light ( Blue) will illuminate on the DVR front panel followed by several short bleeps.

  • Page 7: Controls

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 7 Controls Right click the mouse anywhere on screen to activate the control menu selections. Selecting main menu will automatically show the SYSTEM LOGIN screen. The default settings are User Name: Admin Password: leave blank Once logged in you may now right click again to access your menu selections.

  • Page 8: Playing Back A Recording

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 8 PLAYING BACK A RECORDING To view recorded data right click anywhere on screen and enter playback directly from the menu. The playback screen can also be found in the main menu shortcuts record >...

  • Page 9: System

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 9 Once you have entered the selections above click Add, data applicable to the selections will now appear in the main screen. Further more precise selections can then be made by clicking on the boxes to the left of the file details or selecting all files by clicking on the box next to Channel.

  • Page 10: Remote Viewing

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 10 Output Adjust Allows precise set up of the image display on screen to fit various monitors exactly. Auto Maintain Configure schedule for auto reboot and auto delete old recordings to assist processor and increase Hard drive life.
  • Page 11 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 11 Important – Settings for remote viewing with a mobile phone As mentioned above , the preffered current APP ( iPhone and Android ) for remote viewing of images from Digi-view systems is MeyeProV2. In addition to the...
  • Page 12 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 12 Device Cfg Right click mouse and select ‘Device Cfg’. You can now adjust most of the DVRs Config settings as if you were at the DVR in person. DISPLAYS LIST OF AVAILABLE CAMERAS PTZ controls Only suitable for PTZ cameras.

  • Page 13: Troubleshooting

    DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 13 Troubleshooting The DVR cannot boot up normally. Possible reasons are as follows: 1 The power supply is not correctly connected. 2 The power supply is damaged 3 The hard disk is damaged .
  • Page 14 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 14 The local video is not clear. Possible reasons are as follows 1 The image quality is too bad. 2 The reading program is wrong. Reboot up the DVR. 3 The data line of the hard disk is damaged.
  • Page 15 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 15 The image is not clear or there is no image in network preview state or video file playback state. Possible reasons are as followed: 1 Network is not stable. 2 The user machine has limited resource.
  • Page 16 DVR8iP Manual_Layout 2 30/01/2013 14:42 Page 16 Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 Lakeside, Redditch B98 8YN email: info@espuk.com...
