Mechanical Drawings; Section 8 Mechanical Drawings - VarTech Systems ColorVue VT190PC User Manual

Section
8

Mechanical Drawings

Model
VT190PC
VT190RC

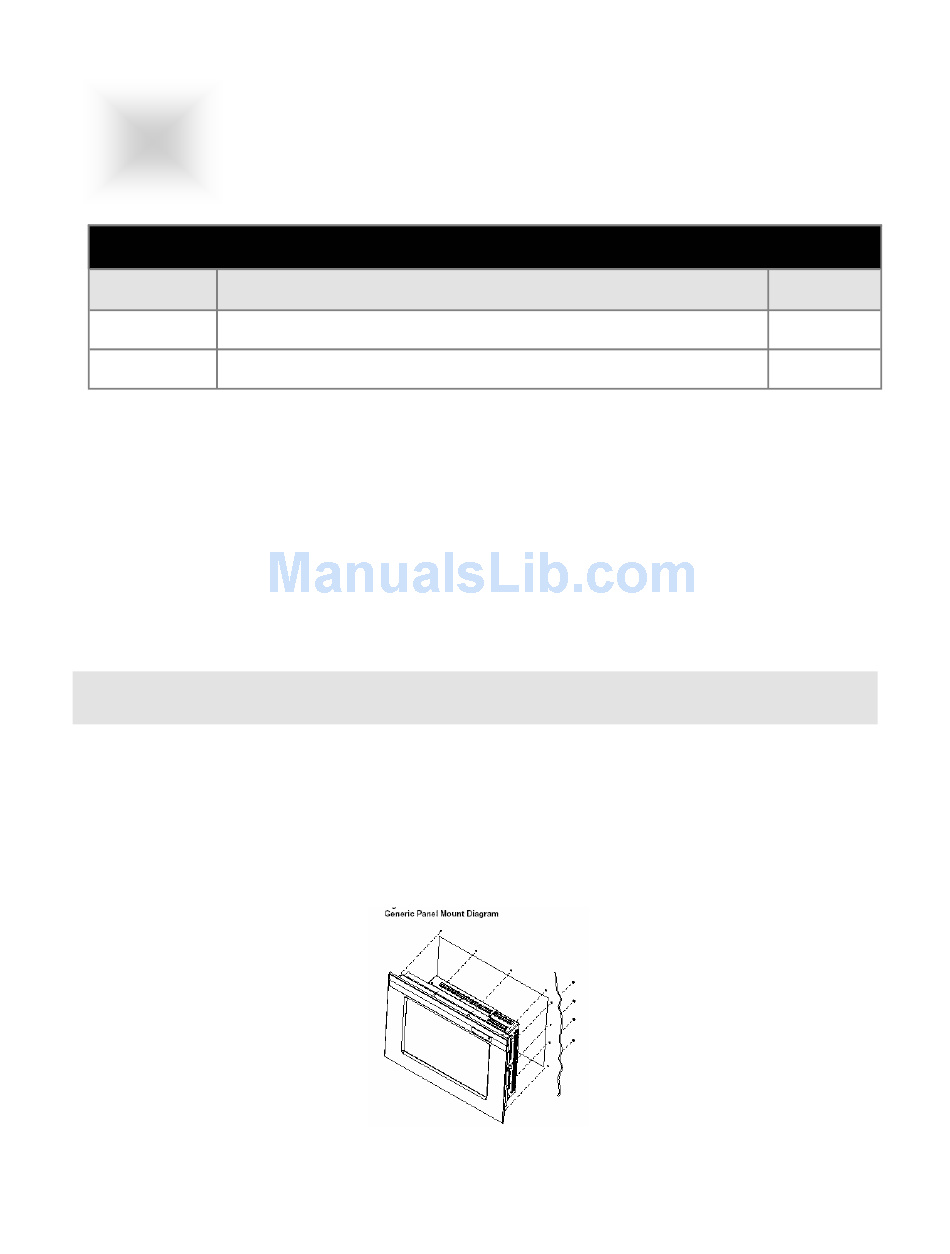

Panel Mount Procedure
7.1
Panel Mounting Procedure
1. Cut and drill the panel (refer to panel mount drawing). Measurements are in inches.
Panel Mounting Cutout
2. If access to the side of the monitor is not available following installation, attach the power and
video cables to the side of the monitor at this time.
3. Install the monitor in the prepared cutout.
4. Install the lock nuts and washers, supplied with the monitor, behind the holes running along
the sides and top/bottom of the cutout in the panel. Extra lock nuts and washers are provided.
Note:
Use #10-32 nuts for mounting.
5. Tighten all mounting nuts evenly to a torque of 24 inch-pounds.
ATTENTION: Mounting nuts must be tightened to a torque of 24 inch-pounds to provide panel
seal and avoid potential damage. Vartech Systems assumes no responsibility for water or
chemical damage to the monitor or other equipment within the enclosure due to improper
installation.
6. Attach the power and video cables to the side of the monitor if you have not already done so.
VT190 ColorVue User Guide
Description
19.0" ColorVue Panel Mount Mechanical Drawing
19.0" ColorVue Rack Mount Mechanical Drawing
Mechanical Drawings
17
Page(s)
18-19
20
150-077
