Section
7

Mechanical Drawings

Model
VT064P

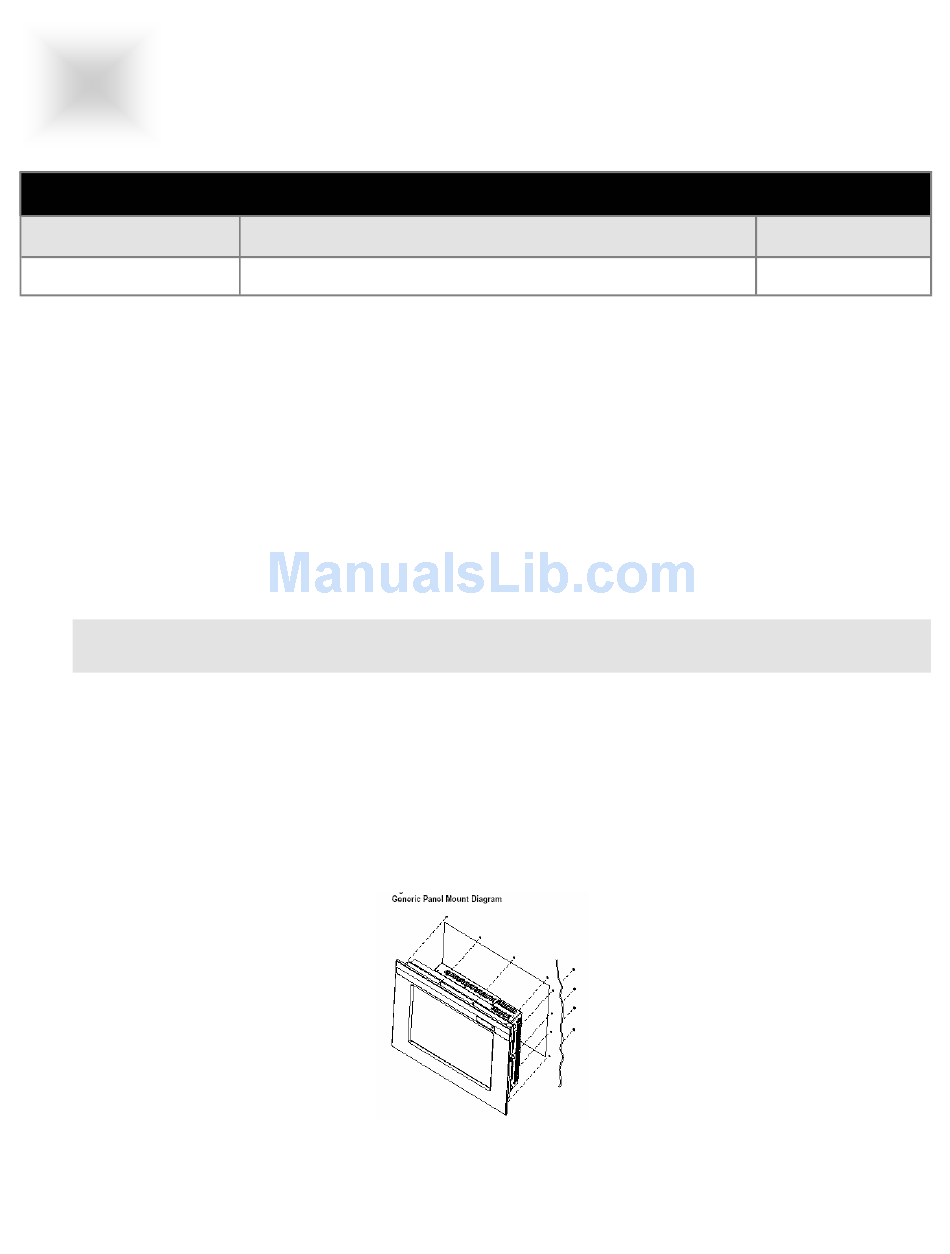

Panel Mount Procedure

7.1
Panel Mounting Procedure
1. Cut and drill the panel (refer to panel mount drawing). Measurements are in inches.
Panel Mounting Cutout
2. If access to the side of the monitor is not available following installation, attach the power and video
cables to the side of the monitor at this time.
3. Install the monitor in the prepared cutout.
4. Install the lock nuts and washers, supplied with the monitor, behind the holes running along the sides
and top/bottom of the cutout in the panel. Extra lock nuts and washers are provided.
Note:
Use #10-32 nuts for mounting.
5. Tighten all mounting nuts evenly to a torque of 24 inch-pounds.
ATTENTION: Mounting nuts must be tightened to a torque of 24 inch-pounds to provide panel seal and
avoid potential damage. Vartech Systems assumes no responsibility for water or chemical damage
to the monitor or other equipment within the enclosure due to improper installation.
6. Attach the power and video cables to the side of the monitor if you have not already done so.
VT064 DiamondVue User Guide
Description
6.4" DiamondVue Panel Mount Mechanical Drawing
MOUNTING INSTRUCTIONS
MOUNTING INSTRUCTIONS
15
Page(s)
16
150-025
