Signal Connections Cont.
2.5
You can use an HD-15 connector cable or a BNC adapter cable to connect the flat
panel monitor to the host computer. The HD-15 video cable (supplied in the kit) you
use with this monitor is equipped with a conventional HD-15 connector at each end.

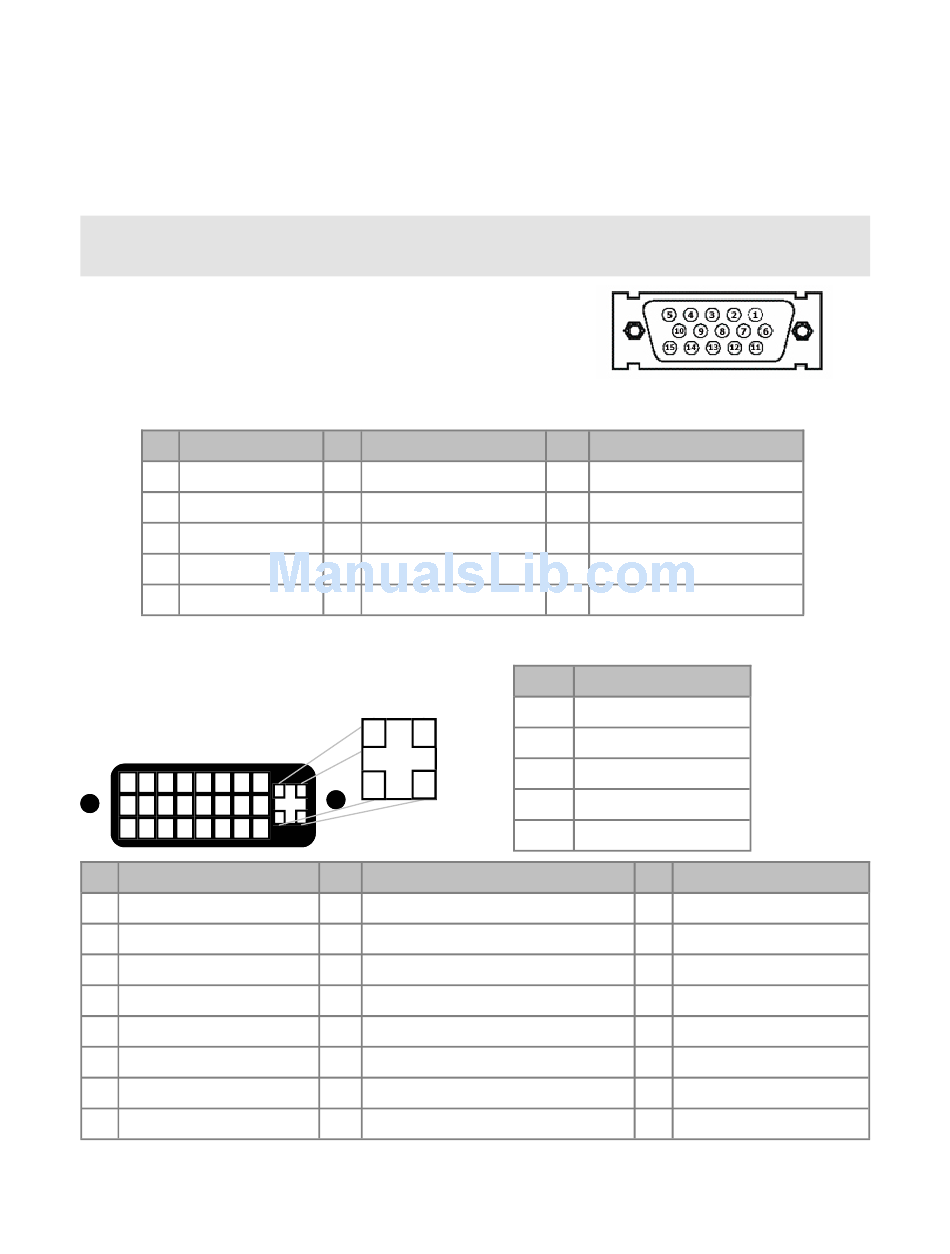

Note: The following figure is the view looking into the pin end of the male connector or
solder term end of the female connector.
HD-15 Video Connector
The following table provides the pin numbers and
corresponding pin assignments for the HD-15 video
connector.
Pin Signal (HD15)
1
Red Video
2
Green Video
3
Blue Video
4
Not Used
5
Ground
DVI-I Connector (Digital / Analog)
1
9
17
Pin Signal (DVI-I)
1
T.M.D.S. Data2-
2
T.M.D.S. Data2+
3
SGND
4
Not used
5
Not used
6
DDC Clock
7
DDC Data
8
Not used
VT190 ColorVue User Guide
Pin Signal (HD15)
6
Red Video Ground
7
Green Video Ground
8
Blue Video Ground
9
+5 V
10 PC detection
C2
C1
C5
8
C3
C4
16
24
Pin Signal (DVI-I)
9
T.M.D.S. Data1-
10 T.M.D.S. Data1+
11 SGND
12 Not used
13 Not used
14 DDC Power
15 Ground
16 Hot Plug Detect
Pin
Signal (HD15)
11
Monitor Ground
12
DDC data
13
Horizontal Sync
14
Vertical Sync
15
DDC clock
Pin
Signal (DVI-I)
C1
Not Used
C2
Not Used
C3
Not Used
C4
Not Used
C5
Not Used
Pin Signal (DVI-I)
17 T.M.D.S. Data0-
18 T.M.D.S. Data0+
19 SGND
20 Not used
21 Not used
22 SGND
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-
5
150-077
