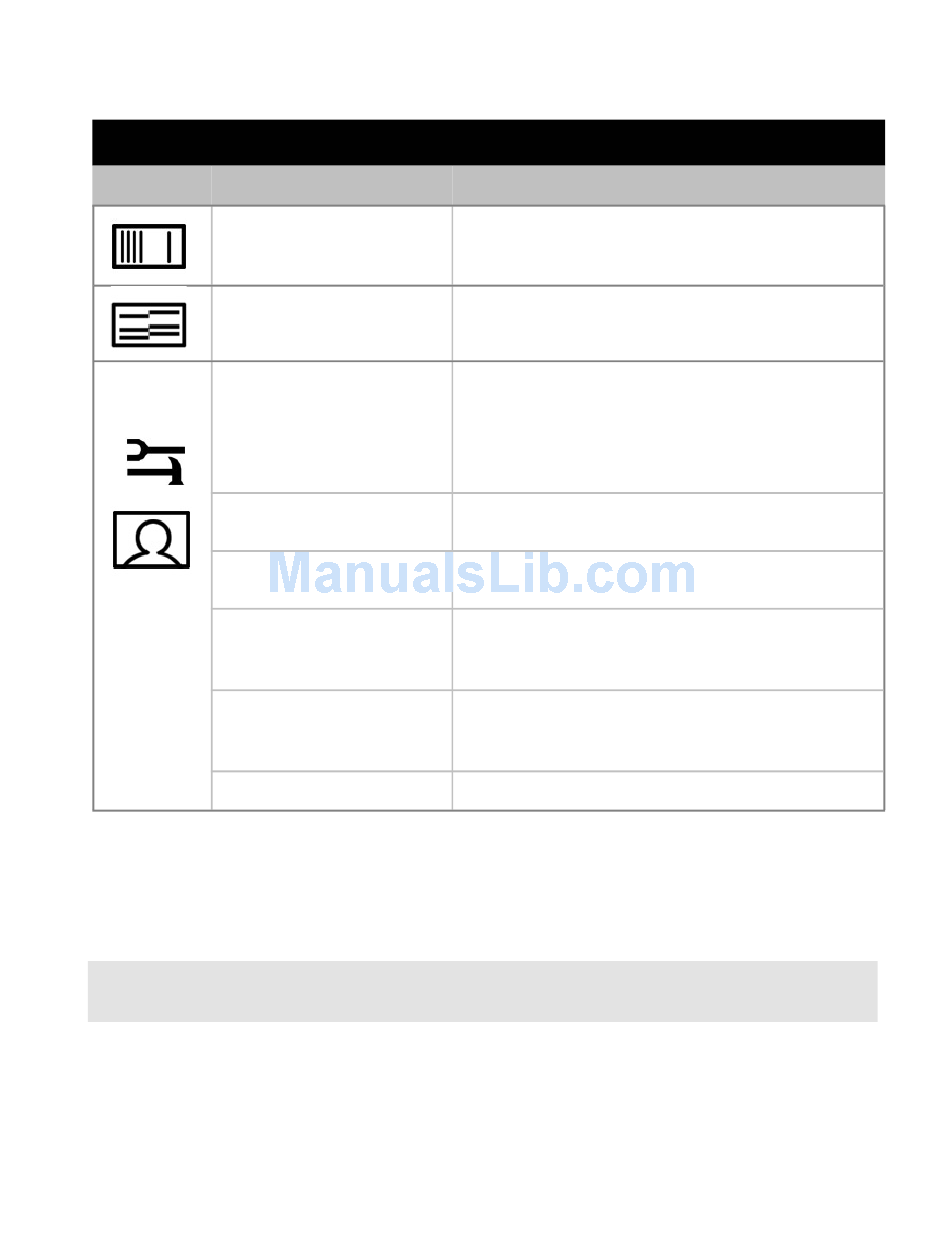

On Screen Display (OSD) Control Adjustment Cont.
3.3
OSD - On Screen Display
Icon
How to use the AUTO CONFIG Adjustment
This function tunes the parameters of PHASE, CLOCK, H-POSITION, and V-POSITION.
Suggested steps for Auto Config Adjustment:
1) Enter the "Windows" Shut-down frame.
Note:
The Wallpaper color CAN NOT be black.
2) Enter OSD Main menu and choose the AUTO CONFIG item, then press the SELECT key.
The picture will auto-adjust by itself. After 4 seconds, you can exit OSD and Shut-down
frame.
3) If you are not still satisfied with the picture quality, you could choose CONTRAST item in
OSD Main Menu and adjust it.
VT190 ColorVue User Guide
Function
CLOCK
PHASE
AUTO CONFIG
D-SUB Input source only
Auto Adjust
Auto Tracking
Auto Position
Auto Color
Return
Description
Adjusts the number pixels per line
Adjusts the ADC pixel clock
▲
▼
Use the
and
buttons to scroll up and
down in the menu, then press the SELECT
key to start this function. If the MENU key is
pressed, the main menu is re-displayed and
nothing is changed.
Performs automatic configuration of the phase,
clock, vertical position and horizontal position.
Tunes the clock and phase to the best
condition automatically.
Centers the image automatically. Both
horizontal and vertical position are adjusted so
that the image is centered on the display.
Adjusts the gain and offset of the RED,
GREEN and BLUE channels on the ADC
automatically.
Goes back to main menu.
11
150-077
