Summary of Contents for Titan TTB364BDS

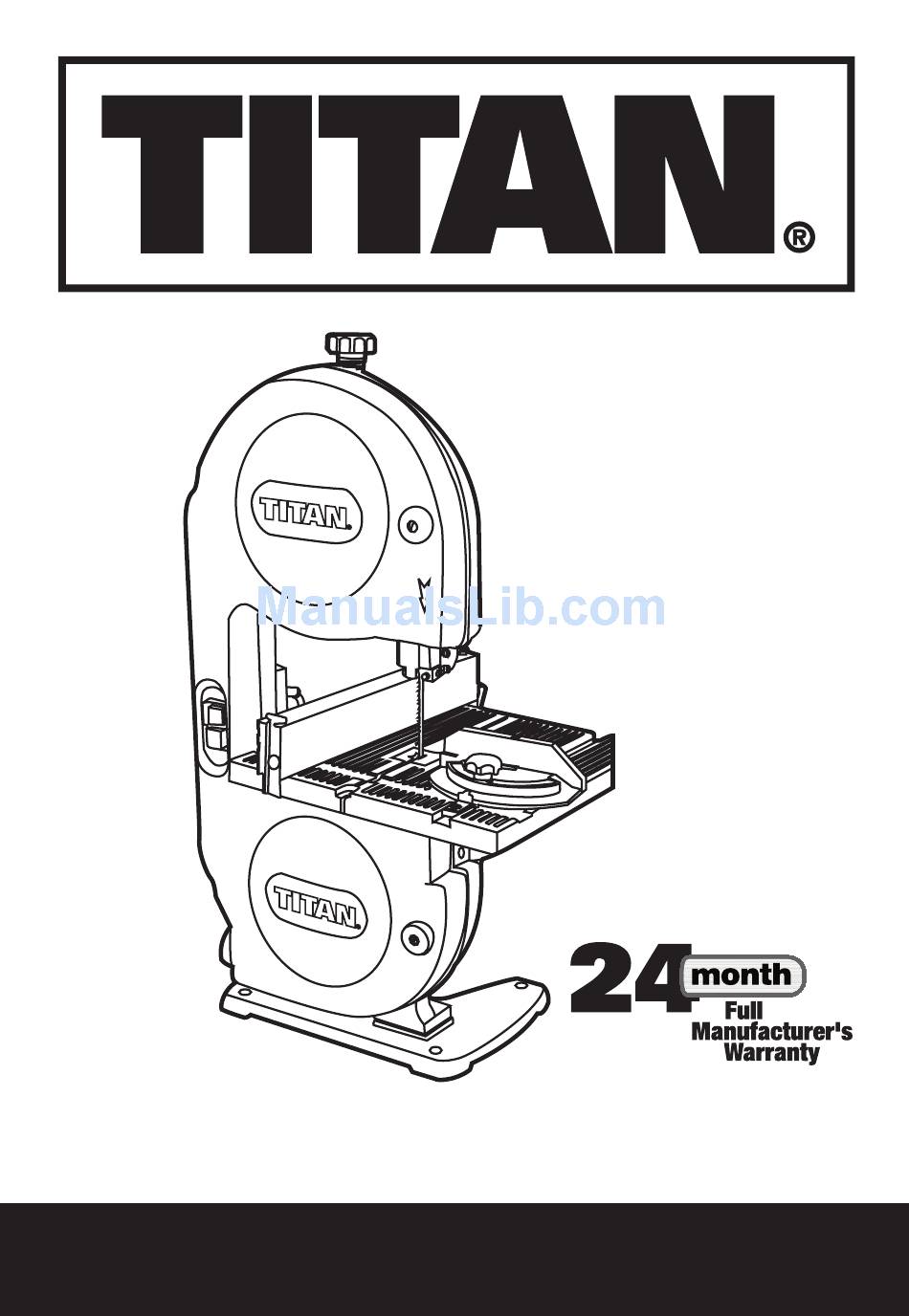

- Page 1 SAFETY AND OPERATING MANUAL Original instructions BAND SAW TTB364BDS...
- Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 3: Safety Instructions
- Never yank the cord to disconnect it from the socket Keep the cord away from heat, oil and sharp edges. 12. Secure work. - Where possible use damps or a vice to hold the work. It is safer than using your BAND SAW TTB364BDS... - Page 4 hand. 13. Do not overreach. - Keep proper footing and balance at all times. 14. Maintain tools with care. - Keep cutting tools sharp and clean for better and safer performance. - Follow instruction for lubricating and changing accessories. - Inspect tool cords periodically and if damaged have them repaired by an authorized service facility.
- Page 5 4) When the workpiece is near to the saw blade, never use your hand to push it. Always use the push stick provided (See 25 on main diagram) 5) Never tension the saw blade when working; 6) If need to adjust the blade guide, stop the machine first. BAND SAW TTB364BDS...
- Page 6 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 7 Conforms to relevant safety standards RyyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); “R”: Complies with Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment. BAND SAW TTB364BDS...
- Page 8 On/OFF SWITCH FIxInG KnOb SIDe COveR bLADe TenSIOn KnOb UPPeR bAnD PULLeY SAW bLADe GUARD UPPeR bLADe GUIDe LOWeR bLADe PULLeY bASe 10. DUST exTRACTIOn PORT 11. SeTTInG SCReW FOR UPPeR bAnD PULLeY 12. SeTTInG KnOb FOR bLADe GUIDe 13. MACHIne FRAMe...
- Page 9 16. MOTOR 17. AnGLe SCALe POInTeR 18. FIxInG HAnDLe FOR TAbLe 19. DIAL SCALe FOR TILT AnGLe 20. WORK TAbLe 21. MITRe GUAGe 22. FIxInG KnOb 23. SAW bLADe 24. FIxInG SCReW FOR bAnD GUIDe 25. PUSH STICK BAND SAW TTB364BDS...
-
Page 10: Technical Data
TECHNICAL DATA Volts: 230V~50Hz Power Input: 350W No load speed: 1450min Saw line speed: 14.7m/s Cutting Capacity: 85mm Table Size: 300x300mm Weight: 17 .6kg Bevel angle: 0° - 45° Saw blade length: 1425mm Saw blade width: 6.4mm NOISE DATE Sound pressure level 67.5dB(A) Sound power level 80.5dB(A) - Page 11 2. Tensioning the saw blade (See Fig4) 1) note: Remove the tension from the saw blade if the band saw is not going to be used for some time. Fig 4 Be sure to re-tension the saw blade before you BAND SAW TTB364BDS...
- Page 12 start the machine. 2) Turn the tightening screw (4) for tensioning the saw blade (23) in a clockwise direction. 3) The correct saw blade tension can be checked by applying pressure to the side of the band with your finger, carry out this check at a point roughly between the two band pulleys .
- Page 13 (29) and the gullet of the blade in front. 3) Re-tighten the hex screw (40). 4) CAUTION! The blade will be rendered useless if the teeth touch the guide pins while the blade is running. 5) Re-tighten the hex screws (38). BAND SAW TTB364BDS...
-
Page 14: Blade Selection
6) Move the guide pins (29) towards the blade so that there is a gap of approx. 0.5mm between the guide pins (29) and the blade (23). The blade must not jam. 7) Re-tighten the hex. screws (38). 8) Turn the lower band pulley (8) several times in a clockwise direction. - Page 15 4) Repeat for the lower band pulley (8). 5) Fit the new tire (46), replace the blade (23) and close the side cover (3) 10. Changing the table insert (See Fig13) To prevent increased likelihood of injury the table Fig 13 BAND SAW TTB364BDS...
- Page 16 insert (44) should be changed whenever it is worn or damaged. 1) Detach the table (20) (see assembly 1). 2) Lift out the worn table insert (44). 3) Fit the replacement table insert by following the above in reverse. 11. Dust extraction port The band saw is equipped with dust extraction port (10) for extracting sawdust and chips.
- Page 17 2) Lower the blade guide (7) down to the workpiece (see assembly 5). 3) Switch on the saw. 4) Press the edge of the workpiece with your right hand to hold it securely against the rip fence (14) Fig 18 BAND SAW TTB364BDS...
- Page 18 and flat on the table (20). 5) Guide the workpiece along the parallel fence (14) and through the blade (23) at a uniform speed. 2. Cross cuts (See Fig 19) 1) Slide the mitre gauge (21) into one of the grooves in the table (20) and adjust to the required angle (see control elements 3).
- Page 19 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle- more.co.uk Fig 24 Fig 25 Fig 26 BAND SAW TTB364BDS...
- Page 20 PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.
-
Page 21: Declaration Of Conformity
61029-1 en 61029-2-5 en 55014-1 en 55014-2 en 61000-3-2 en 61000-3-3 Authorised Signatory and technical file holder Date: 01/01/11 Signature: Name: Peter Harries Titan Power Tools (UK)Ltd. Trade House , Mead Avenue ,BA22 8RT Quality Manager BAND SAW TTB364BDS... - Page 23 BAND SAW TTB364BDS...
