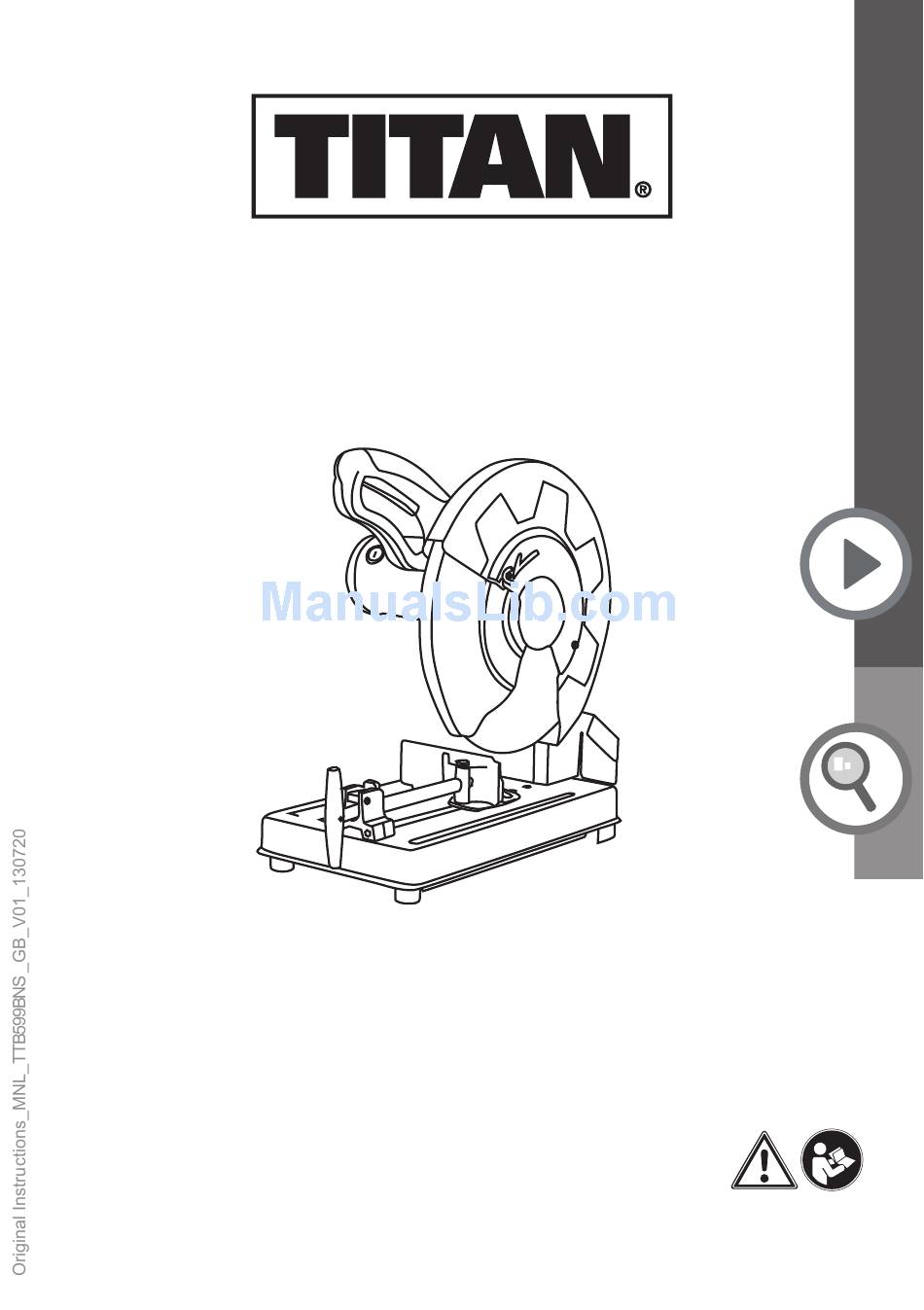

- Page 1 2000W Cut-off Saw TTB599BNS Barcode: 5052931310319 WARNING! Read the instructions before using the product!
- Page 2 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
-
Page 3: Table Of Contents
TTB599BNS by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start Instructions for putting into use... -
Page 4: Your Product
Your product TTB599BNS by TITAN Your product 1. Trigger switch 9. Rear spark deflector 2. Lock-off button 10. Base 17. Main handle 3. Upper guard 11. Rubber feet 18. Depth stop 4. Lower guard 12. Quick release vice lock 19. Double ended spanner 5. -
Page 5: Technical And Legal Information
Technical and legal TTB599BNS by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input 2000W > No-load speed: 3000min > Cutting wheel size Φ355mm×3.2mm > Max. Cutting Capacities @90°- 100mm, @45°- 70mm Min. Cutting size of workpiece >... - Page 6 Technical and legal TTB599BNS by TITAN information The declared vibration emission been measured in accordance with a standardised test stated above and may be used to compare one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
-
Page 7: Safety Warnings
Technical and legal TTB599BNS by TITAN information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. - Page 8 Technical and legal TTB599BNS by TITAN information SAVE THESE INSTRUCTIONS 1. Keep the work area clean. > Cluttered and dark areas invite accidents. 2. Consider work area environment. > Do not expose power tools to rain. Do not use power tools in damp or wet locations.
- Page 9 Technical and legal TTB599BNS by TITAN information > Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubrication and changing accessories. > Inspect tool cord periodically and if damaged have them replaced by an authorised service facility. Inspect extension cords periodically and replace if damaged.
- Page 10 Technical and legal TTB599BNS by TITAN information You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure. You should: - Work in a well-ventilated area. - Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles.
- Page 11 Technical and legal TTB599BNS by TITAN information When operating the cut-off saw WARNING: To prevent serious injury: do not operate with any guard disabled, damaged, or removed. Moving guards must Move freely and close instantly. Bolt must be loose before operation.
-
Page 12: Before You Start
Before you start TTB599BNS by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. -
Page 13: Operating Instructions
Operating instructions TTB599BNS by TITAN Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up WARNING! TO PREVENT SERIOUS INJURY FROM ACCIDENTAL... -
Page 14: Work Piece And Work Area Set Up
Operating instructions TTB599BNS by TITAN > Raise the Saw if it is locked down by pushing down on it and pulling out the lock ball . > Open the Movable Guard and tighten the Bolt to secure it while working on the Wheel. - Page 15 Operating instructions TTB599BNS by TITAN > The cut-off saw is provided with an ON/OFF switch that is located on the handle of the machine. > To start the saw, push lock-off button (2) first, then push trigger switch (1). To stop...
-
Page 16: In More Detail
TTB599BNS by TITAN more detail… Product functions Care and maintenance Trouble shooting Recycling and disposal EC declaration of conformity... -
Page 17: Product Functions
Product functions TTB599BNS by TITAN Cutting WARNING:Do not attempt to cut wood or masonry with this saw. Never cut magnesium or magnesium alloy with this tool. Failure to comply with this waming could result in serious injury > Secure the tool in place to prevent saw movement or tipping during the cutting procedure. - Page 18 Care and maintenance TTB599BNS by TITAN Figure 3: The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work!
-
Page 19: Care And Maintenance
Care and maintenance TTB599BNS by TITAN > Keep the product clean. Remove debris from it after each use and before storage. > Regular and proper cleaning will help ensure safe use and prolong the life of the product. > Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts. -
Page 20: Plug Replacement
Care and maintenance TTB599BNS by TITAN Plug replacement If you need to replace the fitted plug then follow the instructions below. Important The wires in the mains lead are coloured in accordance with the following code: Green & yellow - Earth... - Page 21 Care and maintenance TTB599BNS by TITAN Replace the cutting wheel WARNING! Do not connect to power supply until assembly is complete. > While continuing to hold down the Spindle Lock Pin, use the Wrench to remove the Arbor Bolt .
- Page 22 Care and maintenance TTB599BNS by TITAN > Replace with a new Cut-off Wheel, and reassemble the parts shown in Figure 6. The concave side of the Outer Flange and Arbor Washer must face the wheel, as shown in Figure 7. While holding the Spindle Lock Pin, tighten the Arbor Bolt with the Wrench.
-
Page 23: Trouble Shooting
Trouble shooting TTB599BNS by TITAN Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 24: Recycling And Disposal
Trouble shooting TTB599BNS by TITAN Problem Possible cause Likely Solutions 1. Cut-off Wheel worn. 1. Replace Cut-off Wheels as Performance 2. Carbon brushes worn needed. decreases over or damaged. 2. Have qualified technician time. replace brushes. Internal damage or wear. -
Page 25: Declaration Of Conformity
EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-11:2000 Authorised Signatory and technical file holder Date : 19/02/2014 Signature:_________________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 2000W CUT OFF SAW TTB599BNS... - Page 26 Titan Power Tools (UK) Ltd Trade House, Mead Avenue, BA22 8RT...
