Summary of Contents for Titan ttb554tas

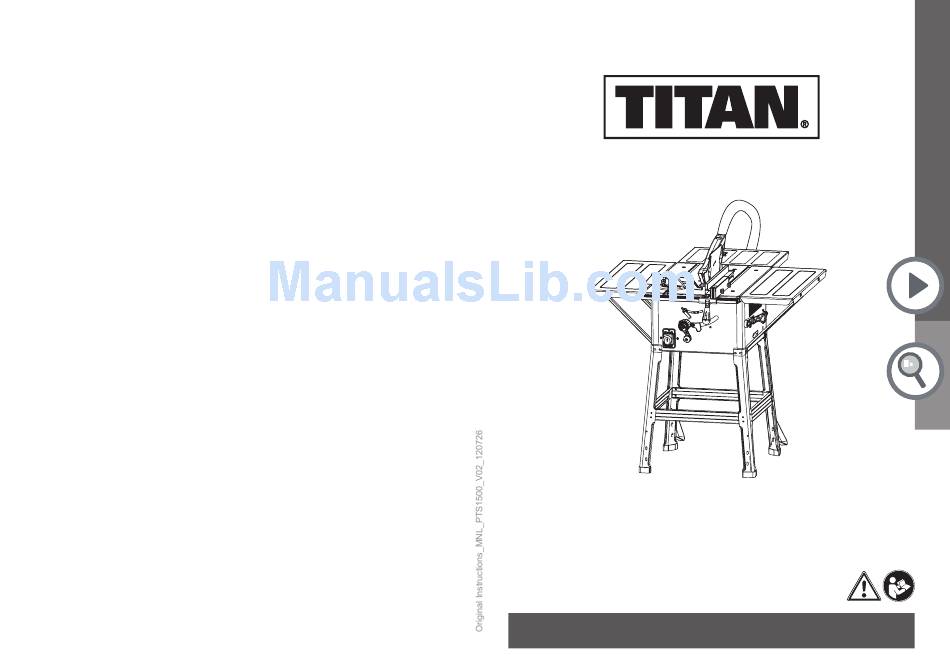

- Page 1 1500W TABLE SAW TTB554TAS Barcode:5052931280483 WARNING: Read the instructions before using the machine.
- Page 2 1500W TABLE SAW TTB554TAS...
-
Page 3: Getting Started
TTB554TAS by TITAN TTB554TAS by TITAN Your product Let's Your product get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information... - Page 5 TTB554TAS by TITAN TTB554TAS by TITAN 13. Do not overreach. Keep proper footing and balance at all times. 14. Maintain tool with care. Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubrication and changing accessories. Inspect tool cord periodically and if damaged have them replaced by an authorised service facility.
- Page 6 TTB554TAS by TITAN TTB554TAS by TITAN Before you start Unpack 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 7 TTB554TAS by TITAN TTB554TAS by TITAN Before you start Before you start Screw the additional legs (20) to the rear legs(10) with hex screws (27), washers Install the saw blade guard (28) and nuts (29) so that they point towards the rear of the machine (Fig. 4).
- Page 8 TTB554TAS by TITAN TTB554TAS by TITAN Before you start Before you start Install the cross-cutting fence Install extractor hose Fasten the extractor hose (13) to the chip outlet (16) and to the extractor socket of the saw blade guard (2).
-
Page 9: Intended Use
TTB554TAS by TITAN TTB554TAS by TITAN Product functions Intended use This table saw is designated with a rated input of 1500 Watts. This product is intended for cutting wood and similar material e.g. MDF and chipboard, not be used on other materials or those harmful to health. - Page 10 TTB554TAS by TITAN Operation TTB554TAS by TITAN Operation Setting rip fence 2. Cutting width: The rip fence (7) has to be used when making longitudinal cuts in wooden workpieces. The rip fence (7) can be mounted on either side of the saw table 1.
- Page 11 TTB554TAS by TITAN TTB554TAS by TITAN Operation Operation Switch on the saw. With your fingers together, place your hands flat on the workpiece and push the workpiece along the fence into the saw blade(4). Guide the workpiece at the side with your left hand only as far as the front edge of the saw blade guard(2).
- Page 12 TTB554TAS by TITAN TTB554TAS by TITAN Operation IMPORTANT. Always hold the guided part of the workpiece. Never hold that part of the workpiece, which is being cut off. Always push the cross-cutting fence (14) far enough forward for the workpiece to be cut through completely.
- Page 13 TTB554TAS by TITAN TTB554TAS by TITAN Additional safety warning for construction dust The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 14 TTB554TAS by TITAN TTB554TAS by TITAN 3.1 Blade not suitable for work piece material...
- Page 15 TTB554TAS by TITAN Designation:1500W Table Saw Model:TTB554TAS 2006/96/ EN 61029-1/A11;2010 EN 61029-2-1:2010 EN 55014-1/A2:2011 EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-3:2008...
