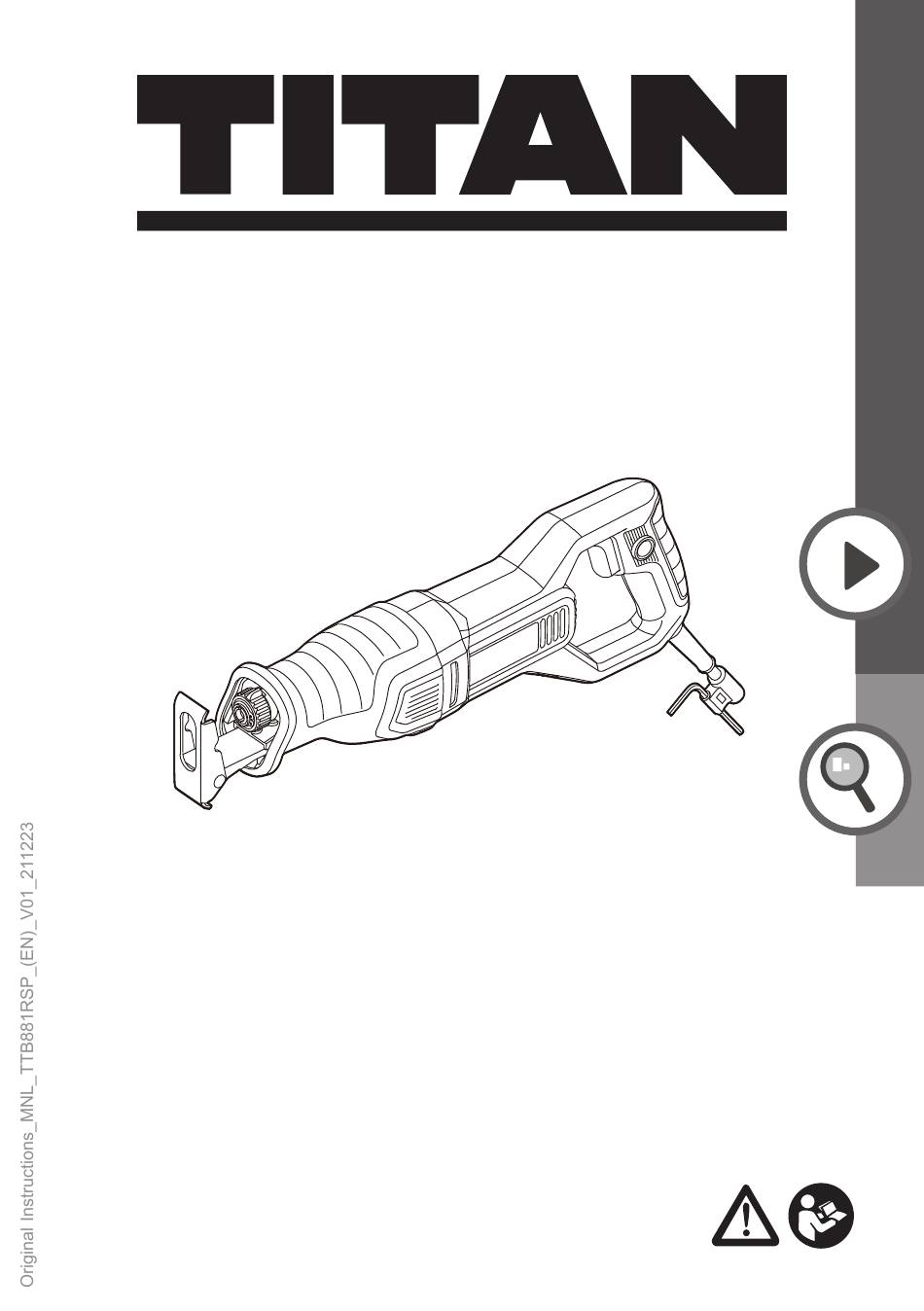

- Page 1 TTB881RSP EAN: 5059340252209 WARNING! Read the instructions before using the product!
-
Page 2: Table Of Contents
TTB881RSP Let's get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Symbols Your product Technical and legal information Before you start detail... more Product functions... - Page 3 Safety TTB881RSP Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 4: Safety
Safety TTB881RSP Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Page 5 Safety TTB881RSP Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 6 Safety TTB881RSP 7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
- Page 7 Safety TTB881RSP 5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 8 Safety TTB881RSP Additional safety warnings for reciprocating saw 1. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live”...
- Page 9 Safety TTB881RSP 7. Use only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively influence the cut, or lead to kickback. 8. Do not brake the saw blade to a stop by applying side pressure after switching off.
- Page 10 Safety TTB881RSP Additional safety warning for construction dust The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsumdusts. Construction workers are one of the at- risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 11 Safety TTB881RSP How to reduce the amount of dust? 1. Reduce the amount of cutting by using the best sizes of building products. Use a less powerful e.g. a block cutter instead of angle grinder. 2. Using a different method of work altogether – e.g.
- Page 12 Safety TTB881RSP WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paint • Crystalline silica from bricks and cement and other masonry products •...
- Page 13 Safety TTB881RSP The declared vibration emission value should be used as a minimum level and should be use with the current guidance on vibration. Calculating the actual period of use can be difficult and the HSE website has further information.
- Page 14 Safety TTB881RSP Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
-
Page 15: Symbols
Symbols TTB881RSP Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Read the instruction manual Wear eye protection Wear hearing protection. -
Page 16: Your Product

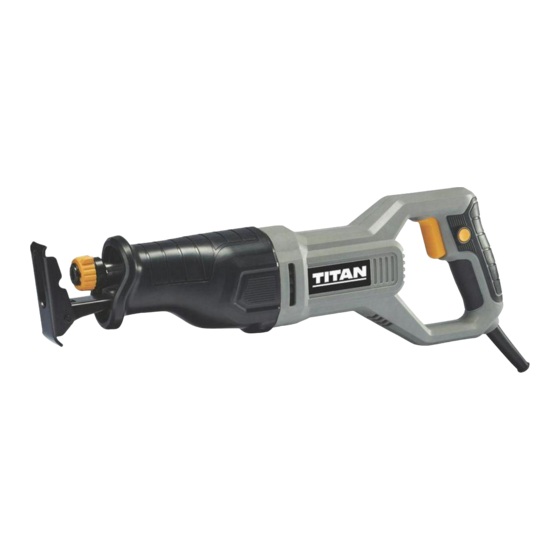

Your product TTB881RSP Your product 5. On/off switch 1. Guide plate 6. Main handle 2. Tool-less blade clamp sleeve 7. Hex key 3. Gripping surface 8. Guide plate release screws 4. Lock-on button 9. Blades x 2 (1 x metal blade,... -
Page 17: Technical And Legal Information
Technical and legal TTB881RSP information Technical specifications Reciprocating saw Rated voltage, frequency: 220 -240 V~, 50 Hz Rated power input: 850 W Rated no load speed n 0 - 3000 /min Stroke length: 25 mm Cutting Capacity: in wood: 100mm... - Page 18 RATING LABEL EXPLANATION TTB881RSP = MODEL NUMBER TT= TITAN B= 240V AC 881= Version Number...
-
Page 19: Before You Start
Before you start TTB881RSP Unpack Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 20 Before you start TTB881RSP Saw blades Different saw blades can be used with this product depending on the workpiece material. WARNING! Always use saw blades according to the intended use! For example, never use a saw blade intended for working on wood for working on metal or...
- Page 21 Before you start TTB881RSP To remove the saw blade Use one hand to rotate the tool-less blade clamp sleeve (2) in the direction of the arrow marked on the blade clamp and hold it. Remove the saw blade (9) from the blade clamp (2).
- Page 22 Before you start TTB881RSP Connection to the power supply 1. Make sure the on/off switch (5) is in its off position. 2. Connect the plug with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label!
-
Page 23: In More Detail
TTB881RSP detail... more Product functions Operation Care and maintenance Trouble shooting Guarantee Declarations of conformity... - Page 24 Product functions TTB881RSP Intended use This tool is intended for cutting wood and similar material e.g. MDF and chipboard, plastic and metal using the respective saw blade. The product must be used with the guide plate (1) laying flat against the workpiece. It may not be used as a stationary product on a work bench.
- Page 25 Product functions TTB881RSP On/off switch Operate the product either in instant or continuous mode. Instant mode Switch the tool on by pressing the on/off switch (5). Switch the tool off by releasing the on/off switch (5). Continuous mode Switch the tool on by pressing the on/off switch (5) and hold it in position.
- Page 26 Product functions TTB881RSP Speed control The on/off switch (5) is combined with a speed control. Adjust the speed directly with the on/off switch (5). The speed is controlled by how far the switch (5) is pressed.
- Page 27 Operation TTB881RSP General cutting Insert the saw blade (9) according to the intended application. Hold the product with one hand on the main handle (6) and with the other hand on the gripping surface (3) (Fig.7). Switch the product on and wait until it runs at full speed before placing it on the workpiece.
-
Page 28: Operation
Operation TTB881RSP Pocket cutting Use the following method to start a cut in the centre of the work- piece. Use a suitable drill to drill a hole of at least 25 mm on the inside edge of the cutting line. -
Page 29: Care And Maintenance
Care and maintenance TTB881RSP The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage. - Page 30 Care and maintenance TTB881RSP • Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again. Maintenance Before and after each use, check the product and accessories (or attachments) for wear and damage.
- Page 31 Care and maintenance TTB881RSP 13AMP fuse approved to BS 1362 Connect Brown L Blue to N (live) (neutral) Outer sleeve Cable firmly clamped grip WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E.
- Page 32 Care and maintenance TTB881RSP Repair • This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage • Switch the product off and disconnect it from power supply.
-
Page 33: Trouble Shooting
Troubleshooting TTB881RSP Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within... -
Page 34: Guarantee
We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN Reciprocating Saw) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. - Page 35 TTB881RSP EC declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 850W RECIPROCATING SAW • MRS850 / TTB881RSP • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 36 Product/ Produit/ Produkt/Produsul/Producto/Produto • RECIPROCATING SAW / SCIE SABRE / PIŁA SZABLASTA / FIERĂSTRĂU SABIE / SIERRA SABLE / SERRA DE SABRE • MRS850 / TTB881RSP • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
- Page 37 TTB881RSP The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
- Page 38 TTB881RSP References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared: Références des normes harmonisées pertinentes appliquées, y compris la date de celles-ci, ou des autres caractéristiques techniques, y compris la date de celles-ci, par rapport auxquelles la conformité...
- Page 40 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
