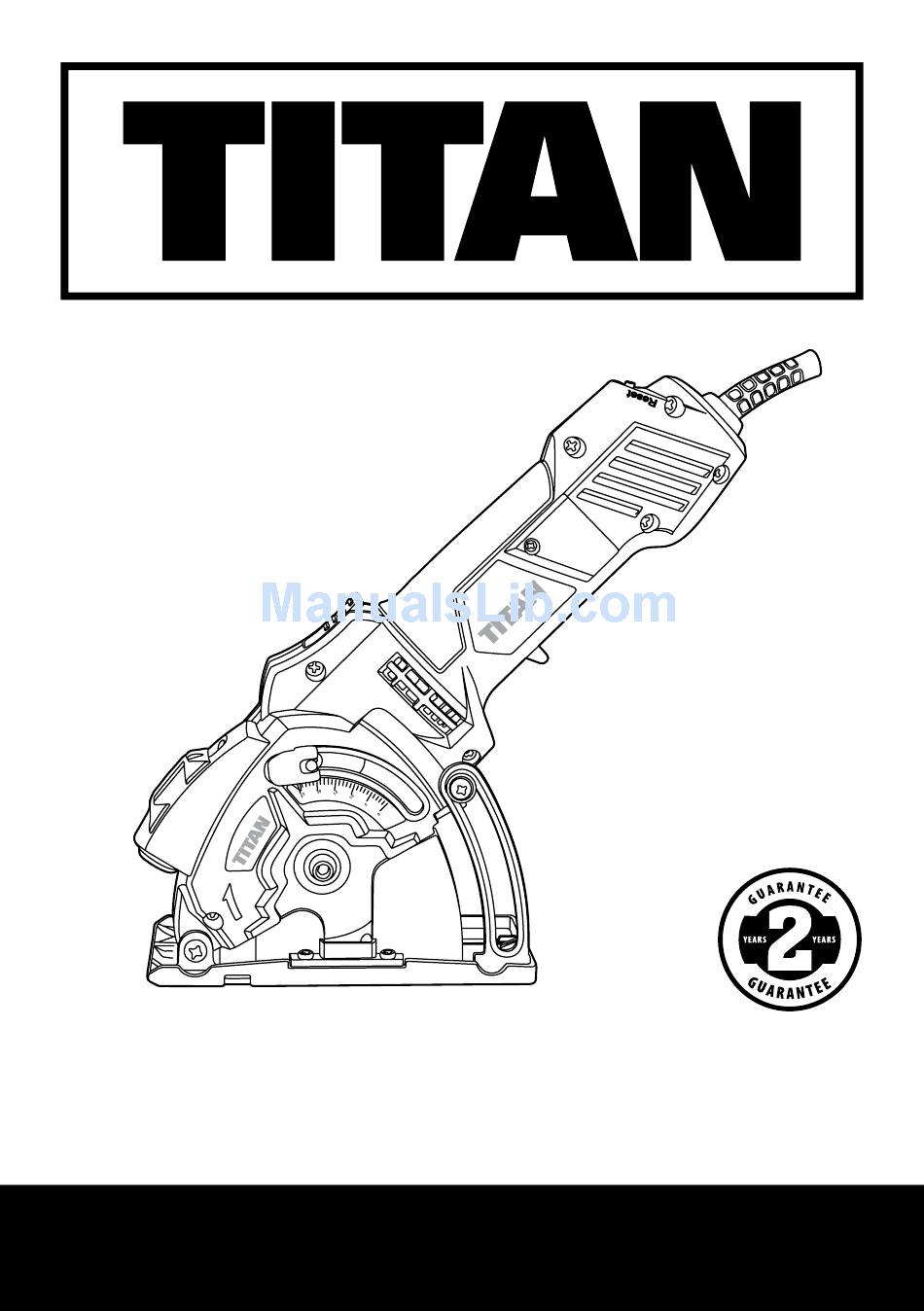

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions V5.0 MINI CIRCULAR SAW 500W TTB689CSW...
- Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this hand- book includes information on safety, handling and care. Please retain this handbook in case of you need to refer to any of the information in the future.
-
Page 3: General Safety Instructions
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. MINI CIRCULAR SAW 500W TTB689CSW... - Page 4 Use of the power tool for operations different from those intended could result in a hazardous situation. 5. Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. MINI CIRCULAR SAW 500W TTB689CSW...
- Page 5 Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control MINI CIRCULAR SAW 500W TTB689CSW...
- Page 6 90°. Blade shifting sideways will cause binding and likely kick back. d) Always observe that the guard is covering the blade before placing saw down on MINI CIRCULAR SAW 500W TTB689CSW...
- Page 7 The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. MINI CIRCULAR SAW 500W TTB689CSW...
-
Page 8: General Safety Warnings For Laser
Do not change the laser device with a different type. Repairs must be carried out by the manufacturer or an authorized agent. g) CAUTION: Use of controls or adjustments other than those specified herein may result in hazardous radiation exposure. MINI CIRCULAR SAW 500W TTB689CSW... - Page 9 – like a small pinch of salt: This limit is the legal maximum; the most you can breathe after the right controls have been used. How to reduce the amount of dust? MINI CIRCULAR SAW 500W TTB689CSW...
- Page 10 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: - Work in a well-ventilated area. - work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. MINI CIRCULAR SAW 500W TTB689CSW...
-
Page 11: Noise Information
The vibration emission value during actual use of the power tool can differ from the de- clared value depending on the ways in which the tool is used dependent on the following examples and other variations on how the tool is used: MINI CIRCULAR SAW 500W TTB689CSW... - Page 12 2.Switch off and disconnect from the power supply if there is any malfunction. Have the product checked by a qualified specialist and repaired, if necessary, before you put it into operation again. Residual risks Even if you are operating this product in accordance with all the safety requirements, MINI CIRCULAR SAW 500W TTB689CSW...
- Page 13 Important note Be sure the supply is the same as the voltage given on the rating plate. Remove the mains plug before carrying out any adjustment or servicing. MINI CIRCULAR SAW 500W TTB689CSW...
- Page 14 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); MINI CIRCULAR SAW 500W TTB689CSW...
- Page 15 Ø85mm x Ø10mm x 1.6mm x 20T max 7000/min Titan Power Tools (UK) Ltd. BA22 8RT Ø85mm x Ø10mm x 1.6mm x 80T max 7000/min Titan Power Tools (UK) Ltd. BA22 8RT Ø85 x 1.8 x 5 x Ø10mm max 18000/min 80m/s Titan Power Tools (UK) Ltd.
- Page 16 14. Laser On / Off switch 15. Base plate 16. Spindle lock button 17. Parallel guide clamping knob 18. Dust extraction port 19. HSS blade 20. Diamond blade 21. Parallel guide 22. Hex key 23. Dust adaptor MINI CIRCULAR SAW 500W TTB689CSW...
-
Page 17: Technical Data
Wear ear protection when sound pressure is over 80dB(A) ACCESSOIRES The Mini circular saw is supplied with the following accessories: - 1pc Parallel guide - 1pc Hex key 5mm - 3pcs Saw blade: Ø 85x10mm HSS,TCT, Diamond - 1pc Dust adaptor MINI CIRCULAR SAW 500W TTB689CSW... - Page 18 Start cutting only after the motor reached its full speed. And always remove the machine from the workpiece before switching it off. Fig.2 Always carry out a test run before starting work and af- MINI CIRCULAR SAW 500W TTB689CSW...
- Page 19 The maximum rotation speed of blade must be greater than the idling speed of the machine. Blade teeth are very sharp and wear gloves. For best cutting results ensure you use a saw blade suited to the Fig.6 MINI CIRCULAR SAW 500W TTB689CSW...
- Page 20 6. Install the battery of laser (Fig.10-11) Insert a button cell battery CR2032 as indicated, Put “+” upwards. Afterwards close the laser battery com- partment with the lid. Fig.10 Remove the battery after each use. MINI CIRCULAR SAW 500W TTB689CSW...
- Page 21 To connect a dust collection system, fit the dust adap- tor to the dust extraction port. Connect the vacuum cleaner (using a 35mm tube) to the dust extraction port with adaptor provided. The dust will be collected by the vacuum. Fig.12 Fig.13 MINI CIRCULAR SAW 500W TTB689CSW...
-
Page 22: Troubleshooting
- Always keep the tool clean, dry and free of oil or grease. - Wear safety glasses to protect your eyes whilst clean- ing. - For safe and proper working, always keep the ma- chine and ventilation slots clean. MINI CIRCULAR SAW 500W TTB689CSW... -
Page 23: Environmental Protection
EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially hazard- ous to the environment and human health due to the presence of hazardous substances. MINI CIRCULAR SAW 500W TTB689CSW... -
Page 24: Plug Replacement (Uk & Ireland Only)
5 A mp fuse approved to BS 1362 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip firmly clamped MINI CIRCULAR SAW 500W TTB689CSW... -
Page 25: Declaration Of Conformity
EN 60745-1:2009+A11:2010 EN 60745-2-5:2010 EN 60745-2-22:2011+A11:2013 EN 60825-1:2007 Authorised Signatory and technical file holder Date : 30/03/2016 Signature: Name / title: Peter Harries / Quality Manage Powersmith (UK) LTD. Trade House, Mead Avenue, BA22 8RT MINI CIRCULAR SAW 500W TTB689CSW...
