Titan TTB703SSW Manual

Titan TTB703SSW Manual

410mm scroll saw

Advertisement

Quick Links

410mm Scroll Saw
TTB703SSW
Barcode: 5052931645213
WARNING! Read the instructions before using the product!
BX220IM

Advertisement

loading
Need help?

Need help?

Do you have a question about the TTB703SSW and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan TTB703SSW

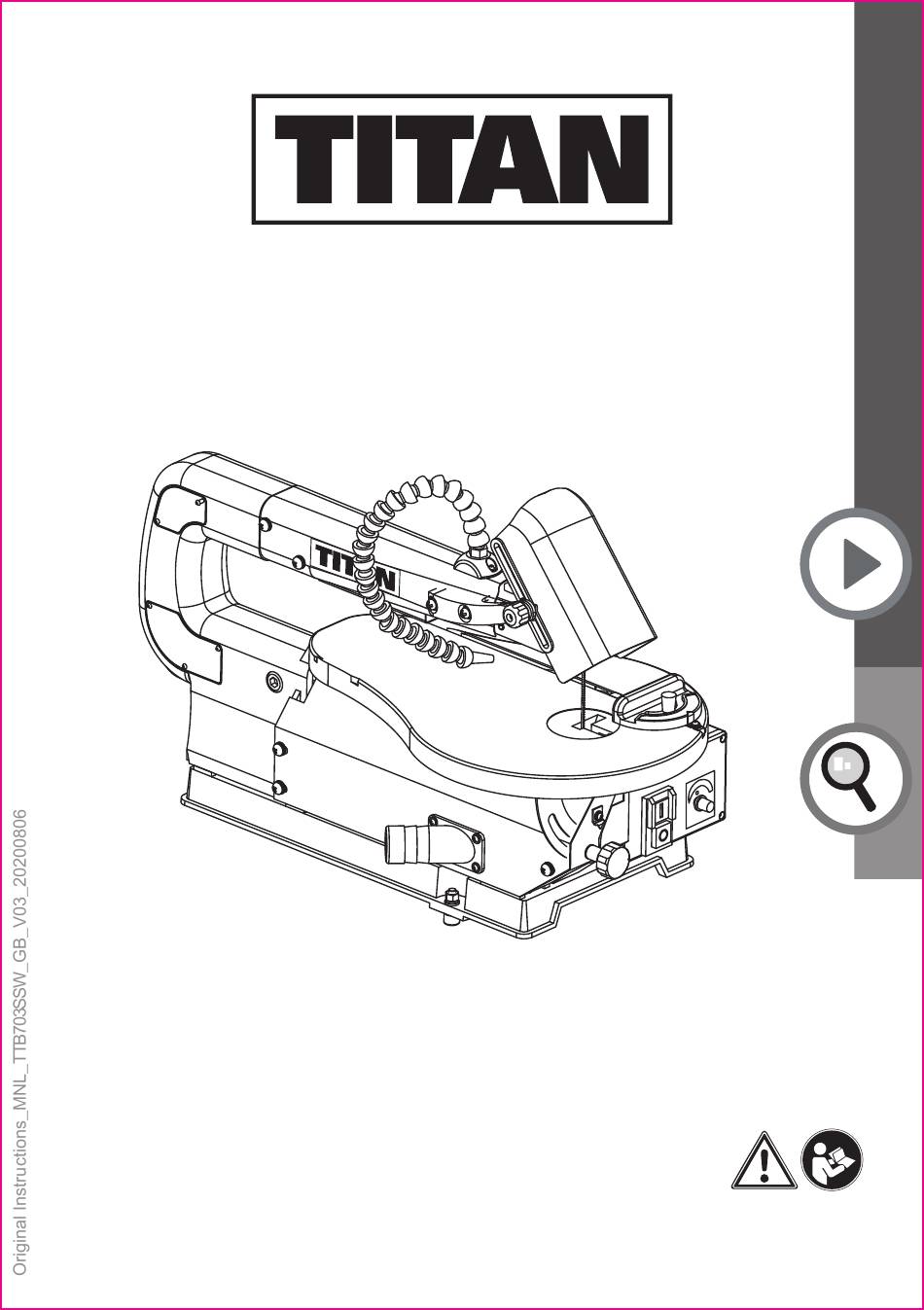

  • Page 1 410mm Scroll Saw TTB703SSW Barcode: 5052931645213 WARNING! Read the instructions before using the product! BX220IM...
  • Page 3 GUARANTEE This TITAN product carries a 2 year guarantee. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased.
  • Page 4: Table Of Contents

    TTB703SSW by TITAN Let’s get started… These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Your product Technical and legal information Before you start detail... more Product functions...
  • Page 5: Your Product

    Your product TTB703SSW by TITAN Your product...
  • Page 6 Your product TTB703SSW by TITAN 1. Blade guard 13. Bevel indicator 2. Upper blade holder 14. Bevel scale 3. Saw blade 15. Table insert 4. Mitre gauge 16. Blade guard lock knob 5. Blade speed regulator 17. Base 6. Lower blade holder 18.
  • Page 7 Technical and legal TTB703SSW by TITAN information Technical specifications General > Input Voltage 230-240V~50Hz > Power Input S1: 80W S2 10min: 125W > No Load Speed 700-1650min > Max. Cutting Depth 43mm (bevel 0°) / 13mm (bevel 45°) > Max. Cutting Width 410mm >...
  • Page 8: Technical And Legal Information

    Technical and legal TTB703SSW by TITAN information Volt Hertz Input power Kilogram Per minute dB(A) Decibel (A-rated) yyWxx: Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx); Caution / Warning. Wear hearing protection. Read the instruction manual.
  • Page 9 Technical and legal TTB703SSW by TITAN information 3. Guard against electric shock. > Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators). 4. Keep children away. > Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area.
  • Page 10 Technical and legal TTB703SSW by TITAN information as blades, bits and cutters, disconnect tools from the power supply. 16. Remove adjusting keys and wrenches. > From the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.
  • Page 11 Technical and legal TTB703SSW by TITAN information ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR TOOLS WARNING: Do not operate the scroll saw until it is assembled, and you have read and understood the following instructions and the warning labels on the scroll saw.
  • Page 12 Technical and legal TTB703SSW by TITAN information When operating the scroll saw WARNING: Use the rotary tool for sanding and grinding applications only. This product is not recommended for drilling applications. > To avoid injury from unexpected scroll saw movement: •...
  • Page 13: Before You Start

    Before you start TTB703SSW by TITAN Unpack > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices if applicable. > Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 14 Before you start TTB703SSW by TITAN Before you start TTB703SSW by TITAN You will need (items not supplied) > Star-head screwdriver > 10mm Open-end wrench or Adjustment wrench > Needle-nose pliers > Combination square WARNING: Risk of injury! Do not connect to power supply until assembly is complete.
  • Page 15 Before you start TTB703SSW by TITAN Installing blade guard Your saw comes with a blade guard which provides extra safety to the user during the operation. To install the clear shield: > 1. Place the blade guard [1] between the two arms [34] in the position.
  • Page 16 Before you start TTB703SSW by TITAN Mounting rubber feet on the base > Align the holes on the rubber feet [10] with the holes on the base [17] of scroll saw, insert the hex bolts M6 x 25 [29] from beneath of the base.
  • Page 17 Before you start TTB703SSW by TITAN > Place scroll saw on the workbench. Using the saw base as a pattern, locate and mark the holes where the scroll saw is to be mounted. > Drill three holes through the workbench.
  • Page 18 Before you start TTB703SSW by TITAN Fig. 5 Fig. 4 NOTE: Make practice cuts on scrap wood to check if the bevel angle settings are correct before important angle cuts. Blade selection This scroll saw accepts pin-end with a wide variety of blade thicknesses and widths.
  • Page 19 Before you start TTB703SSW by TITAN Teeth/ Blade Blade Blade/ inch width thickness Material cut Inch Inch Popular size for cutting hard and soft woods 3/16” 0.110 0.020 1200-1600 up to 2 in. plastics, paper, felt, bone, etc. Wood, plastic, extremely 0.110...
  • Page 20 Before you start TTB703SSW by TITAN Blade removal and installation NOTE: To prevent personal injury, always turn saw OFF and disconnect the plug from the power source before changing blades. This saw uses pin-end scroll saw blades. WARNING: Blade teeth are sharp. Be careful when handling the blade.
  • Page 21 Before you start TTB703SSW by TITAN 2 37 Fig. 6 Installing the mitre gauge > Sldie the rod [39] on the mitre gague [4] into the groove [40] on the working table [19] > Loosen the lock knob [41] turn the mitre gauge into desired angle.
  • Page 22 Before you start TTB703SSW by TITAN Dust extraction port This scroll saw allows a hose or vacuum accessory (not provided) to be connected to the dust-extraction port [18] at the front of the saw. If excessive sawdust buildup occurs inside the base, use a wet/dry vacuum cleaner or manually remove sawdust.
  • Page 23: In More Detail

    TTB545SSW by TITAN detail… more Product functions Care and maintenance Trouble shooting Recycling and disposal EC declaration of conformity...
  • Page 24 Product functions TTB703SSW by TITAN ON/OFF Switch Switching on: > To start the machine by pressing the green I-button [42] on the ON/OFF switch. Allow saw blade to reach full speed before cutting. Switching off: > To stop the machine by pressing the red 0-Button [43] on the ON/OFF switch.
  • Page 25 Product functions TTB703SSW by TITAN Setting the working table angle > Undo the bevel locking knob [12]. > Set the angle by tilting the working table [19]. > Fix the angle by tightening the bevel locking knob [12]. Fig. 11 Setting the sawing angle >...
  • Page 26 Product functions TTB703SSW by TITAN Sawing Warning: Product damage! Up to a power draw of 80 W, the product can be used in continuous mode. This is the case if thin and pliable materials are processed. If the product is placed under excessive load, used for particularly thick and hard materials, a break is required after 10 minutes of operation to allow the product to cool down again.
  • Page 27 Product functions TTB703SSW by TITAN Fig. 13...
  • Page 28 Care and maintenance TTB703SSW by TITAN The golden rules for care WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove chips from it after each use and before storage.
  • Page 29 Care and maintenance TTB703SSW by TITAN Plug replacement If you need to replace the fitted plug then follow the instructions below. Important The wires in the mains lead are coloured in accordance with the following code: Green & yellow - Earth...
  • Page 30 Care and maintenance TTB703SSW by TITAN Repair This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired. Storage Warning: Risk of injury! Store the product so that it cannot be switched on by unauthorized persons.
  • Page 31: Troubleshooting

    Troubleshooting TTB703SSW by TITAN Troubleshooting DANGER: Danger of death! Improper repairs can result in the product functioning unsafely. This endangers yourself and your environment. If you can't fix a fault yourself, please contact a local seller. Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.
  • Page 32: Recycling And Disposal

    Recycling and disposal TTB703SSW by TITAN Recycling and disposal > Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.
  • Page 33 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product: Designation: 410mm Scroll Saw Model: TTB703SSW Complies with the following Directives: 2014/30/EU Electromagnetic Compatibility Directive 2006/42/EC Machinery Directive 2011/65/EU, (EU) 2015/863 Restrictions of the Use of Certain Hazardous Substances in...
  • Page 36 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK Manufacturer Kingfisher International Products Limited, 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
