Extron electronics MTP 15HD A Series Setup Manual

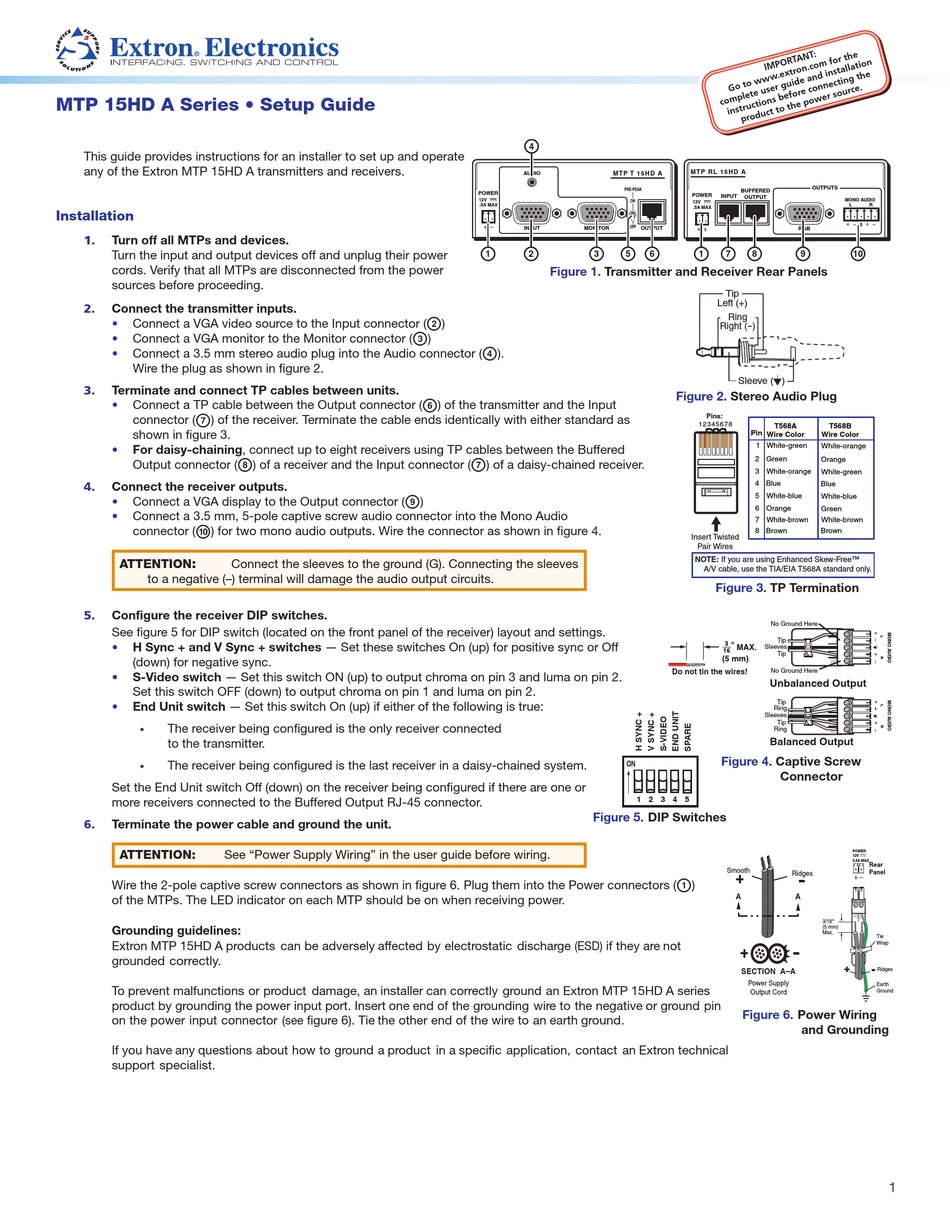

MTP 15HD A Series • Setup Guide
This guide provides instructions for an installer to set up and operate
any of the Extron MTP 15HD A transmitters and receivers.

Installation

1. Turn off all MTPs and devices.
Turn the input and output devices off and unplug their power
cords. Verify that all MTPs are disconnected from the power
sources before proceeding.
2.

Connect the transmitter inputs.

• Connect a VGA video source to the Input connector (
• Connect a VGA monitor to the Monitor connector (
• Connect a 3.5 mm stereo audio plug into the Audio connector (
Wire the plug as shown in figure 2.
3.

Terminate and connect TP cables between units.

• Connect a TP cable between the Output connector (
g
connector ( ) of the receiver. Terminate the cable ends identically with either standard as
shown in figure 3.
• For daisy-chaining, connect up to eight receivers using TP cables between the Buffered
Output connector (

Connect the receiver outputs.

4.
• Connect a VGA display to the Output connector (
• Connect a 3.5 mm, 5-pole captive screw audio connector into the Mono Audio
j
connector ( ) for two mono audio outputs. Wire the connector as shown in figure 4.
:
ATTENTION Connect the sleeves to the ground (G). Connecting the sleeves
to a negative (–) terminal will damage the audio output circuits.
5.

Configure the receiver DIP switches.

See figure 5 for DIP switch (located on the front panel of the receiver) layout and settings.
• H Sync + and V Sync + switches — Set these switches On (up) for positive sync or Off
(down) for negative sync.
• S-Video switch — Set this switch ON (up) to output chroma on pin 3 and luma on pin 2.
Set this switch OFF (down) to output chroma on pin 1 and luma on pin 2.
• End Unit switch — Set this switch On (up) if either of the following is true:
The receiver being configured is the only receiver connected
•
to the transmitter.
The receiver being configured is the last receiver in a daisy-chained system.
•
Set the End Unit switch Off (down) on the receiver being configured if there are one or
more receivers connected to the Buffered Output RJ-45 connector.
6.

Terminate the power cable and ground the unit.

ATTENTION: See "Power Supply Wiring" in the user guide before wiring.
Wire the 2-pole captive screw connectors as shown in figure 6. Plug them into the Power connectors (
of the MTPs. The LED indicator on each MTP should be on when receiving power.
Grounding guidelines:
Extron MTP 15HD A products can be adversely affected by electrostatic discharge (ESD) if they are not
grounded correctly.
To prevent malfunctions
product by grounding the power input port.
on the power input connector (see figure 6). Tie the other end of the wire to an earth ground.
If you have any questions about how to ground a product in a specific application, contact an Extron technical
support specialist.
c
h
) of a receiver and the Input connector (
i
or product damage, an installer can correctly ground an Extron MTP 15HD A series
Insert one end of the grounding wire to the negative or ground pin
4
AUDIO
POWER
12V
.5A MAX
INPUT MONITOR
1 2 3
Figure 1.
b
)
)
d
).
f
) of the transmitter and the Input
g
) of a daisy-chained receiver.
)
Figure 5.
Product Category
MT P RL 15HD A
MTP T 15HD A
PRE-PEAK
BUFFERED
POWER
INPUT
OUTPUT
ON
12V
.5A MAX
OFF OUTPUT
5 6 1 7 8
Transmitter and Receiver Rear Panels
Tip
Left (+)
Ring
Right (-)
Sleeve ( )
Figure 2. Stereo Audio Plug
Pins:
12345678
T568A
Pin
Wire Color
1 White-green
2 Green
3 White-orange
4 Blue
5
White-blue
6 Orange
7 White-brown
8 Brown
Insert Twisted
Pair Wires
NOTE: If you are using Enhanced Skew-Free™
A/V cable, use the TIA/EIA T568A standard only.
Figure 3. TP Termination
No Ground Here
Tip
Sleeves
Tip
Do not tin the wires! No Ground Here
Unbalanced Output
Tip
Ring
Sleeves
Tip
Ring
Balanced Output
Figure 4. Captive Screw
ON
Connector
1 2 3 4 5
DIP Switches
Smooth
a
)
A
SECTION A–A
Power Supply
Output Cord
Figure 6.
OUTPUTS
MONO AUDIO
L R
RGB
9 10
T568B
Wire Color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
POWER
12V
0.5A MAX
Rear
Panel
Ridges
A
3/16"
(5 mm)
Max.
Tie
Wrap
Ridges
Earth
Ground
Power Wiring
and Grounding
1
