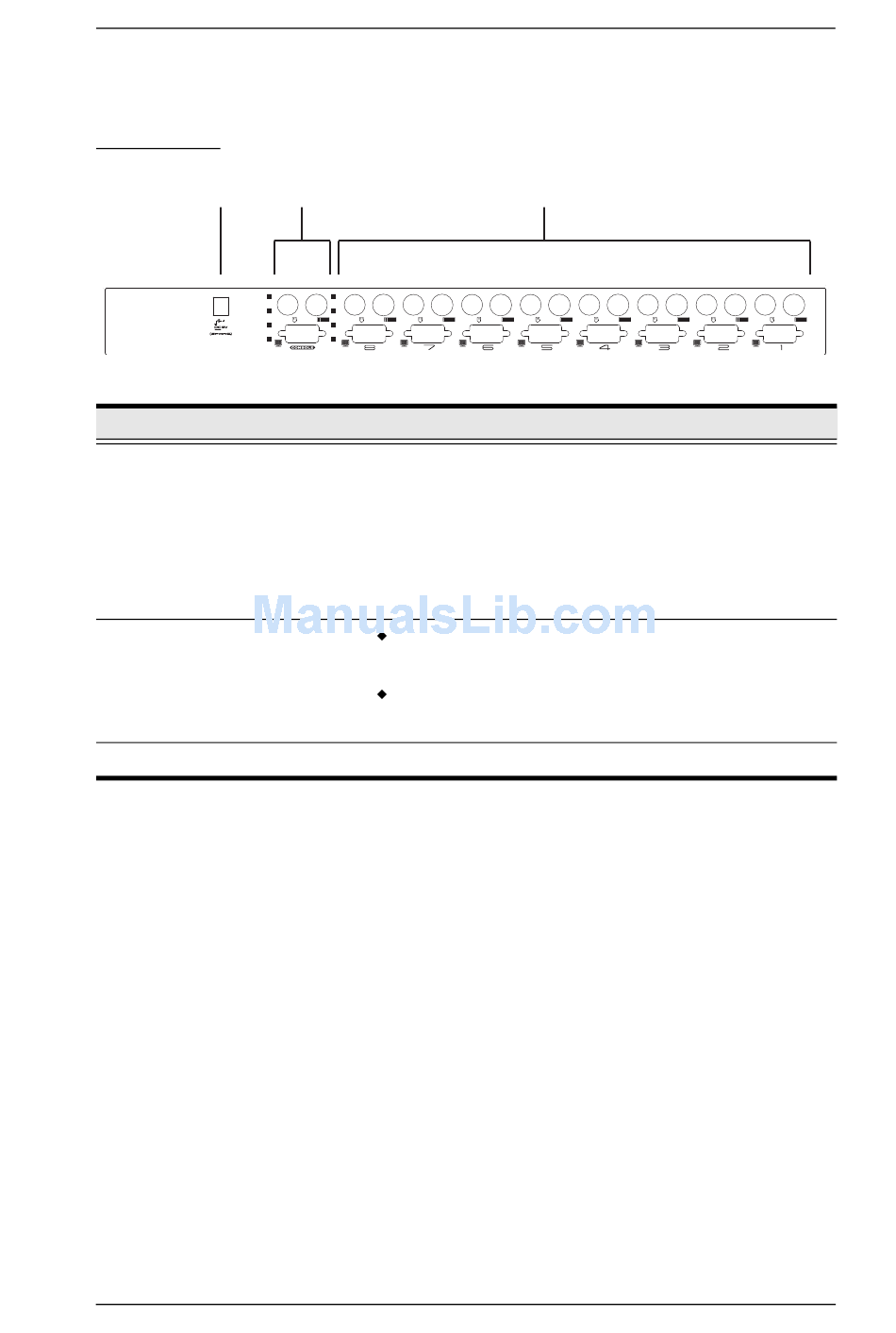

Rear View

1
No.
Component
1
Power Jack
2
Console Ports
3
KVM Ports
2
The unit is designed to be non-powered (external
power is not required - its operating power comes from
the computers). In general, the only time that external
power is necessary is when operation becomes erratic
because the unit isn't obtaining enough power from
the computer connections. If you choose to use
external power, the power adapter cable plugs in here.
If this is a first station unit, your monitor, keyboard
and mouse plug in here.
If this is a cascaded unit, the cables that link back to
a port on a higher Master View unit plug in here.
The cables that link to the computers plug in here.
