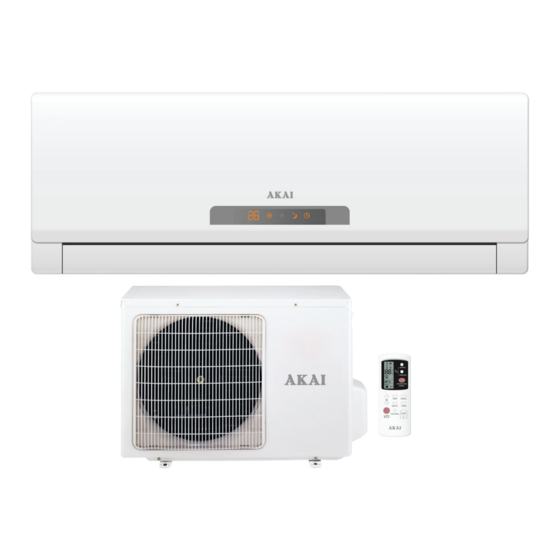

3.50kW INVERTER
Reverse Cycle Split
System Air Conditioner
AUS-12H53R150P9(De3)
FOR THE INSTALLER
Instruction Manual
PROTECT YOUR WARRANTY
This unit must be installed by a registered, licensed installer as required
by Government regulations.
AFTER SALES SUPPORT
NZ: 0800 836 761
N13275
AU: 1300 886 649
Advertisement
Table of Contents
Related Manuals for Akai AUS-12H53R150P9
Summary of Contents for Akai AUS-12H53R150P9
- Page 1 3.50kW INVERTER Reverse Cycle Split System Air Conditioner AUS-12H53R150P9(De3) FOR THE INSTALLER Instruction Manual PROTECT YOUR WARRANTY This unit must be installed by a registered, licensed installer as required by Government regulations. AFTER SALES SUPPORT NZ: 0800 836 761 N13275...
-
Page 3: Table Of Contents
Contents Safety rules and recommendations for the Installer Safety rules and recommendations for the User Safety rules and prohibitions Selecting the - Installation diagrams installation place - Location of the Indoor unit - Location of the Outdoor unit Installation of the - Securing the mounting plate Indoor unit on the wall... -
Page 4: Safety Rules And Recommendations For The Installer
Safety rules and recommendations for the Installer Please keep this instruction manual in a safe place, along with the warranty card, purchase receipt and carton for future reference. • Read this guide before installing and using the appliance. • During the installation of the indoor and outdoor units, access to the working area should be forbidden to children. -
Page 5: Safety Rules And Recommendations For The User
• The appliance must be installed 2.5m above the floor Safety rules and recommendations for the User Please keep this instruction manual in a safe place, along with the warranty card, purchase receipt and carton for future reference. • Do not try to install the conditioner alone; always contact specialised technical personnel. - Page 6 legislation and insert a thermomagnetic circuit breaker. • Unhook the automatic switch if you foresee not to use the device for a long time. The airflow direction must be properly adjusted. • The flaps must be directed downwards in the heating mode and upwards in the cooling mode.
-
Page 7: Safety Rules And Prohibitions
Safety rules and prohibitions • Do not bend, tug or compress the power cord as this could damage it. Electrical shocks or fire are usually due to a damaged power cord. Only specialised technical personnel must replace a damaged power cord. •... -
Page 8: Selecting The Installation Place
Selecting the installation place Installation diagrams IMPORTANT: Only persons and/or companies qualified and experienced in the installation, service and repair of refrigerant products should be permitted to do so. The purchaser must ensure that the person and/or company who is to install, service or repair this air conditioner has qualifications and experience in refrigerant products. - Page 9 IMPORTANT: The allowable length of the connecting Confirm the installation position by the mark of the pipe is 10m. The allowable distance between the indoor mounting plate. indoor unit and outdoor unit is 5m. Indoor unit The connecting pipe can be led from the back, right, underside or back-left side.
-
Page 10: Installation Of The Indoor Unit
1. Location of the Indoor unit • Keep the air inlet and outlet at a far distance from the blockage. • Keep the height distance between the indoor and outdoor unit at most 5m. • Mount securely on a wall solid enough to bear the weight of the unit. Ensure that the wall chosen is not subject to vibration or shaking. - Page 11 2. Drilling the wall • The holes at solid arrow position must be secured to avoid the mounting plate shaking or moving. • When the expansion bolts are used, two holes (11x20 or 11x26) should have the distance of 450mm between them adopted. •...
-
Page 12: On The Wall
3. Wiring Open the front grille. Remove the screw from electrical box cover, pull the electrical box cover away from the unit and set aside. Remove the screw from fastener, pull the fastener away from the unit and set aside. Connect the cable. -
Page 13: Attaching The Indoor Unit To
Route of pipe • If pipe comes out of the right side of the indoor unit, cut part “1” of the unit; • If pipe comes out of the lower-right side of the indoor unit, cut part “2” of the unit; •... -
Page 14: Pipe Connection
6. Pipe connection • The number of bent position of the pipe in the indoor unit should not exceed 10. • The number of bent position of the pipe in the indoor unit and the outdoor unit should not exceed 15. •... -
Page 15: Wall Sealing And Pipe Fastening
8. Wall sealing and Pipe fastening • Use putty to seal the wall hole. • Use a clamp (pipe fastener) to secure the pipe at specified position. -
Page 16: Wiring
Installation of the Outdoor unit 1. Wiring Outdoor unit terminal Outdoor unit terminal Outdoor unit terminal Connecting Connecting Connecting cable cable cable Single Split Model Dual Split Model Wiring For Above 6000W Model (above 21000BTU/h model) Remove the self-tapping screws (2 pcs) on the maintenance board and take out the maintenance board. - Page 17 The cable wire can be led from the back hole of the piping hole or ejecting hole. Please utilize outdoor pipe support when the cable wire is led from the backside. Tighten the self-tapping screw on the fixing clip. Install the maintenance board. After the pipes and cable wire are installed, please seal the sponge block as per drawing indication.
-
Page 18: Connection Diagram
Connection diagram Inverter Type Dual Split Inverter Type Dual Split Model Indoor unit terminal Indoor unit A terminal Indoor unit B terminal Indoor unit A terminal Indoor unit B terminal Plug housing 1 Connecting Connecting cable Connecting cable cable Blue Power Power Yellow/Green... -
Page 19: Installation Of The Drain Joint
• Special cable must be used to connect indoor unit and outdoor unit. It should be ensured that the terminals are not influenced by external force. Poor connection may cause fire. • The electric box cover must be mounted and secured in position, otherwise fire or electrical shock may occur because of dust or moisture. -
Page 20: Join The Connecting Pipe
3. Join the connecting pipe • Put some seal oil to cover the joint and the flare. • Align the centre of joint in line with that of the flare and tighten the nut of the connecting pipe with a wrench. (Adjust the torque by the same method of connecting pipe for the indoor unit.) 4. -
Page 21: Process Of Flared Tubing
5. Process of flared tube • Use the pipe cutter to cut off the broken part of flare. • Remove burrs at the cut of the flare. • Insert a nut into the connecting pipe and do flaring with specified flaring tools, reamers for example. -
Page 22: Adding Refrigerant
6. Adding refrigerant • If the connecting pipe is longer than 7m, add refrigerant as needed. Add amount A= (Lm-7m) x 50g/m. (A = amount of added refrigerant; L = the length of connecting pipe) • Exhaust the air as the above- mentioned method. -
Page 23: Operation Test
Operation test Before test operation, wiring safety inspection must be carried out carefully again. • Emergency switch operation: Every press of emergency switch, the air conditioner runs as in the following order: Heat pump type: Cool --> Heat --> Shut off •... - Page 24 Warranty We pride ourselves on producing a range of quality home appliances that are both packed with features and completely reliable. We are so confident in our products, we back them up with a full 2 year replacement warranty. Now you too can relax knowing that you are covered. Customer Helpline NZ: 0800 836 761 AU: 1300 886 649 This Product is covered by 2 year replacement warranty when...
