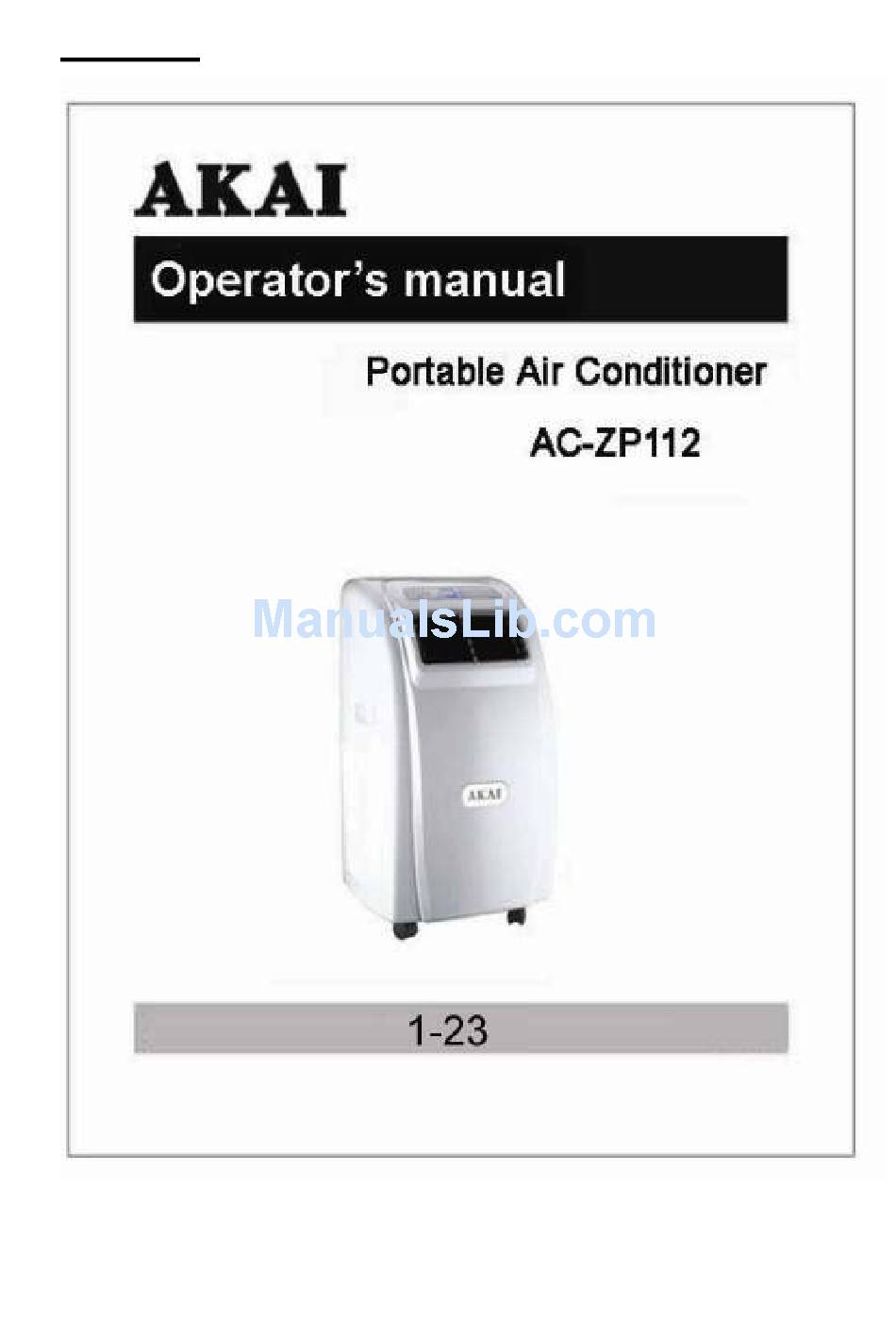

- Page 1 English...
-
Page 2: Table Of Contents
Table of Contents Accessories ------------------------------------------------------------------------1 Introduction--------------------------------------------------------------------------2 Working Principle---------------------------------------------------------------- 3 Technical Specification----------------------------------------------------------4 Structure----------------------------------------------------------------------------5 Operation---------------------------------------------------------------------------6 Maintenance----------------------------------------------------------------------15 Trouble Shooting----------------------------------------------------------------18 Safety Cautions-----------------------------------------------------------------19 Special Guide Line--------------------------------------------------------------20 After Sale Service---------------------------------------------------------------21 Electric Circuit Drawing--------------------------------------------------------22 Notice: Any maintenance should be returned to the dealer or factory! Attention: Please read this instruction carefully before use. -
Page 3: Accessories
Accessories inner air exhaust adaptor -------------------------------------------------------1 pc air exhaust duct ---------------------------------------------- --------------------1 pc adaptor ------------------------------------------------------------------------------1 pc mounting duct ---------------------------------------------------------------------1 pc window kit --------------------------------------------------------------------------1 pc cap cover ---------------------------------------------------------------------------1 pc remote controller -----------------------------------------------------------------1 pc instruction manual ---------------------------------------------------------------1 pc water plate ----------------------------------------------------------------------- 1 pc... -
Page 4: Introduction
Introduction This mobile air conditioner is a new generation air conditioner which is ideal for using in bedroom, study room, lobby, office, meeting room, warehouse attics, sports hall and other entertainment room. Its flexibility characteristic enables easy adjustments to desirable room temperature and humidity. Besides, the built-in filter can remove floating dust, purify air to create a healthy working environment. -
Page 5: Working Principle
Working Principle Refrigerant with low temperature and low pressure is compressed by the compressor to high temperature and high pressure vapour, then cools in the condenser (This is a forced air cooling process: room air passes condenser surface, absorbs the refrigerant's heat in the condenser by heat exchange, then the room air warms up and the warm air is exhausted through the air exhaust duct,) to become high pressure liquid. -
Page 6: Technical Specification
Technical Specification Unit specifications： Model AC-ZP112 Cooling Capacity ( Btu / h ) 12000 Dehumidifying Capacity ( L / day ) Power consumption( W ) 1200 Flow Volume (m / h ) Sound pressure level dB(A) ≤55 Net Weight ( Kg ) -
Page 7: Structure
Structure 1. Control panel 2. Air outlet 3. Handle 4. Caster 5. Air filter 6. Air inlet 7. Exhaust air outlet 8. Cord Hanger 9. Water stopper 10. Inner air exhaust adaptor-connect with air exhaust duct (11) and exhaust air outlet (7) 11. -
Page 8: Operation
Operation 1. Control panel AC-ZP112 2．On/Off switch button Press On/Off button once the power is on, the unit will run at auto mode. Press On/Off button while the unit is running, the unit stops, and timer setting is canceled, other information (mode, set temp, and fan speed) remain in the machine. - Page 9 Operation Remote control： ： ： ： Please point the controller transmission section to the signal receiver on the unit panel. Indicator lights on the machine control panel can display AUTO, COOLING, FAN, DEHUMIDIFYING, SPEED, TEMPERATURE, TIMER etc information. M ode Button: ℃...
-
Page 10: Remote Control (Cooling/Fan Mode)
Operation Remote control (cooling mode) Setting temperature range 15°C—31°C（60-90°F）. When the room temperature sensor’s temperature is higher than the set temperature, the compressor starts to run. When the room temperature sensor’s temperature is lower than the set temperature, the compressor stops and fan operates at original speed. 1. - Page 11 Operation Remote control (dehumidifying mode) Dehumidifying mode: the compressor and lower fan are running and the upper fan is running at low speed. M O D E 2.P ress M O D E S P E E D ℃ / ° button to choose D E H U M ID IFY IN G S W IN G...
-
Page 12: Battery Operation
Battery Operation Please notice the anode and cathode while mounting the batteries. We suggest using alkaline batteries. If the battery is to be replaced or thrown away, the batteries must be removed and dispose of in accordance with the current laws as it represents an environmental hazard. - Page 13 Operation Air exhaust duct The unit is called mobile air conditioner, it is movable from one room to another conveniently. You can use the following method to exhaust the hot air. 1. exhaust heat from window (see figure A) Open window for a small angle to put bend mounting duct and fit it on the window.
- Page 14 Operation Window kit installation（Take the example with three parts of tracks.） 1. Loose nut anti clockwise and unscrew such as Fig 1. 2. adjust the washer on board 1 at the sliding groove on board 2, and then insert the fixation board 2 in the fixation board 1 such as fig.2 3.
- Page 15 Operation Window kit installation Your window kit has been designed to fit most standard “vertical” and “Horizontal” window applications. However, it may be necessary for you to improve/modify some aspects of the installation procedures for certain types of window.（Take the example with three parts of tracks.） Please refer to see the figures for minimum and maximum window openings.
- Page 16 Operation Air exhaust duct connection 1. air exhaust duct can be extended from 0.5 to 1.5 meters, the unit works more efficiently while the air exhaust duct is shorter. 2. please make sure the air exhaust duct is not distorted, or flow back the hot air to increase the temperature of the body.
-
Page 17: Maintenance
Maintenance Turn off the unit before cleaning, make sure all sockets are pulled out. Do not use chemical solvent (like benzene) to clean the unit surface, or the unit surface will be easily scratched, damaged, even casing could be deformed. If the air filter is blocked with dust, the airflow volume will decrease. -
Page 18: Drainage
Maintenance Drainage: When unit running in cooling mode, mostly the water can be drained out through the exhausted hose, however, if the environment is too humid, condensed water can not completely be drained out by this way. In this case, we need to drain the water. While water tray is full, error code “E4”... - Page 19 Maintenance B．Connect drainage 1. disconnect drainage knob and the rubber plug; 2. connect supplied drainage pipe to drainage hole, water will flow out automatically; 3. if you want to extend drainage pipe, you can use 18mm(diameter) plastic pipe and connect with the drainage pipe. R u bber Plu g D rain age K n ob D rain age Pipe...
-
Page 20: Trouble Shooting
Trouble shooting Before asking for repair, please check: PROBLEMS CAUSES SUGGEST SOLUTIONS Power supply fault: 1. Plug in correctly; 1. Not plug in; 2. Change the plug or the socket; The unit does not 2. Bad plug or socket; 3. Send the unit to service center to work 3. -
Page 21: Safety Cautions
Safety Cautions 1. Do not use unit near gas appliance, fires or in the vicinity of flammable liquids. 2. Do not let children put their fingers into the air outlet to avoid danger. 3. Do not incline the unit more than 35° while moving the unit. 4. -
Page 22: Special Guide Line
Special Guide Line 1. Do not incline the unit more than 5° degree, if so, please turn off power supply immediately and ask for advice from your local dealer. 2. Do not spray insecticide or other chemicals to avoid deformation of plastic case. 3. -
Page 23: After Sale Service
After Sale Service When there are problems with the unit, please stop using it and ask for help from your local dealer or service center. Maintenance: After running for several seasons, there will be dust covered in the air filter. This will reduce the airflow volume and influence the cooling efficiency of the unit. -
Page 24: Electric Circuit Drawing
