Page 1: Air Conditioner
PROTECT YOUR WARRANTY This unit must be installed by a registered, licensed installer as required by Government regulations. Reverse Cycle Split System Air Conditioner INSTALLATION MANUAL Model Number AK-9000-RC N13275... -
Page 2: Table Of Contents
Contents Important Safety Instructions Product Overview Selecting the Installation Place Installation Technical Specifications After Sales Support 1300 886 649 | info@tempo.org... -
Page 3: Important Safety Instructions
Important Safety Instructions PROTECT YOUR WARRANTY These installation instructions are for use by an appropriately qualified installer. Do not try to install the air conditioner on your own; doing so will expose you to danger and void the warranty. Contact a licensed installer. FOR THE INSTALLER Read this guide before installation. - Page 4 Important Safety Instructions (Cont.) Installation • The air conditioner’s outdoor unit must be installed on suitably strong supports. • During installation of the indoor and outdoor units, do not allow children access to the working area. • Make sure that the base of the outdoor unit is firmly fixed, otherwise it will produce abnormal noise and vibration during use.
-
Page 5: Product Overview

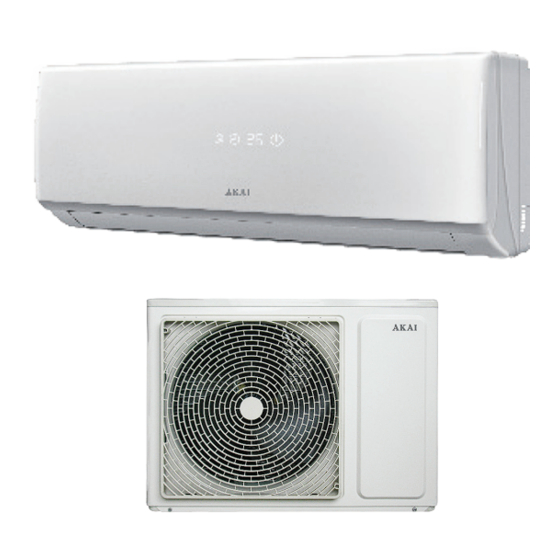

Product Overview Indoor Unit Fig. 1 Air return grid Operational performance indications Adjustment fin for left/ right airflow direction Adjustment flap for up/ down airflow direction Air outlet Air filter Drain tube Outdoor Unit Fig. 2 Air inlet Air discharge vent 10 Refrigerant pipe connection and electric wiring cord... -
Page 6: Selecting The Installation Place
Selecting the Installation Place Indoor unit This Air Conditioner (9000 BTU) is suitable for cooling or heating a room of up to 22m in size. Before starting installation, decide on the position of the indoor and outdoor units, taking into account the minimum space required around the units. -
Page 7: Outdoor Unit
Selecting the Installation Place (Cont.) Height limits of indoor and outdoor units Make sure to maintain the below height limitations (Fig.2) when installing the indoor and outdoor units. • Either the indoor unit or the outdoor unit can be installed higher, as long as the height differences comply with the above stated requirements. -
Page 8: Installation
Installation Detailed space requirements around the outdoor unit Fig.3 Fig.4 Fig.5 100mm(4") min 200mm(8") min Fig.6 200mm(8") min 300mm(1') min 200mm (8")min Fig.7 500mm Space for maintenance (1'8")min 100mm(4") min Fig.8 1000mm(3'4") min The above listed clearances must be maintained: 1. -
Page 9: Installation Of The Indoor Unit
Installation (Cont.) Installation of the indoor unit The pipes can be connected as illustrated in Fig.9. When the pipes are connected to exit at the sides of the unit, a groove for the pipes has to be opened at the proper place on the base stand. Installing the wall-mounting plate Fix the wall-mounting plate firmly on the wall with screws. -
Page 10: Installation Of The Outdoor Unit
Installation (Cont.) Inspections • Check if the hooks at the top and Fig.13 bottom are firmly fixed. • Check if the position of the master unit is Connecting pipe properly levelled. Connecting wires • The drain pipe should not curve Wall pipe upward (Fig.13). - Page 11 Installation (Cont.) Pipe connection and air purging * The following pipe connection and air purging instructions are only suitable for air conditioner models other than quick coupler models. Instructions for quick coupler models follow on page 13. The air conditioning system must be installed in way that ensures that no dust, foreign articles, air or moisture can enter the system.
-
Page 12: Adding Refrigerant
Installation (Cont.) Air purging with a vacuum pump Fig.15 After having connected the indoor and outdoor units, make sure all pipes have been properly connected, then bleed the air and humidity from the refrigerant circuit by following the below steps. 1. - Page 13 Pipe connection for split type quick coupler models If you have purchased the air conditioner for split type quick coupler models, follow the below pipe connection instructions. (This section does not apply to the AK-9000-RC Air Conditioner.) Fig.16 1. Remove the dust caps from the indoor and outdoor units, and the connecting pipe.
-
Page 14: Pipelines Connection For Whole Unit Type
Installation (Cont.) Pipelines connection for whole unit type quick coupler models Fig.18 (This section does not apply to the AK- 9000-RC Air Conditioner.) 1. Remove the two screws on the maintenance plate with a screwdriver and take off the plate, then remove the dust caps on both the indoor male coupler and outdoor female coupler (Fig.18). -
Page 15: Connection Of Power Cable
Installation (Cont.) Connection of the power cable 1. Remove the drawer of the outdoor unit. 2. Non-quick coupler: Fig.24 Connect the indoor power and control wires with the matching outdoor wires in accordance with the electric schematic diagram and make sure that the connection is firmly done (Fig.24) Quick coupler: Directly connect the indoor and... -
Page 16: Installation Checklist
Installation (Cont.) Installation checklist • Check and ensure that the installation place is solid and strong enough to support the weight of the unit. • Check and ensure that condensation water can easily drain away. • Check and ensure that in the vicinity of the unit: X There is nothing that prevents ventilation or obstructs operation in front of the unit. -
Page 17: Troubleshooting Guide
Installation (Cont.) Troubleshooting guide This air conditioner is equipped with a self-diagnosis function to help you identify potential problems. Should you encounter problems with your air conditioner, contact our after sales support centre using the details on the bottom of the page. However, before calling for service, consult the self- diagnosis information below. -
Page 18: Quick Connector Installation Instruction
Quick connector installation instruction* * Only relevant for the installation of stainless quick connector pipes -- this section does not apply to the AK-9000-RC Air Conditioner • To expand the connecting pipe, hold one side then expand it following the right direction. -
Page 19: Technical Specifications
Technical Specifications AK-9000-RC AK-12000-RC AK-18000-RC 220-240V, 50Hz Rated Voltage & Frequency 2600W 3500W 5100W Capacity (1600-3000W) (2200-4000W) (2800-5500W 675W 910W 1504W Power Input (420-1160W) (600-1400W) (720-1880W) Cooling 3.4A 4.2A 7.0A Current Input (1.9-5.4A) 2.6-6.5A) (3.2-8.5A) 3.85w/w 3.85w/w 3.39w/w 2600W 3700W... - Page 20 Technical Specifications (Cont.) AK-9000-RC AK-12000-RC AK-18000-RC Rows/Tubes/ 2/15/2 2/17 2/20 Circuits Tube Pitch/ 21/12.7/1.4mm 21/12.7/1.6mm 21/12.7/1.6/1.7mm Row Pitch/Fin Spacing Indoor Evapo- Open Window Fin Type Open Window Aluminium Foil rator Hydrophilic Ø7 Internal Thread Ø7 Internal Thread Tube Outside Ø7/R410A Ø...
- Page 21 Technical Specifications (Cont.) AK-9000-RC AK-12000-RC AK-18000-RC Liquid Side/ Ø6.0 + Ø9.52 x Ø6.0 + Ø9.52 x Ø6.0 + Ø12.0 x Gas Side/ 3500mm 5000mm 5000mm Length Max. Refrig- erant Pipe Length / Max. 15 / 5m 15 / 5m 15 / 5m...
- Page 22 After Sales Support 1300 886 649 | info@tempo.org...
- Page 23 After Sales Support 1300 886 649 | info@tempo.org...
- Page 24 Licensed Installer Details Please fill in the details below: Name of licensed installer: ............... License number: ............... Date of installation: ............... Signature: ............... After Sales Support 1300 886 649 | info@tempo.org...
