Beward N 1000 Installation & User Manual

Built-in multi-zone motion detector
Hide thumbs Also See for N 1000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User's Operation Manual
Installation User Manual

Advertisement

Table of Contents
loading

Related Manuals for Beward N 1000

Summary of Contents for Beward N 1000

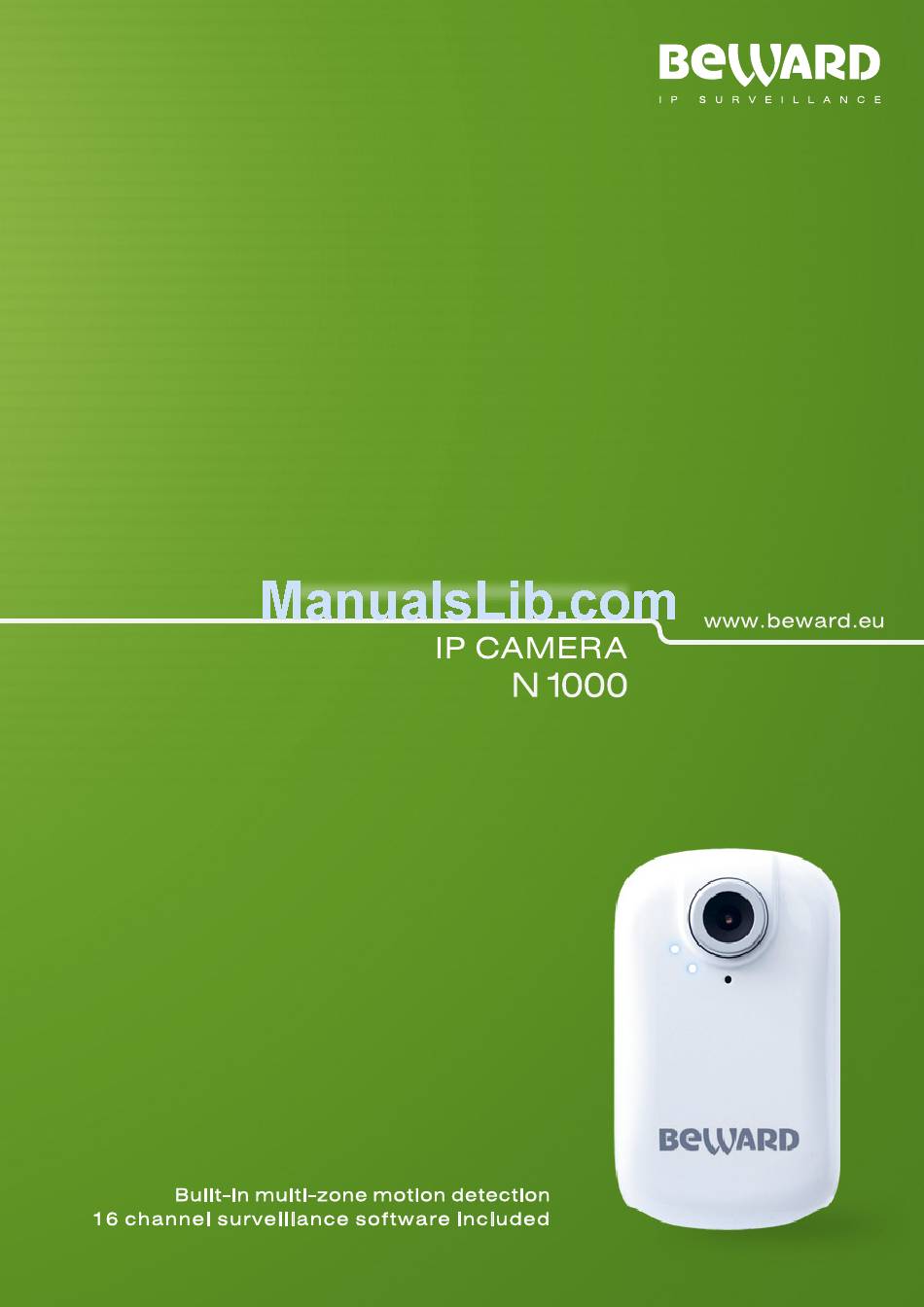

  • Page 1 Installation User Manual...

  • Page 2: Table Of Contents

    AMERA 5.3.1. Installing “BEWARD IP Installer” Software ................... 23 5.3.2. Accessing the IP Camera Using “BEWARD IP Installer” Software ..........23 5.3.3. Accessing the IP Camera Using the Network Menu in Windows 7 ..........25 5.3.4. Accessing the IP Camera Using Internet Explorer ................ 26 5.4.

  • Page 3: Chapter 1. Safety Warnings

     Unplug the power cord and disconnect all cords from the camera  Contact our Service Center. You can find contact information on our website: http://www.beward.eu/. Transportation If you need to transport this camera, carefully repack it using the original box and attach protective materials.
  • Page 4 Chapter 1. Safety Warnings Ventilation Keep good ventilation in the area where the camera is installed to prevent its overheating. Cleaning To clean external components, use a soft, dry cloth. To remove persistent dirt, use some detergent and a soft cloth. Do not use volatile cleaners, alcohol, benzene or other harsh solvents.

  • Page 5: Chapter 2. Overview

    BEWARD N1000 is a high-quality compact IP camera with a high-sensitivity CMOS sensor, a built-in microphone, and 10x digital zoom. BEWARD N1000 allows watching real-time images via a web browser from anywhere in the world. You can always hear and see what is happening in your home, your office, or your cottage and even talk to your employees or relatives.

  • Page 6: Specifications

    Chapter 2. Overview 2.2. Specifications  Compact size  Image sensor: 1/4'' progressive scan CMOS  Lens: M12, f4.0 mm, F2.0 (angle of view: 48°)  Resolution: 640x480, 320x240, 160х120  Sensitivity: 0.5 lux @ F2.0  Frame rate: up to 30 frames per second at any resolution ...

  • Page 7: Chapter 3. Physical Description

    Chapter 3. Physical Description Chapter 3. Physical Description 3.1. Front Panel Pic. 3.1 Focus adjustment ring: rotate the metal ring to set focus (the focus is set before shipping and does not need to be adjusted). Network LED: lights when the camera is connected to the network and indicates network activity.

  • Page 8: Rear Panel

    Chapter 3. Physical Description Reset button: press this button to reset the camera to factory settings. Press and hold this button for at least 10-15 seconds to reset the camera to factory settings. If user holds this button during less than 10 seconds, the camera will reboot without reset to factory settings. Speaker (Audio out): a line out for external speakers (e.g.

  • Page 9: Chapter 4. Installing The Camera And Connecting A Cable

    4.1. Overview of Connecting the N1000 to a Network BEWARD N1000 can be connected to a local network or the Internet through a wired connection. This camera can be connected directly to a computer or through a router, or a switch.

  • Page 10: Installation Recommendations

    Chapter 4. Installing the Camera and Connecting a Cable 4.2. Installation Recommendations This section provides recommendations that should be observed when mounting and installing the N1000. Tips on camera placement:  This camera is designed for both indoor and outdoor surveillance. The operating temperature is down to 0 and up to +50°С.

  • Page 11: Installing The Camera

    Chapter 4. Installing the Camera and Connecting a Cable  Unshielded twisted pair cables should be located at distance of at least 1.5 meters from electromagnetic interference sources that produce electric field strength exceeding 3 V/m.  Switchboards with pinned unshielded twisted pair cables should be located at distance of at least 3 meters from electromagnetic interference sources that produce electric field strength exceeding 3 V/m.
  • Page 12 Chapter 4. Installing the Camera and Connecting a Cable One end Other end 1: White and orange 1: White and orange 2: Orange 2: Orange 3: White and green 3: White and green 4: Blue 4: Blue 5: White and blue 5: White and blue 6: Green 6: Green...

  • Page 13: Chapter 5. Setting Up The Wired Connection For Windows 7

    Chapter 5. Setting Up the Wired Connection for Windows 7 Chapter 5. Setting up the Wired Connection for Windows 7 To make the N1000 IP camera work together with your computer, your laptop and other devices in a local network, you need to connect this camera to the network according to the network parameters.
  • Page 14 Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.2 In the opened window, click on the [Local Area Connection] (Pic. 5.3). Pic. 5.3 NOTE: If there are several active networks, choose the one that you are going to connect your camera to. N1000 Installation User Manual...
  • Page 15 Chapter 5. Setting Up the Wired Connection for Windows 7 In the opened window, click the [Properties] button (Pic. 5.4). Pic. 5.4 The connection properties window opens, where you should select the [Internet Protocol Version 4 (TCP/IPv4)] menu and click the [Properties] button (Pic. 5.5). Pic.
  • Page 16 Chapter 5. Setting Up the Wired Connection for Windows 7 The window opens displaying information about the network connection settings. There are two ways to configure the IP address: Obtain an IP address automatically: select this option to obtain an IP address automatically from a DHCP server on your network (Pic.

  • Page 17: Defining The Local Network Parameters When Using A Dynamic Ip Address

    Chapter 5. Setting Up the Wired Connection for Windows 7 Please make a note of the following parameters: IP address, Subnet mask, Default gateway, DNS server. IMPORTANT! If you do not make a note of the network parameters, you will not be able to return the computer’s network settings to their initial state to connect it to a local network or the Internet after configuring the N1000.
  • Page 18 Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.9 In the opened window, click on the [Local Area Connection] (Pic. 5.10). Pic. 5.10 NOTE: If there are several active networks, choose the one that you are going to connect your camera to. N1000 Installation User Manual...
  • Page 19 Chapter 5. Setting Up the Wired Connection for Windows 7 In the opened window, click the [Details] button (Pic. 5.11). Pic. 5.11 In the opened window, you can see the current network connection details (Pic. 5.12). Pic. 5.12 N1000 Installation User Manual...

  • Page 20: Changing The Local Network Parameters

    Chapter 5. Setting Up the Wired Connection for Windows 7 If you see the following information in the opened window: [DHCP Enabled] – Yes, [IPv4 Address] – xxx.xxx.xxx.xxx (xxx.xxx.xxx.xxx is an IP address value), it means your computer is assigned an IP address displayed in the [IPv4 Address] line, a subnet mask displayed in the [IPv4 Subnet Mask] line, a gateway address displayed in the [IPv4 Default Gateway] line, a DNS server address displayed in the [IPv4 DNS Server] line.
  • Page 21 Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.13 In the opened window, click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.14). Pic. 5.14 In the opened window, click on the [Local Area Connection] (Pic. 5.15). N1000 Installation User Manual...
  • Page 22 Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.15 NOTE: If there are several active networks, choose the one that you are going to connect your camera to. In the opened window, click the [Properties] button (Pic. 5.16). Pic.
  • Page 23 Chapter 5. Setting Up the Wired Connection for Windows 7 The connection properties window opens, where you should select the [Internet Protocol Version 4 (TCP/IPv4)] menu and click the [Properties] button (Pic. 5.17). Pic. 5.17 The window opens, where you need to specify an IP address and a subnet mask. Click the [Use the following IP address] and type an unused [IP address] from the same subnet as the camera, for example, 192.168.0.20, and 255.255.255.0 in the [Subnet mask] field.

  • Page 24: Accessing The Ip Camera

    5.3.2. Accessing the IP Camera Using “BEWARD IP Installer” Software IMPORTANT! To access the IP camera using “BEWARD IP Installer” software, you need to enable UPnP for both your computer and the IP camera. UPnP is enabled by default in Windows 7.
  • Page 25 NOTE: You may need to run BEWARD IP Installer as an administrator in order to make it work properly in Windows 7. To do so, right-click the shortcut and select [Run as administrator] in the drop-down list. NOTE: If an IP camera is missed in the UPnP device list, click the [Search] button to refresh it.

  • Page 26: Accessing The Ip Camera Using The Network Menu In Windows 7

    Chapter 5. Setting Up the Wired Connection for Windows 7 5.3.3. Accessing the IP Camera Using the Network Menu in Windows 7 NOTE: UPnP is enabled by default in the N1000 IP camera. To search for the N1000 using the [Network] menu in Windows 7, go to the [Computer] menu and click the [Network] (Pic.

  • Page 27: Accessing The Ip Camera Using Internet Explorer

    <port> is the port number that is used for HTTP connection to the camera (Pic. 5.23). IMPORTANT! The default IP address of the BEWARD N1000 is 192.168.0.99. NOTE: You do not need to enter a port number if you are connecting through the default HTTP port 80.
  • Page 28 After successful authorization, you will be prompted to install an ActiveX add-on. You will see a system notification under the address bar: “This website wants to install the following add-on: “AxMediaControl.cab” from “BEWARD Co., Ltd.”. If you trust the website and the add-on and want to install it, click here…” (Pic. 5.25).
  • Page 29 Click right mouse button on this notification. In the drop-down menu select “Install This Add-on for All Users on This Computer…” or click on the area “Click here to install the following ActiveX control: “AxMediaControl.cab” from “BEWARD Co., Ltd.”…” (Pic. 5.26) Pic. 5.26 By default, Internet Explorer prevents ActiveX add-ons from installation;...

  • Page 30: Configuring The Camera S Network Settings Through The Web Interface

    Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.28 5.5. Configuring the Camera’s Network Settings through the Web Interface After connecting to the N1000, you need to change its network parameters to get it and your other devices (e.g. your computer) to the same subnet. IMPORTANT! To make your camera and your computer work together, the first three parts of their IP addresses must be the same but the fourth must be different.
  • Page 31 Chapter 5. Setting Up the Wired Connection for Windows 7 To configure the network settings through the web interface, go to SETTING – Basic – Network. The [Network] section is divided into several subsections (Pic. 5.29). Pic. 5.29 The [Information] subsection provides options for configuring the general network settings (Pic.
  • Page 32 Chapter 5. Setting Up the Wired Connection for Windows 7 NOTE: Contact your system administrator if you need assistance. Pic. 5.31 Click [OK] to save the changes. If the message from webpage appears, click [OK] (Pic. 5.32). Pic. 5.32 IMPORTANT! After you configure the network settings, you must reboot the camera.

  • Page 33: Restoring The Network Settings Of The Computer To Their Previous Values

    Chapter 5. Setting Up the Wired Connection for Windows 7 Pic. 5.33 The camera takes 2-3 minutes to reboot. This completes the setting up of the wired connection. Now you must restore the network settings of your computer to their previous values. 5.6.
  • Page 34 Chapter 5. Setting Up the Wired Connection for Windows 7 In the opened window, click on the [View network status and tasks] in the [Network and Internet] section (Pic. 5.35). Pic. 5.35 In the opened window, click on the [Local Area Connection] (Pic. 5.36). Pic.
  • Page 35 Chapter 5. Setting Up the Wired Connection for Windows 7 In the opened window, click the [Properties] button (Pic. 5.37). Pic. 5.37 The connection properties window opens, where you need to specify your initial network settings (see paragraph 5.1, 5.1.1). Select the [Internet Protocol Version 4 (TCP/IPv4)] menu and click the [Properties] button (Pic.
  • Page 36 Chapter 5. Setting Up the Wired Connection for Windows 7 If the IP settings were assigned automatically, use the [Obtain an IP address automatically] and the [Obtain DNS server address automatically] options (Pic. 5.39), then click [OK]. Pic. 5.39 If the IP settings were specified manually, use the [Use the following IP address] and the [Use the following DNS server addresses] options and complete the required fields (see paragraph 5.1), then click [OK] (Pic.

  • Page 37: Verifying The Connection Settings

    Chapter 5. Setting Up the Wired Connection for Windows 7 5.7. Verifying the Connection Settings To verify the network settings of your camera and your computer, you must access the camera through Internet Explorer. Launch Internet Explorer. To do so, go to Start – All Programs and click [Internet Explorer].
  • Page 38 Chapter 5. Setting Up the Wired Connection for Windows 7 If everything was done correctly, you should get the camera images via browser. The settings bar is on the left side, the camera images are on the right side (Pic. 5.43). Pic.

  • Page 39: Chapter 6. Accessing The Camera Over The Internet

    Chapter 6. Accessing the Camera over the Internet Chapter 6. Accessing the Camera over the Internet 6.1. Overview of Internet Access to the Camera When installing an IP camera in apartments, a cottage, or an office, most users want to be able to access the camera and view the images over a local network in the apartments, a cottage, or an office as well as over the Internet.

  • Page 40: Using A Pppoe Connection

    Chapter 6. Accessing the Camera over the Internet Pic. 6.1 Step 3: connect the IP camera to the Ethernet network. If everything is configured properly, the camera should be available over the Internet. In the provided example, the following settings were used: IP address: 80.65.23.173 Subnet mask: 255.255.255.252 Default gateway: 80.65.23.174...
  • Page 41 Chapter 6. Accessing the Camera over the Internet Step 1: connect the IP camera to your computer directly. Step 2: go to SETTING – Basic – Network – PPPoE. Step 3: enter the network settings provided by your ISP (Pic. 6.2). Pic.

  • Page 42: Internet Access To The Camera On A Local Network

    Chapter 6. Accessing the Camera over the Internet 6.3. Internet Access to the Camera on a Local Network When a leased line or ADSL is used for Internet access, a router is necessary to establish a local network. IMPORTANT! This type of connection requires a static public IP address. Usually ISPs provide a dynamic internal IP address, which can be used only inside the LAN.
  • Page 43 Chapter 6. Accessing the Camera over the Internet  Enable UPnP on your camera and configure it. See your router’s user manual for details on how to enable and configure the UPnP. To enable and configure UPnP on your camera, follow the steps below: Step 1: enable UPnP on your camera.

  • Page 44: Manual Port Forwarding

    Chapter 6. Accessing the Camera over the Internet For instance, the WAN IP address is 77.108.73.169 and the HTTP port number is 10000. In this case, you need to enter the following in the address field of your browser: http://77.108.73.169:10000/. To use several cameras, you need to specify a unique port number for each camera and configure the forwarding.
  • Page 45 Chapter 6. Accessing the Camera over the Internet To change the ports of the camera, follow these steps: IMPORTANT! You can share the same HTTP port between your IP cameras using port forwarding on the virtual server; however, you must specify a unique RTSP port number for each camera in order to access them over the Internet.
  • Page 46 Chapter 6. Accessing the Camera over the Internet Pic. 6.5 Step 2: click the [General Setup]. Click the [NAT] in the opened menu (Pic. 6.6). Pic. 6.6 Step 3: in the opened menu, select the [Virtual server] (Pic. 6.7). Pic. 6.7 N1000 Installation User Manual...
  • Page 47 Chapter 6. Accessing the Camera over the Internet Step 4: turn on the virtual server. To do so, select the [Enable Virtual Server]. Step 5: create the network address translation rules (Pic. 6.8). Enter the camera IP address and the HTTP port 80. Set the traffic type to “Both”, which allows both UDP and TCP translation. Enter a port number to access the camera over the Internet (for the provided example, the port is 8081).
  • Page 48 Chapter 6. Accessing the Camera over the Internet Pic. 6.10 Step 8: repeat to create a forwarding rule for other cameras (Pic. 6.11). Pic. 6.11 The router configuration is complete. IMPORTANT! You can use the virtual server to map the HTTP ports (for example, the port 80 of the camera 1 is translated to 8080;...

  • Page 49: Accessing The Camera Over The Internet Using Dyndns Service

    Chapter 6. Accessing the Camera over the Internet To use several cameras, you need to specify a unique port number for each camera and configure the forwarding. 6.4. Accessing the Camera over the Internet Using DynDNS service 6.4.1. Overview of Internet Access to Cameras Using DynDNS service If a computer is assigned a temporary IP address changing from one session to the next, it means the computer is assigned a dynamic IP address.
  • Page 50 Chapter 6. Accessing the Camera over the Internet Pic. 6.12 Next you will see the Create an account page (Pic. 6.13). Pic. 6.13 Step 2: enter a username that is not already being used (the [Username] field) and a password (the [Password] and [Confirm password] fields). NOTE: You need to confirm the password to ensure that there are no typing mistakes.
  • Page 51 Chapter 6. Accessing the Camera over the Internet In the [Email] and [Confirm email] fields, enter your e-mail address. You will receive a confirmation e-mail to the specified address. An e-mail address can only be associated with one domain name. NOTE: A fee is required to associate one e-mail address with multiple domain names.
  • Page 52 Chapter 6. Accessing the Camera over the Internet Step 3: if everything is correct, you will see the [One more step to go...] page (Pic. 6.15). Pic. 6.15 Step 4: you will receive an email confirmation message from «DynDNS Support» (the e- mail address is support@dyndns.com) to the email address you specified in your registration form.

  • Page 53: Creating A Domain Name At Dyndns

    Chapter 6. Accessing the Camera over the Internet Step 5: your DynDNS account is created (Pic. 6.17). Pic. 6.17 6.4.3. Creating a Domain Name at DynDNS Step 1: open your browser, go to www.dyndns.com and log in with your username and your password.
  • Page 54 Chapter 6. Accessing the Camera over the Internet Step 2: if the username and password are correct, you will see your account settings page. To continue, click the [Add Host Services] (Pic. 6.19). Pic. 6.19 Step 3: in the opened page, configure the connection settings. Select a domain. For this example, we use dyndns.org.
  • Page 55 Chapter 6. Accessing the Camera over the Internet Pic. 6.20 To tie the current IP address of your camera to the specified domain name, please enter its IP address in the [IP address field]. By default, DynDNS service determines the IP address from which you are connecting to the service (Pic.
  • Page 56 Chapter 6. Accessing the Camera over the Internet Step 4: if the domain name is created successfully, you will see the confirmation page. In the provided example, camera184.dyndns.org domain name is created. To activate your domain name, click [Next] (Pic. 6.22). Pic.

  • Page 57: Setting Up The Equipment To Work With Dyndns

    Chapter 6. Accessing the Camera over the Internet Step 5: if your domain name is activated successfully, you will see the confirmation page (Pic. 6.24). Pic. 6.24 Step 6: your domain name is created. 6.4.4. Setting up the Equipment to Work with DynDNS After the previous steps are completed, you need to set up your camera according to your registration details at DynDNS service (see paragraph...
  • Page 58 Chapter 6. Accessing the Camera over the Internet IMPORTANT! For detailed information on how to configure the camera through the web interface, please refer to the Operations user manual. According to the registration details that were specified at DynDNS server (see paragraph 6.4.2, 6.4.3), select “www.dyndns.org”...
  • Page 59 Chapter 6. Accessing the Camera over the Internet more information on how to configure DDNS. The router is configured to work with DynDNS as follows: IMPORTANT! Make sure your router supports DDNS, is connected to the Internet and configured properly. Step 1: enter the IP address of your router in the browser address field.
  • Page 60 Chapter 6. Accessing the Camera over the Internet Pic. 6.27 IMPORTANT! Make sure you have entered the valid data; otherwise, your router will not be able to connect to the DDNS server. Step 4: click the [Apply] to save the changes. Step 5: the router configuration is completed.

  • Page 61: Appendix

    Appendix Appendix Appendix A. Port Values Port Default Value Range of Values HTTP 1124..65535 HTTP forwarding via UPnP 1024..65535 HTTPS forwarding via UPnP 1024..65535 RTSP 1124..65535 RTSP forwarding via UPnP 1024..65535 RTP start port 5000 1124..65516 RTP end port 7999 1143..65535 Multicast video port 1124..65534...

  • Page 62: Appendix B. Factory Defaults

    Appendix Appendix B. Factory Defaults This table provides camera factory defaults Parameter Value IP address 192.168.0.99 Subnet mask 255.255.255.0 Gateway 192.168.0.1 Username (administrator) admin Password (administrator) admin HTTP port RTSP port SMTP port N1000 Installation User Manual...

  • Page 63: Appendix C. Glossary

    Appendix Appendix C. Glossary 3GP (3GPP file format) is a multimedia container format defined by the Third Generation Partnership Project (3GPP) for 3G UMTS multimedia services. It is used on 3G mobile phones but can also be played on some 2G and 4G phones. ActiveX is a standard that enables software components to interact with one another in a networked environment, regardless of the language(s) used to create them.
  • Page 64 Appendix CCD (Charged Coupled Device). This light-sensitive image device used in many digital cameras is a large integrated circuit that contains hundreds of thousands of photo-sites (pixels) that convert light energy into electronic signals. Its size is measured diagonally and can be 1/4", 1/3", 1/2"...
  • Page 65 Appendix Ethernet is the most widely installed local area network technology. An Ethernet LAN typically uses special grades of twisted pair wires. The most commonly installed Ethernet systems are 10BASE-T and 100BASE-T10, which provide transmission speeds up to 10 Mbps and 100 Mbps respectively.
  • Page 66 Appendix to direct a given packet of data that arrives at the gateway, and a switch, which furnishes the actual path in and out of the gateway for a given packet. HTTP (Hypertext Transfer Protocol) is the set of rules for exchanging files (text, graphic images, sound, video, and other multimedia files) on the web.
  • Page 67 Appendix JPEG (Joint Photographic Experts Group).Together with the GIF file format, JPEG is an image file type commonly used on the web. A JPEG image is a bitmap, and usually has the file extension ‘.jpg’ or “.jpeg.” When creating a JPEG image, it is possible to configure the level of compression to use.
  • Page 68 Appendix ONVIF (Open Network Video Interface Forum) is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products. Or in other words, to create a standard for how IP products within video surveillance and other physical security areas can communicate with each other.
  • Page 69 Appendix Shutter is the device on the camera that opens and closes to control how long the focal plane is exposed to light. SMTP is used for sending and receiving e-mail. However, as it is “simple,” it is limited in its ability to queue messages at the receiving end, and is usually used with one of two other protocols, POP3 or IMAP.
  • Page 70 Appendix UDP is a communications protocol that offers limited service for exchanging data in a network that uses the Internet Protocol (IP). UDP is an alternative to the Transmission Control Protocol (TCP). The advantage of UDP is that it is not required to deliver all data and may drop network packets when there is e.g.
