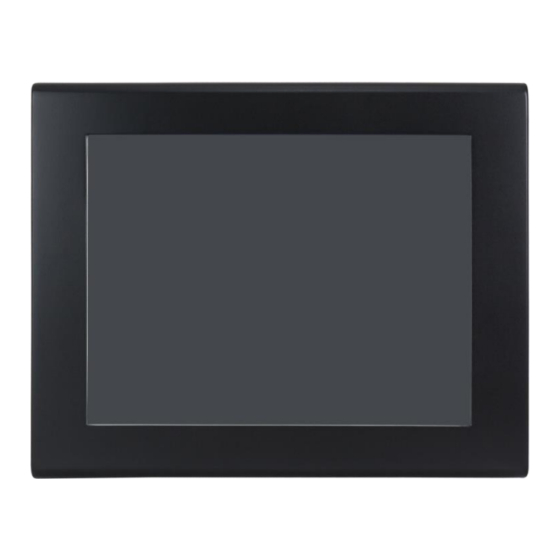

Aplex APC-3584B User Manual

Apc-3x84b series; apc-3x85b series. 15, 17 and 19 fanless 5 side ip65 intel celeron stainless panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC-3584B and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex APC-3584B

Summary of Contents for Aplex APC-3584B

  • Page 2 15”, 17”, and 19” Fanless 5 sides IP65 Intel Celeron Stainless Steel Panel PC User Manual Release Date Revision Mar. 2016 V1.1 ®2016 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL:...

  • Page 3: Revision History

    Revision History Reversion Date Description 2015/10/08 Official Version 2016/03/31 Update APC-3X84B Spec., Remove the two screws on the IO side APC-3x84B/APC-3x85B User Manual...

  • Page 4: Warning

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) APC-3x84B/APC-3x85B User Manual...

  • Page 6: Safety Precautions

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.

  • Page 7: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning................…………………………….…2 Caution/Disclaimer……..……………………………………………………………………………………..…2 Packing List…………………………………….……………………………………………………………………..3 Safety Precautions…………………………………………………………………….…..……………………..4 Chapter 1 Getting Started 1.1 Features………………………..………………………...…………………………..7 1.2 Specifications…………………...………………………………………………….7 1.3 Dimensions………………………..……………………………………………...9 1.4 Brief Description of APC-3x84B/3x85B.………………………….……12 1.5 Installation of HDD/SSD and SD Card – APC-3X84B/3X85B….14 1.6 Installation of I/O Cover – APC-3X84B…………………………….….16 1.7 Installation of I/O Cover –...
  • Page 8 Touch Screen Installation 5.1 Windows XP/2003/Vista/7 Universal Driver Installation for PenMount 6000 Series...……………….…………………………………...83 5.2 Software Functions…………………………………………..………………..87 Figures Figure 1.1: Dimensions of APC-3584B…………..………………..……………..9 Figure 1.2: Dimensions of APC-3585B……………………………………….………...9 Figure 1.3: Dimensions of APC-3784B……………………………..…………………10 Figure 1.4: Dimensions of APC-3785B…………………………………………………10 Figure 1.5: Dimensions of APC-3984B……………………………..…………………11 Figure 1.6: Dimensions of APC-3985B………………………………………………..11...

  • Page 9: Getting Started

    Onboard 2GB DDR3L  9~36V DC Wide-ranging Power Input  5 Sides IP65  5-wire Resistive Touch Screen 1.2 Specifications APC-3584B/85B APC-3784B/85B APC-3984B/85B System Onboard Intel Celeron N2930(1.83GHz ) Onboard Intel Atom E3845(1.91GHz) for option Chipset Onboard 2GB DDR3L SDRAM...
  • Page 10 Display Display Type 15” TFT LCD 17” TFT LCD 19” TFT LCD Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024 Max. Color 16.7M 16.7M 16.7M Luminance(cd/m²) 800: 1 1000: 1 1000: 1 Contrast Ratio Viewing angle 160(H)/140(V) 170(H)/160(V) 170(H)/160(V) Backlight Lifetime...

  • Page 11: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of APC-3584B Figure 1.2: Dimensions of APC-3585B APC-3x84B/APC-3x85B User Manual...

  • Page 12: Figure 1.3: Dimensions Of Apc-3784B

    Figure 1.3: Dimensions of APC-3784B Figure 1.4: Dimensions of APC-3785B APC-3x84B/APC-3x85B User Manual...

  • Page 13: Figure 1.5: Dimensions Of Apc-3984B

    Figure 1.5: Dimensions of APC-3984B Figure 1.6: Dimensions of APC-3985B APC-3x84B/APC-3x85B User Manual...

  • Page 14: Brief Description Of Apc-3X84B/3X85B

    1.4 Brief Description of APC-3x84B/3x85B APC-3x84B/3x85B series come with 15”, 17”, and 19” color TFT LCD, 5 sides IP65, and are powered by Intel Celeron N2930 (2M Cache, 1.83GHz) processor (E3845 processor is for option). The model comes with 2GB DDR3L onboard and DC 9~36V wide-ranging power input, 3 x USB 2.0, 1 x USB 3.0, 2 x RS-232 COM ports, 1 x RS-422 COM port, 2 x Line-out, 2 x LAN, and 1 x Power Switch.

  • Page 15: Figure 1.10: Front View Of Apc-3X85B

    Figure 1.10: Front View of APC-3x85B Figure 1.11 Rear View of APC-3x85B Figure 1.12: Rear View with I/O Cover APC-3x84B/APC-3x85B User Manual...

  • Page 16: Installation Of Hdd/Ssd And Sd Card - Apc-3X84B/3X85B

    1.5 Installation of HDD/SSD and SD Card – APC-3X84B/3X85B Step 1 There are six screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Pull out the cover. Step 3 Unscrew the screw. APC-3x84B/APC-3x85B User Manual...
  • Page 17 Step 4 Pull out the bracket carefully. Step 5 You can replace HDD or SSD by unscrewing four screws as shown in the picture. Step 6 Inside the chassis, you can replace the SD card as shown in the picture. APC-3x84B/APC-3x85B User Manual...

  • Page 18: Installation Of I/O Cover - Apc-3X84B

    1.6 Installation of I/O Cover – APC-3X84B Step 1 This is how it looks when the I/O cover is mounted. To dismount the cover, you have to unscrew the two screws. Step 2 Then you can take the I/O cover out.

  • Page 19: Installation Of I/O Cover - Apc-3X85B

    1.7 Installation of I/O Cover – APC-3X85B Step 1 This is how it looks when the I/O cover is mounted. To dismount the cover, you have to unscrew the six screws. Step 2 Then you can take the I/O cover out.

  • Page 20: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Introduction SBC-7111 is a 4" industrial motherboard developed on the basis of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 3-COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.
  • Page 21 BIOS AMI/UEFI 1 x SATAII Connector (7P) Storage 1 x SATAII Connector (7P + 15P) 1 x SD Slot Ethernet 2 x PCIe Gbe LAN by Intel 82574L 1 x USB 2.0 and 1 x USB 3.0 (type A)stack ports (USBCON1/USB0,USB1) 1 x USB 2.0 Pin header for CN1 (USB3 or Touch, option) 1 x USB 2.0 Hub(USB2) 1 x USB 2.0 Pin header for CN2 (USB Hub /USB1)

  • Page 22: Figure 2.1: Motherboard Dimensions

    LED Indicators 1 x Reset (CN2) 1 x Power LED status (CN1) 1 x HDD LED status (CN2) 1 x Buzzer 2 x COM Ports (COM1/COM2) 2 x USB 2.0 Ports (stack) External I/O port 2 x RJ45 GbE LAN Ports 1 x HDMI Port 1 x Stack audio Jack (Line out) Watchdog Timer...

  • Page 23: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom APC-3x84B/APC-3x85B User Manual...

  • Page 24: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks 4.5 / SBC-7111-N2930-2G N2930 1.83GHz 4 / 4 Option 7.5W SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 Option 2. H3/H4/H5/H6 (option): U2 Heat Sink Screw holes, four screw holes for Intel Bay trail-I/M Processors Heat Sink assemble.
  • Page 25 8. LED3/LED4（NC）: LED3: Reserve. LED4: Reserve. 9. DC_IN1: (5.08mm Pitch 1x3 Pin Connector), DC9V~36V System power input connector. Pin# Power input DC+9V~36V Ground Model DC_IN1 SBC-7111-E3845-4G 180°Connector SBC-7111-N2930-2G 180°Connector 10. BT1/BT2: Power on/off button, They are used to connect power switch button. The two pins are disconnected under normal condition.
  • Page 26 12. VGA_PH1: (CRT 2.0mm Pitch 2x6 Pin Header), Video Graphic Array Port, Provide 2x6Pin cable to VGA Port. Signal Name Pin# Pin# Signal Name CRT_RED Ground CRT_GREEN Ground CRT_BLUE VGA_EN CRT_H_SYNC CRT_DDCDATA CRT_V_SYNC CRT_DDCCLK Ground Ground VGA hot plug setting for Windows XP: VGA1 (Pin Header) Function Pin4-Pin6 (Close)
  • Page 27 Model LVDS resolution SBC-7111-N2930-2G 1280*1024 (Default) SBC-7111-E3845-4G 800*480 (option) 800*600 (option) 1024*768 (option) 1920*1080 (option) …… 16. INVT1: (2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for LVDS. Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN_OUT BKLT_CTRL 17. CN1: (1.25mm Pitch 2x20 Connector, DF13-40P), for 18/24-bit LVDS output connector, fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output.
  • Page 28 LA_CLKP LA_CLKN LB_D0_P LB_D0_N LB_D1_P LB_D1_N LB_D2_P LB_D2_N LB_D3_P LB_D3_N LB_CLKP LB_CLKN Ground Ground USB3 (JP4 open) USB3 USB3_P USB3_N (JP4 open) 5V_S5_USB 5V_S5_USB Power LED PWR_LED+ Ground Power LED 18. JP4: (2.0mm Pitch 2x2 wafer Pin Header), USB3(CN1) or Touch jumper setting. Function USB3 (CN1) Touch (TCH1)
  • Page 29 Function S_232 Pin# RS232 (Default) ON: Pin1, Pin2, Pin3, Pin4 RS422 (option) OFF: Pin1, Pin2, Pin3, Pin4 RS485 (option) OFF: Pin1, Pin2, Pin3, Pin4 22. S_422: (Switch), COM1 setting, it provides selectable RS232 or RS422 or RS485 serial signal output. Function S_422 Pin# RS232 (Default)
  • Page 30 RS422 (option) Pin# Signal Name 422_RX+ 422_RX- 422_TX- 422_TX+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-422】 RS485 (option) Pin# Signal Name 485- 485+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 24. JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port.
  • Page 31 25. COM2: (Type DB9M),Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP2 select Setting (RI/5V/12V)
  • Page 32 30. SD1: (SD card slot), Secure Digital Memory Card socket. 31. MPCIE1: (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0 and LPC and SMBUS and PCIe signal. MPCIe card size is 30x50.95mm.
  • Page 33 Each USB Type A Receptacle (2 Ports) Current limited value is 1.5A. If the external USB device current exceeds 1.5A, please separate connectors into different Receptacle. 36. LAN1/LAN2: LAN1/LAN2: (RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports are provided. Used intel 82574L chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN.
  • Page 34 COM5 BIOS Setup： Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-422】 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-485】 39. EC_GPIO1: (2.0mm Pitch 1X10 Pin Header),For expand connector, it provides eight GPIO. Pin# Signal Name Ground EC_GPIO1 EC_GPIO2 EC_GPIO3 EC_GPIO4 EC_GPIO5 EC_GPIO6 EC_GPIO7 EC_GPIO8 3.3V 40.
  • Page 35 COM3 COM3_TXD COM3_RXD COM3 (UART) (UART) COM3_DTR DSRCOM3_RTS- COM3_DSR DTRCOM3_CTS- GPIO23 SOC_GPIO23 ICH_GPIO22 GPIO12 GPIO25 SOC_GPIO25 ICH_GPIO24 GPIO24 Ground Ground PCIE_TX0_DN PCIE_TX0_DP PCIE_RX0_DN PCIE_RX0_DP PCIE PCIE Ground Ground PCIE_REFCLK0_DN PCIE_REFCLK0_DP PCIE0_WAKE_N PLTRST_3P3_N SMBUS SMB_CLK_S0 SMB_DATA_S0 SMBUS PCIE PCIE_CLKREQ0_N Ground 3P3V_S5 PWRBTN_ON- Power Auto on 3P3V_S5...
  • Page 36 Signal Name Function support PCIe 1X USB2.0 (USB2) SMBus H1/H2: MPCIE1 SCREW HOLES, H2 for mini PCIE card (30mmx30mm) assemble. H1 for mini PCIE card (30mmx50.95mm) assemble. LED1： Mini PCIe devices LED Status. SIM1： (SIM Socket 6 Pin), support SIM Card devices. PS2：...
  • Page 37 USB_23： (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides one USB port via a dedicated USB cable, speed up to 480Mb/s. Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 USB3_N USB2_N (option, NC) USB3_P USB2_P (option, NC) Ground Ground Ground Note:...
  • Page 38 TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP5 Setting: Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) JP6： (2.0mm Pitch 2x3 Pin Header), COM4 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM4 port.
  • Page 39 Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) COM_6（option）： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin#...
  • Page 40 PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA MSDATA Ground KBCLK MSCLK GPIO1： (2.0mm Pitch 2x5 Pin Header), General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use.
  • Page 41 JP5： (2.0mm Pitch 2x3 Pin Header), COM3 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM3 port. JP5 Pin# Function Close 1-2 RI (Ring Indicator) (default) Close 3-4 COM3 Pin9=+5V (option) Close 5-6 COM3 Pin9=+12V (option) COM3：...
  • Page 42 COM4： (Type DB9), serial port, standard DB9 serial port is provided to make a direct connection to serial devices. COM4 port is controlled by pins No.1~6 of JP6, select output Signal RI or 5V or 12v, for details, please refer to description of JP6.
  • Page 43 CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus, SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm.
  • Page 44 PS_ON Mode Close 1-2 Auto Power on (Default) Open 1-2 ATX Power PS_ON2（option）： (2.0mm Pitch 1X2 Pin Wafer). PS2： (2.0mm Pitch 1X6 Pin Wafer), PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard or mouse via a dedicated cable for direct used. Pin# Signal Name KBDATA...
  • Page 45 Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 USB3_N USB2_N USB3_P USB2_P Ground Ground Ground Note: Before connection, make sure that pinout of the USB Cable is in accordance with that of the said tables. Any inconformity may cause system down and even hardware damages.
  • Page 46 Pin1-2: RI (Ring Indicator) (default) Pin3-4 : 5V Standby power (option) Pin5-6: 12V Standby power (option) JP6： (2.0mm Pitch 2x3 Pin Header), COM_6 setting jumper, pin 1~6 are used to select signal out of pin 9 of COM_6 port. JP6 Pin# Function Close 1-2 RI (Ring Indicator) (default)
  • Page 47 CN3： (1.27mm Pitch 2X30 Pin Header), connect to SBC-7111 CN3 pin Header. M-PCIE1： (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with Smbus, USB2.0, SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm Signal Name Function support...
  • Page 48 MSDATA Ground KBCLK MSCLK USB_IN（option）： (2.0mm Pitch 2x5 Pin Header), Front USB connector, it provides two USB port via a dedicated USB cable, speed up to 480Mb/s. Signal Name Pin# Pin# Signal Name 5V_USB23 5V_USB23 NC (USB3_N) NC (USB2_N) NC (USB3_P) NC (USB2_P) Ground Ground...
  • Page 49 COM4： (2.0mm Pitch 2X5 Pin Header), COM4 Port, up to one standard RS232 port are provided. They can be used directly via COM cable connection. Signal Name Pin# Pin# Signal Name Ground JP6 Setting: RI/5V/12V COM3： (2.0mm Pitch 2X5 Pin Header), COM3 Port, up to one standard RS232 port are provided.
  • Page 50 CAN1/CAN2： (3.5mm Pitch 1x10 Pin connector), it provides two CAN-bus Interface. Pin# Channel Signal Name Function CANL2 CAN bus Signal L Terminal resistor R-(internally connected to CANL2) CAN2 Shield cable (FG) Terminal resistor R+(internally connected to CANH2) CANH2 CAN bus Signal H CANL1 CAN bus Signal L Terminal resistor R-(internally connected to CANL1)

  • Page 51: Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 52: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 APC-3x84B/APC-3x85B User Manual...

  • Page 53: Advanced Settings

    Second : 0 to 59 System Date: Set the system date, the date format is: Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled]...
  • Page 54 [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled] Lock Legacy Resources: [Disabled] [Enabled] 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration...
  • Page 55 3.4.5 Serial Port Console Redirection COM0 Console Redirection [Disabled] [Enabled] Console Redirection Settings Legacy Console Redirection Legacy Console Redirection settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] [Enabled] Console Redirection Settings 3.4.6 CPU Configuration Socket 0 CPU Information Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature...
  • Page 56 Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology: [Enabled] [Disabled] Power Technology [Energy Efficient] [Disabled] [Custom] 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled]...
  • Page 57 SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration...
  • Page 58 High Precision Timer [Enabled] [Disabled] Boot Timer with HPET Timer [Disabled] [Enabled] PCI Express Dynamic Clock Gating [Disabled] [Enabled] OS Selection Use the OS Selection option to select an operating system for the system. Note: Users must go to this item to select the OS mode before installing corresponding OS driver, otherwise problems will occur when installing the driver.
  • Page 59 LPSS I2C #5 Support [Enabled] LPSS I2C #6 Support [Enabled] LPSS I2C #7 Support [Enabled] [Disabled] Touch Pad [Disabled] I2C touch Device Address LPSS HSUART #1 Support [Disabled] LPSS HSUART #2 Support [Disabled] LPSS PWM #1 Support [Enabled] LPSS PWM #2 Support [Enabled] LPSS SPI Support [Enabled]...
  • Page 60 [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled] XHCI Hand-off: [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] USB Mass Storage Driver Support...

  • Page 61: Chipset Settings

    3.4.17 Platform Trust Technology 3.4.18 Security Configuration 3.5 Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory...
  • Page 62 Max TOLUD [Dynamic] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] 3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration USB OTG Support [Disabled] USB VBUS [On] XHCI Mode [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0...

  • Page 63: Security Settings

    3.6 Security Settings 3.6.1 Administrator Password 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key.

  • Page 64: Boot Settings

    will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations.

  • Page 65: Save & Exit Settings

    [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save &...
  • Page 66 Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes...

  • Page 67: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 7. The software and drivers are included with the motherboard. The contents include Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 Driver, and Com Driver Installation instructions are given below.

  • Page 68: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. APC-3x84B/APC-3x85B User Manual...
  • Page 69 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. APC-3x84B/APC-3x85B User Manual...
  • Page 70 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. APC-3x84B/APC-3x85B User Manual...

  • Page 71: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. APC-3x84B/APC-3x85B User Manual...
  • Page 72 Step 3. Read license agreement. Click Yes. Step 4. Click Next. APC-3x84B/APC-3x85B User Manual...
  • Page 73 Step 5. Click Install. Step 6. Click Install. APC-3x84B/APC-3x85B User Manual...
  • Page 74 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. APC-3x84B/APC-3x85B User Manual...

  • Page 75: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. APC-3x84B/APC-3x85B User Manual...
  • Page 76 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. APC-3x84B/APC-3x85B User Manual...
  • Page 77 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. APC-3x84B/APC-3x85B User Manual...

  • Page 78: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. APC-3x84B/APC-3x85B User Manual...

  • Page 79: Usb 3.0 Driver

    Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. 4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list APC-3x84B/APC-3x85B User Manual...
  • Page 80 Step 2. Click Next to continue. Step 3. Read the license agreement. Then click Yes to continue. APC-3x84B/APC-3x85B User Manual...
  • Page 81 Step 4. Click Next to continue. Step 5. Click Next to continue. APC-3x84B/APC-3x85B User Manual...

  • Page 82: Com Driver

    Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. 4.6 Com Driver To install the Com Driver, Please follow the steps below. Step 1. Select Com Driver from the list APC-3x84B/APC-3x85B User Manual...
  • Page 83 Step 2. Click Next to continue. Step 3. Click install to begin the installation. APC-3x84B/APC-3x85B User Manual...
  • Page 84 Step 4. Click Finish to complete the installation. APC-3x84B/APC-3x85B User Manual...

  • Page 85: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows XP/2003/Vista/7 Universal Driver Installation for PenMount 6000 Series Before installing the Windows XP/2003/Vista/7 driver software, you must have the Windows XP/2003/Vista/7 system installed and running on your computer.
  • Page 86 Step 2. Click Next to continue. Step 3. Read the license agreement. Click I Agree to agree the license agreement. APC-3x84B/APC-3x85B User Manual...
  • Page 87 Step 4. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 5. Wait for installation. Then click Next to continue. APC-3x84B/APC-3x85B User Manual...
  • Page 88 Step 6. Click Continue Anyway. Step 7. Click Finish to complete installation. APC-3x84B/APC-3x85B User Manual...

  • Page 89: Software Functions

    5.2 Software Functions 5.2.1 Software Functions Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 90 Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’. Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens.
  • Page 91 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: APC-3x84B/APC-3x85B User Manual...
  • Page 92 Step 3.Come back to “PenMount Control Panel” and select Tools then click Advanced Calibration. Step 4. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. APC-3x84B/APC-3x85B User Manual...
  • Page 93 Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Turn off EEPROM The function disable for calibration data to write in storage Controller.
  • Page 94 About This panel displays information about the PenMount controller and driver version. APC-3x84B/APC-3x85B User Manual...
  • Page 95 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows XP/2003/Vista/7 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 96 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors.
  • Page 97 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
  • Page 98 PenMount Monitor has the following function Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.
