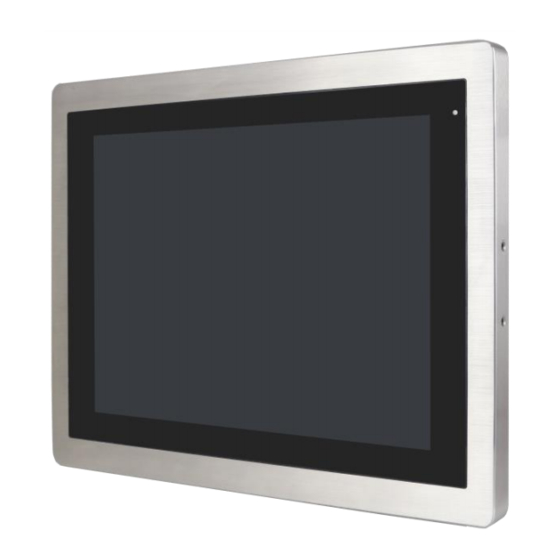

Aplex APC-3*94P/R series User Manual

15 inch, 17 inch, and 19 inch intel celeron n2930 full ip66/ip69k stainless steel panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC-3*94P/R series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplex APC-3*94P/R series

Summary of Contents for Aplex APC-3*94P/R series

  • Page 2 15”, 17”, and 19”Intel® Celeron® N2930 Full IP66/IP69K Stainless Steel Panel PC User Manual Release Date Revision Feb. 2016 V1.0 ®2016 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...

  • Page 3: Revision History

    Revision History Reversion Date Description 2016/02/15 Official Version APC-3X94P/R User Manual...

  • Page 4: Warning!/Caution/Disclamer

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 5: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) APC-3X94P/R User Manual...

  • Page 6: Safety Precautions

    Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆ Prevent electric shock. Don‘t touch any components of this card when the card is power-on. Always disconnect power when the system is not in use.

  • Page 7: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning!/Caution/Disclamer..........…………………………….…2 Packing List…………………………………….……………………………………………………………………..3 Safety Precautions…………………………………………………………………….…..……………………..4 Chapter 1 Getting Started 1.1 Features………………………..………………………...…………………………..7 1.2 Specifications…………………...………………………………………………….7 1.3 Dimensions………………………..……………………………………………...9 1.4 Brief Description of APC-3X94P/R…………………………………….…12 1.5 Installation of HDD/SSD.……………………..………………………………15 1.6 Mounting………………………….…………………..………………….……….16 Chapter 2 Hardware 2.1 Motherboard Introduction……………………...……………..………..17 2.2 Specifications…………………………..…………………………………………17 2.3 Jumpers and Connectors Location……………………………………...21 2.4 Jumpers Setting and Connectors…………………………………..……22 Chapter 3 BIOS Setup...
  • Page 8 4.6 Com Driver……..………………………………………………………………….66 Chapter 5 Touch Screen Installation 5.1 Windows 7/8.1 Universal Driver Installation for PenMount 6000 Series………………..……………….…………………………………...69 5.2 Software Functions…………………………………………………………..79 Figures Figure 1.1: Dimensions of APC-3594P/R – Standard & Optional I/O…..9 Figure 1.2: Dimensions of APC-3794P/R – Standard & Optional I/O…...10 Figure 1.3: Dimensions of APC-3994P/R –...

  • Page 9: Getting Started

    Chapter 1 Getting Started 1.1 Features  Low Power Consumption Panel PC  Intel® Celeron® Processor N2930  Onboard DDR3L 4GB 1333/1600MHz  IP66/69K rated with M12 connector  SUS304 Grade Stainless Steel Enclosure (SUS 316 Optional)  Full Flat Bezel and Fanless Design ...
  • Page 10 Max. Color 16.7M 16.7M 16.7M Contrast Ratio 800: 1 1000: 1 1000: 1 Luminance (cd/m²) Viewing Angle 160(H) / 160(V) 170(H) / 170(V) 170(H) / 160(V) Backlight Lifetime 50,000 hrs 50,000 hrs 50,000 hrs Touch Screen – Resistive Touch Window Type (APC-3X94R) Interface Light Transmission Over 80%...

  • Page 11: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of APC-3594P/R – Standard & Optional I/O APC-3X94P/R User Manual...

  • Page 12: Figure 1.2: Dimensions Of Apc-3794P/R - Standard & Optional I/O

    Figure 1.2: Dimensions of APC-3794P/R – Standard & Optional I/O APC-3X94P/R User Manual...

  • Page 13: Figure 1.3: Dimensions Of Apc-3994P/R - Standard & Optional I/O

    Figure 1.3: Dimensions of APC-3994P/R – Standard & Optional I/O APC-3X94P/R User Manual...

  • Page 14: Brief Description Of Apc-3X94P/R

    1.4 Brief Description of APC-3X94P/R APC-3X94P/R series come with 15”, 17”, and 19” color TFT LCD, full IP66/IP69K rated with M12 connector design, and powered by Intel® Celeron® Processor N2930. The model supports onboard DDR3L 4GB 1333/1600MHz memory, and comes with DC 9~36V wide-ranging power input.

  • Page 15: Figure 1.6: Front View Of Apc-3794P/R

    Figure 1.6: Front View of APC-3794P/R Figure 1.7: Rear View of APC-3794P/R APC-3X94P/R User Manual...

  • Page 16: Figure 1.8: Front View Of Apc-3994P/R

    Figure 1.8: Front View of APC-3994P/R Figure 1.9: Rear View of APC-3994P/R APC-3X94P/R User Manual...

  • Page 17: Installation Of Hdd/Ssd

    1.5 Installation of HDD/SSD Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take off the HDD cover. Then pull out the HDD bracket like the way shown in the picture.

  • Page 18: Mounting

    1.6 Mounting The APC-3X94P/R series panel PC is designed to be panel-mounted as shown in Figure 1.10. Just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure 1.10: Panel Mounting of APC-3x94P/R APC-3X94P/R User Manual...

  • Page 19: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Introduction SBC-7111 is a 4" industrial motherboard developed on the basis of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 3-COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.
  • Page 20 HDMI + CRT LVDS + CRT Super I/O ITE IT8518E Fintek F81216AD BIOS AMI/UEFI Storage 1 x SATAII Connector (7P) 1 x SATAII Connector (7P + 15P) 1 x SD Slot Ethernet 2 x PCIe Gbe LAN by Intel 82574L USB 3.0 Hub(USB5534): 2 x USB 3.0/USB 2.0 (type A)stack ports (E3-USB5/E3-USB6) 1 x USB 2.0 Pin header for CN1 (E3-USB8)
  • Page 21 Expansion Bus 1 x mini-PCI-express slot 1 x PCI-express (CN3) Power Management Wide Range DC9V~36V input 1 x 3-pin power input connector POE Power in DC12V input 1 x 4 Wafer Pin header (DC_IN2) Switches and LED 1 x Power on/off switch (BT1/BT2/CN2/CN3) Indicators 1 x Reset (CN2) 1 x Power LED status (CN1)

  • Page 22: Figure 2.1: Motherboard Dimensions

    (units :mm) Figure 2.1: Motherboard Dimensions APC-3X94P/R User Manual...

  • Page 23: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom APC-3X94P/R User Manual...

  • Page 24: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks SBC-7111-N2930-4G N2930 1.83 up to 4 / 4 4.5/7.5W 2.16GHz SBC-7111-E3845-2G E3845 1.91GHz 4 / 4 Option SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 Option SBC-7111-E3845-8G E3845...
  • Page 25 4. S-422 (PIN6): (Switch), ATX Power and Auto Power on jumper setting. S-422(Switch) Mode Pin6 (Off) ATX Power Pin6 (On) Auto Power on (Default) 5. BAT1: (1.25mm Pitch 1x2 Wafer Pin Header) 3.0V Li battery is embedded to provide power for CMOS. Pin# Signal Name VBAT...
  • Page 26 SBC-7111 R2.XX POE Module DC_IN2 TB-528NE1U2POE/12V OUT (30W) 8. BT1/BT2/P_SW1: Power on/off button, They are used to connect power switch button. The two pins are disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state. P_SW1 ●...
  • Page 27 VGA hot plug setting: VGA1 (Pin Header) Function Pin4-Pin6 (Close) VGA Simulation Disabled Pin4-Pin6 (Open) VGA Simulation Enabled Use the 2.0mm jumper cap to close pin4 and pin6 11. HDMI1: (HDMI 19P Connector), High Definition Multimedia Interface connector. 12. JP6: (2.0mm Pitch 2x2 Pin Header), LVDS jumper setting.
  • Page 28 Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN_OUT BKLT_CTRL 15. CN1: (1.25mm Pitch 2x20 Connector, DF13-40P), for 18/24-bit LVDS output connector, fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output. Low Voltage Differential Signaling, A high speed, low power data transmission standard used for display connections to LCD panels.
  • Page 29 16. JP4: (2.0mm Pitch 2x2 wafer Pin Header), Touch jumper setting. Touch (TCH1) Close 1-2 (default) Open 3-4 (default) Close 3-4 (option) Hardware Enabled 17. TCH1: (2.0mm Pitch 1x6 wafer Pin Header), internal Touch controller connector. Pin# Signal Name SENSE GND_EARCH 18.
  • Page 30 Function S_422 Pin# RS232 (Default) OFF: Pin1, Pin2, Pin3, Pin4, Pin5 RS422 (option) ON: Pin1, Pin2, Pin3, Pin4, Pin5 RS485 (option) ON: Pin1, Pin2, Pin3, Pin4, Pin5 S-422 Mode Pin6 (Off) Manual Power on Pin6 (On) Auto Power on (Default) 21.
  • Page 31 Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-422】 RS485 (option) Pin# Signal Name 485- 485+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 22. JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port.
  • Page 32 Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP2 select Setting (RI/5V/12V) 24. LED1, LED2 (option) : LED1: LED STATUS. Green LED for Power Good status. LED2: LED STATUS.
  • Page 33 29. MPCIE1: (Socket 52Pin), mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0 and LPC and SMBUS and PCIe signal. MPCIe card size is 30x50.95mm. 30. H1/H2: MPCIE1 SCREW HOLES, H1and H2 for mini PCIE card (30mmx50.95mm) assemble.
  • Page 34 34. LAN1/LAN2: LAN1/LAN2: (RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports are provided. Used intel 82574L chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN. 35.
  • Page 35 37. EC_GPIO1: (2.0mm Pitch 1X10 Pin Header)For expand connector, it provides brightness adjustment function. Pin# Signal Name Ground GPA0_ONOFF GPA1_SPK- GPE6_BKLT- GPE0_BKLT+ SPKGPC3_SPK+ BKL_CTRL_PWR ADC6_BKLT_CTRL ADC7_L_SENSE 3.3V 38. CN3: (1.27mm Pitch 2X30 Female Header), for expand output connector, it provides four GPIO, two USB 2.0,one PS/2 mouse, one PS/2 keyboard, two uart, one PCIex1, one SMbus.
  • Page 36 COM3_DSR DTRCOM3_CTS- GPIO23 SOC_GPIO23 ICH_GPIO22 GPIO12 GPIO25 SOC_GPIO25 ICH_GPIO24 GPIO24 Ground Ground PCIE_TX0_DN PCIE_TX0_DP PCIE_RX0_DN PCIE_RX0_DP PCIE PCIE Ground Ground PCIE_REFCLK0_DN PCIE_REFCLK0_DP PCIE0_WAKE_N PLTRST_3P3_N SMBUS SMB_CLK_S0 SMB_DATA_S0 SMBUS PCIE PCIE_CLKREQ0_N Ground 3P3V_S5 PWRBTN_ON- Power Auto on 3P3V_S5 3P3V_S5 12V_S0 12V_S0 APC-3X94P/R User Manual...

  • Page 37: Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 38: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 APC-3X94P/R User Manual...

  • Page 39: Advanced Settings

    Second : 0 to 59 System Date: Set the system date, the date format is: Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled]...
  • Page 40 [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled] Lock Legacy Resources: [Disabled] [Enabled] 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration...
  • Page 41 3.4.5 Serial Port Console Redirection COM0 Console Redirection [Disabled] [Enabled] Console Redirection Settings Legacy Console Redirection Legacy Console Redirection settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] [Enabled] Console Redirection Settings 3.4.6 CPU Configuration Socket 0 CPU Information Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature...
  • Page 42 Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology: [Enabled] [Disabled] Power Technology [Energy Efficient] [Disabled] [Custom] 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled]...
  • Page 43 SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration...
  • Page 44 High Precision Timer [Enabled] [Disabled] Boot Timer with HPET Timer [Disabled] [Enabled] PCI Express Dynamic Clock Gating [Disabled] [Enabled] OS Selection Use the OS Selection option to select an operating system for the system. Note: Users must go to this item to select the OS mode before installing corresponding OS driver, otherwise problems will occur when installing the driver.
  • Page 45 LPSS I2C #5 Support [Enabled] LPSS I2C #6 Support [Enabled] LPSS I2C #7 Support [Enabled] [Disabled] Touch Pad [Disabled] I2C touch Device Address LPSS HSUART #1 Support [Disabled] LPSS HSUART #2 Support [Disabled] LPSS PWM #1 Support [Enabled] LPSS PWM #2 Support [Enabled] LPSS SPI Support [Enabled]...
  • Page 46 [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled] XHCI Hand-off: [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] USB Mass Storage Driver Support...

  • Page 47: Chipset Settings

    3.4.17 Platform Trust Technology 3.4.18 Security Configuration 3.5 Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory...
  • Page 48 Max TOLUD [Dynamic] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] 3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration USB OTG Support [Disabled] USB VBUS [On] XHCI Mode [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0...

  • Page 49: Security Settings

    3.6 Security Settings 3.6.1 Administrator Password 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key.

  • Page 50: Boot Settings

    will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations.

  • Page 51: Save & Exit Settings

    [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save &...
  • Page 52 Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes...

  • Page 53: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 7. The software and drivers are included with the motherboard. The contents include Intel chipset driver, VGA driver, LAN drivers, Audio driver, USB 3.0 driver, and Com driver Installation instructions are given below.

  • Page 54: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Click Next to setup program. APC-3X94P/R User Manual...
  • Page 55 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. APC-3X94P/R User Manual...
  • Page 56 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. APC-3X94P/R User Manual...

  • Page 57: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Step 2. Click Automatically run WinSAT and enable the Windows Aero desktop theme(if supported). Click Next. APC-3X94P/R User Manual...
  • Page 58 Step 3. Read license agreement. Click Yes. Step 4. Click Next. APC-3X94P/R User Manual...
  • Page 59 Step 5. Click Install. Step 6. Click Install. APC-3X94P/R User Manual...
  • Page 60 Step 7. Click Next. Step 8. Click Yes, I want to restart this computer now. Then click Finish. APC-3X94P/R User Manual...

  • Page 61: Intel(R) Lan Driver

    4.3 Intel(R) LAN Driver To install the Intel (R) LAN driver, please follow the steps below. Step 1. Select Intel(R) 82574L LAN Driver from the list. Step 2. . Click Next. APC-3X94P/R User Manual...
  • Page 62 Step 3. Read license agreement. Click I accept the terms in the license agreement. Click Next. Step 4. Click Next to continue. APC-3X94P/R User Manual...
  • Page 63 Step 5. Click Install to begin the installation. Step 6. Click Finish to exit the wizard. APC-3X94P/R User Manual...

  • Page 64: Realtek Alc662 Hd Audio Driver Installation

    4.4 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. APC-3X94P/R User Manual...

  • Page 65: Usb 3.0 Driver

    Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. 4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list APC-3X94P/R User Manual...
  • Page 66 Step 2. Click Next to continue. Step 3. Read the license agreement. Then click Yes to continue. APC-3X94P/R User Manual...
  • Page 67 Step 4. Click Next to continue. Step 5. Click Next to continue. APC-3X94P/R User Manual...

  • Page 68: Com Driver

    Step 6. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. 4.6 Com Driver To install the Com Driver, please follow the steps below. Step 1. Select Com Driver from the list APC-3X94P/R User Manual...
  • Page 69 Step 2. Click Next to continue. Step 3. Click install to begin the installation. APC-3X94P/R User Manual...
  • Page 70 Step 4. Click Finish to complete the installation. APC-3X94P/R User Manual...

  • Page 71: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows 7/8.1 Universal Driver Installation for PenMount 6000 Series Before installing the Windows 7/8.1 driver software, you must have the Windows 7/8.1 system installed and running on your computer.
  • Page 72 Step 2. Click Next to continue. Step 3. Read the license agreement. Click I Agree to agree the license agreement. APC-3X94P/R User Manual...
  • Page 73 Step 4. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 5. Click Yes to continue. APC-3X94P/R User Manual...
  • Page 74 Step 6. Click Finish to complete installation. APC-3X94P/R User Manual...
  • Page 75 5.1.2 Installing Software (Projected Capacitive) Step 1. Insert the product CD, the screen below would appear. Click touch panel driver. Step 2. Click Next to continue. APC-3X94P/R User Manual...
  • Page 76 Step 3. Select I accept the terms of the license agreement. Click Next. Step.4. Click Next to continue. APC-3X94P/R User Manual...
  • Page 77 Step 5. Click Install RS232 interface driver. Step 6. Select None. Click Next. Step 7. Click OK. APC-3X94P/R User Manual...
  • Page 78 Step 8. Click Support Muti-Monitor System. Click Next. Step 9. Go to C:\Program Files\eGalaxTouch. Click Next. APC-3X94P/R User Manual...
  • Page 79 Step 10. Click Next. Step 11. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. APC-3X94P/R User Manual...
  • Page 80 Step 12. Wait for installation. Step 13. Click Yes to do 4 point calibration. APC-3X94P/R User Manual...

  • Page 81: Software Functions

    5.2 Software Functions 5.2.1 Software Functions(Resistive Touch) Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 82 Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’. Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens.
  • Page 83 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: APC-3X94P/R User Manual...
  • Page 84 Step 3. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration.
  • Page 85 Setting Touch Mode This mode enables and disables the mouse’s ability to drag on-screen icons – useful for configuring POS terminals. Mouse Emulation – Select this mode and the mouse functions as normal and allows dragging of icons. Click on Touch – Select this mode and mouse only provides a click function, and dragging is disables.
  • Page 86 Edge Compensation You can use Edge Compensation to calibrate more subtly. APC-3X94P/R User Manual...
  • Page 87 About This panel displays information about the PenMount controller and driver version. Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 7/8.1 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 88 1. Check the Enable Multiple Monitor Support box; then click Map Touch Screens to assign touch controllers to displays. 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens.
  • Page 89 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
  • Page 90 PenMount Monitor has the following function Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.
  • Page 91 5.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device APC-3X94P/R User Manual...
  • Page 92 Setting Beep Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode APC-3X94P/R User Manual...
  • Page 93 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time APC-3X94P/R User Manual...
  • Page 94 Tools Click OK to continue the settings. 4 Points Calibration Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. APC-3X94P/R User Manual...
  • Page 95 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen APC-3X94P/R User Manual...
  • Page 96 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area Function. APC-3X94P/R User Manual...
  • Page 97 Hardware Saturn Hardware Configuration APC-3X94P/R User Manual...
  • Page 98 About To display information about eGalaxTouch and its version. APC-3X94P/R User Manual...
