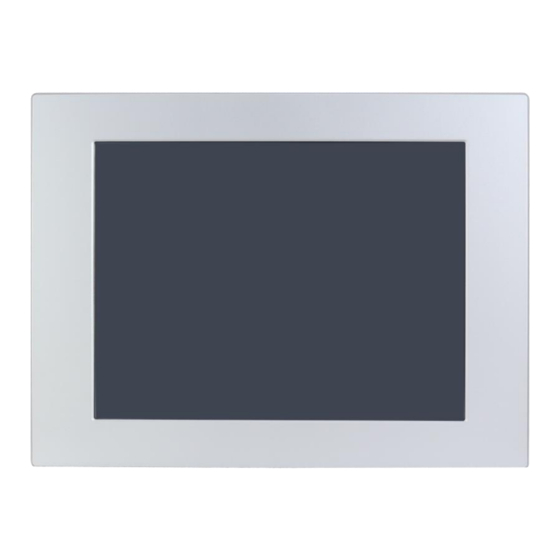

Aplex APC-3514B User Manual

Apc-3*14b series. 15 inch, 17 inch, and 19 inch intel bay trail n2930 slim type panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

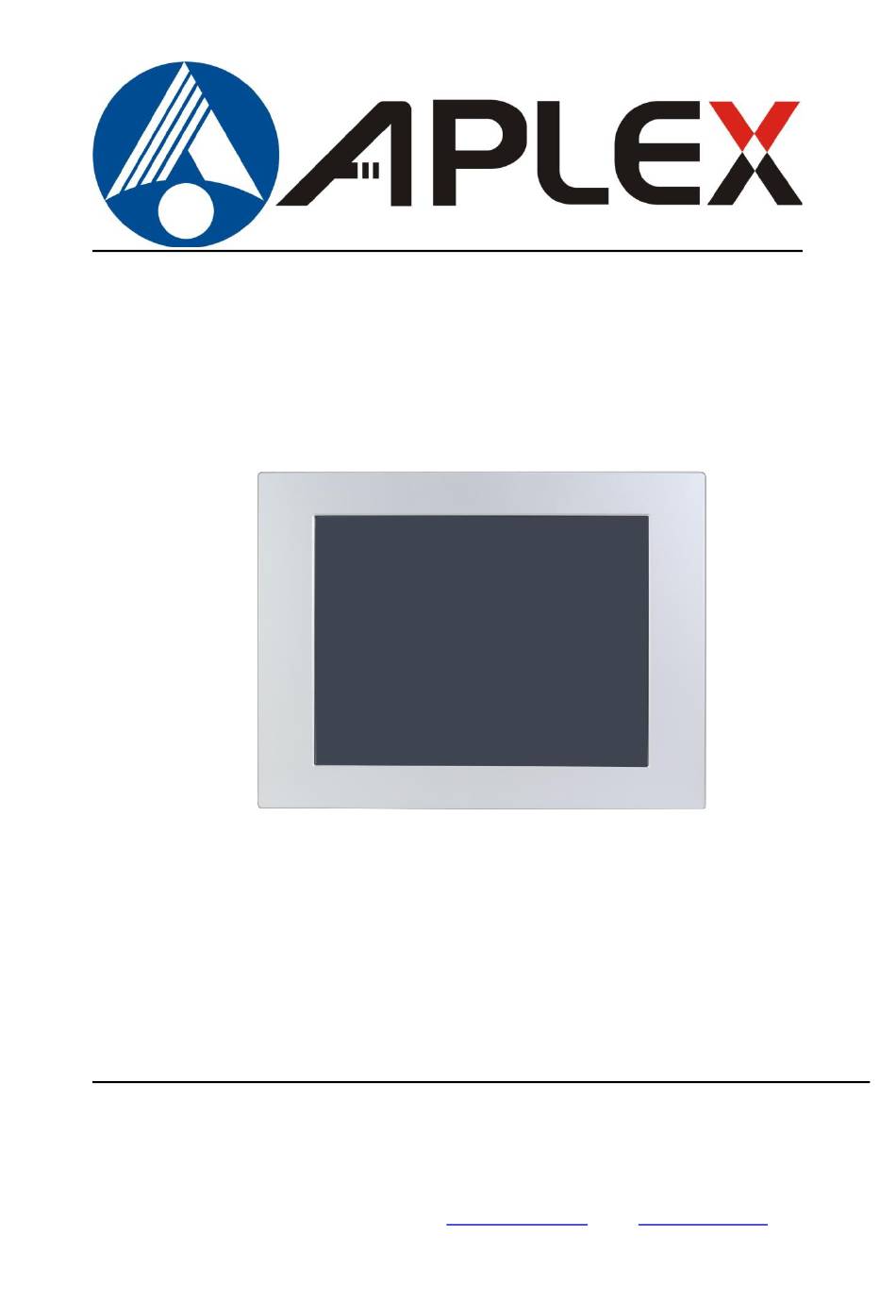

APC-3X14B
15", 17", and 19" Intel Bay Trail N2930 Slim Type Panel PC
User Manual
Release Date
Revision
Sep. 2015
V1.0
®2015 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail:
aplex@aplex.com.tw
URL:
www.aplextec.com
APC-3X14B User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC-3514B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplex APC-3514B

Summary of Contents for Aplex APC-3514B

  • Page 1 15”, 17”, and 19” Intel Bay Trail N2930 Slim Type Panel PC User Manual Release Date Revision Sep. 2015 V1.0 ®2015 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...

  • Page 2: Revision History

    Revision History Reversion Date Description 2015/09/02 Official Version APC-3X14B User Manual...

  • Page 3: Warning!/Caution

    Warning!___________________________ This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 4: Packing List/Safety Precautions

    Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) Safety Precautions Follow the messages below to prevent your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆...

  • Page 5: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………….1 Warning!/Caution..………………......…………………………….……..….2 Packing List/Safety Precautions..………………………………………………………………..3 Chapter 1 Getting Started 1.1 Features……………….……………………………………...………………………………….6 1.2 Specifications…………………………………………………………………………………...6 1.3 Dimensions…………………………………..………………………...…………………..8 1.4 Brief Description of APC-3X14B..………………………………………………..……11 1.5 Installation of Riser Card………………………………………………………………….14 1.6 Installation of HDD/SSD…………………………………………………………………..16 1.7 Panel Mounting of APC-3X14B…………………………………………………………17 Chapter 2 Motherboard 2.1 Motherboard Specifications………….………………….………..………………..…18 2.2 Motherboard Layout..………..…………………….……………...……………….…20...
  • Page 6 Figures Figure 1.1: Dimensions of APC-3514B…………………….…..………………..……...8 Figure 1.2: Dimensions of APC-3714B……………………………………………………..9 Figure 1.3: Dimensions of APC-3914B……………………………………………………10 Figure 1.4: Front View of APC-3514B…..…….…..………………………………..11 Figure 1.5: Rear View of APC-3514B…….……………………………………………..11 Figure 1.6: Front View of APC-3714B………………………………………………….…12 Figure 1.7: Rear View of APC-3714B………………………………………………………12 Figure 1.8: Front View of APC-3914B…………………………………………………….13...

  • Page 7: Getting Started

    Resistive Touch Screen  IP65 Compliant Front Bezel  DC 11~32V Wide-ranging Power Input 1.2 Specifications System APC-3514B APC-3714B APC-3914B Processor Intel® Bay Trail N2930 (2M Cache, 1.83GHz) Processor System Chipset System Memory 2 x SO-DIMM DDR3 1333MHz, up to 8G Graphics Integrated Intel®...

  • Page 8: Dimensions

    Power Power Input DC 11~32V Power Consumption MAX: 27.5W MAX: 24.1W MAX: 23.1W Display Type 15” TFT LCD 17” TFT LCD 19” TFT LCD Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024 Max. Color 16.7M 16.7M 16.7M Contrast Ratio 800 : 1 1000 : 1...

  • Page 9: Figure 1.1: Dimensions Of Apc-3514B

    1.3 Dimentions Figure 1.1: Dimensions of APC-3514B APC-3X14B User Manual...

  • Page 10: Figure 1.2: Dimensions Of Apc-3714B

    Figure 1.2: Dimensions of APC-3714B APC-3X14B User Manual...

  • Page 11: Figure 1.3: Dimensions Of Apc-3914B

    Figure 1.3: Dimensions of APC-3914B APC-3X14B User Manual...

  • Page 12: Brief Description Of Apc-3X14B

    The panel PC has a variety of functions and peripherals. Regarding the storage capability, APC-3X14B provides 1 x 2.5” SATA HDD space, allowing customers to easily access/backup the data. Figure 1.4 Front View of APC-3514B Figure 1.5: Rear View of APC-3514B APC-3X14B User Manual...

  • Page 13: Figure 1.6: Front View Of Apc-3714B

    Figure 1.6: Front View of APC-3714B Figure 1.7: Rear View of APC-3714B APC-3X14B User Manual...

  • Page 14: Figure 1.8: Front View Of Apc-3914B

    Figure 1.8: Front View of APC-3914B Figure 1.9: Rear View of APC-3914B APC-3X14B User Manual...

  • Page 15: Installation Of Riser Card

    1.5 Installation of Riser Card Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 In the picture, it shows there is one screw to deal with. Gently remove the screw.

  • Page 16: Installation Of Hdd/Ssd

    Step 5 This is how it looks after riser card is installed correctly. 1.6 Installation of HDD/SSD Step 1 There are two screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Take off the chassis cover and take it beside the Panel PC.
  • Page 17 Step 4 Pull the bracket out carefully. Step 5 You can replace HDD or SSD by unscrewing four screws as shown in the picture. APC-3X14B User Manual...

  • Page 18: Panel Mounting Of Apc-3X14B

    1.7 Panel Mounting of APC-3X14B The APC-3X14B panel PC is designed to be panel-mounted as shown in Figure 1.10 just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure 1.10: Panel mounting of APC-3x14B APC-3X14B User Manual...

  • Page 19: Chapter 2 Motherboard

    Chapter 2 Motherboard 2.1 Motherboard Specifications Specifications Form Factor Dimensions Mini-ITX (6.7 –in x 6.7-in) Processor Intel® AtomTM Baytrail-M/D Processor System Supports Hyper-Threading technology Core Number Max Speed (By CPU) Cache Chipset UEFI BIOS Expansion Slot Mini-PCIe 1 (Half Size) mSATA PCIe CFast Card Socket...
  • Page 20 SATA Max Data Transfer SATA2 (3.0Gb/s) Rate Rear I/O HDMI DisplayPort Ethernet 4 (2 x USB 3.0, 2 x USB 2.0) 2 (Mic-in, Line0out) Audio Serial 3 (RS232/422/485) 2 (1 x keyboard, 1 x mouse) PS/2 Internal 6 (2 x USB 3.0, 4 x USB 2.0) Connector LVDS/Inverter Serial...

  • Page 21: Motherboard Layout

    2.2 Motherboard Layout Figure 2.1: Motherboard Layout APC-3X14B User Manual...
  • Page 22 1: COM Port PWR Setting Jumpers (PWR_COM1, PWR_COM2, PWR_COM3) 2: ME Override (Security Flash Descriptors) 3: USB 2.0 Connector (USB2_4_5) 4: Panel Power Selection (LCD_VCC) (PNL_PWR1) 5: Backlight Power Selection (LCD_BLT_VCC) (BKT_PWR1) 6: ATX Power Connector 7: 4-pin CPU FAN Connector (+12V) 8: SATA Power Output Connector 9: Backlight Volume Control (BLT_VOL1) 10: 20-pin ATX Power Input Connector...

  • Page 23: I/O Panel

    2.3 I/O Panel 1. PS/2 Mouse Port 8. USB 3.0 Ports (USB3_0_1) 2. COM Port 1 (COM1)* 9. USB 2.0 Ports (USB_0_1) 3. COM Port 3 (COM3)* 10. VGA Port (VGA1) 4. LAN RJ-45 Port** 11. COM Port 2 (COM2)* 5.

  • Page 24: Installation

    2.4 Installation This is a Mini-ITX form factor (6.7"x6.7", 17.0x17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard its into 2.4.1 Screw Holes Place screws into the holes to secure the motherboard to the chassis. 2.4.2 Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.
  • Page 25  Installing a SO-DIMM (for DDR3_A1) Step 1. Unlock a SO-DIMM slot by pressing the retaining clips outward. Step 2. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. Step 3. Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated.
  • Page 26 2.4.4 Expansion Slots (mini-PCIe, mini-SATA and PCI Express Slots) There is 1 mini-PCIe slot, 1 mini-SATA slot and 1 PCI Express slot on the motherboard. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards. mini-SATA slot: MINI_SATA1 (mini-SATA slot;...

  • Page 27: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.
  • Page 28 ____________________________________________________________________________ Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V Level (3-pin BLT_PWM1) 2-3: +5V Level (see p.8, No. 15) ____________________________________________________________________________ COM Port PWR Setting Jumpers 1-2: +5V (5-pin PWR_COM1, for COM Port1) 2-3: +12V (see p.8, No. 1) 3-4: +12V 4-5: +5VSB 1-2: +5V (3-pin PWR_COM2, for COM Port2) (3-pin PWR_COM3, for COM Port3)

  • Page 29: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors SATA2 Connectors These two Serial ATA2 (SATA2) (SATA2_1, SATA2_2: see p.8, No. 14) connectors support SATA data cables for internal storage devices. The current SATA2 interface allows up to 3.0 Gb/s data transfer rate. ____________________________________________________________________________ USB 2.0 Connectors Besides two default USB 2.0 (9-pin USB2_2_3)
  • Page 30 ____________________________________________________________________________ 3W Audio AMP Output Wafer Signal Name (4-pin SPEAKER1) OUTLN (see p.8 No. 27) OUTLP OUTRP OUTRN ____________________________________________________________________________ Front Panel Audio Header This is an interface for front (9-pin HD_AUDIO1) panel audio cable that allows (see p.8 No. 28) convenient connection and control of audio devices.
  • Page 31 ____________________________________________________________________________ ATX Power Connector Please connect an ATX power (20-pin ATXPWR1) supply to this connector. (see p.8 No. 10) ____________________________________________________________________________ ATX Power Connector Please connect a DC 9V-12V (Input 9V-19V) power supply to this (4-pin ATX12V1) connector. (see p.8 No. 6) 1-2: GND 3-4: DC Input ____________________________________________________________________________...
  • Page 32 ____________________________________________________________________________ Digital Input / Output Pin Header Signal Name Signal Name (10-pin JGPIO1) JGPIO_PWR (see p.8 No. 18) SIO_GP23 SIO_GP27 SIO_GP22 SIO_GP26 SIO_GP21 SIO_GP25 SIO_GP20 SIO_GP24 ____________________________________________________________________________ Backlight Volume Control Signal Name (7-pin BLT_VOL1) GPIO_VOL_UP (see p.8 No. 9) GPIO_VOL_DW PWRDN LVDS1 BLUP LVDS1 BLDW...
  • Page 33 TPM Header This connector supports a (19-pin TPM1) Trusted Platform Module (TPM) (see p.8, No. 24) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

  • Page 34: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY, otherwise, POST will continue with its test routines.

  • Page 35: Main Screen

    3.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. 3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, Intel(R) Smart Connect Technology, Super IO Configuration, ACPI Configuration and USB Configuration.
  • Page 36 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems first like MS-DOS or Windows®. Just launch this tool and save the new UEFI file to you USB flash drive, floppy disk or hard drive, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.
  • Page 37 Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Processors can switch between multiple frequencies and voltage points to enable power saving. The default value is [Enabled]. Configuration options: [Enabled] and [Disabled]. If you install Windows® 8 / 8.1 and want to enable this function, please set this item to [Enabled].
  • Page 38 Adjacent Cache Line Prefetch Use this item to turn on/off prefetching of adjacent cache lines. Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utilize the additional hardware capabilities provided by Vanderpool Technology. This option will be hidden if the installed CPU does not support Intel Virtualization Technology.
  • Page 39 Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the Onboard HDMI HD Audio feature. Onboard LAN 1 This allows you to enable or disable the Onboard LAN 1 feature. Onboard LAN 2 This allows you to enable or disable the Onboard LAN 2 feature.
  • Page 40 SATA Mode Selection Use this to select SATA mode. Configuration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [AHCI Mode]. SATA Aggressive Link Power Management Use this item to conigure SATA Aggressive Link Power Management. Hard Disk S.M.A.R.T. Use this item to enable or disable the S.M.A.R.T.
  • Page 41 3.3.5 Super IO Configuration COM1 Coniguration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Coniguration Use this to set parameters of COM2. Select COM2 port type: [RS232], [RS422] or [RS485]. COM3 Coniguration Use this to set parameters of COM3.
  • Page 42 3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. Please set this option to [Enabled] if you plan to use this motherboard to submit WindowsR certiication.
  • Page 43 3.3.7 USB Configuration USB Controller Use this item to enable or disable the use of USB controller. USB 3.0 Controller Use this item to enable or disable the use of USB 3.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four coniguration options: [Enabled], [Auto] and [UEFI Setup Only].

  • Page 44: Hardware Health Event Monitoring Screen

    3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU_FAN1’s speed.

  • Page 45: Security Screen

    3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 46: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer’s boot time. There are three configuration options: [Disabled], [Fast] and [Ultra Fast]. The default value is [Disabled]. Please refer to below descriptions for the details of these three options: [Disabled] - Disable Fast Boot.
  • Page 47 Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed. Full Screen Logo Use this item to enable or disable OEM Logo.

  • Page 48: Exit Screen

    3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 49: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 7. The software and drivers are included with the motherboard. The contents include Intel AtomTM Baytrail Chipset, Intel® VGA Chipset, Realtek RTL8111G-CG LAN Driver, USB 3.0 Driver, Touch Panel Driver, Com Driver, Intel_TXE(Win) Driver Installation instructions are given below.

  • Page 50: Intel Atomtm Baytrail Chipset Driver

    4.1 Intel AtomTM Baytrail Chipset Driver To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel AtomTM Baytrail Chipset from the list Step 2. Click Next to setup program. APC-3X14B User Manual...
  • Page 51 Step 3. Read the license agreement. Click Yes to accept all of the terms of the license agreement. Step 4. Click Next to continue. APC-3X14B User Manual...
  • Page 52 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. APC-3X14B User Manual...

  • Page 53: Intel® Vga Chipsrt Driver

    4.2 Intel® VGA Chipset Driver To install the VGA drivers, follow the steps below to proceed with the installation. Step 1.Select Intel(R) VGA Chipset Driver. Step 2. Click Next to continue. APC-3X14B User Manual...
  • Page 54 Step 3. Click Yes. Step 4. Click Next to continue. APC-3X14B User Manual...
  • Page 55 Step 5. Read the License Agreement, then click Yes. Step 6. Click Next to continue. APC-3X14B User Manual...
  • Page 56 Step 7. Click Next to continue. Step 8. Select Yes, I want to restart this computer now. Then click Finish to complete the installation. APC-3X14B User Manual...

  • Page 57: Realtek Rtl8111G-Cg Lan Driver

    4.3 Realtek RTL8111G-CG LAN Driver To install the Realtek RTL8111G-CG LAN Driver, please follow the steps below. Step 1. Select Realtek RTL8111G-CG LAN Driver from the list. Step 2. Click Next to continue. APC-3X14B User Manual...
  • Page 58 Step 3. Click install to begin the installation. Step 4. Click Finish to complete the installation. APC-3X14B User Manual...

  • Page 59: Rearltek_Audio(R271) Driver

    4.4 Realtek_Audio(R271) Driver To install the Realtek_Audio(R271) Driver, please follow the steps below. Step 1. Select Realtek_Audio(R271) Driver from the list Step 2. Click Next to continue. APC-3X14B User Manual...

  • Page 60: Usb 3.0 Driver

    Step 3. Select Yes, I want to restart my computer now., and then click Finish to complete installation. 4.5 USB 3.0 Driver To install the USB 3.0 Driver, please follow the steps below. Step 1. Select USB 3.0 Driver from the list. APC-3X14B User Manual...
  • Page 61 Step 2. Click Next to continue. Step 3. Read the license agreement and click Yes to continue. APC-3X14B User Manual...
  • Page 62 Step 4. Click Next to continue. Step 5. Click Next to continue APC-3X14B User Manual...

  • Page 63: Com Driver

    Step 6. Select Yes, I want to restart this computer now., and then click Finish to complete the installation. 4.6 Com Driver To install the Com Driver, please follow the steps below. Step 1. Select Com Driver from the list. APC-3X14B User Manual...
  • Page 64 Step 2. Click Next to continue. Step 3. Click install to begin the installation. APC-3X14B User Manual...

  • Page 65: Intel_Txe(Win) Driver

    Step 4. Click Finish to complete the installation. 4.7 Intel_TXE(Win) Driver To install the Intel_TXE(Win) Driver, please follow the steps below. Step 1. Select Intel_TXE(Win) Driver from the list. APC-3X14B User Manual...
  • Page 66 Step 2. To install the Intel(R) TXE(Win) Driver, you have to install kmdf-1.11(Win7_32bit).msu first. Select kmdf-1.11(Win7_32bit).msu Step 3. Click Yes to continue. Step 4. Click Restart Now. Step 5. Then select Setup.exe. APC-3X14B User Manual...
  • Page 67 Step 6. Click Next to continue. Step 7. Click I accept the terms in the License Agreement., and click Next to continue. APC-3X14B User Manual...
  • Page 68 Step 8. Click Next to continue. Step 9. Click Yes, I want to restart this computer now. and click Finish to complete the installation. APC-3X14B User Manual...

  • Page 69: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows XP/2003/Vista/7 Universal Driver Installation for PenMount 6000 Series Before installing the Windows XP/2003/Vista/7 driver software, you must have the Windows XP/2003/Vista/7 system installed and running on your computer.
  • Page 70 Step 2. Click Next to continue. Step 3. Read the license agreement. Click I Agree to agree the license agreement. APC-3X14B User Manual...
  • Page 71 Step 4. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 5. Wait for installation. Then click Next to continue. APC-3X14B User Manual...
  • Page 72 Step 6. Click Continue Anyway. Step 7. Click Finish to complete installation. APC-3X14B User Manual...

  • Page 73: Software Functions

    5.2 Software Functions Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 74 Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens. Click this button and touch the red squares in sequence with a stylus. To skip, press ESC’. Step 1. Please select a device then click “Configure”. You can also double click the device too.
  • Page 75 NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: Step 3.Come back to “PenMount Control Panel” and select Tools then click Advanced Calibration.
  • Page 76 Step 4. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration.
  • Page 77 Setting Touch Mode This mode enables and disables the mouse’s ability to drag on-screen icons – useful for configuring POS terminals. Mouse Emulation – Select this mode and the mouse functions as normal and allows dragging of icons. Click on Touch – Select this mode and mouse only provides a click function, and dragging is disables.
  • Page 78 Edge Compensation You can use Edge Compensation to calibrate more subtly. About This panel displays information about the PenMount controller and driver version. APC-3X14B User Manual...
  • Page 79 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows XP/2003/Vista/7 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 80 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5. Select a display and execute the “Calibration” function. A message to start calibration appears.
  • Page 81 NOTES: 1. If you use a single VGA output for multiple monitors, please do not use the Multiple Monitor function. Just follow the regular procedure for calibration on each of your desktop monitors. 2. The Rotating function is disabled if you use the Multiple Monitor function. 3.
  • Page 82 Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button unctions. Exit Exits the PenMount Monitor function.
