Speco VIP2D1M Instruction Manual

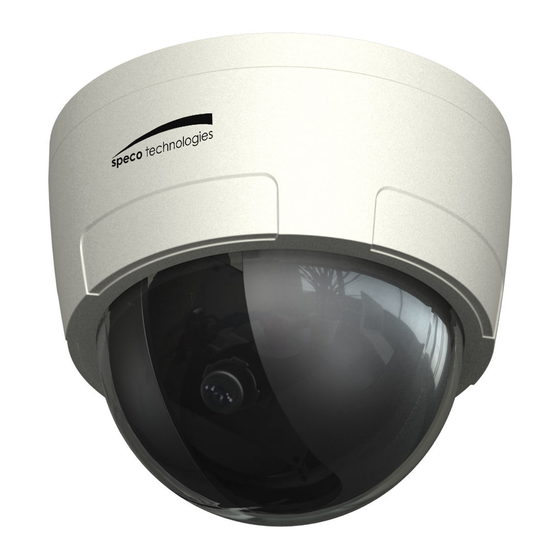

Motorized hd plastic dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
VIP2D1M
Motorized HD
Plastic DOME
CAMERA
Please read this manual thoroughly before use, and keep it handy for future reference.
www.hitron.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP2D1M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco VIP2D1M

Summary of Contents for Speco VIP2D1M

  • Page 1 INSTRUCTION MANUAL VIP2D1M Motorized HD Plastic DOME CAMERA Please read this manual thoroughly before use, and keep it handy for future reference. www.hitron.co.kr...
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instruction 5. Do not use this apparat us near water. 6. Clean only with dry cloth. 7. Do not block any ventilatio n openings.

  • Page 5: Table Of Contents

    Contents 1. Description ------------------------------------------------------------------6 1.1 Components - ------------------------------------------------------------------------------------------ 6 1.2 Key Features - ------------------------------------------------------------------------------------------ 7 . Installation ------------------------------------------------------------------- 8 2.1 Overview----------------------------------------------------------------------------------------------------8 2.2 Connection------------------------------------------------------------------------------------------------12 2.3 Network Connection and IP Assignment ---------------------------------------------------------- 14 . Operation -------------------------------------------------------------------- 15 3.1 Access from a browser -------------------------------------------------------------------------------- 15 3.2 Access from the internet ------------------------------------------------------------------------------ 16 3.3 Setting the admin password over a secure connection ------------------------------------------- 16 3.4 Live View Page ----------------------------------------------------------------------------------------- 17...

  • Page 6: Description

    1. Description is manual applies to the VIP2D1M network camera. he Network Camera supports the network service for a sen sor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time.

  • Page 7: Key Features

    • Resolution The Network Ca mera supports three kinds of resolutions according to the model name. VIP2D1M, 2 Megapixel, 30fps@1920x1080 • Micro-SD Recording support The Network Camera also suppor ts a micro-SD memory slot for local recording with removable storage.

  • Page 8: Installation

    2. Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.
  • Page 9 • Extension Cable Wire Color Description Red: DC12V Main Power, 2pin terminal, DC12V 500mA(6.0W) White: GND Ethernet, RJ-45 port compatible with 10/100Mbps PoE. Black Modular Jack Camera Dimension  See the diagrams below for the exact dimension of the VIP2B1M, IR Bullet network cameras. Dimensions Unit: inch •...

  • Page 10: Base Installation

    Use the following drawings to install the camera module to the housing. Base Installation • Make mounting holes and cable hole in the place (ceiling) to which this dome. Camera is installed using the Template sheet.
  • Page 11 To remove dome cover, turn the dome cover counterclockwise until locators reach end of travel and pull off. Push the liner in the direction of the arrow (three ‘OPEN’ marks) and pull it out. Fasten Mounting screws(2X) and align the dome camera with it like above picture. Turn the dome camera to left direction about 16 degree.

  • Page 12: Connection

    • Using the Quick install Adaptor (option) Use the optional Quick install Adaptor on wall or ceiling application 1. Install the Adaptor into the mounting surface and use the screws to adjust the position of the two locking arms on the Quick Install Adaptor 2.
  • Page 13 • Connecting Service Monitor Port Service monitor output port (J5) is located on the board of the dome camera, and is used for an easy OSD setup. ▶ ID & IP assignment To make changes in the OSD menu, please use the OSD controller provided optionally with your camera purchase.

  • Page 14: Network Connection And Ip Assignment

    IP address. So, it is necessary to allocate an IP address to the device with the “Speco Manager” utility on the CD. The factory default IP is “192.168.30.220”. Connect the Network Camera / device to the network and power up.

  • Page 15: Operation

    3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 16: Access From The Internet

    3.2. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the video encoder from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the video encoder.

  • Page 17: Live View Page

    3.4 Live View Page The live view page comes in several screen modes: 1920x1080, 1280x1024, 1280x720, 704x480(576), 640x480, 352x240(288) and 320x240. Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 18 3) Video Streams The Network Camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page in the Network Camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams.

  • Page 19: Network Camera Setup

    3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Event, and System Configuration. You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page.

  • Page 20: Users

    1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...

  • Page 21: Network

    2) Network The network camera support both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the video encoder can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the video encoders receive an IP address according to the configuration in the network router.

  • Page 22: Video & Image

    3) Video & Image • Stream1 Setting Codec: The codec settings are separated into MPEG4 and H.264. H.264 is a lso known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.
  • Page 23 MPEG4 SP(Simple Profile): Mostly aimed for use in situations where low bit rate and low resolution are mandated by other conditions of the applications, like network bandwidth, device size etc. Resolution: It enables users to determine a basic screen size when having an access through the Web Browser or PC program.

  • Page 24: Date & Time

    JPEG quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance. •...

  • Page 25: 5.2 Video & Image

    • Date & Time Format Specify the formats for the date and time (12h or 24h) displayed in the video streams. Select Date & Time format from the drop-down list. Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day Time Format: Specify the date format.
  • Page 26  Image • Image Appearance This page provides access to the advanced image settings for the network camera. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Contrast: Adjust the image's contrast by raising or lowering the value in this field. Saturation: Select an appropriate level by entering a value in the range 1-10.
  • Page 27  AE & AWB to set the exposure and white balance of the network camera. This page provides access • Exposure Control Configure the exposure settings to suit the image quality requirements in relation to lighting consideration. Mode: Supports exposure modes to control the amount of light detected by the camera sensor based on settings for light conditions.
  • Page 28 • White Balance Control This adjusts the relative amount of red, green and blue primary colors in the image so that the neutral colors are reproduced correctly. The camera can be set to automatically adjust for the type of light and compensate for its color. Alternatively, the type of light source can be set manually.
  • Page 29  Privacy Masking The privacy masking function allows you to mask parts of the video image to be transmitted. You can set up to eight privacy masks and the color of privacy masks is black. The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse.
  • Page 30  Webcasting The network camera can stream live video to a website. Copies the HTML code generated on the screen and paste it in page code of the website you want to display live video. Note: To use webcasting service, the Enable Anonymous viewer login option must be checked. Refer to “3.6.1 Basic Configuration >...

  • Page 31: Event

    3.5.3 Event 1) Event-In  On Boot This is used to trigger the event every time the Network Transmitter is started. Select “Enable” to activate the motion event.
  • Page 32  Alarm In Select “Enable” to activate the alarm event. The network camera support 1 alarm input ports. Type: Choose the type of alarm you wish to use from the drop-down list. Dwell Time: Set the dwell time an event lasts for the specified dwell time from the point of detection of an alarm input.
  • Page 33  Manual Trigger This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface).
  • Page 34  Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
  • Page 35 To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. • Motion Detection Setting The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below.

  • Page 36: Event-Out

    2) Event-Out  SMTP(E-Mail) The Network Camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server/Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
  • Page 37 To ensure that the login procedure is performed as securely as possible when using SMTP authentication, you must define the weakest authentication method allowed. Login Method: Set the Weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login / Plain •...
  • Page 38 Remote directory: Specify the path to the directory where the uploaded images will be stored. If this directory does not already exist on the FTP server, there will be an error message when uploading. User name/Password: Provide your log-in information. •...
  • Page 39 • HTTP Server Setting URL: The network address to the server and the script that will handle the request. Port: Enter the port number used by the HTTP server. The default is 80. User name/Password: Provide your log-in information. • HTTP Server Test When the setup is complete, the connection can be tested by clicking the Test button.
  • Page 40 ▼ Record When the network camera detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.

  • Page 41: Device Information

    Note2: Network File System (NFS) is a network file system protocol, allowing a user on a client computer to access files over a network in a manner similar to how local storage is accessed. NFS, like many other protocols, builds on the Open Network Computing Remote Procedure Call (ONC RPC) system.
  • Page 42 ▼ Event Notification When the network camera detects an event, Notification Server is used to receive notification messages as a type of XML data format. Check the box to enable the service. • Event Notification Setting Notification Server URL: The network address to the server and the script that will handle the request.
  • Page 43 ▼ Boost The Boost feature is used in conjunction with event detection. When this feature is turned ON, the Framerate and Bitrate in the boost condition can be set to a different value than the ones in the normal condition field. When an event is detected, the camera will boost the Framerate and Bitrate from the normal condition to this boosted level for the duration of the event.

  • Page 44: Event Map

    3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the Network Camera. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below.

  • Page 45: System

    • General Enter the name for a new event map. • Event In Select an event type in the drop down list. • Event Out E-mail: Select email addresses you want to send via email that an event has occurred. FTP: Select checkbox beside FTP to record and saves images to an FTP server when an event has occurred.

  • Page 46: Security

    2) Security  Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 47  HTTPS For greater security, the Network Camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
  • Page 48  IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.

  • Page 49: Date & Time

    3) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjustment for daylight saving time changes”.

  • Page 50: Network

    4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconf, and Bonjour.
  • Page 51 • Host Name Configuration Host Name – enter the host name to be used as device information in the client software or Speco Manager. • Services HTTP port: Enter a port to receive a service through the HTTP. Default Port Number is ‘80’.
  • Page 52 DDNS  • Internet DDNS(Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Enable DDNS: Check to get DDNS service to be available. * Hostname: Select the DDNS server.
  • Page 53  RTP Have a setting for sending and receiving a video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. For more information, please see the online help.
  • Page 54  UPnP The Network Camera includes support for UPnP™. UPnP™ is enabled by default, and the Network Camera then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
  • Page 55  QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
  • Page 56 • Auto Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. Maximum bandwidth - In case of sharing other network programs or equipment, it is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s. Auto frame rate - Selected if not influenced by a network-related program or equipment without a limitation on the network bandwidth.
  • Page 57 • NAT traversal Settings Enable - when enabled, the network transmitters attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the Network Camera (see System>Network>UPnP). automatic setting: The Network Camera automatically search for NAT routers on your network.
  • Page 58  Zeroconf Zeroconf allows the network camera to create and assign IP address for network cameras and connect to a network automatically. Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically.

  • Page 59: Language

     Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers.

  • Page 60: Maintenance

    6) Maintenance • Maintenance Server Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address...

  • Page 61: Support

    Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance.
  • Page 62 • Health Check System Check: Click the System Check button to get the important information about the camera’s system resources. You can see the pop-up window below. Media Check: Click the Media Check button to get the information about the camera’s video and audio stream.
  • Page 63 Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. You can see the pop-up window below.

  • Page 64: About

    Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video. You can see the pop-up window below. 3.5.5 About The following website will provide the support information for the Network Camera information and operation.

  • Page 65: Playback

    3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 66 Step forward play: go forward one frame of the video clip. Clip copy: copy the video clip. Zoom In: zoom in the video clip Full Screen: display full screen of the video. (3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis.

  • Page 67: Help

    3.7 Help The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the Network Camera without a reference to the manual.

  • Page 68: Resetting To The Factory Default Settings

    3.8 Resetting to the factory default settings To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.6.6 System > Maintenance”) or use the control button on the network camera, as described below: •...

  • Page 69: Appendix

    4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be accessed...

  • Page 70: Alarm Connection

    4.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage.

  • Page 71: Product Specification

    Yes, Event Software Reset Factory Reset Yes, Button/Web browser Auto Recovery Installation Tool Yes, Speco Manager Upgrade Yes, Web browser/Speco Manager Video out Yes, OSD Remocon (option) Alarm Input Terminal, 1 TTL input Alarm Output Terminal, 1 open collector Ethernet...

  • Page 72: System Requirement For Web Browser

    System Requirement for Web Browser Operating System: Microsoft Windows 98, Microsoft Windows ME, Microsoft Windows 2000, Microsoft Windows XP, or Microsoft Windows Vista CPU: Over Pentium IV 2.4Ghz, 512MB RAM, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher)
  • Page 73 VIP2D1M Motorized HD Plastic DOME CAMERA Printed in Korea...
