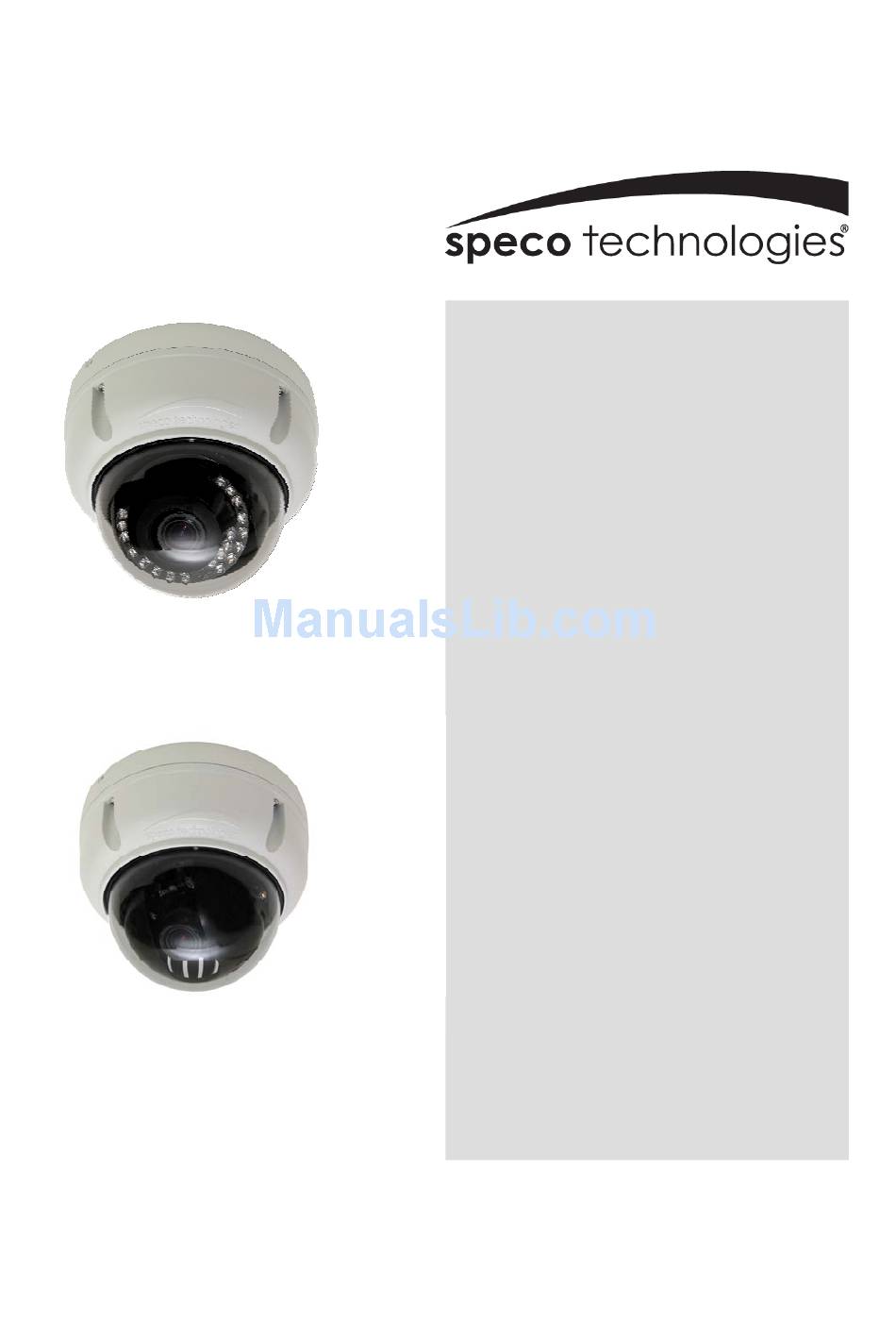

Page 1: Network Camera

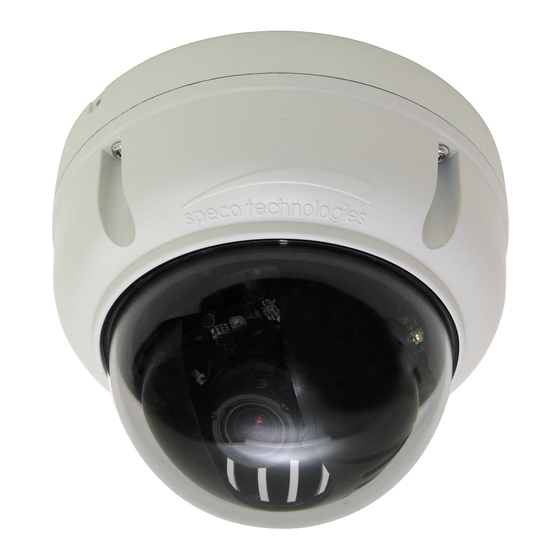

INSTRUCTION MANUAL VIP2D2M Motorized Full-HD IR VP Dome Network Camera & VIP2D2 Full HD VP Dome Network Camera Please read this manual thoroughly before use, and keep it handy for future reference. - Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
Contents 1. Description ------------------------------------------------------------------6 1.1 Components - ------------------------------------------------------------------------------------------ 6 1.2 Key Features - ------------------------------------------------------------------------------------------ 7 2. Installation ------------------------------------------------------------------- 8 2.1 Overview----------------------------------------------------------------------------------------------------8 2.2 Connection------------------------------------------------------------------------------------------------14 2.3 Network Connection and IP Assignment ---------------------------------------------------------- 17 3. Operation -------------------------------------------------------------------- 18 3.1 Access from a browser -------------------------------------------------------------------------------- 18 3.2 Access from the internet ------------------------------------------------------------------------------ 19 3.3 Setting the admin password over a secure connection ------------------------------------------- 19 3.4 Live View Page ----------------------------------------------------------------------------------------- 19... -
Page 6: Description
1. Description The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time. -
Page 7: Key Features
• Focus & Zoom Control via Network The Network Camera also enables users to adjust focus and zoom remotely via network. • Resolution VIP2D2M, 30fps@1920x1080 VIP2D2, 30fps@1920x1080 • Micro-SD Recording support The Network Camera also supports a micro-SD memory slot for local recording with removable storage. -
Page 8: Installation
2. Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer. - Page 9 Parts and Description (Models equipped with IR LEDs) ...
- Page 10 Camera Dimension See the diagrams below for the exact dimension of the VIP2D2M vandal proof dome network cameras. Dimensions Unit: inch Adjusting the 3-Axis Gimbal The Gimbal mechanism yields maximum rotation and placement as shown below. Z-Axis: Rotation 355°...
-
Page 11: Base Installation
Base Installation 1. Make mounting holes and cable hole in the place (ceiling) to which this dome camera is installed using the supplied template sheet. Warning: The total mass of the main unit is approx 1.3kg. Check whether the ceiling to which the Dome Camera is installed is strong enough to hold the unit mass. - Page 12 Models equipped without IR LEDs...
- Page 13 Models equipped with IR LEDs...
-
Page 14: Connection
2.2 Connection Connection Description Connector Name Description Micro-SD Slot Micro-SD memory slot Service Monitor Service Monitor & OSD Controller Communication Port, Stereo Jack Port Audio In & Out Port Audio Input and Output, Stereo Jack. Alarm Input and Output, 3pin terminal. Alarm In &... - Page 15 • Connecting the Power Connect the power of DC12V or AC24V for the network camera. Connect the positive(+) pole to the ‘+’ position and the negative(-) pole to the ‘-‘ position for the DC power. Be careful not to reverse the polarity when you connect the power cable. ...
- Page 16 ▶ Zoom & Focus Control The camera enters Zoom and Focus control mode as soon as connecting OSD Controller to the Service Monitor port. -. Zoom Control: ↑(Zoom In), ↓(Zoom Out) -. Focus Control: ←(Focus Near), →(Focus Far) -. Smart Focus: Press and hold the SET button for 2 or more seconds. The camera readjusts focus automatically.
-
Page 17: Network Connection And Ip Assignment
IP address. So, it is necessary to allocate an IP address to the device with the “Speco Manager” utility on the CD. The factory default IP is “192.168.30.220”. Connect the Network Camera / device to the network and power up. -
Page 18: Operation
3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 19: Access From The Internet
3.2. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera. - Page 20 1) General controls Live View Page Search & Playback Page Setup Page Help Page The video drop-down list allows you to select a customized or pre-programmed video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration >...
- Page 21 3) Video Streams The Network Camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page in the Network Camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams.
-
Page 22: Network Camera Setup
3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration. You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page. -
Page 23: Users
1) Users User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority... - Page 24 • Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
-
Page 25: Video & Image
3) Video & Image • Stream1 Setting Codec: The codec settings are separated into MPEG4 and H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate. - Page 26 MPEG4 SP(Simple Profile): Mostly aimed for use in situations where low bit rate and low resolution are mandated by other conditions of the applications, like network bandwidth, device size etc. Resolution: It enables users to determine a basic screen size when having an access through the Web Browser or PC program.
-
Page 27: Audio
JPEG quality: Select the picture quality. If users want to have a high quality of fast image one by one, please decrease the value. For the purpose of general monitoring, please do not change a basic value. Such act may cause a problem to the system performance. •... -
Page 28: Audio Input
Sound bitrate: Depending on the selected encoding, set the desired audio quality (bitrate). The settings affect the available bandwidth and the required audio quality. • Audio Input Audio from an external line source can be connected to the terminal I/O of the network camera. Input volume: If there are problems with the sound input being too low or high, it is possible to adjust the input gain for the microphone attached to the network camera. -
Page 29: Date & Time
5) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select the “Automatically adjustment for daylight saving time changes”. -
Page 30: Video & Image
3.5.2 Video & Image Basic Refer to “3.5.1 Basic Configuration > Video & Image” for more details. - Page 31 Image • Image This page provides access to the advanced image settings for the network camera. Brightness: The image brightness can be adjusted in the range 1-10, where a higher value produces a brighter image. Contrast: Adjust the image's contrast by raising or lowering the value in this field. Saturation: Select an appropriate level by entering a value in the range 1-10.
- Page 32 AE & AWB to set the exposure and white balance of the network camera. This page provides access • Exposure Control Configure the exposure settings to suit the image quality requirements in relation to lighting consideration. Mode: Supports exposure modes to control the amount of light detected by the camera sensor based on settings for light conditions.
- Page 33 Flicker Mode: Provides the options for flicker. 50Hz: Select at 50 Hz environments. 60Hz: Select at 60 Hz environments. Enable Long Exposure: Set this checkbox to activate the electronic shutter of the camera. Max. Shutter: Select a shutter speed value in the drop-down list. The default setting is 1/15. •...
- Page 34 • Day & Night Control Select the day/night mode from among three modes. Mode: Normally works in day mode. It switches automatically to night mode in a dark place. Automatic: Normally works in day mode. It switches automatically to night mode in a dark place.
- Page 35 The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse. It is also possible to resize or delete, or move the window, by selecting the appropriate window at the mouse menu on the video screen. To create a mask window, follow steps: Click the right button of mouse to see the mouse menu.
-
Page 36: Audio
3.5.3 Audio Refer to “3.5.1 Basic Configuration > Audio” for more details. -
Page 37: Event
3.5.4 Event 1) Event-In On Boot This is used to trigger the event every time the Network Camera is started. Select “Enable” to activate the motion event. - Page 38 Alarm In Select “Enable” to activate the alarm event. The network camera supports 1 alarm input port. Type: Choose the type of alarm you wish to use from the drop-down list. Dwell Time: Set the dwell time of an event lasts for the specified dwell time from the point of detection of an alarm input.
- Page 39 Manual Trigger This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface).
- Page 40 Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
- Page 41 • Motion Detection Setting The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below. A motion index is a set of parameters describing Window Name, Type, Threshold, Sensitivity, and Dwell Time. Window Types is one of Motion and Mask windows. Threshold: Sets up the threshold for the motion detection.
-
Page 42: Event-Out
2) Event-Out SMTP(E-Mail) The Network Camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server/Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP. - Page 43 Login Method: Set the Weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login / Plain • SMTP(E-Mail) Receiver Receiver: Enter an email address. You can also register the e-mail address of recipients up to 8.
- Page 44 Remote directory: Specify the path to the directory where the uploaded images will be stored. If this directory does not already exist on the FTP server, there will be an error message when uploading. User name/Password: Provide your log-in information. •...
- Page 45 • HTTP Server Setting URL: The network address to the server and the script that will handle the request. For example: http://192.168.12.244/cgi-bin/upload.cgi Port: Enter the port number used by the HTTP server. The default is 80. User name/Password: Provide your log-in information. •...
- Page 46 ▼ Digital Deterrent When the network camera detects an event, it can output a predefined audio data to external speaker. Check the box to enable the service. • Digital Deterrent Setting To use the digital deterrent with the Network camera, an audio data file made by user must be uploaded from your PC.
- Page 47 To use Audio Recorder tool to make an audio file for Audio Alert function, you must install the Speco VMS on the installation CD at first. The Speco VMS program (Start>All Programs>Speco VMS>Tools>ARecorder) in your PC, the ARecorder window will be displayed as below.
- Page 48 ▼ Record When the network camera detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.
-
Page 49: Device Information
Note2: Network File System (NFS) is a network file system protocol, allowing a user on a client computer to access files over a network in a manner similar to how local storage is accessed. NFS, like many other protocols, builds on the Open Network Computing Remote Procedure Call (ONC RPC) system. - Page 50 Event Notification ▼...
- Page 51 ▼ Boost...
-
Page 52: Event Map
3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the Network Camera. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below. -
Page 53: System
• General Enter the name for a new event map. • Event In Select an event type in the drop down list. • Event Out E-mail: Select email addresses you want to send via email that an event has occurred. FTP: Select checkbox beside FTP to record and saves images to an FTP server when an event has occurred. -
Page 54: Security
2) Security Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •... - Page 55 HTTPS For greater security, the Network Camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
- Page 56 IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.
-
Page 57: Date & Time
3) Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjustment for daylight saving time changes”. -
Page 58: Network
4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig, and Bonjour. - Page 59 • Host Name Configuration Host Name – enter the host name to be used as device information in the client software or Speco Manager. • Services HTTP port: Enter a port to receive a service through the HTTP. Default Port Number is ‘80’.
- Page 60 DDNS • Internet DDNS(Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Enable DDNS: Check to get DDNS service to be available. * Hostname: Select the DDNS server.
- Page 61 RTP Have a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. For more information, please see the online help.
- Page 62 UPnP The Network Camera includes support for UPnP™. UPnP™ is enabled by default, and the Network Camera then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
- Page 63 QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
- Page 64 • Auto Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. Maximum bandwidth - In case of sharing other network programs or equipment, it is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s. Auto frame rate - Selected if not influenced by a network-related program or equipment without a limitation on the network bandwidth.
- Page 65 • NAT traversal Settings Enable - when enabled, the network camera attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the Network Camera (see System>Network>UPnP). automatic setting: The Network Camera automatically search for NAT routers on your network.
- Page 66 Zeroconfig Zeroconfig allows the network camera to create and assign IP address for network cameras and connect to a network automatically. Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically.
-
Page 67: Language
Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers. -
Page 68: Maintenance
6) Maintenance • Maintenance Server Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address... -
Page 69: Support
• Restore Import and apply a setting value saved to a user PC. Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. - Page 70 • Health Check System Check: Click the System Check button to get the important information about the camera’s system resources. You can see the pop-up window below. Media Check: Click the Media Check button to get the information about the camera’s video and audio stream.
- Page 71 Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. You can see the pop-up window below.
-
Page 72: About
Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video. You can see the pop-up window below. 3.5.6 About The following website will provide the support information for the Network Camera information and operation. -
Page 73: Playback
3.6 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording's start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows. - Page 74 Step forward play: go forward one frame of the video clip. Clip copy: copy the video clip. Zoom In: zoom in the video clip Full Screen: display full screen of the video. (3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis.
-
Page 75: Help
3.7 Help The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the Network Camera without a reference to the manual. -
Page 76: Resetting To The Factory Default Settings
3.8 Resetting to the factory default settings To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance”) or use the Reset button (SW1) on the board of the dome camera, as described below: •... -
Page 77: Appendix
4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be accessed... -
Page 78: Alarm Connection
4.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. 4.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage. -
Page 79: Product Specification
Factory Reset Yes, Button/Web browser Auto Recovery Installation Tool Yes, Speco Manager, Speco VMS Upgrade Yes, Web browser, Speco Manager, Speco VMS Video out Yes, OSD Remocon (option) Alarm Input Terminal, 1 TTL input Alarm Output Terminal, 1 open collector... - Page 80 Factory Reset Yes, Button/Web browser Auto Recovery Installation Tool Yes, Speco Manager, Speco VMS Upgrade Yes, Web browser, Speco Manager, Speco VMS Video out Yes, OSD Remocon (option) Alarm Input Terminal, 1 TTL input Alarm Output Terminal, 1 open collector...
-
Page 81: System Requirement For Web Browser
System Requirement for Web Browser Operating System: Microsoft Windows 98, Microsoft Windows ME, Microsoft Windows 2000, Microsoft Windows XP, or Microsoft Windows Vista CPU: Intel Core 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) - Page 82 VIP2D2M Motorized Full-HD IR VP Dome Network Camera Printed in Korea...
