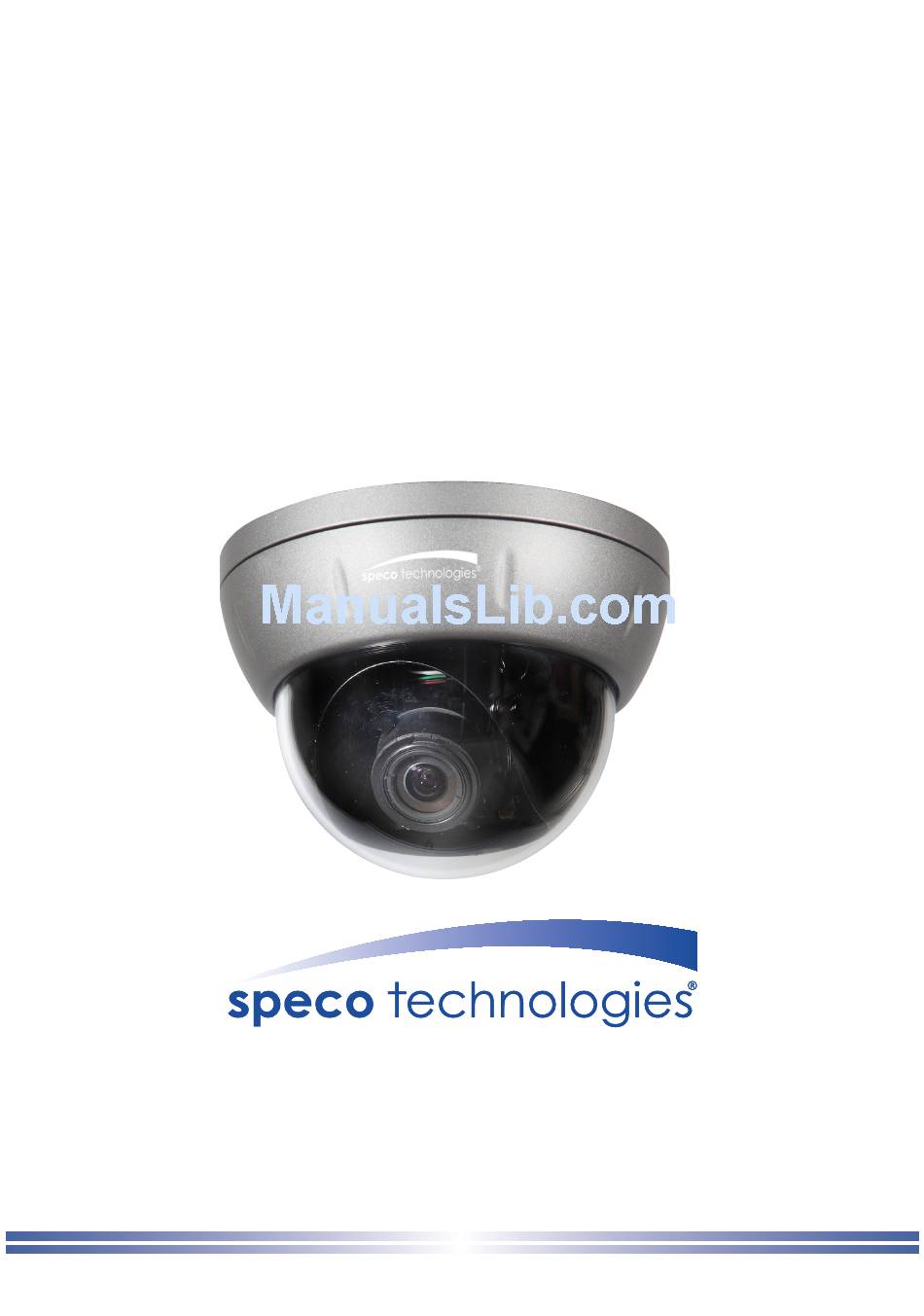

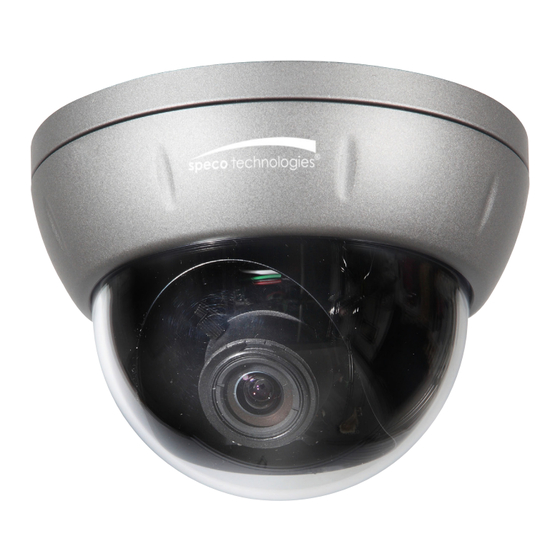

- Page 1 INSTRUCTION MANUAL Intense Light Color Dome Camera VL647iLT Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/9/10...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK CAUTION DO NOT OPEN CAUTION RISK OF ELECTRIC SHOCK CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER-SERVICEABLE PARTS INSIDE.
-
Page 3: Table Of Contents
Contents Contents Precautions Sefety Instructions SPECIFICATIONS FEATURES FEATURES Menu Set Up Menu Set Up ▶ Lens Set Up ▶ Exposure ▶ Back Light ▶ S-WDR ▶ White Bal. ▶ Day & Night ▶ S-DNR ▶ Special ▶ Camera Title ◈ D - Effect ◈... -
Page 4: Precautions
Precautions Do not install the camera in Do not install the camera under Do not touch the front lens of the extreme temperature conditions. unstable lighting conditions. camera. Only use the camera under conditions Severe lighting change or flicker can This is one of the most important parts of the where temperatures are between cause the camera to work improperly. -
Page 5: Sefety Instructions
Sefety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑... -
Page 6: Specifications
Intense Light Color Dome Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) ■ VL647iLT 580TV Lines DC Auto Iris Varifocal Lens(2.8mm-12mm) 0.00001LUX x256 Speco Light Compensation SPECIFICATIONS VL647iLT MODEL Sensor 1/3” Sony Super HAD ll CCD Total Pixels NTSC=811(H) * 508(V) / PAL=795(H) * 595(V) -
Page 7: Features
1/3 inch high-density CCD and Digital Signal Processor permit high quality image to be captured in very low light conditions. S-WDR (Speco Wide Dynamic Range) Enables the camera to obtain clear and high quality images even in strong backlight conditions. -
Page 8: Features
FEATURES HLC (High Light Compensation) This function reverses bright spots in the picture (such as headlights). It enables the entire system to do a better job of resolving and displaying grayscale information such as license plate. FREEZE This function freezes the current scene for detailed viewing. PRIVACY It also has the ability to mask up to 8 areas of the picture where viewing is not desired. -
Page 9: Menu Set Up
Menu Set-Up SET UP MENU DEFAULT SET MENU LENS DC : LEVEL (0 ~100 Adjustable) SHUTTER : FLK/ 1/60 / 1/250, 1/500, 1/2000, 1/5000, 1/10000, 1/100000 AGC : OFF / LOW / MIDDLE/ HIGH SHUTTER INTENSE-LT : x2~ x256 Level Selectable AGC: --- SLC : OFF / SLC (GAIN : LOW, MIDDLE, HIGH/ DEFAULT : INTENSE-LT... -
Page 10: Special Menu
Special Menu SPECIAL MENU DEFAULT SET MENU CAMERA TITLE ON / OFF D - EFFECT FREEZE / MIRROR/ D-ZOOM/ GAMMA/ NEG. IMAGE /RETURN AREA SELECT : AREA 1~AREA 4 MOTION AREA DISPLAY : ON / OFF LEFT / RIGHT : 0 ~ 100 Level Adjustable WIDTH : 0 ~ 100 Level Adjustable TOP / BOTTOM : 0 ~ 100 Level Adjustable HEIGHT : 0 ~ 100 Level Adjustable... -
Page 11: Menu Set Up
Menu Set Up Menu items can be selected by using the OSD buttons of the camera 1. Press the Set Up button. * The Set Up menu will be displayed on the monitor. SETUP LENS EXPOSURE WHITE BAL DAY / NIGHT COLOR S-DNR SPECIAL... -
Page 12: Lens Set Up
3. Changing menu settings using the Left or Right button. * Available values or Status are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed. 4. After completing the setting move the arrow indicator to EXIT and press the SET button to EXIT. -
Page 13: Len Setup
NOTE * When DC is selected, the brightness can be adjusted. The brightness control range is 1 ~ 100. Lens BRIGHTNESS RETURN 3. Press the RETURN to return to the SETUP menu. Exposure This function is used to select Automatic or Manual shutter speed control. 1. - Page 14 EXPOSURE SHUTTER BRIGHTNESS - - - - INTENSE-LT HIGH AUTO S-WDR RETURN NOTE * To produce better results with FLK, do not use it in conjunction with the S-WDR mode in the BACKLIGHT menu. * Desired shutter speed can be selected by user 1/60, 1/250, 1/500, 1/2000, 1/5000, 1/0000, 1/100000, FLK .
-
Page 15: Back Light
* RETURN: Select Return to save the changes in the EXPOSURE menu and retun to the SETUP menu. NOTE * Pressing the SET button in AUTO mode allows adjustment of image brightness by increasing or decreasing the shutter speed (x2 ~x258). * The higher the level, the brighter the image becomes, but it is possible that an after image (ghosting) could appear. - Page 16 SLC ON SLC OFF 3. Select a mode using the Left and Right buttons then press the SET button. Select SLC to adjust the desired SLC area and GAIN level. * GAIN : Adjust the SLC sensitivity by selecting LOW, MIDDLE or HIGH. * DEFAULT : Press the Default to back to the factory default when input the wrong data .
- Page 17 * Move the arrow indicator to RETURN and press the Set Up button after complete the SLC area set to return to EXPOSURE menu. 4. Select HLC by using the Left and Right buttons then press the Set Up button to set up the desired HLC area and GAIN level.
-
Page 18: S-Wdr
S-WDR This camera provides intelligent light level control to overcome even strong backlight conditions. 1. Move the arrow indicator to S-WDR using the Up or Down button on the EXPOSURE menu screen. 2. Select the desired feature by using the Left or Right button. EXPOSURE SHUTTER 1/60... -
Page 19: White Bal
White Balance The White Balance function is used to control the “on-screen” color. 1. Move the arrow indicator to WHITE BAL on the SETUP menu screen using the Up and Down button. 2. Select the desired mode by using the Left or Right button. SETUP LENS EXPOSURE... -
Page 20: Day & Night
Day / Night Picture can be displayed in either color or black and white. 1. Select DAY / NIGHT using the Up or Down button on the SETUP menu screen. SETUP LENS EXPOSURE WHITE BAL DAY / NIGHT COLOR S-DNR SPECIAL ADJUST RESET... -
Page 21: S-Dnr
3. Select the desired mode and set the values by using the Left or Right button . * DELAY : The range can be adjusted between 0 ~ 63. * S - LEVEL : The start level can be adjusted between 0 ~ 100. * E - LEVEL : The end level can be adjusted between 0 ~ 100. -
Page 22: Special
Special 1. When the SETUP menu screen is displayed, select SPECIAL using the Up and Down buttons. SETUP LENS EXPOSURE WHITE BAL DAY / NIGHT COLOR S-DNR SPECIAL ADJUST RESET EXIT 2. Select one of the mode using the Up and Down button. SPECIAL 1. -
Page 23: Camera Title
NOTE * When CAMERA TITLE is set to OFF, the CAMERA TITLE is not displayed on the monitor. 1-3) Press the SETUP button. CAMERA TITLE 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z →... - Page 24 NOTE * In cases where the wrong Camera ID has been input..Move the cursor to CLR and press SETUP button to erase characters from left to right, and repeat the above steps to input the characters again. 1-5) To select the position where the Camera ID should be displayed on the screen. ①...
-
Page 25: D-Effect
③ Select a new position by using the four C A M 1 directional button, Press the SET button to confirm the position. 2. D - EFFECT Move the cursor to D-EFFECT and press the SET button to set the other image functions. SPECIAL 1. - Page 26 2 -2) MIRROR : Flip the image horizontally on the screen. D-EFFECT 1. FREEZE 2. MIRROR V-FLIP 3. D-ZOOM 4. GAMMA 0.45 5. RETURN * V-FLIP : Flip the image vertically on the screen. * ROTATE : Flip the horizontal image vertically on the screen. * OFF : Disabled.
-
Page 27: Motion
NOTE * PAN and TILT function should be available when using the digital zoom. 2-4) GAMMA : Desired gamma values can be adjusted between 0.05 ~ 1.00. 2-5) RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu. 3. -
Page 28: Privacy
⑤ Move the arrow indicator to select the SENSITIVITY to increase or decrease by using the Left / Right button between the level 0 ~ 40. ⑥ RETURN : Move the arrow indicator to RETURN after complete the setup to return to SPECIAL menu. 4. -
Page 29: Return
③ Move the arrow indicator to WIDTH to make desired width of cells to increase or decrease by using the Left / Right button between the level 0 ~ 100. ④ Move the arrow indicator to HEIGHT to make desired height of cells to increase or decrease by using the Left / Right button between the level 0 ~ 100. -
Page 30: Reset
2. Select the desired mode by using Up or Down button.. ADJUST SHARPNESS - - - - - - - -100 BLUE - - - - - - - -100 - - - - - - - -100 RETURN SHARPNESS : Improving image clarity. The level can be adjusted to obtain an improved image. However, when the level is set too high it can distort the image or cause noise. -
Page 31: Trouble Shooting
Trouble Shooting PROBLEM POSSIBLE CAUSE ☞ Check the power cable, power supply output and video Northing appears on connection between the camera and monitor. the screen. ☞ Are the camera lens or the lens glass dirty? Clean the lens / glass with a soft clean cloth. The image on the ☞... - Page 32 We now accept Visa/MasterCard/AMEX at time of order placement. (See terms of Payment & Credit Terms) For more information contact us at: Speco Technologies 200 New Highway • P.O. Box 726 • Amityville, N.Y. 11701-0726 Tel. 631-957-8700 Outside Metro N.Y. 1-800-645-5516 • Fax 631-957-9142 or 631-957-3880 • Web: www.specotech.com...
- Page 33 ▶ MEMO - 33 -...
- Page 34 ▶ MEMO - 34 -...
- Page 35 ▶ MEMO - 35 -...
- Page 36 200 New Highway Amityville, NY 11701 631-957-8700 1 800 645 5516 www.specotech.com...
