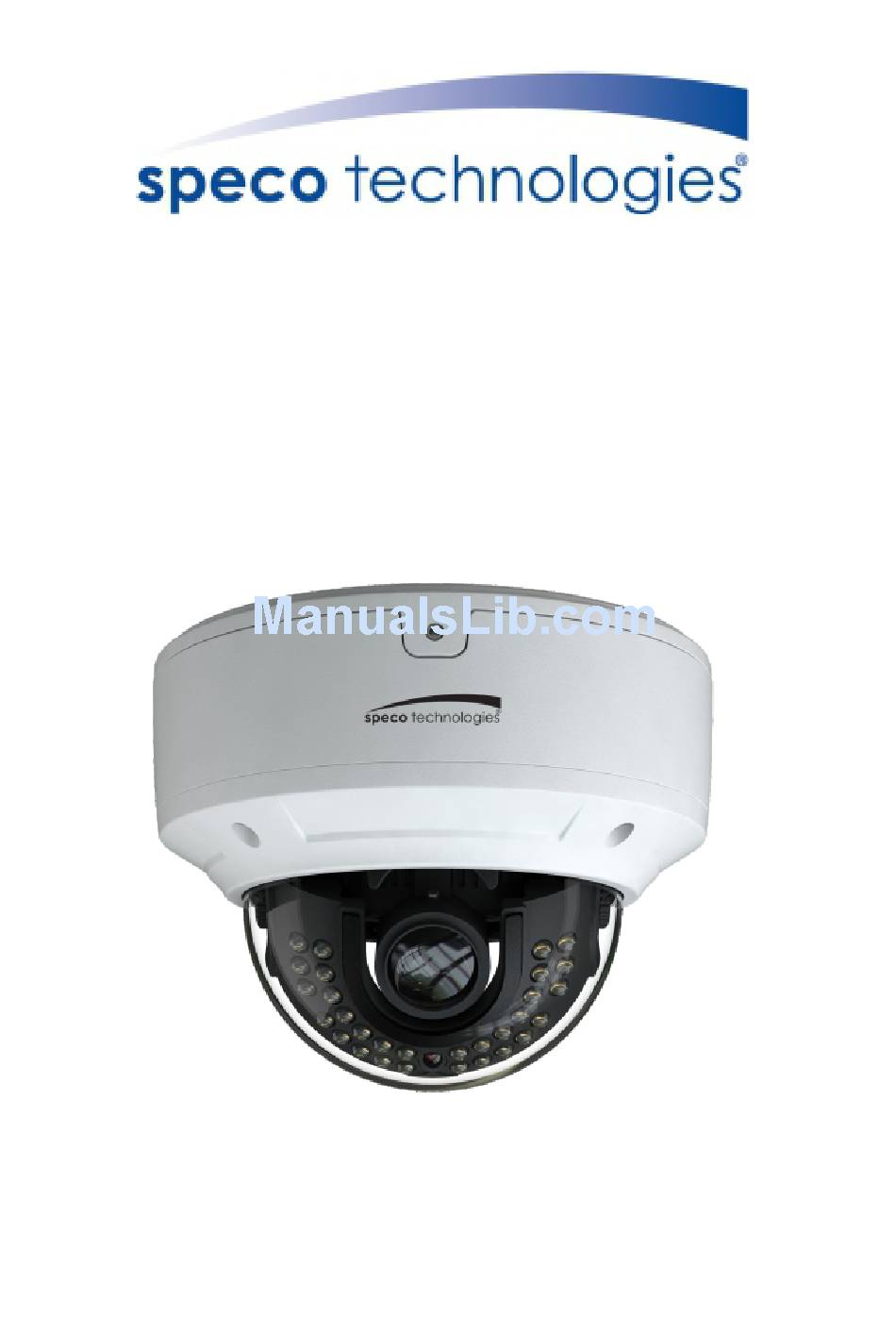

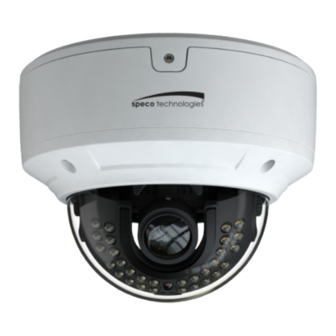

- Page 1 VLD1TW Manual...
-
Page 2: Warnings And Cautions
VLD1TW User Manual Thank you for purchasing a Speco Technologies HD-TVI camera. Please read this manual carefully for correct use of the product and keep it for reference purposes. ►Warnings and Cautions ■ Disclaimer Speco Technologies is constantly developing and improving products. - Page 3 Do not drop the camera or subject it to Do not place the camera in extreme hot physical shock. or cold environment. Use only under temperature conditions It may cause production malfunction. between -4*F and +140*F.Provide good ventilation when using in high temperature conditions.
-
Page 4: Components And Accessories
► Components and Accessories Camera User manual Screwdriver Screws Drill Template Adapter Plate ► Overview Lower Dome Focus Zoom Lens Lock Screw Video Cable Mounting Base Power Cable Page 3... -
Page 5: Connecting To Monitor
► Connecting to Monitor TVI DVR Monitor HD-TVI VIDEO IN HDMI Video ► Connecting to Power Connect the adapter to the power input connector in accordance with the camera. The recommended adapter specification for the camera is DC12V. DC12V Power Page 4... -
Page 6: Installation
► Installation Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. 1. Loosen the screws to open the lower dome and then loosen the lock screw to remove the mounting base. - Page 7 4. Fix the camera to the mounting base with the lock screw. Ceiling or Wall 5. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.
- Page 8 When the arrow is pointed upward, the image will be right side up. Lens controllers are located in Top direction of image. Page 7...
- Page 9 ► Features This series of cameras adopt the latest HD-TVI technology and advanced circuit design, feature high definition and sensitivity, low noise and distortion and support HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.
-
Page 10: Specifications
► Specifications VLD1TW Model Image Sensor 1 / 3 '' CMOS Pixels 1920 x 1080 PAL / NTSC Signal System Min. Illumination 0 Lux ( LED ON ) Lens 2.8 ~ 12 mm 66 ~ 98 feet (depending on scene reflection)
