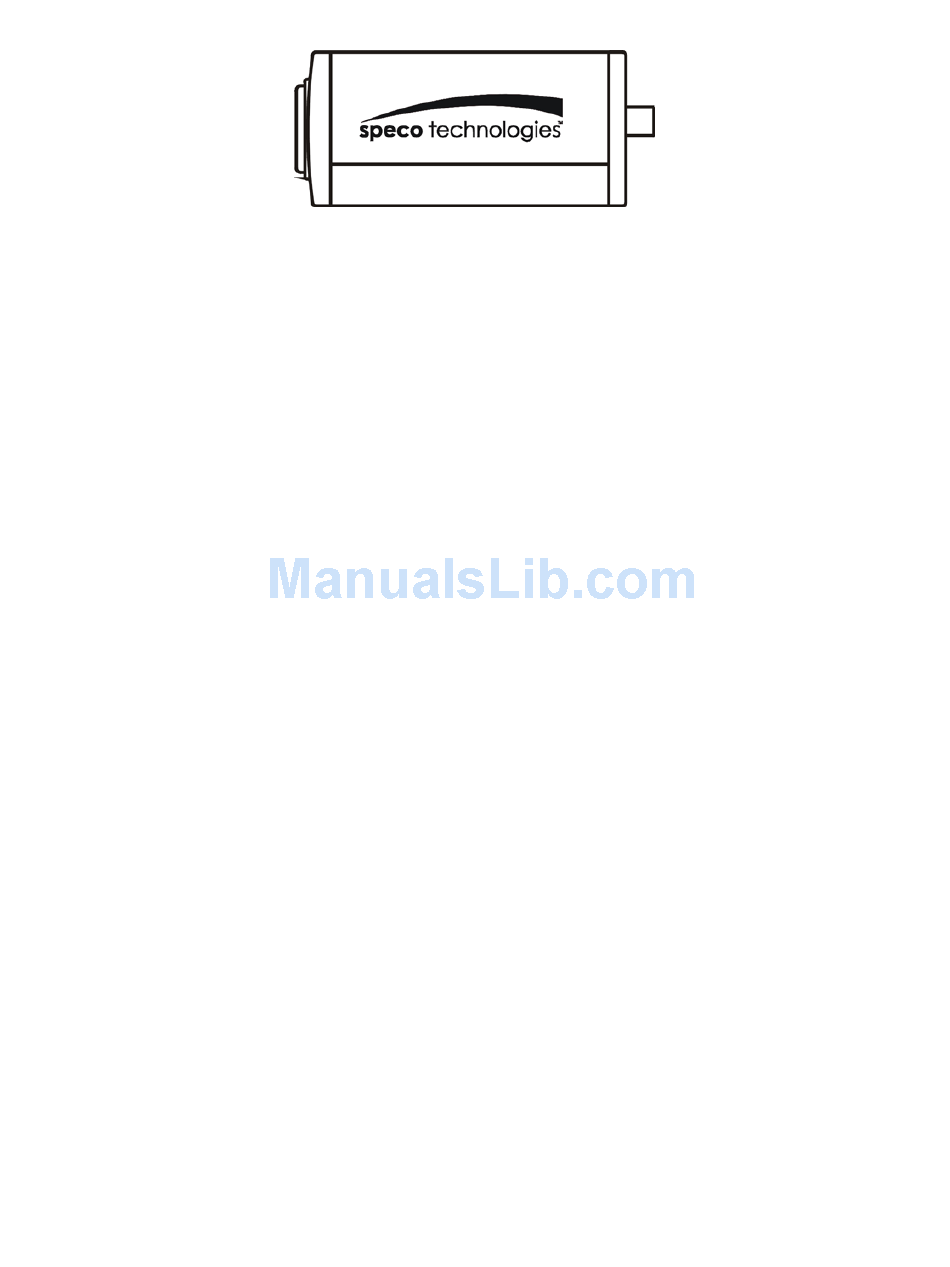

- Page 1 Speco Technologies VL-611C Instruction Manual Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 Fax: 631-957-9142 www.specotech.com...
- Page 2 3. Do not expose the camera to rain, moisture or temperature outside of the specified limits without a suitable housing. Speco Technologies VL-611C Instruction Manual 1. CAUTION 4. Avoid aiming directly at the sun. 5. Do not attempt to repair this unit yourself unless you are authorized to do so.
- Page 3 1. Camera 2. Instruction Manual 3. Lens mounting cap 4. CS to C adapter 5. AI LENS plug (4-pin) Speco Technologies VL-611C Instruction Manual 2. Accessories...
- Page 4 3. Rear Panel Description a. Rear Panel: Speco Technologies VL-611C Instruction Manual...
-
Page 5: Dc Power Input
Slide switch position UP position: AES mode Middle position: Auto IRIS mode (VIDEO TYPE) Down position: Auto IRIS mode (DC TYPE) – Fine tune using “level” control Speco Technologies VL-611C Instruction Manual DC POWER INPUT: (Model 1 & 2 +12 Volts DC... - Page 6 Auto Iris Connector PIN Assignment: (see FIG 1) VIDEO TYPE +12V VIDEO Speco Technologies VL-611C Instruction Manual DC TYPE DAMP - DAMP + DRIVER + DRIVER - FIG 1...
-
Page 7: Exposure Control
DC IRIS lens: Set the slide switch to the DC position. Adjust the LEVEL control to get the best picture. Video IRIS lens: Set the slide switch to the Video position. Adjust the ALC control on the lens to get the best picture. Speco Technologies VL-611C Instruction Manual 4. Operation Guide... - Page 8 If you need to fine tune the setting, please follow the steps listed to the right. Speco Technologies VL-611C Instruction Manual (b). Set the lens to maximum aperture and distant focus. (c). Rotate the entire lens until focus is achieved.
- Page 9 ■ General Purpose Color 1/3" Format Camera ■ 0.5 Lux Low Light Sensitivity ■ 420 TV Lines of Horizontal Resolution ■ Auto Electronic Shutter & Auto Iris Support ■ Accepts C & CS Mount Lenses ■ Compact & Light Weight Speco Technologies VL-611C Instruction Manual...
-
Page 10: Specifications
Pick Up Device 1/3" interline transfer CCD Effective Pixels 510(H) x 492(V) Resolution 420 TV lines Sync. System Internal Scanning System NTSC: 525 lines / 60 fields / 30 Frames S/N Ratio More than 50 dB Speco Technologies VL-611C Instruction Manual... - Page 11 Auto 1/60 - 1/100000 sec Gamma Correction 0.45/1 (set to 0.45 before shipment) Min. Illumination 0.5 lux Video Output Composite 1.0 Volt p-p into 75 ohms Horizontal NTSC: 15734 KHz Vertical NTSC: 60Hz Backlight Compensation Speco Technologies VL-611C Instruction Manual...
- Page 12 DC Power Requirements Regulated 12 Volts DC Current 200mA (Max) Weight N.W./G.W.:0.75 lbs / 1.09lbs Dimension 2.2”(W) x 4.3”(D) x 2”(H) Operating Temperature 14°F to 122°F ® Speco Technologies VL-611C Instruction Manual 200 New Highway, Amityville, NY 11701 1-800-645-5516 Fax: 631-957-9142 www.specotech.com...
