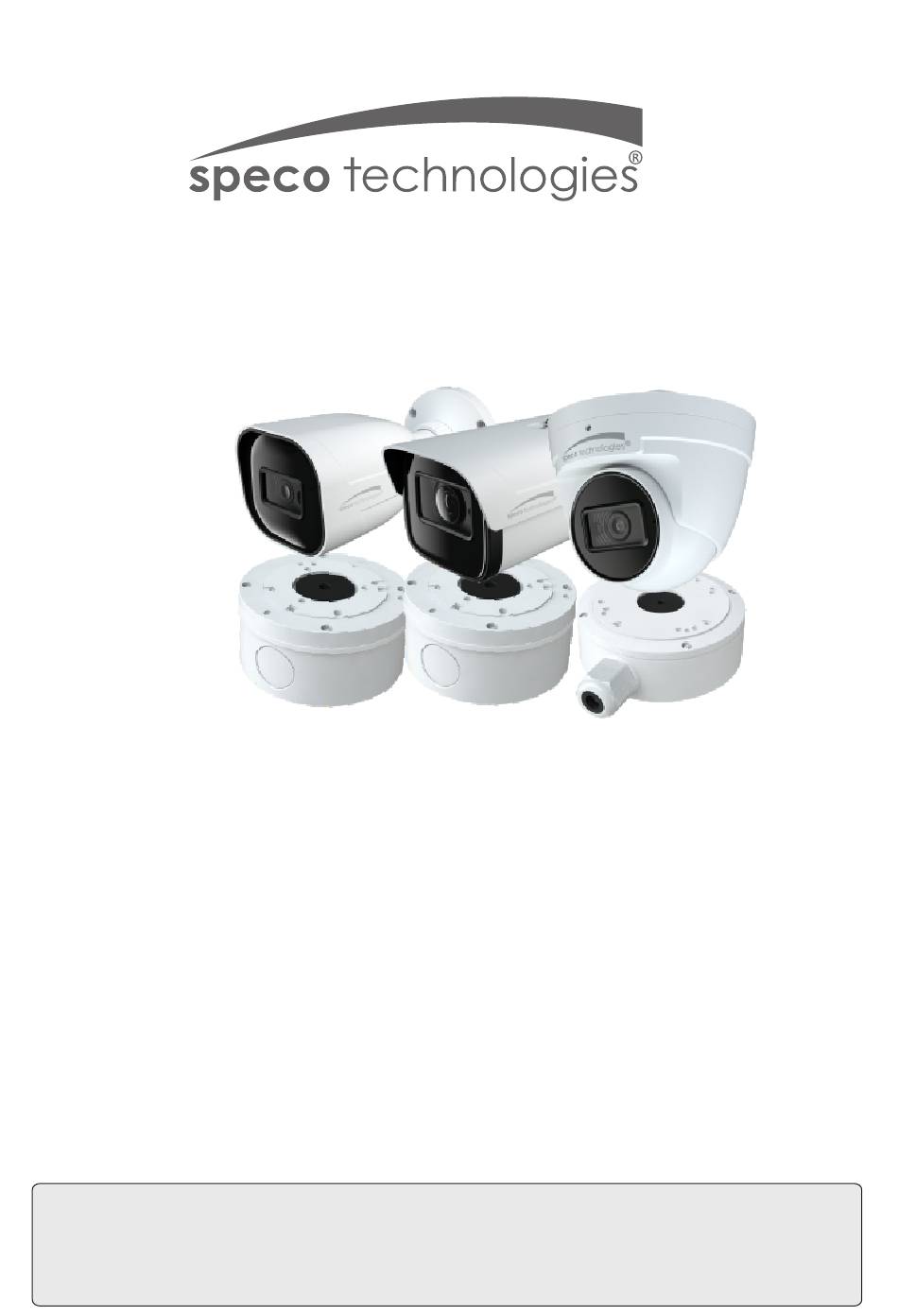

VLB9/VLB7/VLT9
 User Manual
Thank you for purchasing our product. Speco Technologies is constantly developing and
improving products. We reserve the right to modify product design and specifications
without notice and without incurring any obligation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VLB9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco VLB9

  • Page 1 VLB9/VLB7/VLT9  User Manual Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
  • Page 2 ■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair. ■ Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.
  • Page 3: Installation

    You’d better install back the lens cover or lower dome less than 4 hours after removing it. The mounting types of cameras are only for reference. ►Mounting for VLB9/VLB7 1. Drill the screw holes and the cable hole on the wall according to the drill template.
  • Page 4 3× 3× VLB9 VLB7 4. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment. Fixed Ring Pan 360°...
  • Page 5 ② Loosen the fixed screw to disassemble the camera. Fixed Screw Mounting Base Enclosure Camera Unit ③ Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided. 3× ④ Install the camera unit and enclosure to the mounting base and then adjust if necessary to obtain an optimum view angle.
  • Page 6: Specifications

    Specifications Models VLB9 VLT9 VLB7 Specifications Camera Image Sensor 1/2.8" CMOS Resolution Image size 1920×1080 Video Output AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) Audio Image System PAL/NTSC Electronic Shutter Auto IR Range (feet) 65~98 98~164 65~98 Frame Rate 30fps(60Hz); 25fps(50Hz) Min.
  • Page 7 Model: VLB9/VLB7/VLT9 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
