Preparing Your Site
1. Determine where the local video source (i.e. computer, Blu-ray Player) will be
located and set up the device.
2. Determine where the remote display(s) will be located and place/ mount the display
appropriately.

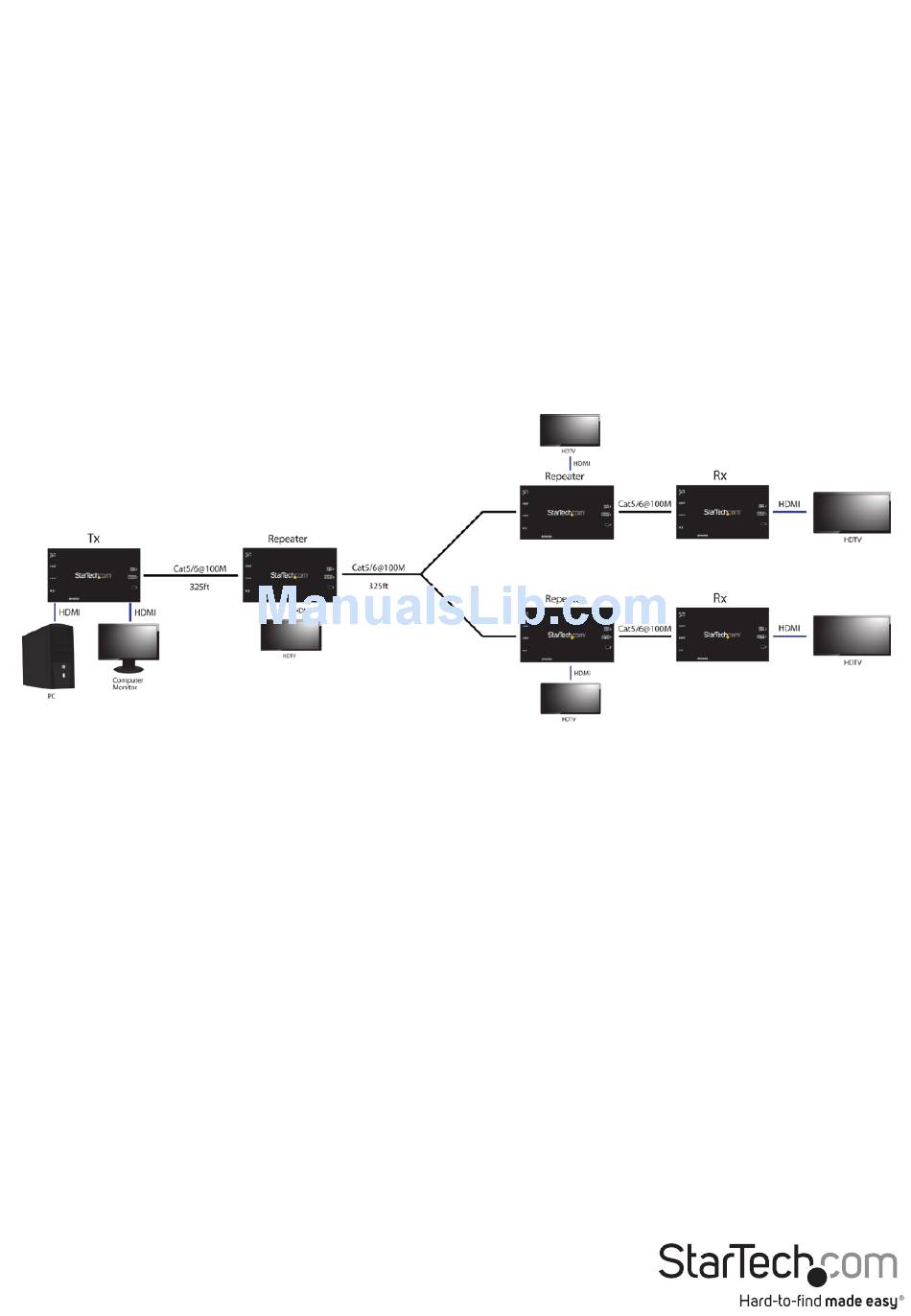

3. (Optional) If using ST12MHDDCRP Repeater unit(s) (sold separately), determine
where the remote display will be located in relation to the other displays and place/
mount the display(s) appropriately. Repeaters allow for an additional 330 ft. (100
meters) of Cat5/6 between each device. The repeater(s) must be situated between
the extender and the receiver, as the receiver does not have an RJ45 out port to
continue the chain.
NOTE: Ensure the Transmitter Unit, the Receiver Unit, and any Repeater Units are all
situated near an available AC electrical outlet. Make sure all devices are turned off
before beginning installation.
Instruction Manual
4
