ST122UTPA.qxd
6/20/2006
Video Extender
Ethernet VGA Signal Extender for Distances up to 500 feet (150 m)
Ethernet VGA + Audio Signal Extender for Distances up to 500 feet (150 m)
ST121UTP (without Audio)
ST122UTPA (with Audio)
2:18 PM
Page 1

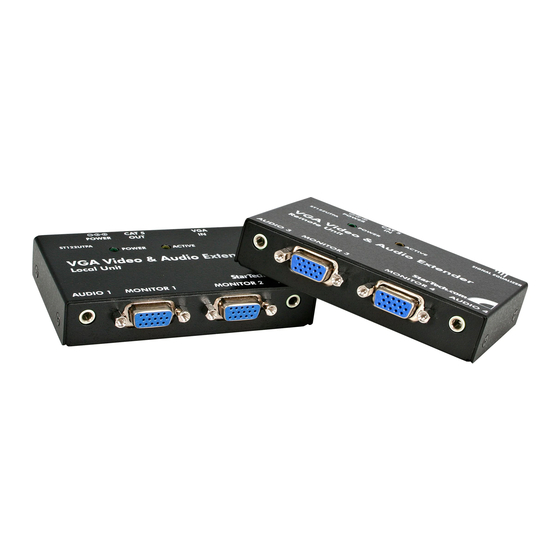

ST122UTPA shown
Actual product may vary from photo
Instruction Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST122UTPA
Summary of Contents for StarTech.com ST122UTPA

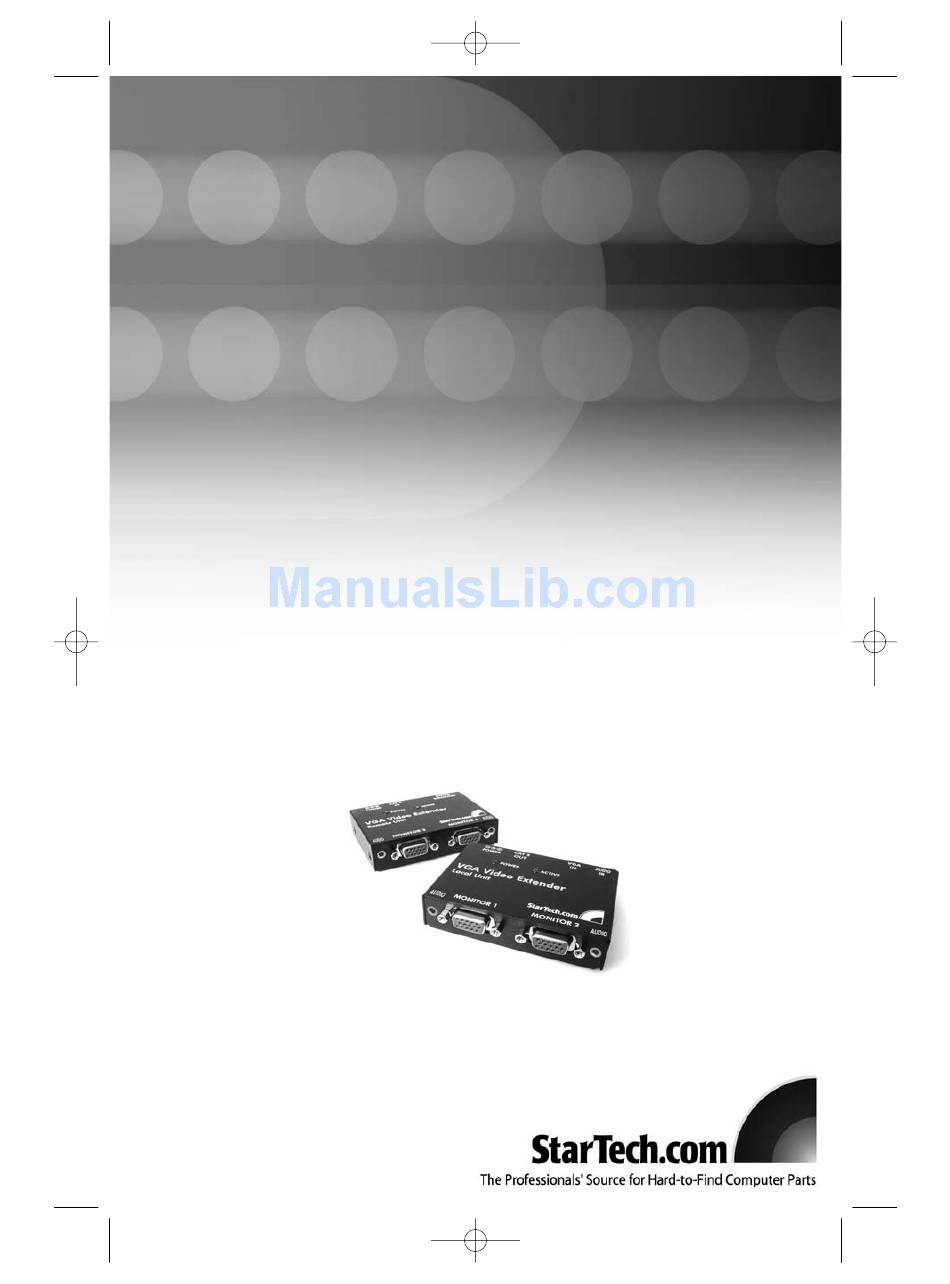

- Page 1 Ethernet VGA Signal Extender for Distances up to 500 feet (150 m) Ethernet VGA + Audio Signal Extender for Distances up to 500 feet (150 m) ST121UTP (without Audio) Instruction Manual ST122UTPA (with Audio) ST122UTPA shown Actual product may vary from photo...
- Page 2 StarTech.com Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........6 Accessory Products from StarTech.com ......7 Technical Support . -
Page 4: Introduction
Category 5 patch cable, at both locations (if using premises cabling) Do you need cables? Visit www.startech.com to find what you need and the name of a StarTech.com dealer. -
Page 5: Contents
This product is composed of two different units: the Local Unit and the Remote Unit. The Local Unit takes the output from a VGA (and audio, if you purchased ST122UTPA) signal source (usually a computer) and transmits it to the Remote Unit over Category 5 Ethernet cable. -
Page 6: Installing The Local Unit
Local Video Out (2) Local Audio 1 Local Audio 2 Note: ST122UTPA shown: ST121UTP does not have audio support. Installing the Local Unit 1: Place the Local Unit near the local computer. 2: Switch off the computer and disconnect any existing VGA and audio connections. -
Page 7: Installing The Remote Unit
Remote Audio 1 Remote Audio 2 Remote Video Out (2) Note: ST122UTPA shown: ST121UTP does not have audio support. Installing the Remote Unit 1: Connect the Remote Unit to the Ethernet cable connection from the Local Unit, marked Cat5 IN. -
Page 8: Troubleshooting
The following section provides troubleshooting help. The solutions are arranged in the order they should be attempted in most situations. If you continue to have difficulties after attempting the solutions in this section, please contact StarTech.com technical support using any of the methods on page 8. -
Page 9: Specifications
Straight-through Unshielded Twisted Pair (UTP) Cat. 5+ Connectors Local Unit 1 x HD-15 male VGA (video in) 1 x 3.5mm phono female (audio in) ST122UTPA only 1 x RJ-45 2 x HD-15 female VGA (video out) 2 x 3.5mm phono female (audio out) ST122UTPA only... -
Page 10: Accessory Products From Startech.com
A A c c c c e e s s s s o o r r y y P P r r o o d d u u c c t t s s f f r r o o m m S S t t a a r r T T e e c c h h . . c c o o m m Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... -
Page 12: St122Utpa.qxd 6/20/2006 2:18 Pm
ST122UTPA.qxd 6/20/2006 2:18 PM Page 9 Revised: 20 September 2005 (Rev. A)
Need help?
Do you have a question about the ST122UTPA and is the answer not in the manual?
Questions and answers
