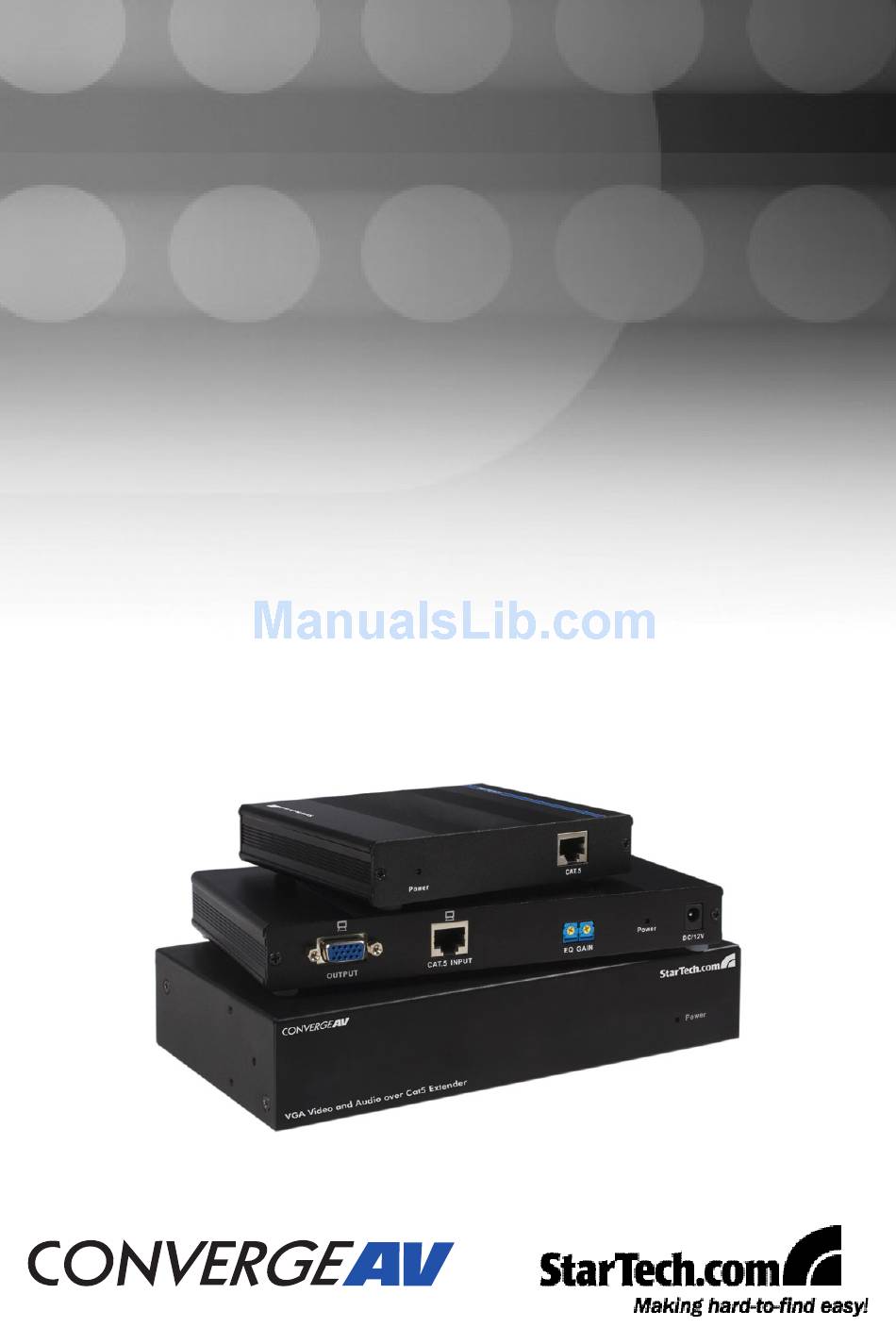

- Page 1 VGA Video & Audio over Cat5 UTP Extender / VGA and Audio Cat5 UTP Receiver / VGA Video & Audio over Cat5 UTP Line Splitter ST124UTPEA/ST128UTPEA STUTPEALR STUTPEA4X...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 ST124UTPEA/ST128UTPEA/STUTPEA4X ........1 STUTPEALR ................1 Hardware Guide ................2 Local Unit - Front View..............2 Local Unit - Rear View ..............2 Hardware Guide - Cont’d .............3 Hardware Guide - Cont’d .............4 Installation .................. -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com video extension solution. ST124UTPEA/ST128UTPEA and STUTPEALR combine to create a cost effective method of providing high quality video (with audio) to remote locations over Cat5 UTP cabling. Features • Supports resolutions of up to1024x768 @ 60 Hz refresh rate at maximum extension distance;... -
Page 5: Hardware Guide
Local Unit - Rear View ST124UTPEA ST128UTPEA Input Power Jack VGA Output (HD-15 Female Connector) VGA Input (HD-15 Female Connector) AUDIO Input MIC Input MIC GAIN – adjust volume of microphone CAT5 OUT (RJ-45 Connectors): ST124UTPEA x4 ST128UTPEA x 8... -
Page 6: Hardware Guide - Cont'd
Instruction Manual Hardware Guide - Cont’d Remote Unit - Front View STUTPEALR CAT5 Connector Power LED Remote Unit - Rear View STUTPEALR VGA Output (HD-15 Female Connector) AUDIO Output EQ – Equalization length adjust (Adjust to sharpen images) GAIN – Adjust brightness Input Power Jack... -
Page 7: Hardware Guide - Cont'd
Instruction Manual Hardware Guide - Cont’d Line Splitter - Rear View Line Splitter - Front View VGA Output (HD-15 Female Connector) CAT5 Input EQ – Equalization length adjust (Adjust to sharpen images) GAIN – Adjust brightness Power LED Input Power Jack CAT5 Output ports... -
Page 8: Installation
Optional: Connect a compatible microphone cable to the MIC IN connector on the local unit (ST124UTPEA/ST128UTPEA). Connect a VGA monitor to the local unit (ST124UTPEA/ST128UTPEA) HD-15 female OUTPUT using an HD-15 male to male cable CAT5 OUT port Connect the Local Unit (ST124UTPEA/ST128UTPEA) to the Remote Unit (STUTPEALR) using CAT5 cable. -
Page 9: Specifications
Instruction Manual Specifications Local Unit Function ST124UTPEA ST128UTPEA VGA In Connector HD-15 Female x 1 VGA Out Connector HD-15 Female x 1 Audio In Connector 3.5mm Stereo Jack x 1 MIC In Connector 3.5mm Stereo Jack x 1 RJ-45 Connector Max. -
Page 10: Specifications - Cont'd
Instruction Manual Specifications - Cont’d Line Splitter Unit (STUTPEA4X) Function STUTPEA4X RJ-45 In Connector RJ-45 Out Connector Max. Resolution 1280x1024 60Hz Cable Distance 300 m (Max.) Power Adapter (Min.) DC 12V 600mA Weight 322 g Dimensions (LxWxH) mm 200x111x25... -
Page 11: Specifications - Cont'd
Instruction Manual Specifications - Cont’d Distances/Resolutions Please note: It is recommended that CAT5 cable be used, as it offers superior performance to other standards. For example, CAT6: Cable Type Supported Distance Supported Resolutions 2048x1536 100M 1280x1024 180M 1024x768 CAT.5/5E 200M 800x600 300M 640x480... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 13 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
