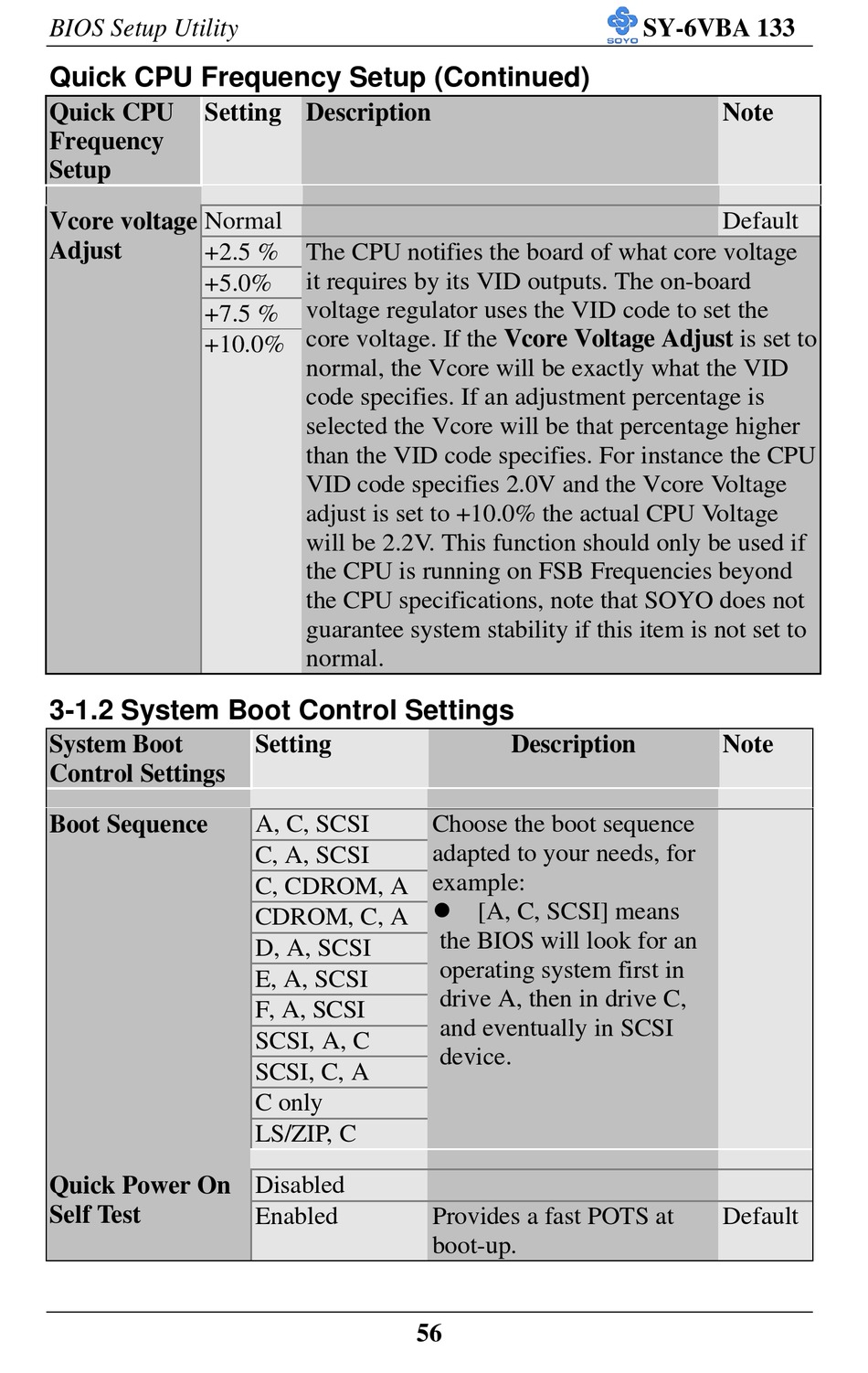

BIOS Setup Utility
Quick CPU Frequency Setup (Continued)
Quick CPU Setting Description
Frequency
Setup
Vcore voltage Normal
Adjust
+2.5 %
+5.0%
+7.5 %
+10.0%

3-1.2 System Boot Control Settings

System Boot
Control Settings
Boot Sequence
Quick Power On
Self Test
The CPU notifies the board of what core voltage
it requires by its VID outputs. The on-board
voltage regulator uses the VID code to set the
core voltage. If the Vcore Voltage Adjust is set to
normal, the Vcore will be exactly what the VID
code specifies. If an adjustment percentage is
selected the Vcore will be that percentage higher
than the VID code specifies. For instance the CPU
VID code specifies 2.0V and the Vcore Voltage
adjust is set to +10.0% the actual CPU Voltage
will be 2.2V. This function should only be used if
the CPU is running on FSB Frequencies beyond
the CPU specifications, note that SOYO does not
guarantee system stability if this item is not set to
normal.
Setting
A, C, SCSI
C, A, SCSI
C, CDROM, A
CDROM, C, A
D, A, SCSI
E, A, SCSI
F, A, SCSI
SCSI, A, C
SCSI, C, A
C only
LS/ZIP, C
Disabled
Enabled
56
Description
Choose the boot sequence
adapted to your needs, for
example:
l [A, C, SCSI] means
the BIOS will look for an
operating system first in
drive A, then in drive C,
and eventually in SCSI
device.
Provides a fast POTS at
boot-up.
SY-6VBA 133
Note
Default
Note
Default
