Hardware Installation

SY-6VBA 133

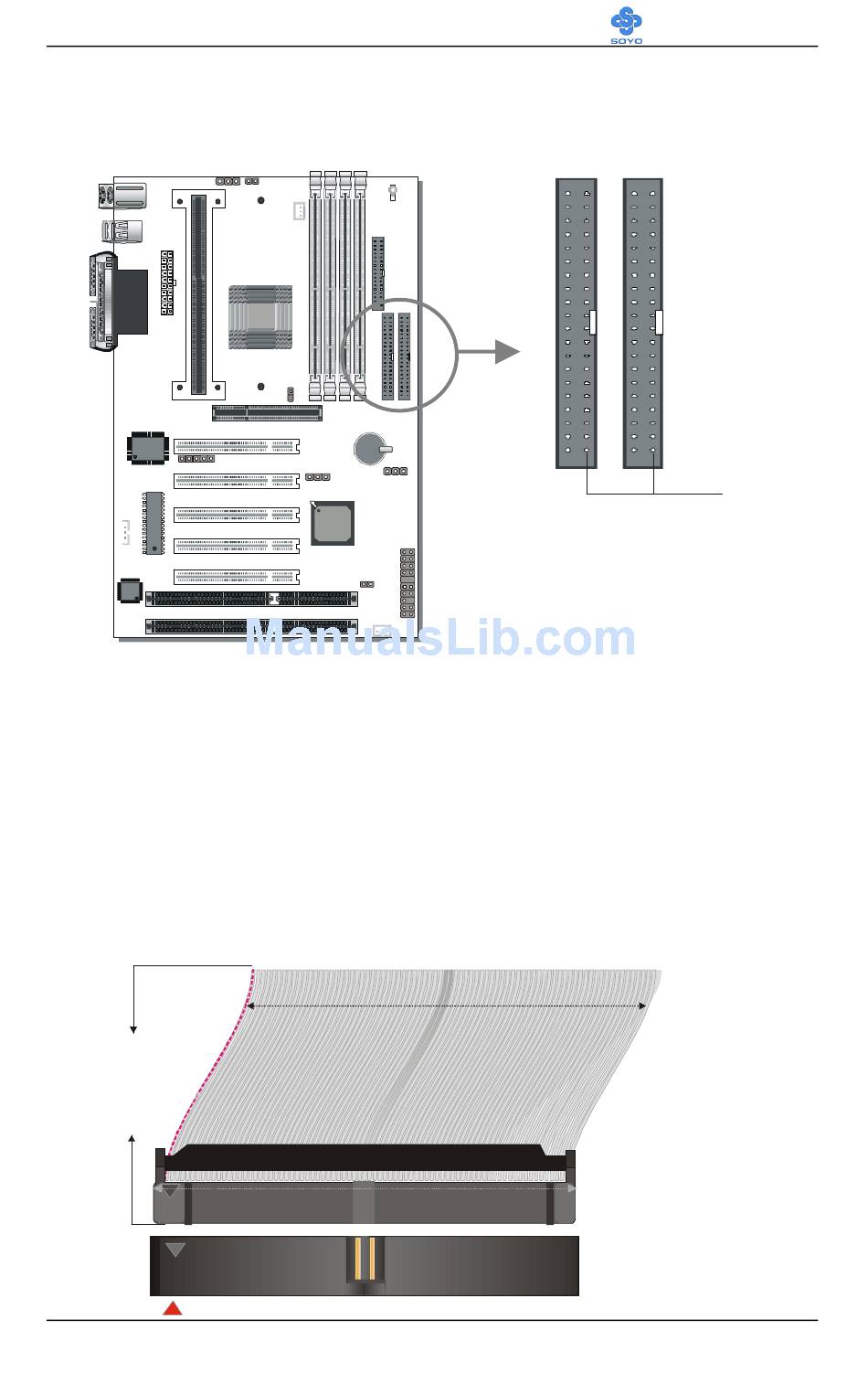

2-3.3 Motherboard Connector

2-3.3.1 IDE Device Installation (HDD, CD-ROM)

Pin -1

IDE 2

IDE 1

Secondary

Primary

IDE

This Motherboard offers two primary and secondary IDE device

connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA

33HDD or CD-ROM.

Connect one side of the ATA66 flat cable to the IDE device (HDD or CD-

ROM) and plug the other end to the primary (IDE1) or secondary (IDE2)

directionally keyed IDE connector on the Motherboard. ATA66 cable can

be used backward compatible with ATA33 HDD.

This Motherboard can support up to four HDDs.

80-Conductor

ATA 66

Flat Cable

40-pin
