Hardware Installation SY-6VBA 133

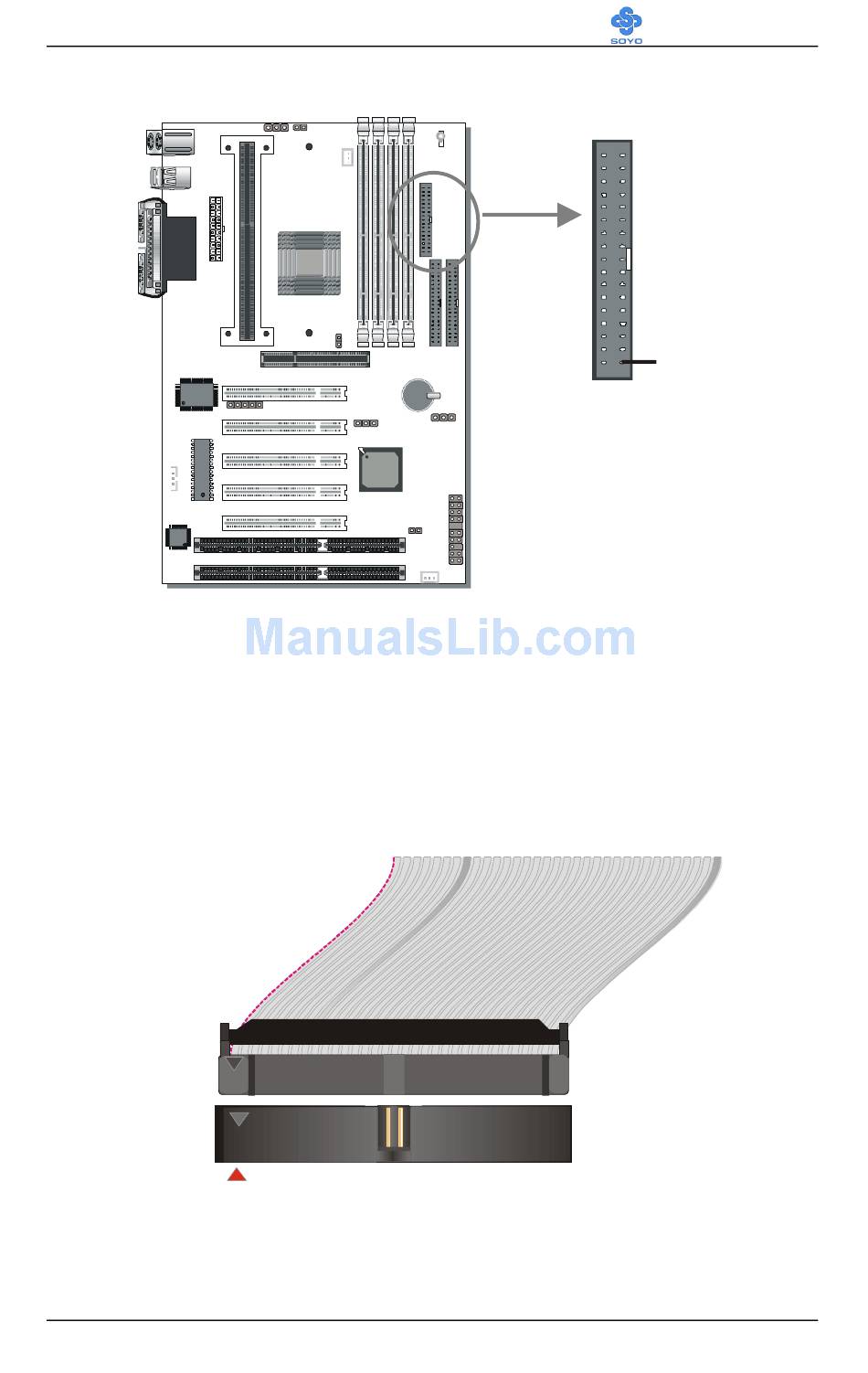

2-3.3.2 Floppy Drive Installation

®
® 1
Pin -1
FDC
Floppy Drive
Connector
®
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard supports a
3-mode (720KB/1.2MB/1.44MB) floppy commonly used in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug the
other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.
1
33
33
1
27
