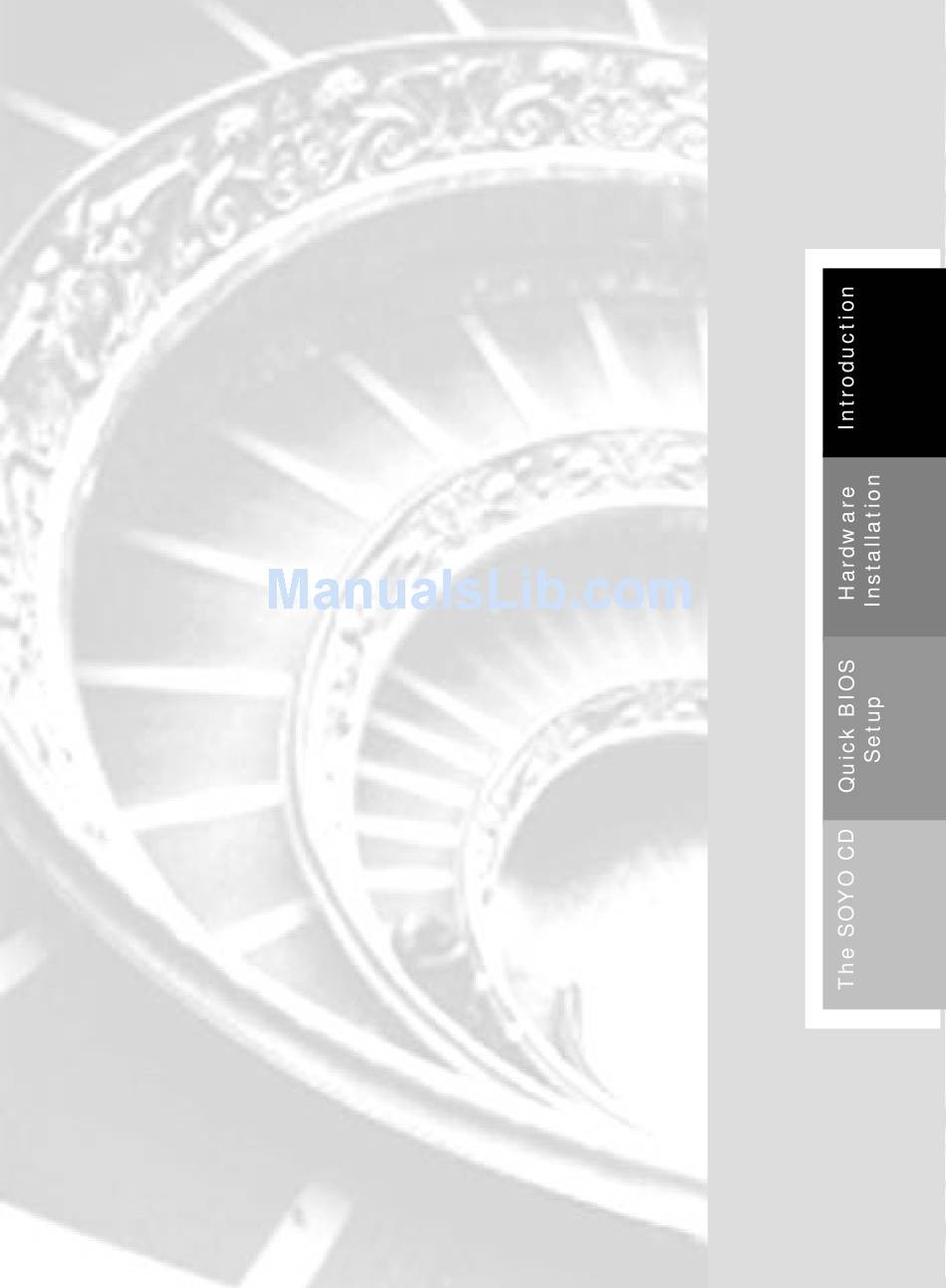

Page 1: Quick Start Guide
SY-6VBA 133 Motherboard Quick Start Guide Tested To Comply With FCC Standards FOR HOME OR OFFICE USE 100% POST CONSUMER RECYCLED PAPER... - Page 2 Our customers should ensure that their use of our products does not infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to infringe upon or assist others to infringe upon such rights.
- Page 3 SY-6VBA 133 Quick Start Guide Introduction Congratulations on your purchase of the SY-6VBA 133 Motherboard. This Quick Start Guide describes the steps for installing and setting up your new Motherboard. This guide is designed for all users to provide the basic steps of Motherboard setting and operation.
-

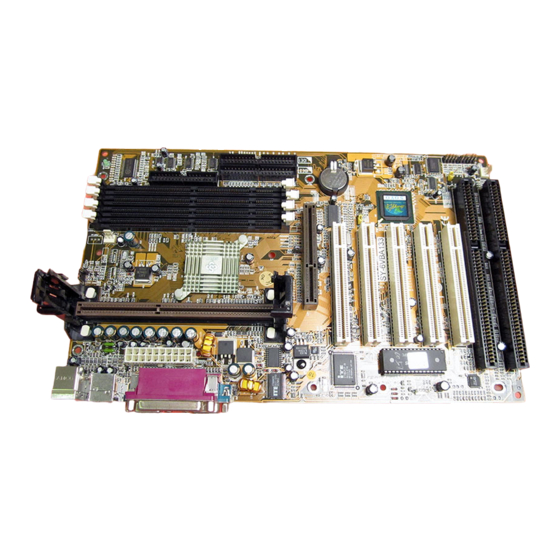

Page 4: Sy-6Vba 133 Motherboard Layout
SY-6VBA 133 Quick Start Guide SY-6VBA 133 Motherboard Layout PS/2 KB PS/2 Mouse JP10 Connector Connector LED1 DIMM 1 DIMM 1 USB 1 USB 2 Slot 1 DIMM 2 CPUFAN ® DIMM 3 DIMM 4 COM 1 ® COM 2... -
Page 5: Installation
Follow the directions in this section designed to guide you through a quick and correct installation of your new SY-6VBA 133 Motherboard. For detailed information, please refer to SY-6VBA 133 Motherboard User's guide and Technical Reference online manual included on the CD-ROM packed with your Motherboard. -
Page 6: Install The Motherboard
SY-6VBA 133 Quick Start Guide Install the Motherboard Follow the steps below in order to perform the installation of your new SY-6VBA 133 Motherboard. Step 1. Install the CPU Record the working frequency of your CPU Mark your CPU Frequency: that should be clearly marked on the CPU cover. - Page 7 Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices. For more details on how to connect internal and external peripherals to your new SY-6VBA 133 Motherboard, please refer to SY-6VBA 133 Motherboard User's Guide and Technical Reference online manual on CD-ROM.
-
Page 8: Memory Configuration Table
(higher) FSB Frequency in the BIOS may allow the user to set a higher multiplier value. Doing so will however force your CPU to operate out of its specifications, and therefore SOYO can not guarantee the proper functioning of your system. - Page 9 SY-6VBA 133 Quick Start Guide Refer to the following table: PII, Celeron PII,PIII PIII tell CPU its 133/100# 100/66# FSB Speed 66MHz FSB 100MHz FSB 133MHz FSB Possible higher Short Short FSB = 66MHz Normal setting multiplier setting Short Open...
- Page 10 You do not need to set any jumper for the CPU frequency. Instead, CPU settings are changed through the BIOS [SOYO COMBO SETUP]. Please refer to Chapter 3 - Quick BIOS Setup for details on how to set the Slot 1 processor frequency.
- Page 11 4. Press the <Del> key during the system diagnostic checks to enter the Award BIOS Setup program. 5. Select [SOYO COMBO SETUP] and move the cursor to the [CPU Frequency] field to set the proper working frequency. 6. Select [Save & Exit SETUP] and press <Enter> to save the new configuration to the CMOS memory, and continue the boot sequence.
-
Page 12: Quick Bios Setup
Step 3. Select [SOYO COMBO SETUP] Move the cursor to the [CPU Frequency] field to set the CPU frequency. Available [CPU Frequency] settings on your SY-6VBA 133 Motherboard are detailed in the following table. CPU Frequency (MHz) 500MHz( 66 x 7.5) 750MHz (100 x 7.5) - Page 13 SY-6VBA 133 Quick Start Guide If you set this field to [Manual], you are then required to fill in the next two consecutive fields: (1) the CPU Host/PCI Clock, and (2) the CPU Ratio. (1) CPU Host/PCI Clock CPU Host / PCI Clock...
- Page 14 CPU Voltage will be 2.2V. This function should only be used if the CPU is running on FSB Frequencies beyond the CPU specifications, note that SOYO does not guarantee system stability if this item is not set to normal.
- Page 15 Step 1. Insert the SOYO CD into the CD-ROM drive The SOYO CD will auto-run, and the SOYO CD Start Up Menu will display as shown below. (SOYO CD Start Up Program Menu) If you use Windows 95/98, the SOYO CD Start Up Program automatically detects which SOYO Motherboard you own and displays the corresponding model name.
-
Page 16: Step 3. Install Drivers
6VBA 133 Back (Manual Selection Menu) The user's manual files included on the SOYO CD can be read in PDF (Postscript Document) format. In order to read a PDF file, the appropriate Acrobat Reader software must be installed in your system. - Page 17 However, to display the list of all drivers software available with SOYO Motherboards, click the Display all drivers on the SOYO CD button. Please make sure to install only the drivers adapted to your system, or otherwise this cause system malfunctions.
- Page 18 Please refer to the SY-6VBA 133 Motherboard’ s CD manual for the details. Select which driver you want to install and click OK, or click Cancel to abort the driver installation and return to the main menu.
- Page 19 Internet Explorer* browser. Click YES to install the HTML browser. After the installation is complete, please restart your system. Then re-run the SOYO CD and you will be able to browse the SOYO HTML database. (* Internet Explorer is a Microsoft Trademark)
- Page 20 SY-6VBA 133 Quick Start Guide How to contact us: If you are interested in our products, please contact the SOYO sales department in the region you live. If you require Technical Assistance, please contact our Technical Support in the region you live.
- Page 21 SY-6VBA 133 Quick Start Guide E-Mail: support@soyo.co.uk Sales: tel: 852-27109810 SOYO Deutschland GmbH fax: 852-27109078 E-mail: soyo@hkstar.com August-Wilhelm-Kuhnholz-Str. 15 D-26135 Oldenburg Technical Support: Region Covered: Germany, Austria tel: 852-27109810 and Switzerland. (Zustandig fur fax: 852-27109078 Deutschland, Osterreich, Schweiz) E-mail: soyo@hkstar.com Web Site: www.saat.de,...
- Page 22 Edition: September 1999 Version 1.2 SY-6VBA 133 SERIAL...
