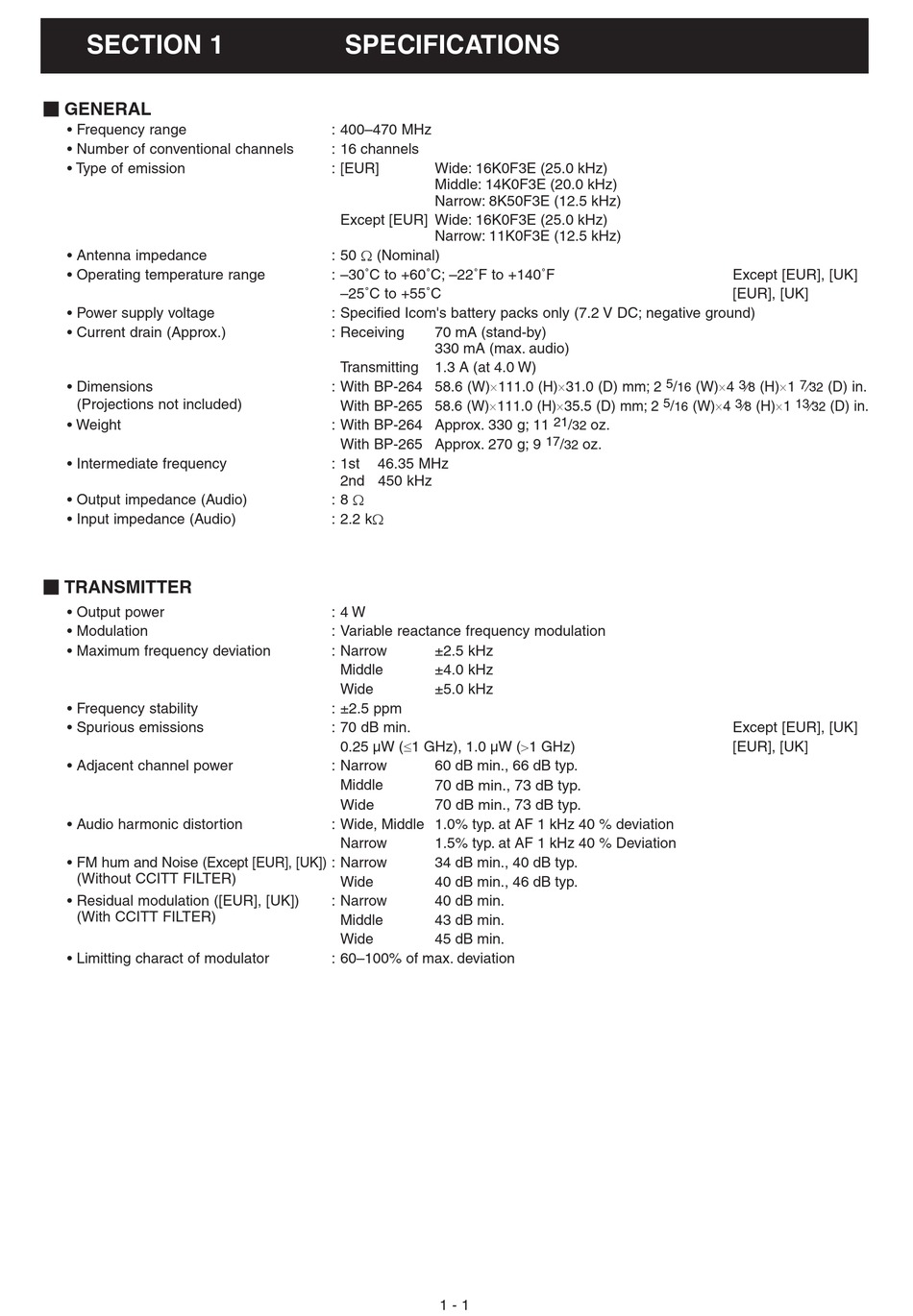

SECTION 1.
M
GENERAL
• Frequency range
• Number of conventional channels
• Type of emission
• Antenna impedance
• Operating temperature range
• Power supply voltage
• Current drain (Approx.)
• Dimensions
(Projections not included)
• Weight
• Intermediate frequency
• Output impedance (Audio)
• Input impedance (Audio)
M
TRANSMITTER
• Output power
• Modulation
• Maximum frequency deviation
• Frequency stability
• Spurious emissions
• Adjacent channel power
• Audio harmonic distortion
• FM hum and Noise (Except [EUR], [UK])
(Without CCITT FILTER)
• Residual modulation ([EUR], [UK])
(With CCITT FILTER)
• Limitting charact of modulator
SPECIFICATIONS
: 400–470 MHz
: 16 channels
: [EUR]
Wide: 16K0F3E (25.0 kHz)
Middle: 14K0F3E (20.0 kHz)
Narrow: 8K50F3E (12.5 kHz)
Except [EUR] Wide: 16K0F3E (25.0 kHz)
Narrow: 11K0F3E (12.5 kHz)
: 50 Ω (Nominal)
: –30˚C to +60˚C; –22˚F to +140˚F
–25˚C to +55˚C
: Specified Icom's battery packs only (7.2 V DC; negative ground)
: Receiving
70 mA (stand-by)
330 mA (max. audio)
Transmitting
1.3 A (at 4.0 W)
: With BP-264 58.6 (W)×111.0 (H)×31.0 (D) mm; 2
With BP-265 58.6 (W)×111.0 (H)×35.5 (D) mm; 2
: With BP-264 Approx. 330 g; 11
With BP-265 Approx. 270 g; 9
: 1st
46.35 MHz
2nd 450 kHz
: 8 Ω
: 2.2 kΩ
: 4 W
: Variable reactance frequency modulation
: Narrow
±2.5 kHz
Middle
±4.0 kHz
Wide
±5.0 kHz
: ±2.5 ppm
: 70 dB min.
0.25 µW (≤1 GHz), 1.0 µW (>1 GHz)
: Narrow
60 dB min., 66 dB typ.
Middle
70 dB min., 73 dB typ.
Wide
70 dB min., 73 dB typ.
: Wide, Middle 1.0% typ. at AF 1 kHz 40 % deviation
Narrow
1.5% typ. at AF 1 kHz 40 % Deviation
: Narrow
34 dB min., 40 dB typ.
Wide
40 dB min., 46 dB typ.
: Narrow
40 dB min.
Middle
43 dB min.
Wide
45 dB min.
: 60–100% of max. deviation
1 - 1
5
/
(W)×4
16
5
/
(W)×4
16
21
/
oz.
32
17
/
oz.
32
Except [EUR], [UK]
[EUR], [UK]
3
7
⁄
(H)×1
⁄
(D) in.
8
32
3
13
⁄
(H)×1
⁄
(D) in.
8
32
Except [EUR], [UK]
[EUR], [UK]
