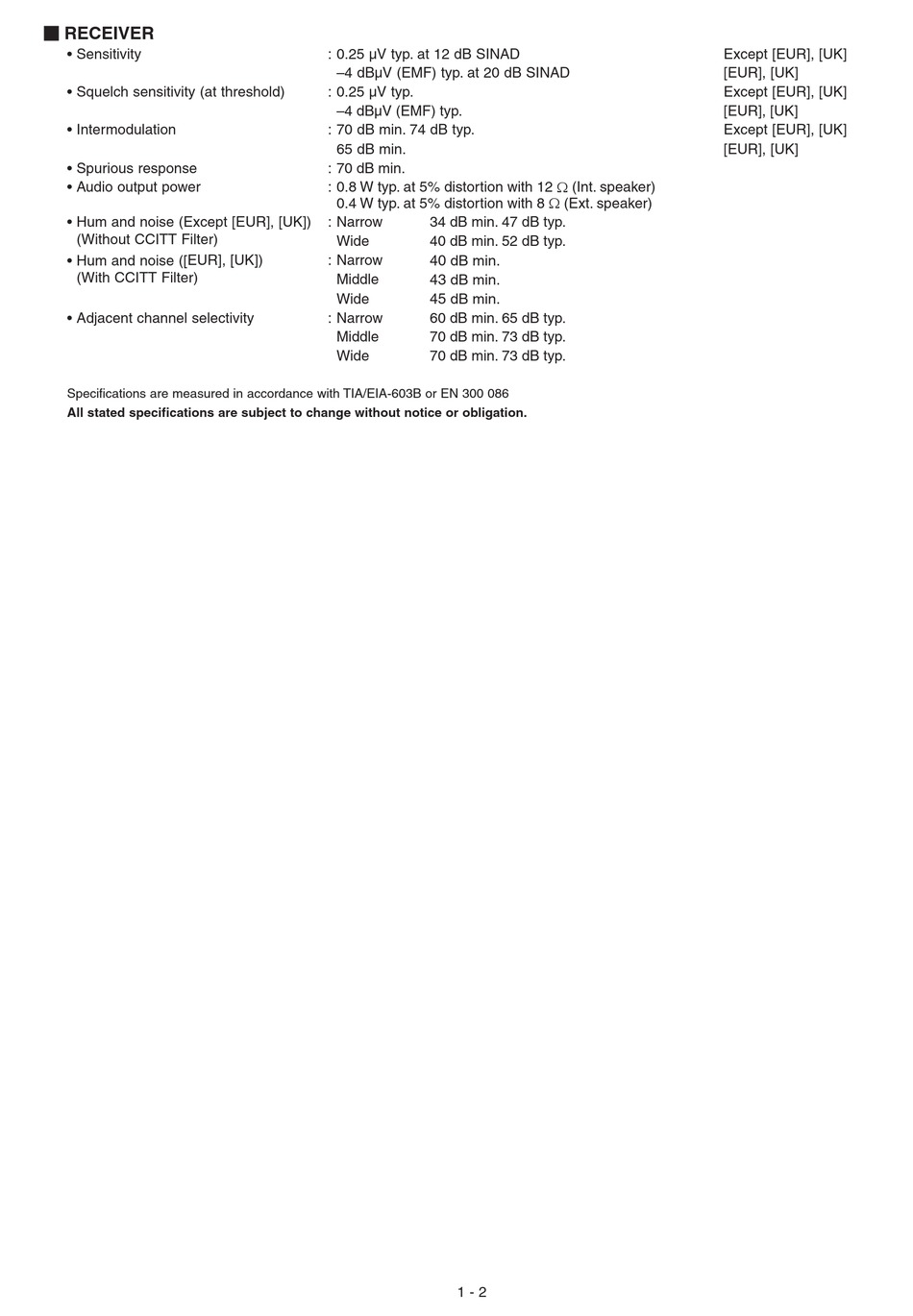

RECEIVER
• Sensitivity
• Squelch sensitivity (at threshold)
• Intermodulation
• Spurious response
• Audio output power
• Hum and noise (Except [EUR], [UK])
(Without CCITT Filter)
• Hum and noise ( [ EUR], [UK])
(With CCITT Filter)
• Adjacent channel selectivity
Specifications are measured in accordance with TIA/EIA-603B or EN 300 086
All stated specifications are subject to change without notice or obligation.
: 0.25 µV typ. at 12 dB SINAD
–4 dBµV (EMF) typ. at 20 dB SINAD
: 0.25 µV typ.
–4 dBµV (EMF) typ.
: 70 dB min. 74 dB typ.
65 dB min.
: 70 dB min.
: 0.8 W typ. at 5% distortion with 12 Ω (Int. speaker)
0.4 W typ. at 5% distortion with 8 Ω (Ext. speaker)
: Narrow
34 dB min. 47 dB typ.
Wide
40 dB min. 52 dB typ.
: Narrow
40 dB min.
Middle
43 dB min.
Wide
45 dB min.
: Narrow
60 dB min. 65 dB typ.
Middle
70 dB min. 73 dB typ.
Wide
70 dB min. 73 dB typ.
1 - 2
Except [EUR], [UK]
[EUR], [UK]
Except [EUR], [UK]
[EUR], [UK]
Except [EUR], [UK]
[EUR], [UK]
