Icom IC-F3002 Instructions

OPTIONS
D BATTERY PACK
Battery pack Voltage Capacity Battery life *
Battery case for
BP-263 —* 2
AA (LR6) × 6 alkaline
14.1
1400 mAh
VHF
hours
(minimum)
BP-264 7.2 V
1420 mAh
13.7
UHF
(typical)
hours
1900 mAh 20.2
VHF
hours
(minimum)
BP-265 7.4 V
2000 mAh
19.6
UHF
(typical)
hours
* 1 When the power save function is turned ON, and the operating
time is calculated under the following conditions.
TX : RX : Standby = 5 : 5 : 90
* 2 The average operating time depends on the alkaline cells.
D CHARGERS
• BC-191 + BC-123S
desktop charger ac adapter
For rapid charging of the Ni-MH battery pack. A power
adapter may be supplied with the charger, depending on
the version.
Charging time: Approximately 2 hours for the BP-264.
• BC-192 + BC-206S
desktop charger ac adapter
For regular charging of the Ni-MH battery pack. A power
adapter may be supplied with the charger, depending on
the version.
Charging time: Approximately 16 hours for the BP-264.
• BC-193 + BC-123S
desktop charger ac adapter
For rapid charging of the Li-ion battery pack. A power
adapter may be supplied with the charger, depending on
the version.
Charging time: Approximately 2.5 hours for the BP-265.
• BC-197 -
multi charger
For rapid simultaneous charging of up to 6 battery packs.
A power adapter may be supplied with the charger,
depending on the version. There are 2 types of the
BC-197 chargers for the IC-F3002 and the IC-F4002.
BC-197 Chargeable
Charging time
Charger Type Battery
BP-264 Approximately
With AD-120*
Ni-MH battery 2 hours
BP-265 Approximately
With AD-121*
Li-ion battery 2.5 hours
* Either the AD-120 or the AD-121 charger adapters are
installed in the BC-197, depending on the chargeable
battery pack.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
D DC POWER CABLES
• CP-23L
1 cigarette lighter cable
Enables charging of the battery pack through a 12 V
cigarette lighter socket. (For the BC-191/BC-193)
• OPC-515L
dc power cable
Enables charging of the battery pack using a power
source instead of a power adapter.
D BELT CLIPS
• MB-124
belt clip
Exclusive alligator-type belt clip
D ANTENNAS
• FA-SC73US/FA-SC56VS/FA-SC57VS
stubby antennas
FA-SC73US: 450 ~ 490 MHz
FA-SC56VS: 150 ~ 162 MHz
FA-SC57VS: 160 ~ 174 MHz
• FA-SC25U/FA-SC57U/FA-SC72U/ FA-SC25V/FA-SC55V
antennas
FA-SC25U: 400 ~ 430 MHz
FA-SC57U: 430 ~ 470 MHz
FA-SC72U: 470 ~ 520 MHz
FA-SC25V: 136 ~ 155 MHz
FA-SC55V: 146 ~ 174 MHz
• FA-SC61VC/FA-SC61UC
cut antennas
FA-SC61VC: 136 ~ 174 MHz
FA-SC61UC: 380 ~ 520 MHz
D OTHER OPTIONS
• AD-98FSC
antenna connector converter
Enables you to connect an external antenna with a BNC
connector.
• HM-158L/HM-159L -
speaker microphone
Combination speaker-microphone that provides
convenient operation while hanging the transceiver on
your belt.
• HS-94/HS-95/HS-97 + OPC-2004
headset plug adapter
cable
HS-94: Ear hook type
HS-95: Neck-arm type
HS-97: Throat microphone
OPC-2004: Enables you to connect the HS-94/HS-95/
HS-97 to the transceiver. After connecting,
you can use the VOX function.
Some options may not be available in some countries.
Ask your dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom
Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia, Australia, New Zealand, and/or other
countries.
- 4 -
A6798D-8EU

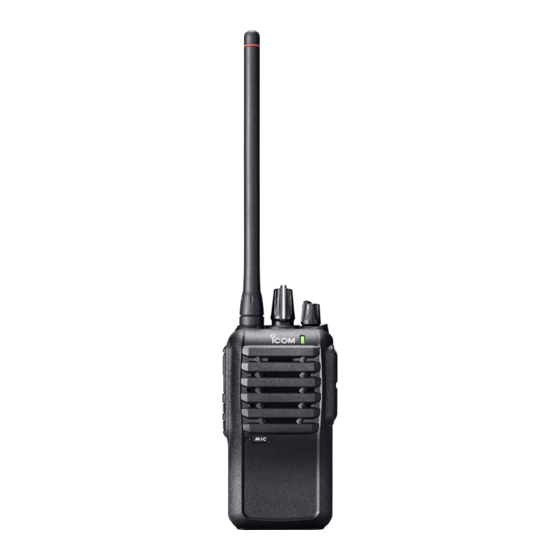

VHF TRANSCEIVER
Iç-F3002
UHF TRANSCEIVER
Iç-F4002
IMPORTANT
This instruction sheet includes some functions that are
usable only when they are preset by your dealer. The
transceiver may have other functions and operations that
are not described in this instruction sheet. Ask your dealer
for preset function details.
ANTENNA
CONNECTOR
[PTT]
[Upper]*
[Lower]*
* Dealer assignable
Printed in Japan
© 2017 Icom Inc.
INSTRUCTIONS
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.
SUPPLIED ACCESSORIES
Battery pack Flexible antenna
Jack cover
(with screws)
NOTE:
Some accessories are not supplied, or the shape is
different, depending on the transceiver version.
PANEL DESCRIPTION
D About the Status indicator
ROTARY • Lights red* while transmitting.
SELECTOR
* When the optional battery case is attached, the Status indicator
lights orange.
[VOL]
• Lights green while receiving a signal, or when the squelch
is open.
STATUS
• Lights or blinks orange when a matching 2-Tone or 5-Tone
INDICATOR
code is received, depending on the presetting.
SPEAKER
D About the speaker-microphone jack
SPEAKER-
MICROPHONE
Connect the optional speaker-microphone or VOX adapter
JACK
cable.
MICROPHONE
D About the assignable key functions
Your dealers can assign some functions to [Upper] and
[Lower]. Ask your dealer for preset function details.
- 1 -
Battery charger
Power adapter Belt clip
Jack cover
NOTE: Attach the jack cover
when optional equipment is not
used.
