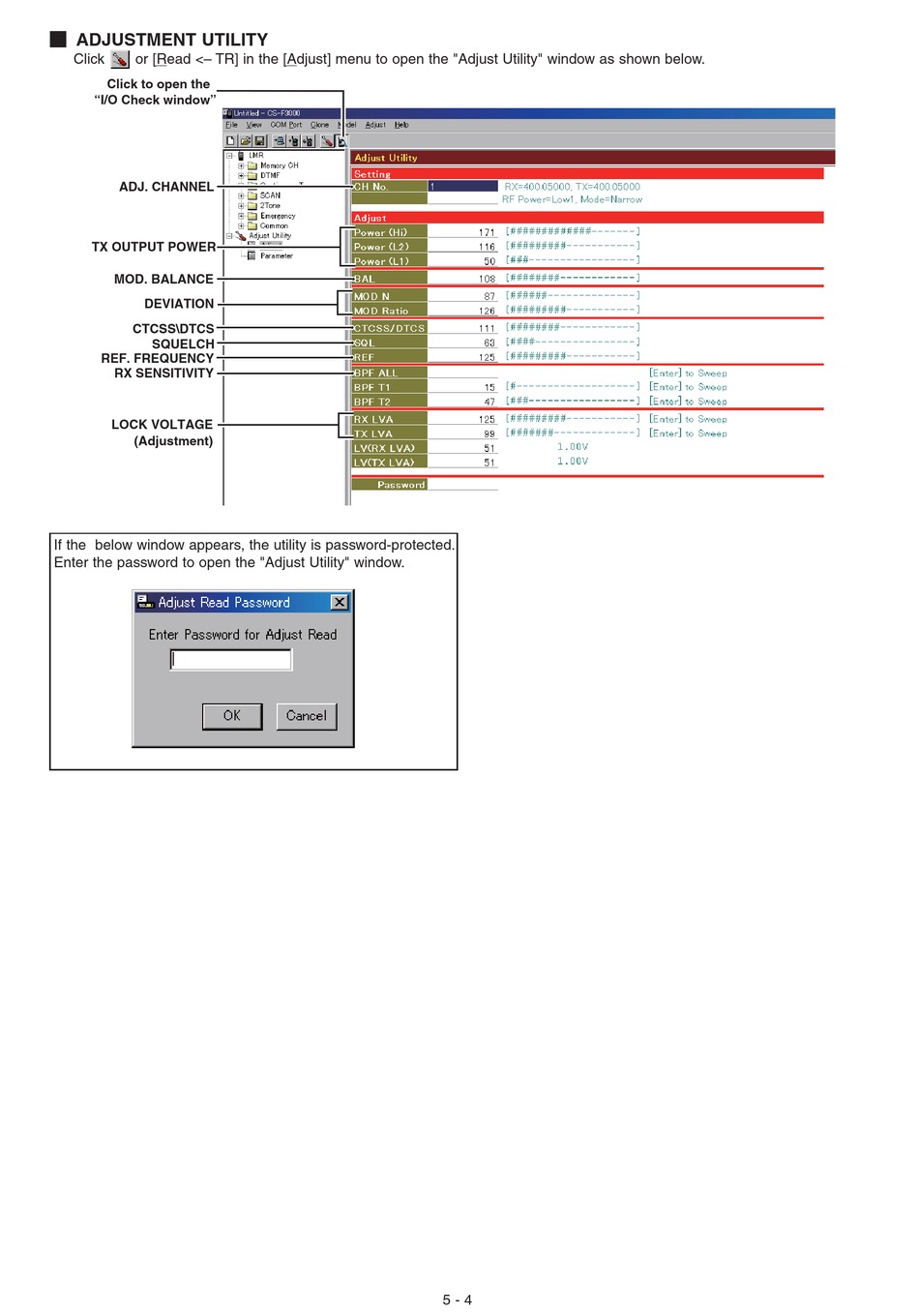

¤ ADJUSTMENT UTILITY
Click
or [Read <– TR] in the [Adjust] menu to open the "Adjust Utility" window as shown below.
Click to open the
"I/O Check window"
ADJ. CHANNEL
TX OUTPUT POWER
MOD. BALANCE
DEVIATION
CTCSS\DTCS
SQUELCH
REF. FREQUENCY
RX SENSITIVITY
LOCK VOLTAGE
(Adjustment)
If the below window appears, the utility is password-protected.
Enter the password to open the "Adjust Utility" window.
5 - 4
