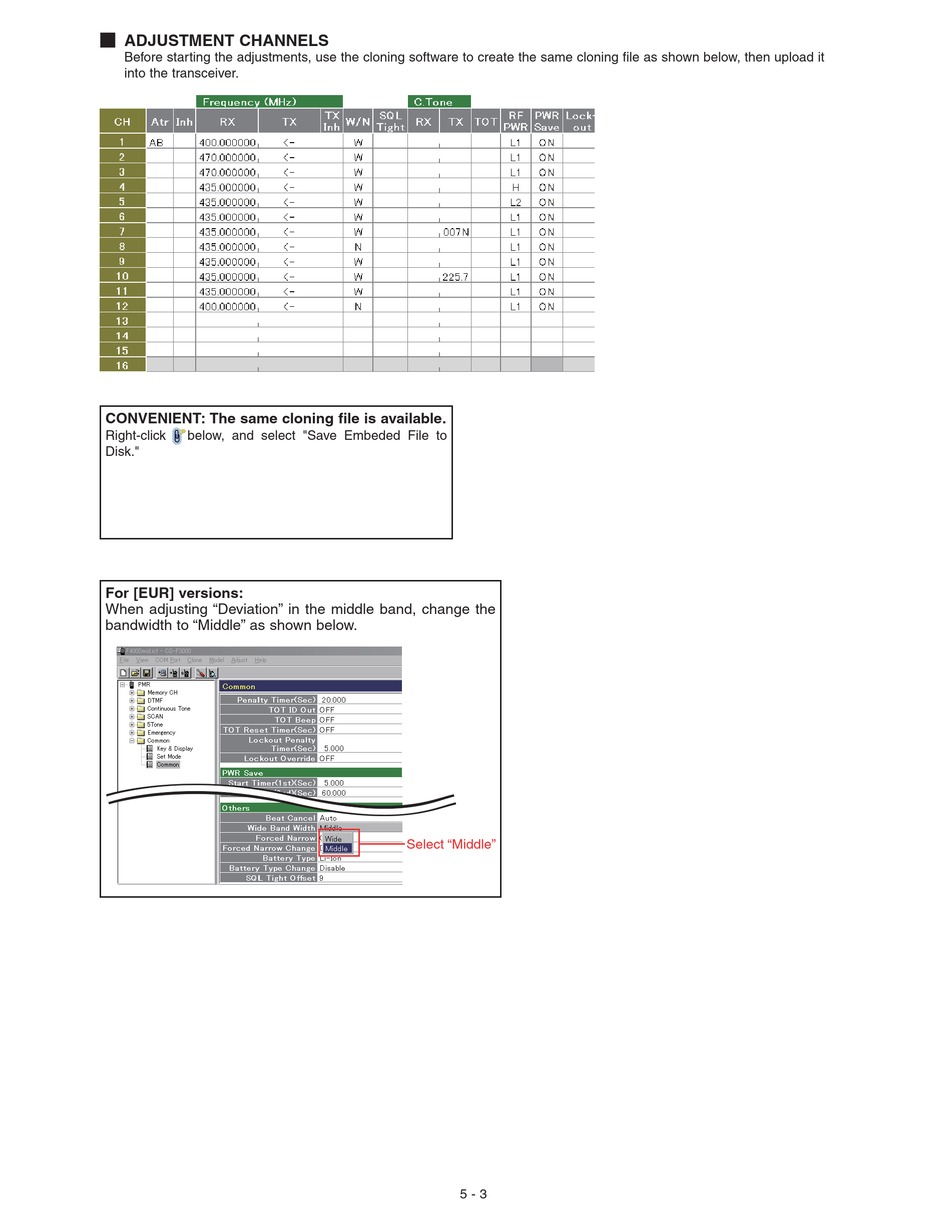

¤ ADJUSTMENT CHANNELS
Before starting the adjustments, use the cloning software to create the same cloning fi le as shown below, then upload it
into the transceiver.
CONVENIENT: The same cloning file is available.
Right-click
below, and select "Save Embeded File to
Disk."
For [EUR] versions:
When adjusting "Deviation" in the middle band, change the
bandwidth to "Middle" as shown below.
Select "Middle"
5 - 3
