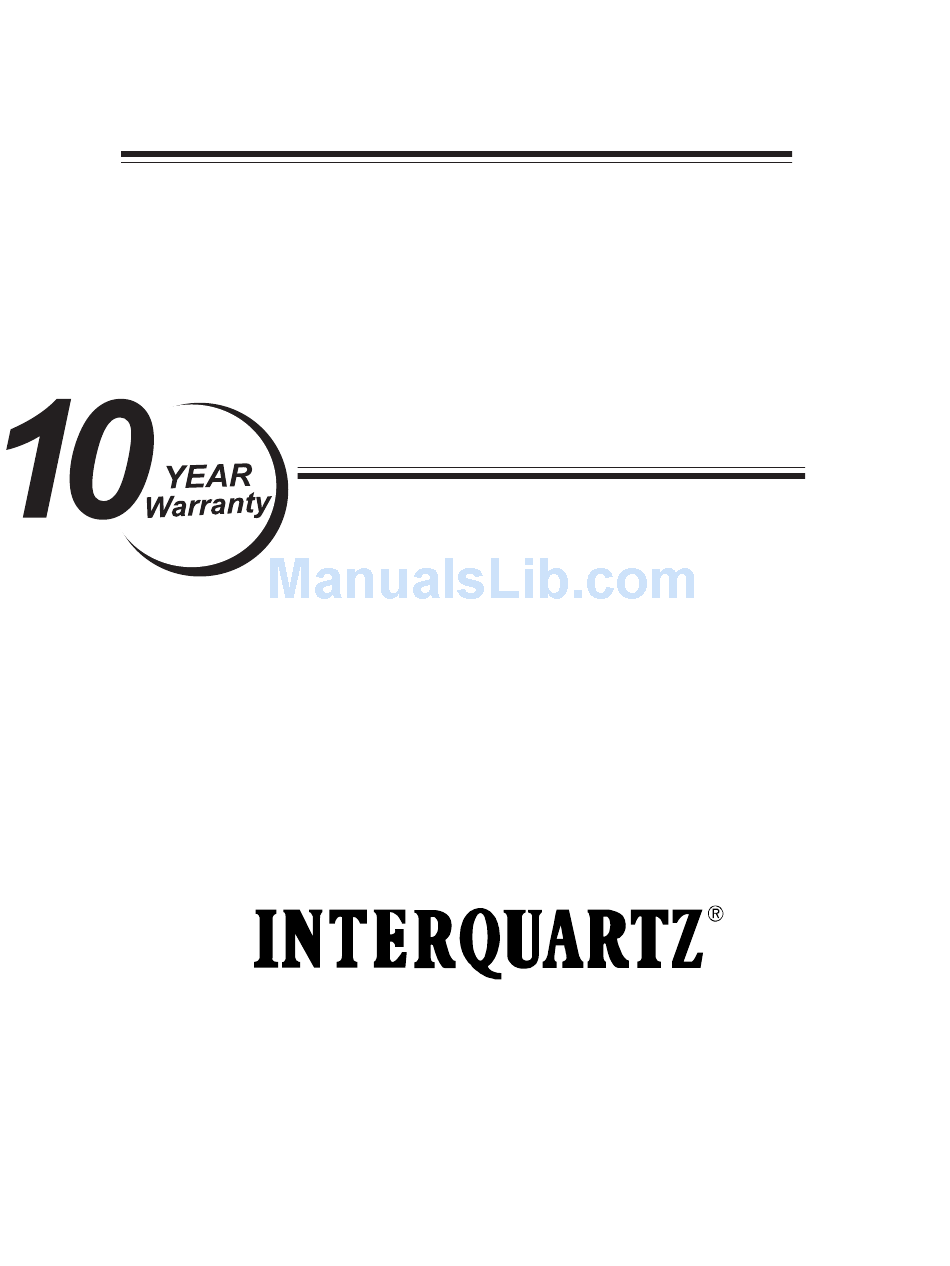

HANDSFREE HEADSET
TELEPHONE
MODEL IQ360
OPERATING INSTRUCTIONS
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interquartz IQ360

Summary of Contents for Interquartz IQ360

  • Page 1 HANDSFREE HEADSET TELEPHONE MODEL IQ360 OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    CONTENTS 1. FEATURES............... 3 2. GENERAL CONTROLS AND INDICATORS ....4 MULTIFUNCTIONAL INDICATOR LIGHT ................5 RINGER PITCH CONTROL ....................6 RINGER VOLUME SWITCH ....................6 ALPHA-NUMERIC KEYPAD ....................6 CRADLE SWITCH ......................... 6 VOLUME SLIDER ......................... 7 RECALL KEY ........................7 HEADSET KEY AND INDICATOR ..................
  • Page 3 5. ADVANCED NETWORK OPERATION ......13 PAUSE FUNCTION WHEN DIALLING ................. 13 HOLDING AND TRANSFERRING CALLS ................13 USING THE MEMORIES ..................... 13 6. MEMORY FEATURE OPERATION ....... 14 STORING A NUMBER ......................14 DIALING A NUMBER ......................14 CASCADE DIALING ......................14 MEMORY RETENTION .......................

  • Page 4: Features

    1. FEATURES • 10-YEAR WARRANTY • 5 YEAR memory retention • Handsfree operation for conference calling • Built in headset socket to suit a wide range of headset types • 10 one touch memory keys • Adjustable Headset/Handset/Handsfree hearing level with slider volume control •...

  • Page 5: General Controls And Indicators

    Alpha-numeric keypad allows full access to services that require the entering of numerals and letters • Fully modular connection provides maximum ease of installation on desk or wall 2. GENERAL CONTROLS AND INDICATORS FIGURE 1 : TOP VIEW OF IQ360...

  • Page 6: Multifunctional Indicator Light

    FIGURE 1 : BOTTOM VIEW OF IQ360 MULTIFUNCTIONAL INDICATOR LIGHT There are three different functions: Ring Indicator: Flashes when the telephone rings with an incoming call In-Use Indicator: Glows steadily during a call...

  • Page 7: Ringer Pitch Control

    Message-Waiting Indicator: Illuminates when a message is waiting in your voicemail system (depends on system compatibility). The built-in Message Waiting option suits any neon (80 VDC) type message waiting system and also the telephone has Ericsson BP250 Message Waiting built-in (other system types are optional extras).

  • Page 8: Volume Slider

    To release the mute condition press MUTE again. BASIC OPERATION IQ360 can be used as a normal telephone; lift the HANDSET to answer an incoming call, or lift the HANDSET and dial on the KEYPAD to commence an outgoing call.

  • Page 9: Redial / Pause Key

    REDIAL / PAUSE KEY Redial Function Press to redial the last number previously dialed, which may be up to 32 digits long. It can be used in handset and headset modes. Dialing more than 32 digits during one call will cause erasure of the entire number from the redial memory. EXAMPLE : TO REDIAL LAST NUMBER 1.

  • Page 10: Handsfree Operation

    3. HANDSFREE OPERATION HANDSFREE MICROPHONE Located at the front of the phone (Figure 1), its function is to reproduce your voice as you speak to the other party while your telephone is in HANDSFREE mode. Positioning of the telephone, and therefore the MICROPHONE, is important to ensure the best reproduction of your voice.

  • Page 11: Outgoing Calls Using Handsfree (Manual Or Memory Dialling)

    Outgoing calls using HANDSFREE (manual or memory dialling): 1. Press HANDSFREE 2. Dial required number on ALPHA-NUMERIC KEYPAD or press desired MEMORY 3. Speak as required. HINTS FOR HANDSFREE OPERATION As a courtesy, tell the other party that you are using the Handsfree function. He / She may or may not want people other than yourself to hear the conversation.

  • Page 12: Headset Operation

    4. HEADSET OPERATION The IQ360 can be configured to suit many different headsets - please consult the INSTALLATION section for details to get the best performance from your headset. BASIC OPERATION To make or receive an outgoing call using the headset: •...

  • Page 13: Supervisor Mode

    3. The trainee may continue the conversation with the supervisor only listening to its progress. Supervisor Mode Allows a supervisor to "take over" a call between a trainee and another party. 1. During a call, the supervisor may lift the HANDSET to continue a normal conversation with the other party.

  • Page 14: Advanced Network Operation

    Depending on your telephone system, this may or may not be required. If in doubt, check with your system supplier or Interquartz dealer, as failure to observe your system's requirements may lead to difficulty in making outgoing external calls. If you have determined that a pause is required by your host system, please refer to the PAUSE Function section to ensure correct usage of the PAUSE button.

  • Page 15: Memory Feature Operation

    MEMORY RETENTION The IQ360 telephone is capable of retaining its memory contents for up to 5 YEARS (battery supplied) even when the telephone line has been disconnected. To activate, remove the BATTERY PULL-OUT TAG (Figure 1). The IQ360 can retain its memory contents for up to 30 minutes when unplugged from its line cord (if the battery pull-out tag has not been removed).

  • Page 16: Installation

    7. INSTALLATION UNPACKING The carton contains the following : • Telephone body and handset • Coiled cord and line cord • 2 pieces of Alkaline AA battery (Remove battery tag from battery compartment). • This User Manual. SETTING THE FLASH TIME Set the TBR TIMING SWITCH to suit the PABX or host system’s required flash time.

  • Page 17: Location

    (Figure 2) to reverse the HANDSET RETAINER. 3. NOTE: The WALL MOUNT BRACKET and MODULAR WALL JACK illustrated in (Figure 2) are available from your authorised Interquartz dealer and can be ordered as "Wall Mount Kit No.3". FIGURE 2: WALL MOUNTING...
  • Page 18 FIGURE 2 : WALL MOUNT BRACKET IQ235 WALL-MOUNT BRACKET OPTIONAL NOT INCLUDED WITH PHONE LUG "B" LUG "A" MOUNTING HOLE "E" LUG "C" LUG "D" MOUNTING HOLE "F" Please note: 1. This wall bracket may be secured onto the wall by using mounting holes "E" and "F" 2.

  • Page 19: Line Connection

    TELEPHONE MODELS BREAK OFF LUGS IQ 260 IQ750EHS IQ 360 IQ281 "B" and "D" IQ 560E IQ283 IQ750 IQ333EHS IQ330 IQ335 IQ331 "B" ONLY IQ333 FIGURE 3 LINE CONNECTION This telephone is supplied with a hybrid plug that suits most common modular RJ style wall sockets, with the centre pair being reserved for speech and signaling.

  • Page 20: Headset Mic Adjust Control

    HEADSET MIC ADJUST CONTROL This control allows many different headsets on the Australian market to function correctly with the IQ 360 telephone by adjusting the HEADSET'S Microphone sensitivity . The control is located on the underside of the telephone. The adjustment can be made by a small screwdriver or similar implement that will fit into the control slot.
  • Page 21 FIGURE 4...
  • Page 22 TABLE 1...

  • Page 23: General Care And Maintenance

    "suspect" telephone. Test the "suspect" telephone on a known good line. If the fault still occurs, the fault is in the "suspect" telephone. Consult your Interquartz dealer for further advice if necessary.

  • Page 24: Thunderstorms

    10. WARRANTY - 10 YEARS TERMS OF WARRANTY Interquartz (A’Asia) Pty Ltd warrants the original purchaser against failure under normal usage resulting from defective material and workmanship. Proof of purchase and date of purchase are required for determining validity of this warranty. This warranty does not cover defects or damage...

  • Page 25: Warranty Coverage

    The warranty period is ten (10) years. Please contact Interquartz for confirmation of the coverage of your product, or consult the documentation supplied with the unit. Freight costs in sending goods to Interquartz and returning the goods to the owner, are not included in the warranty coverage.

  • Page 26: Service Centres

    Note: No undertaking is given or implied to automatically provide replacement units as a result of warranty claims (as we may prefer to repair the returned unit) and Interquartz reserves the right at all times to determine all matters related to warranty claims within the scope of the stated Terms of Warranty.
  • Page 27 Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. 3C9393013T03 ©Copyright INTERNATIONAL QUARTZ LTD. 2012...
