GEMINI SERIES
TELEPHONE
MODEL IQ330
OPERATING INSTRUCTIONS
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini IQ330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interquartz Gemini IQ330

Summary of Contents for Interquartz Gemini IQ330

  • Page 1 GEMINI SERIES TELEPHONE MODEL IQ330 OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    CONTENTS 1. FEATURES ............... 2 2. GENERAL CONTROLS AND INDICATORS ....3 MULTIFUNCTIONAL INDICATOR LIGHT ................4 RINGER VOLUME SWITCH ....................4 ALPHA-NUMERIC KEYPAD ....................4 CRADLE SWITCH ........................ 4 RECALL KEY ........................4 BASIC OPERATION ......................5 REDIAL / PAUSE KEY ......................5 HEARING-AID COMPATIBILITY ...................

  • Page 3: Features

    1. FEATURES • Tone dialing • Super bright LED ringer lamp allows visual ringing indication • Built-in switchable Message Waiting option to suit any neon (80 VDC) type message waiting system AND Ericsson BP250 Message Waiting (other system types optional) •...

  • Page 4: General Controls And Indicators

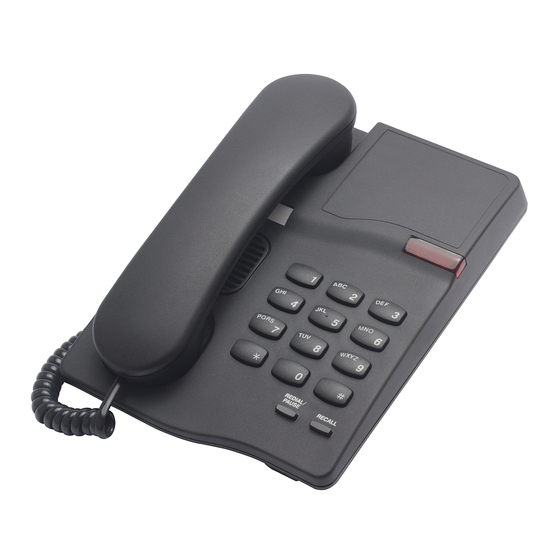

    2. GENERAL CONTROLS AND INDICATORS MULTIFUNCTIONAL INDICATOR LIGHT HANDSET HANDSET KEYPAD CORD RECALL KEY REDIAL / PAUSE KEY FIGURE 1 : TOP VIEW LINE SOCKET DATA SOCKET RINGER HI / LOW / OFF DATA PORT SWITCH (SHARED / SPLIT) SWITCH WALL MOUNT HOLE HANDSET SOCKET MESSAGE...

  • Page 5: Multifunctional Indicator Light

    MULTIFUNCTIONAL INDICATOR LIGHT There are two different functions: Ring Indicator: Flashes when the telephone rings with an incoming call Message-Waiting Indicator: Illuminates when a message is waiting in your voicemail system (depends on system compatibility). The built-in Message Waiting option suits any neon (80 VDC) type message waiting system and also the telephone has Ericsson BP250 Message Waiting built-in (other system types are optional extras).

  • Page 6: Basic Operation

    BASIC OPERATION The telephone can be used as a normal telephone; lift the HANDSET to answer an incoming call, or lift the HANDSET and dial on the KEYPAD to commence an outgoing call. Please refer to the appropriate sections to learn more about advanced operating instructions.

  • Page 7: Advanced Network Operation

    Depending on your telephone system, this may or may not be required. If in doubt, check with your system supplier or Interquartz dealer, as failure to observe your system's requirements may lead to difficulty in making outgoing external calls. If you have determined that a pause is required by your host system, please refer to the PAUSE Function section to ensure correct usage of the PAUSE button.

  • Page 8: Installation

    2. To enable the HANDSET to be supported in the cradle, follow the procedure shown in (Figure 2) to reverse the HANDSET RETAINER. 3. NOTE: The WALL MOUNT BRACKET and MODULAR WALL JACK illustrated in (Figure 2) are available from your authorised Interquartz dealer and can be ordered as "Wall Mount Kit No.3".
  • Page 9 1. Use your thumb to press the 2. Push the HANDSET RETAINER HANDSET RETAINER out of the slot. 3. Rotate the HANDSET 4. Insert the HANDSET RETAINER RETAINER by 180 back into its slot. FIGURE 2: WALL MOUNTING FIGURE 2 : WALL MOUNT BRACKET...
  • Page 10 WALL-MOUNT BRACKET OPTIONAL NOT INCLUDED WITH PHONE LUG "B" LUG "A" MOUNTING HOLE "E" PIVOT FOR SWING-OUT PLATE USED FOR MODEL IQTEL 25 LUG "C" LUG "D" MOUNTING HOLE "F" Please note: 1. This wall bracket may be secured onto the wall by using mounting holes "E" and "F" 2.

  • Page 11: Line Connection

    LINE CONNECTION This telephone is supplied with a RJ45 Plug as the wall plug, with the centre pair being reserved for speech and signaling. Other types of plugs and cords are available on request. TECHNICAL ADJUSTMENTS - FOR CORRECT OPERATION MESSAGE WAITING LIGHT COMPATIBILITY Located in the Multifunctional Indicator Light, the Message Waiting Light can be optionally configured at time of order to be compatible with most host telephone systems on the...

  • Page 12: Data Port Switch

    Different plug or cord types can be provided to suit your wall socket - please contact Interquartz or your dealer. The telephone will be factory set in Shared mode. The Data Port Mode Switch is found on the underside of the telephone.

  • Page 13: General Care And Maintenance

    "suspect" telephone. Test the "suspect" telephone on a known good line. If the fault still occurs, the fault is in the "suspect" telephone. Consult your Interquartz dealer for further advice if necessary.

  • Page 14: Thunderstorms

    This guarantee is in addition to all other Warranties or Guarantees expressed or implied by the Trade Practices Act or other Commonwealth or State laws and all other obligations and liabilities on the part of Interquartz (A'Asia) Pty. Ltd.

  • Page 15: Service Centres

    8. SERVICE CENTRES Please call 1800 6 IQTEL (1800 647 835) from anywhere in Australia to arrange service or repair of your telephone.
  • Page 16 Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. ©Copyright INTERNATIONAL QUARTZ LTD. 2002 3C933001-03B...
